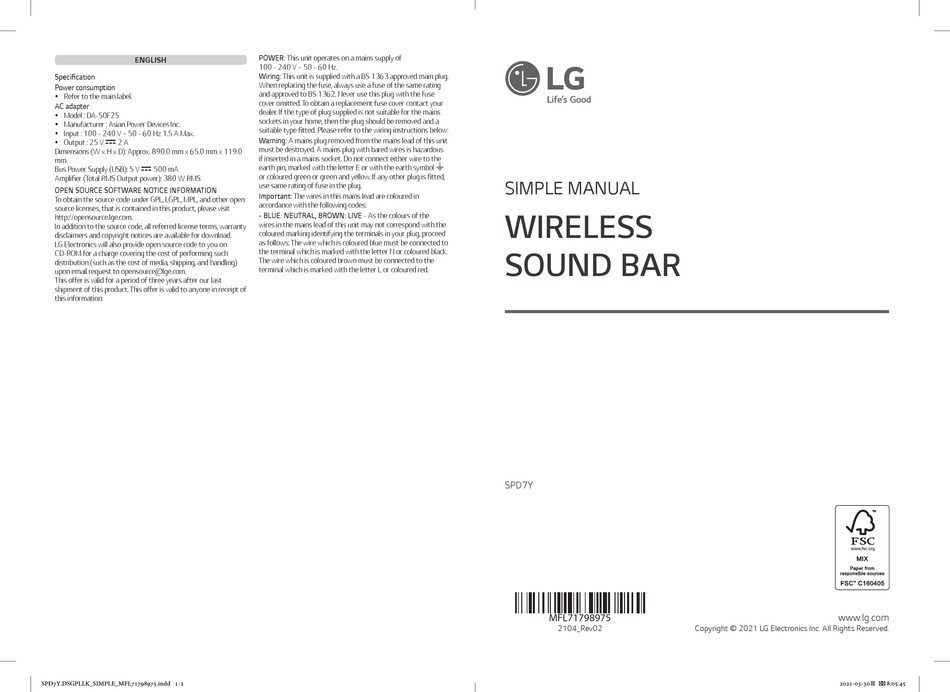

LG SPD7Y Simple Manual

ENGLISH
Specification
Power consumption
y Refer to the main label.
AC adapter
y Model : DA-50F25
y Manufacturer : Asian Power Devices Inc.
y Input : 100 - 240 V ~ 50 - 60 Hz 1.5 A Max.
y Output : 25 V 0 2 A
Dimensions (W x H x D): Approx. 890.0 mm x 65.0 mm x 119.0
mm
Bus Power Supply (USB): 5 V 0 500 mA
Amplifier (Total RMS Output power): 380 W RMS
OPEN SOURCE SOFTWARE NOTICE INFORMATION
To obtain the source code under GPL, LGPL, MPL, and other open
source licenses, that is contained in this product, please visit
http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on
CD-ROM for a charge covering the cost of performing such
distribution (such as the cost of media, shipping, and handling)
upon email request to opensource@lge.com.
This offer is valid for a period of three years after our last
shipment of this product. This offer is valid to anyone in receipt of
this information.
SPD7Y.DSGPLLK_SIMPLE_MFL71798975.indd 1-2
POWER: This unit operates on a mains supply of
100 - 240 V ~ 50 - 60 Hz.
Wiring: This unit is supplied with a BS 1363 approved main plug.
When replacing the fuse, always use a fuse of the same rating
and approved to BS 1362. Never use this plug with the fuse
cover omitted. To obtain a replacement fuse cover contact your
dealer. If the type of plug supplied is not suitable for the mains
sockets in your home, then the plug should be removed and a
suitable type fitted. Please refer to the wiring instructions below:
Warning: A mains plug removed from the mains lead of this unit
must be destroyed. A mains plug with bared wires is hazardous
if inserted in a mains socket. Do not connect either wire to the
earth pin, marked with the letter E or with the earth symbol 6
or coloured green or green and yellow. If any other plug is fitted,
use same rating of fuse in the plug.
Important: The wires in this mains lead are coloured in
accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours of the
wires in the mains lead of this unit may not correspond with the
coloured marking identifying the terminals in your plug, proceed
as follows: The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
SIMPLE MANUAL
WIRELESS
SOUND BAR
SPD7Y
MFL71798975
2104_Rev02
www.lg.com
Copyright © 2021 LG Electronics Inc. All Rights Reserved.
