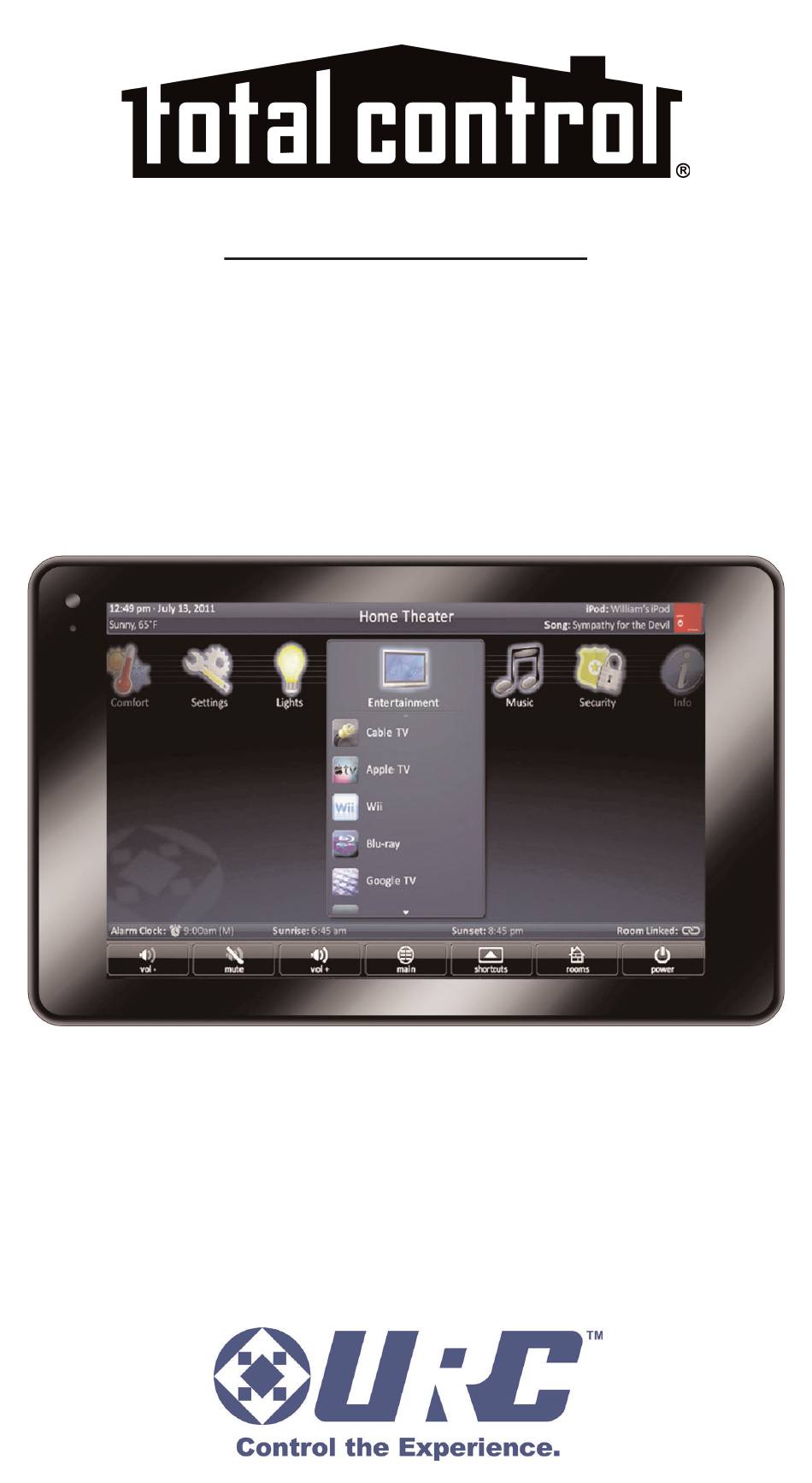

- Page 1 Owner's Manual TKP-7500 In-Wall Network Color Touchscreen...
- Page 2 URC - Control the Experience is a registered trademark of Universal Remote Control, Inc. Total Control is a registered trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.
-
Page 3: Table Of Contents
ABLE ONTENTS Introducing the TKP-7500 Parts List Installing the TKP-7500 Installation Adjusting User Settings on the TKP-7500 Specifications Limited Warranty Statement End User Agreement Federal Communication Commission Interference Statement Regulatory Information to the user... -
Page 4: Introducing The Tkp-7500
TKP-7500 I ETWORK OLOR OUCHSCREEN Introducing the TKP-7500 Thank you for purchasing URC's TKP-7500 In-Wall Network Color Touch-screen keypad. Its easy intuitive use will help simplify your life while adding control of more things than you thought possible. Enjoy some key features like: Rooms Menu With the touch of a single button, take control of your domain. - Page 5 TKP-7500 I ETWORK OLOR OUCHSCREEN Capacitive Touch screen Navigation just became easier; it's as simple as a “swipe” or “flick”. By incorporating gesture control, every screen can be explored by simple finger swipes while the on-board accelerometer supports flicking. Time & Weather Module A simple button press opens the Time &...
-
Page 6: Parts List
TKP-7500 I ETWORK OLOR OUCHSCREEN Parts List The TKP-7500 Network Keypad includes: 1 - TKP-7500 4 - Mounting Screws 1- Mounting Ring 1 - Owner’s Manual TKP-7500 Mounting Ring 4 Mounting Screws Owner’s Manual Page 3... -
Page 7: Installing The Tkp-7500
TKP-7500 I ETWORK OLOR OUCHSCREEN Installing the TKP-7500 The TKP-7500 is wall-mountable and fits easily into a dual-gang opening. Prior to installation, make sure power is available at the preferred location. Power can be supplied to the TKP-7500 through an Ethernet cable connected to a PoE (power over ethernet), in either of the following ways: Router/Switch... -
Page 8: Adjusting User Settings On The Tkp-7500
TKP-7500 I ETWORK OLOR OUCHSCREEN Adjusting User Settings on the TKP-7500 By pressing and holding the Main and Mute buttons for 5 seconds (found in the Core Menu) simultaneously the TKP-7500 Settings Menu will appear. Simultaneously press both the Main and Mute buttons to activate the Settings Menu. - Page 9 TKP-7500 I ETWORK OLOR OUCHSCREEN Sleep Settings Decide upon the option that best fits the current needs. LCD Screen is always ON: This option keeps the LCD screen illuminated at all times LCD Screen will turn OFF: This option allows the user to decide on the amount of time that the LCD screen will remain illuminated after it is last used.
- Page 10 TKP-7500 I ETWORK OLOR OUCHSCREEN General The General settings screen allows for setting the Time, Date and decide on the scale used to display the temperature(Fahrenheit/Celsius). To view the rest of the General settings menu, be sure to scroll up/down. Using the arrow found at the left and right sides of each property (hour, minutes, month, etc.) adjusts the value up, or down, respectively.
- Page 11 TKP-7500 I ETWORK OLOR OUCHSCREEN Sound By default, the TKP-7500 emits a low volume beep as a confirmation tone for screen presses. Use this menu to adjust thesound to your liking. Use the + or – buttons to raise or lower the volume of the confirmation beep.
- Page 12 TKP-7500 I ETWORK OLOR OUCHSCREEN Brightness Determine the overall brightness of the TKP-7500's display, or incorporate a light sensor that will adjust the brightness of the unit based upon ambient room lighting. Use the + or – buttons to raise or lower the level of brightness. Selecting Enable Light Sensor disables the Brightness Level selection and dynamically adjust the LCD brightness based upon the ambient room lighting detected by the light sensor.
- Page 13 TKP-7500 I ETWORK OLOR OUCHSCREEN Vibration Use this menu to adjust the TKP-7500’s touch screen sensitivity level. Use the + or – buttons to raise or lower the sensitivity level. Selecting OK will accept any changes made and return to the Main menu, as well as selecting Cancel will return the user to the Main menu, without incorporating any changes.
- Page 14 TKP-7500 I ETWORK OLOR OUCHSCREEN System Although none of the information can be modified, these System Pages will show important information about your TKP-7500. These pages should only be needed by a custom install professional, or technical support. Page 11...
- Page 15 TKP-7500 I ETWORK OLOR OUCHSCREEN Network This option will show important information about the current network, its settings and give the ability to edit the IP address of the TKP-7500. Be careful, these settings should only be edited by a professional. Entering values without specific information or instruction could easily result in the TKP-7500 failing to function correctly.
- Page 16 TKP-7500 I ETWORK OLOR OUCHSCREEN Factory Default This should only be attempted by a custom install professional that is familiar with Total Control, or under instruction from the manufacturer. Selecting this option will reset the TKP-7500 to factory default and the unit WILL NOT work until reprogrammed! Page 13...
-
Page 17: Specifications
TKP-7500 I ETWORK OLOR OUCHSCREEN Specifications Microphone: built-in type Speaker (Mono or Stereo): Stereo (0.5W x 2) Camera (Mega Pixel / Video Quality): 0.3Mega pixel / VGA Microprocessor: Double of ARM Cortex-A9 Core Memory: 4Gbytes of Flash, 512Mbyte of DDR2 SDRAM Devices: Supports up to 255 Devices Pages: Supports up to 255 Pages on each Device Macro Capability: Up to 255 steps... -
Page 18: Limited Warranty Statement
Limited Warranty Statement 1. Limited Warranty and Disclaimers Universal Remote Control, Inc. (“URC”) warrants that the URC equipment shall be free from defects in material and workmanship under normal usage for one (1) year from purchase when such is purchased from URC. This limited warranty is valid only in the United States of America. - Page 19 TKP-7500 I ETWORK OLOR OUCHSCREEN WITHOUT IN ANY WAY LIMITING THE GENERALITY OF THE OTHER PROVISIONS HEREIN, WARRANTY DOES NOT COVER: (I) DAMAGE FROM MISUSE, NEGLECT OR ACTS OR NATURE, (II) MODIFICATIONS, (III) INTEGRATION WITH THIRD PARTY CONTENT (IV) BEYOND THE WARRANTY PERIOD AND/ OR FAILURE TO FOLLOW URC WARRANTY CLAIM PROCEDURE.
-
Page 20: End User Agreement
TKP-7500 I ETWORK OLOR OUCHSCREEN URC’s PC programmable remotes or any of our Total Control® whole-house equipment are authorized for online internet sales. Buying URC’s PC programmable remotes or any of our Total Control® whole-house equipment online means buying equipment that does not have a URC’s limited warranty. Such equipment is not eligible for URC tech support or software support, either. -
Page 21: Federal Communication Commission
TKP-7500 I ETWORK OLOR OUCHSCREEN Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
