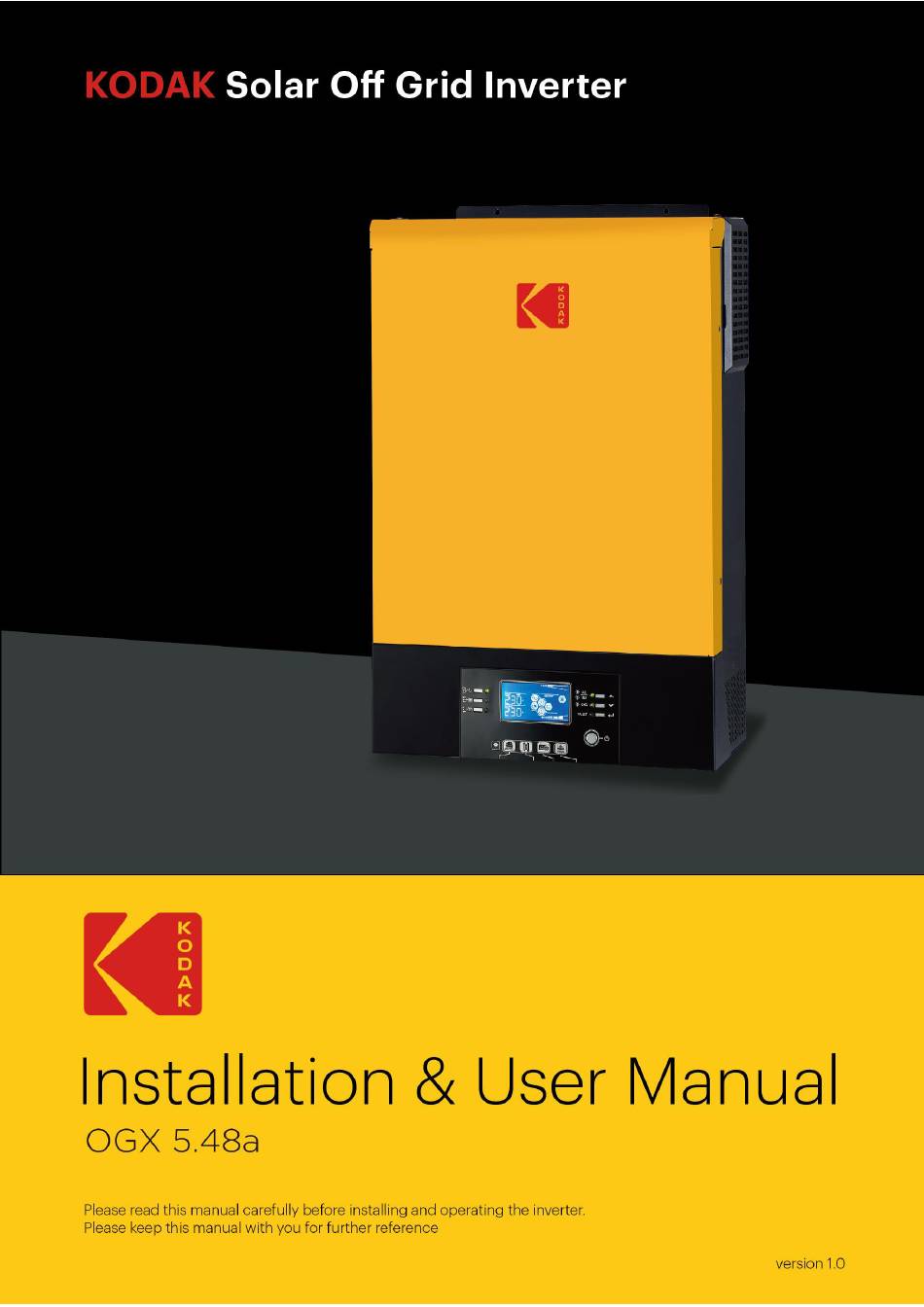

Kodak OGX 5.48a Installation & User Manual

Solar off grid inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Kodak OGX 5.48a

Summary of Contents for Kodak OGX 5.48a

  • Page 2 Table Of Contents ABOUT THIS MANUAL ............................1 Purpose ................................1 Scope ................................1 SAFETY INSTRUCTIONS ........................... 1 INTRODUCTION ..............................2 Product Overview ............................. 3 INSTALLATION ..............................4 Unpacking and Inspection..........................4 Preparation ..............................4 Mounting the Unit ............................. 4 Battery Connection ............................
  • Page 3 ABOUT THIS MANUAL Purpose This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read this manual carefully before installations and operations. Keep this manual for future reference. Scope This manual provides safety and installation guidelines as well as information on tools and wiring. SAFETY INSTRUCTIONS WARNING: This chapter contains important safety and operating instructions.
  • Page 4 INTRODUCTION This off-grid PV inverter can provide power to connected loads by utilizing PV power, utility power and battery power. Figure 1 Basic PV System Overview Depending on different power situations, this inverter is designed to generate continuous power from PV solar modules (solar panels), battery, and the utility.
  • Page 5 Product Overview NOTE: For parallel model installation and operation, please check separate parallel installation guide for the details. LCD display Status indicator Charging indicator Fault indicator Function buttons Power on/off switch AC input connectors AC output connectors (Load connection) PV connectors 10.
  • Page 6 INSTALLATION Unpacking and Inspection Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package: Inverter unit Software CD Manual Communication cable Preparation Before connecting all wirings, please take off bottom cover by removing two screws as shown below. Mounting the Unit Consider the following points before selecting where to install: Do not mount the inverter on flammable construction materials.
  • Page 7 Torque Amperage Capacity Value Cable Dimensions D (mm) L (mm) OGX 5.48a 135A 200AH 2*4AWG 49.7 2~3 Nm Please follow below steps to implement battery connection: 1. Assemble battery ring terminal based on recommended battery cable and terminal size. 2. Insert the ring terminal of battery cable flatly into battery connector of inverter and make sure the nuts are tightened with torque of 2-3 Nm.
  • Page 8 Suggested cable requirement for AC wires Model Gauge Torque Value OGX 5.48a 10 AWG 1.2~ 1.6 Nm Please follow below steps to implement AC input/output connection: 1. Before making AC input/output connection, be sure to open DC protector or disconnector first.
  • Page 9 To reduce risk of injury, please use the proper recommended cable size as below. Model Typical Amperage Cable Size Torque OGX 5.48a 12AWG 1.2~1.6Nm PV Module Selection: When selecting proper PV modules, please be sure to consider below parameters: 1.
  • Page 10 connectors. Then, connect positive pole (+) of connection cable to positive pole (+) of PV input connector. Connect negative pole (-) of connection cable to negative pole (-) of PV input connector. Recommended PV module Configuration PV Module Spec. Total solar input power Solar input Q'ty of modules (reference)
  • Page 11 Communication Connection Serial Connection Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer and follow on-screen instruction to install the monitoring software. For the detailed software operation, please check user manual of software inside of CD. Wi-Fi Connection This unit is equipped with a Wi-Fi transmitter.
  • Page 12 OPERATION Power ON/OFF Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch (located on the display panel) to turn on the unit. Operation and Display Panel The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes six indicators, six function keys, on/off switch and a LCD display, indicating the operating status and input/output power information.
  • Page 13 Function Keys Function Key Description Exit setting mode USB function setting Select USB OTG functions To last selection Down To next selection Enter To confirm the selection in setting mode or enter setting mode LCD Display Icons Icon Function description Input Source Information Indicates the AC input.
  • Page 14 In battery mode, it will present battery capacity. Load Percentage Battery Voltage LCD Display < 1.85V/cell 1.85V/cell ~ 1.933V/cell Load >50% 1.933V/cell ~ 2.017V/cell > 2.017V/cell < 1.892V/cell 1.892V/cell ~ 1.975V/cell Load < 50% 1.975V/cell ~ 2.058V/cell > 2.058V/cell Load Information Indicates overload.
  • Page 15 LCD Setting General Setting ” After pressing and holding “ button for 3 seconds, the unit will enter setting mode. Press “ ” or “ ” button to select setting programs. And then, press “ ” button to confirm the selection or “ ”...
  • Page 16 Appliances (Default) If selected, acceptable AC input voltage range will be within 90-280VAC. AC input voltage range If selected, acceptable AC input voltage range will be within 170-280VAC. Saving mode disable If disabled, no matter connected (default) load is low or high, the on/off status of inverter output will not be effected.
  • Page 17 Soltaro battery If selected, programs of 02, 26, 27 and 29 will be automatically set up. No need for further setting. BAK battery If selected, programs of 02, 26, 27 and 29 will be automatically set up. No need for further setting. Battery type LIb-protocol compatible Select “...
  • Page 18 50Hz (Default) 60Hz Output frequency 30A (Default) Maximum utility charging current Note: If setting value in program 02 is smaller than that in program in 11, the inverter will apply charging current from program 02 for utility charger. 100A...
  • Page 19 default setting: 46V Setting range is from 44V to 57V and increment of each click is 1V. Setting voltage point back to utility source when selecting “SBU” (SBU priority) or “SUB” (solar 5% (default) If “WECO battery” is selected in first) in program 01.
  • Page 20 Solar and Utility (Default) Solar energy and utility will charge battery at the same time. Only Solar Solar energy will be the only charger source no matter utility is available or not. If this inverter/charger is working in Battery mode or Power saving mode, only solar energy can charge battery.
  • Page 21 Alarm on (Default) Alarm off Beeps while primary source is interrupted Bypass disable (Default) Bypass enable Overload bypass: When enabled, the unit will transfer to line mode if overload occurs in battery mode. Record enable Record disable (Default) Record Fault code default setting: 56.4V If self-defined is selected in program 5, this program can be...
  • Page 22 L3 phase: default setting: 42.0V If self-defined is selected in program 5, this program can be set up. Setting range is from 40.0V to 54.0V. Increment of each click Low DC cut-off voltage is 0.1V. Low DC cut-off voltage will be fixed to setting value no matter what percentage of load is connected.
  • Page 23 60min (Default) Setting range is from 5min to 900min. Increment of each click is 5min. Battery equalized time 120min (Default) Setting range is from 5min to 900 min. Increment of each click is 5 min. Battery equalized timeout 30days (Default) Setting range is from 0 to 90 days.
  • Page 24 10 days (Default) 20 days 30 days 60 days For minute setting, the range is from Time setting – Minute 00 to 59. For hour setting, the range is from 00 Time setting – Hour to 23. For day setting, the range is from 00 Time setting–...
  • Page 25 Functional Setting There are three function keys on the display panel to implement special functions such as USB OTG and timer setting for charger source priority. 1. USB Function Setting Insert an OTG USB disk into the USB port ( ).
  • Page 26 Error message for USB On-The-Go functions: Error Code Messages No USB disk is detected. USB disk is protected from copying. Document inside the USB disk contains the wrong format. If any error occurs, error code will only show for 3 seconds. After 3 seconds, it will automatically return to the main screen.
  • Page 27 Display Setting The LCD display information will be switched in turns by pressing “ ” or “ ” key. The selectable information is switched as the following table in order. Selectable information LCD display Input Voltage=230V, output voltage=230V Input voltage/Output voltage (Default Display Screen) Input frequency=50Hz Input frequency...
  • Page 28 AC and PV charging current=50A PV charging current=50A Charging current AC charging current=50A AC and PV charging power=500W PV charging power=500W Charging power AC charging power=500W Battery voltage=50.0V, output voltage=230V Battery voltage and output voltage...
  • Page 29 Output frequency=50Hz Output frequency Load percent=70% Load percentage When connected load is lower than 1kVA, load in VA will present xxxVA like below chart. Load in VA When load is larger than 1kVA (≧1KVA), load in VA will present x.xkVA like below chart. When load is lower than 1kW, load in W will present xxxW like below chart.
  • Page 30 PV energy generated Today = 3.88kWh, Load output energy Today = 9.88kWh. PV energy generated today and Load output energy today PV energy generated this month = 388kWh, Load output energy this month = 988kWh. PV energy generated this month and Load output energy this month.
  • Page 31 Main CPU version 00014.04. Main CPU version checking. Secondary CPU version 00001.23. Secondary CPU version checking.
  • Page 32 Operating Mode Description Operating mode Behaviors LCD display Battery is charged by utility. Standby mode / Power saving mode Battery is charged by PV energy. Note: *Standby mode: The inverter is not turned on yet but at No output is supplied this time, the inverter can by the unit but it still charge battery without AC...
  • Page 33 Charging by utility and PV energy. Charging by utility. Output power from utility. Charger is available. Line mode Battery is not connected, solar energy and the utility will provide the loads. Power from utility. Output power from utility. Charger is available. Power from battery and PV energy.
  • Page 34 Faults Reference Code Fault Code Fault Event Icon on Fan is locked when inverter is off. Over temperature Battery voltage is too high Battery voltage is too low Output short circuited or over temperature is detected by internal converter components. Output voltage is too high.
  • Page 35 BATTERY EQUALIZATION Equalization function is added into charge controller. It reverses the buildup of negative chemical effects like stratification, a condition where acid concentration is greater at the bottom of the battery than at the top. Equalization also helps to remove sulfate crystals that might have built up on the plates. If left unchecked, this condition, called sulfation, will reduce the overall capacity of the battery.
  • Page 36 However, in Equalize stage, when battery equalized time is expired and battery voltage doesn’t rise to battery equalization voltage point, the charge controller will extend the battery equalized time until battery voltage achieves battery equalization voltage. If battery voltage is still lower than battery equalization voltage when battery equalized timeout setting is over, the charge controller will stop equalization and return to float stage.
  • Page 37 SPECIFICATIONS Table 1 Line Mode Specifications INVERTER MODEL OGX 5.48a Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 230Vac 170Vac± 7V (UPS) Low Loss Voltage 90Vac± 7V (Appliances) 180Vac± 7V (UPS); Low Loss Return Voltage 100Vac± 7V (Appliances) High Loss Voltage 280Vac±...
  • Page 38 Table 2 Inverter Mode Specifications INVERTER MODEL OGX 5.48a Rated Output Power 5KVA/5KW Pure Sine Wave Output Voltage Waveform 230Vac± 5% Output Voltage Regulation 60Hz or 50Hz Output Frequency Peak Efficiency Overload Protection 5s@≥150% load; 10s@110%~150% load 2* rated power for 5 seconds...
  • Page 39 Table 3 Charge Mode Specifications Utility Charging Mode INVERTER MODEL OGX 5.48a Charging Current (UPS) 100A @ Nominal Input Voltage Flooded 58.4 Bulk Charging Battery Voltage AGM / Gel 56.4 Battery Floating Charging Voltage 54Vdc Overcharge Protection 66Vdc Charging Algorithm 3-Step 2.43Vdc (2.35Vdc)
  • Page 40 TROUBLE SHOOTING Problem LCD/LED/Buzzer Explanation / Possible cause What to do Unit shuts down LCD/LEDs and buzzer automatically will be active for 3 The battery voltage is too low 1. Re-charge battery. during startup seconds and then (<1.91V/Cell) 2. Replace battery. process.
  • Page 41 Appendix I: Parallel function 1. Introduction This inverter can be used in parallel with two different operation modes. 1. Parallel operation in single phase with up to 9 units. The supported maximum output power is 45KW/45KVA. 2. Maximum nine units work together to support three-phase equipment. Seven units support one phase maximum.
  • Page 42 Step 3: Remove two screws as below chart to take out cover of parallel communication. Step 4: Install new parallel board with 2 screws tightly. Step 6: Connect 2-pin to original position. Step 7: Put communication board back to the unit. Step 8: Put wire cover back to the unit.
  • Page 43 Recommended AC input and output cable size for each inverter: Model AWG no. Torque OGX 5.48a 10 AWG 1.2~ 1.6Nm You need to connect the cables of each inverter together. Take the battery cables for example: You need to use a connector or bus-bar as a joint to connect the battery cables together, and then connect to the battery terminal.
  • Page 44 Recommended breaker specification of battery for each inverter: Model 1 unit* OGX 5.48a 135A/70VDC *If you want to use only one breaker at the battery side for the whole system, the rating of the breaker should be X times current of 1 unit. “X” indicates the number of inverters connected in parallel.
  • Page 45 5-1. Parallel Operation in Single phase Two inverters in parallel: Power Connection Load Communication Connection Three inverters in parallel: Power Connection Load Communication Connection...
  • Page 46 Four inverters in parallel: Power Connection Load Communication Connection Five inverters in parallel: Power Connection Load Communication Connection...
  • Page 47 Six inverters in parallel: Power Connection Load Communication Connection Seven inverters in parallel: Power Connection Load Communication Connection ❶ ❷ ❸ ❹ ❺ ❻ ❼...
  • Page 48 Eight inverters in parallel: Power Connection Load Communication Connection ❸ ❹ ❺ ❻ ❼ ❽ ❶ ❷ Nine inverters in parallel: Power Connection Load Communication Connection ❸ ❹ ❺ ❻ ❼ ❽ ❾ ❶ ❷ 5-2. Support 3-phase equipment Three inverters in each phase: Power Connection Load Communication Connection...
  • Page 49 Three inverters in one phase, three inverters in second phase and two inverter for the third phase: Power Connection Load Communication Connection ❶ ❷ ❸ ❹ ❺ ❻ ❼ ❽ Three inverters in one phase, two inverters in second phase and two inverters for the third phase: Power Connection Load Communication Connection...
  • Page 50 Two inverters in each phase: Power Connection Load Communication Connection Seven inverters in one phase and one inverter for the other two phases: Power Connection Load Note: It’s up to customer’s demand to pick 7 inverters on any phase. P1: L1-phase, P2: L2-phase, P3: L3-phase. Communication Connection ①...
  • Page 51 Four inverters in one phase and one inverter for the other two phases: Power Connection Load Communication Connection Three inverters in one phase, two inverters in second phase and one inverter for the third phase: Power Connection Load...
  • Page 52 Communication Connection Three inverters in one phase and only one inverter for the remaining two phases: Power Connection Load Communication Connection Two inverters in two phases and only one inverter for the remaining phase: Power Connection Load...
  • Page 53 Communication Connection Two inverters in one phase and only one inverter for the remaining phases: Power Connection Load Communication Connection One inverter in each phase: Power Connection Load...
  • Page 54 Communication Connection WARNING: Do not connect the current sharing cable between the inverters which are in different phases. Otherwise, it may damage the inverters. 6. PV Connection Please refer to user manual of single unit for PV Connection. CAUTION: Each inverter should connect to PV modules separately.
  • Page 55 7. LCD Setting and Display Setting Program: Program Description Selectable option Single: When the units are used in parallel with single phase, please select “PAL” in program Parallel: It is required to have at least 3 inverters or maximum 6 inverters to support three-phase equipment.
  • Page 56 8. Commissioning Parallel in single phase Step 1: Check the following requirements before commissioning: Correct wire connection  Ensure all breakers in Line wires of load side are open and each Neutral wires of each unit are connected  together. Step 2: Turn on each unit and set “PAL”...
  • Page 57 Step 6: Please switch on all breakers of Line wires in load side. This system will start to provide power to the load. Note 1: To avoid overload occurring, before turning on breakers in load side, it’s better to have whole system in operation first.
  • Page 58 Appendix II: BMS Communication Installation 1. Introduction If connecting to lithium battery, it is recommended to purchase a custom-made RJ45 communication cable. Please check with your dealer or integrator for details. This custom-made RJ45 communication cable delivers information and signal between lithium battery and the inverter.
  • Page 59 3. Installation and Operation PYLONTECH After configuration, please install LCD panel with inverter and Lithium battery with the following steps. Step 1. Use a custom-made RJ45 cable to connect inverter and Lithium battery. Please take notice for parallel system: 1. Only support common battery installation. 2.
  • Page 60 WECO Step 1. Use a custom-made RJ45 cable to connect inverter and Lithium battery. Please take notice for parallel system: 1. Only support common battery installation. 2. Use one custom-made RJ45 cable to connect any inverter (no need to connect to a specific inverter) and Lithium battery.
  • Page 61 SOLTARO Step 1. Use a custom-made RJ45 cable to connect inverter and Lithium battery. Please take notice for parallel system: 1. Only support common battery installation. 2. Use one custom-made RJ45 cable to connect any inverter (no need to connect to a specific inverter) and Lithium battery.
  • Page 62 Step 1. Use custom-made RJ45 cable to connect inverter and Lithium battery. Please take notice for parallel system: 1. Only support common battery installation. 2. Use one custom-made RJ45 cable to connect any inverter (no need to connect to a specific inverter) and Lithium battery.
  • Page 63 4. LCD Display Information Press “UP” or “DOWN” key to switch LCD display information. It will show battery pack and battery group number before “Main CPU version checking” as below screen. Selectable information LCD display Battery pack numbers & Battery Battery pack numbers = 3, battery group numbers = 1 group numbers 5.
  • Page 64 Appendix III: The Wi-Fi Operation Guide in Remote Panel 1. Introduction Wi-Fi module can enable wireless communication between off-grid inverters and monitoring platform. Users have complete and remote monitoring and controlling experience for inverters when combining Wi-Fi module with WatchPower APP, available for both iOS and Android based device. All data loggers and parameters are saved in iCloud.
  • Page 65 Then, a “Registration success” window will pop up. Tap “Go now” to continue setting local Wi-Fi network connection. Step 2: Local Wi-Fi Module Configuration Now, you are in “Wi-Fi Config” page. There are detailed setup procedure listed in “How to connect?” section and you may follow it to connect Wi-Fi.
  • Page 66 Step 3: Wi-Fi Network settings icon to select your local Wi-Fi router name (to access the internet) and enter password. Step 4: Tap “Confirm” to complete the Wi-Fi configuration between the Wi-Fi module and the Internet. If the connection fails, please repeat Step 2 and 3. Diagnose Function If the module is not monitoring properly, please tap “...
  • Page 67 2-3. Login and APP Main Function After finishing the registration and local Wi-Fi configuration, enter registered name and password to login. Note: Tick “Remember Me” for your login convenience afterwards. Overview After login is successfully, you can access “Overview” page to have overview of your monitoring devices, including overall operation situation and Energy information for Current power and Today power as below diagram.
  • Page 68 Devices Tap the icon (located on the bottom) to enter Device List page. You can review all devices here by adding or deleting Wi-Fi Module in this page. Add device Delete device icon on the top right corner and enter part number by scanning bar code to add Wi-Fi module. This part number is printed on the Wi-Fi module’s surface, or manually enter it.
  • Page 69 2-4. Device List In Device List page, you can pull down to refresh the device information and then tap any device you want to check up for its real-time status and related information as well as to change parameter settings. Please refer to the parameter setting list.
  • Page 70 【Battery Mode】 Inverter will power the load from the batter with or without PV charging. Only PV source can charge battery. Device Alarm and Name Modification In this page, tap the icon on the top right corner to enter the device alarm page. Then, you can review alarm history and detailed information.
  • Page 71 【Rated Information】displays information of Nominal AC voltage, Nominal AC current, Rated battery voltage, Nominal output voltage, Nominal output frequency, Nominal output current, Nominal output apparent power and Nominal output active power. Please slide up to see more rated information. 【History】displays the record of unit information and setting timely. 【Wi-Fi Module Information】displays of Wi-Fi Module PN, status and firmware version.
  • Page 72 discharge. Charger source To configure charger source priority. priority: Max. charging current It’s to set up battery charging parameters. The selectable values in Max. AC charging different inverter model may vary. current: Please see product manual for the details. Float charging voltage It’s to set up battery charging parameters.
  • Page 73 1226 2576 1000 1226 1500 2000 2500 OGX 5.48a 3000 3500 4000 4500 5000 Note: Backup time depends on the quality of the battery, age of battery and type of battery. Specifications of batteries may vary depending on different manufacturers.
