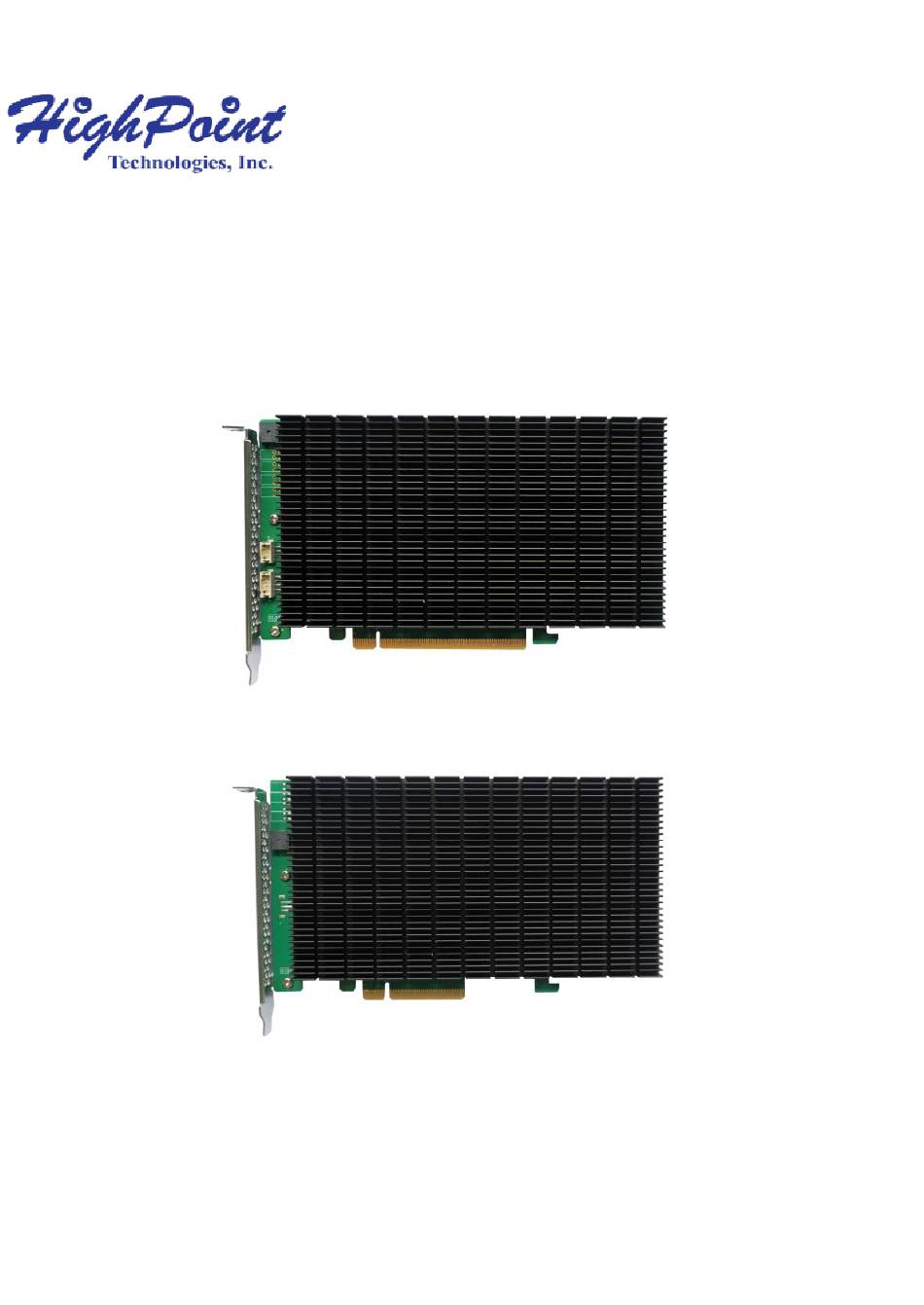

- Page 1 R1104/R1204 4x M.2 Port to PCIe 3.0 x8/x16 NVMe HBA’s R1104 R1204 Quick Installation Guide V1.00...
-
Page 2: System Requirements
System Requirements PC Requirements • System with a free PCIe 3.0 (or 4.0) slot: R1104: requires x16 slot R1204: x8 or x16 slot • Windows 10 or later, Windows Server 2019 • Linux Kernel 3.10 or later • MacOS 10.13 or later •... - Page 3 R1104 Hardware Front View Full-length black anodized, fan-less heatsink PCIe x16 host interface with Smart Switching...
- Page 4 R1204 Hardware Front View Fan-less, Full-length anodized aluminum Heat sink PCIe x8 host interface with Smart Switching...
- Page 5 R1104/R1204 Hardware Installation: Step 1. On the rear of the controller, remove the six screws that secure the unit’s heat sink to the PCB. Step 2. After removing the screws, carefully remove the heat sink from the controller card. Carefully turn the heatsink over to view the thermal pad.
- Page 6 Step 3. These 4 screws are used to install the NVMe SSD’s. The R1104 and R1204 can support any M.2 form factor (2242, 2260, 2280, and 22110). Step 4. Please remove the screws on the right side of R1104/R1204 Step 5. Gently insert the SSD into the slot.
- Page 7 Step 6. Refasten the screw to secure the SSD. Repeat Steps 3 to 5 to install the remaining SSD. Note: Make sure the SSD’s are carefully, but securely installed into each M.2 port. Loose connections can cause a variety of stability and performance issues, and may ultimately result in data loss.
- Page 8 Step 7. Replace the heat sink after installing all SSDs Step 8. On the rear of the R1104/R1204, refasten the six screws that were removed in step 1. Note: Make sure the heatsink is properly aligned with the controller board (PCB), and that it makes full contact with the thermal pad, before refastening it to the NVMe HBA.
-
Page 9: Customer Support
Customer Support If you encounter any problems while utilizing the R1104/R1204, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport/ HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
