USB
MULTI DISPLAY
ADAPTER
QUICK START GUIDE
410-3299-503A / ACA928EUZ
Contents

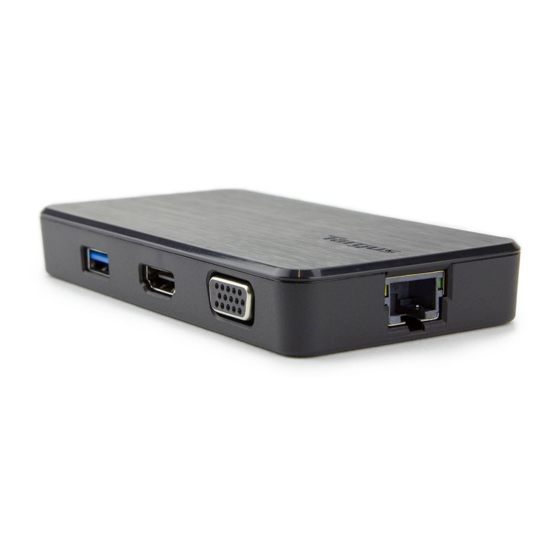

• Targus USB Multi Display Adapter
Workstation Setup
1. Connect all peripheral devices to the docking station
2. Connect the Targus USB Multi Display adapter to your host
device.
Specifications
• USB 3.0 upstream cable
• Dual video ports (1 x HDMI; 1 x VGA), supports dual video mode
• 2 x USB 3.0 downstream port
• Gigabit Ethernet
• USB 2.0 Micro B for optional self-powered mode (DC 5V, sold separately)
+
2 Year Warranty
Features and specifications are subject to change without notice. Microsoft and
Windows are registered trademarks of Microsoft Corporation in the United States
and/or other countries. All trademarks and registered trademarks are the property of
their respective owners. ©2017 Manufactured or imported by Targus Europe Ltd.,
Feltham, Middlesex TW14 8HA, UK.
Docking Station Diagram
USB 3.0 Cable
USB 3.0
USB Micro B
(Optional for additional power sold separately, non-data port)
USB 3.0
HDMI w/Audio
VGA
RJ-45
Gigabit Ethernet
GB-1
