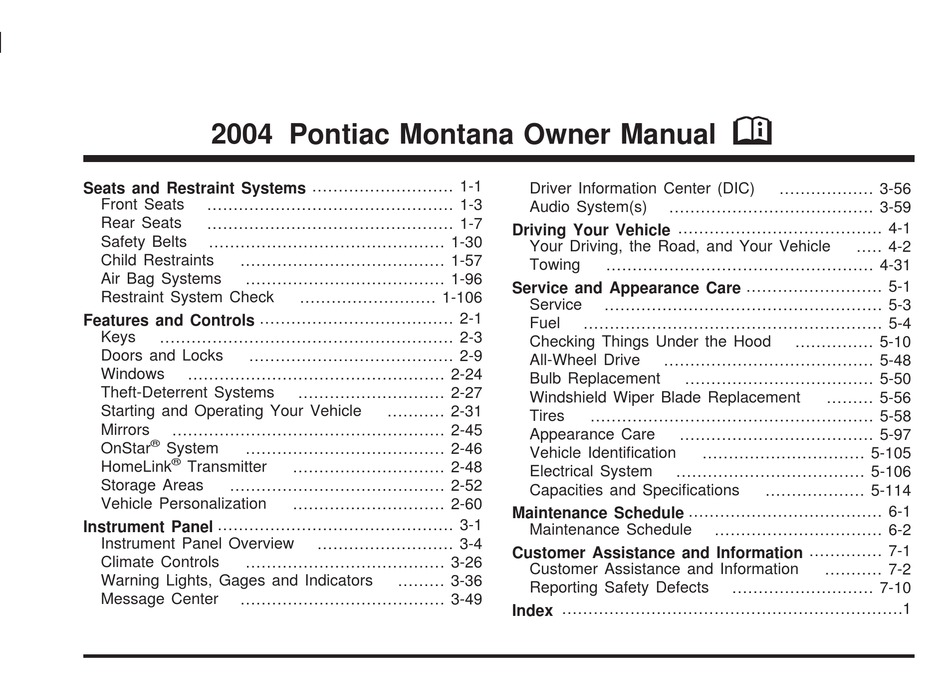

2004 Pontiac Montana Owner Manual

Seats and Restraint Systems ........................... 1-1

Front Seats

............................................... 1-3

Rear Seats

............................................... 1-7

Safety Belts

............................................. 1-30

Child Restraints

....................................... 1-57

Air Bag Systems

...................................... 1-96

Restraint System Check

Features and Controls ..................................... 2-1

Keys

........................................................ 2-3

Doors and Locks

....................................... 2-9

Windows

................................................. 2-24

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................... 2-45

OnStar

System

...................................... 2-46

HomeLink

Transmitter

Storage Areas

......................................... 2-52

Vehicle Personalization

Instrument Panel ............................................. 3-1

Instrument Panel Overview

Climate Controls

...................................... 3-26

Warning Lights, Gages and Indicators

Message Center

....................................... 3-49

.......................... 1-106

............................ 2-27

........... 2-31

............................. 2-48

............................. 2-60

.......................... 3-4

......... 3-36

Driver Information Center (DIC)

Audio System(s)

....................................... 3-59

Driving Your Vehicle ....................................... 4-1

Your Driving, the Road, and Your Vehicle

Towing

................................................... 4-31

Service and Appearance Care .......................... 5-1

Service

..................................................... 5-3

Fuel

......................................................... 5-4

Checking Things Under the Hood

All-Wheel Drive

........................................ 5-48

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

...................................................... 5-58

Appearance Care

..................................... 5-97

Vehicle Identiﬁcation

Electrical System

.................................... 5-106

Capacities and Speciﬁcations

Maintenance Schedule ..................................... 6-1

Maintenance Schedule

Customer Assistance and Information .............. 7-1

Customer Assistance and Information

Reporting Safety Defects

Index .................................................................1

.................. 3-56

............... 5-10

.................................... 5-50

......... 5-56

............................... 5-105

................... 5-114

................................ 6-2

........... 7-2

........................... 7-10

..... 4-2

Table of Contents

Chapters

Table of Contents

Summary of Contents for Pontiac 2004 Montana

Page 1 2004 Pontiac Montana Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-3 Rear Seats ... 1-7 Safety Belts ... 1-30 Child Restraints ... 1-57 Air Bag Systems ... 1-96 Restraint System Check ... 1-106 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
GENERAL MOTORS, GM, the GM Emblem, PONTIAC, the PONTIAC Emblem and the name MONTANA are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice.
Page 3 Safety Warnings and Symbols You will ﬁnd a number of safety cautions in this book. We use a box and the word CAUTION to tell you about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4 Vehicle Damage Warnings Also, in this book you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice will tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly.
Page 5 These are some examples of symbols you may ﬁnd on your vehicle:...
Page 6 NOTES...
Page 7: Seats And Restraint Systems
Section 1 Front Seats ...1-3 Manual Seats ...1-3 Six-Way Power Seats ...1-4 Heated Seats ...1-4 Reclining Seatbacks ...1-5 Head Restraints ...1-7 Rear Seats ...1-7 Rear Seat Operation ...1-7 Second Row Safety Belt Stowage ...1-7 Flip and Fold Feature ...1-8 Split Bench Seats ...1-8 Bucket Seats ...1-16 Captain Chairs ...1-22 Stowable Seat ...1-27...
Page 8: Table Of Contents
Section 1 Securing a Child Restraint in a Rear Outside Seat Position ...1-72 Securing a Child Restraint in a Center Seat Position (Third Row Bench Seat) ...1-76 Securing a Child Restraint in a Center Seat Position (Bucket Seat) ...1-78 Securing a Child Restraint in the Right Front Seat Position ...1-80 Built-In Child Restraint ...1-84 Air Bag Systems ...1-96...
Page 9: Front Seats
Front Seats Manual Seats Use the lever located on the front of the seat to adjust the seat forward or rearward. Pull up the lever to unlock the seat. Slide the seat to where you want it and release the lever. CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle...
Page 10: Six-Way Power Seats
Six-Way Power Seats Your vehicle may have this feature. If it does, the six-way power seat control is located on the outboard sides of the driver’s and front passenger’s seats. • Move the front of the control up or down to adjust the front portion of the cushion up or down.
Page 11: Reclining Seatbacks
Reclining Seatbacks To adjust a seatback, pull up on the lever located on the outboard side of the driver’s or front passenger’s seats. Release the lever to lock the seatback where you want it. Push and pull on the seat to make sure it’s locked into position.
Page 12 But don’t have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job because it won’t be against your body.
Page 13: Rear Seats
Head Restraints Adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash. Head restraints are ﬁxed on some models and adjustable on others.
Page 14: Flip And Fold Feature
Flip and Fold Feature The rear seats in your vehicle can be folded forward. Use this feature for exiting and entering third row seats. 1. If the seats have the adjustable head restraints, push them fully down. 2. Fold the seatback ﬂat on the seat, by either pulling on the nylon strap on the rear of the...
Page 15: Second Row
Adjusting the Split Bench Seats (Second Row) The second row bench seats are adjustable. There are two adjustment levers on each section of the split bench seats to adjust the seat forward or rearward. One is located below the center, in the front of each section of the split bench.
Page 16 Folding or Reclining the Seatbacks CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
Page 17: Removing The Split Bench Seat
To raise a seatback, pull the nylon strap or lift the recliner lever while raising the seatback until it locks upright. Push and pull on the seatback to check that it is locked into place. To recline the seatback, pull the nylon strap or lift the recliner lever.
Page 18 5. From behind the bench seat, pull the nylon strap at the center of the base of the seat to release the rear latches from the ﬂoor pins. Do not let go of the strap until the seat is folded all the way forward.
Page 19: Replacing The Split Bench Seats
Replacing the Split Bench Seats CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
Page 20 Make sure the seat is in the full rear position before beginning this procedure. 1. Squeeze the angled bar toward the solid crossbar while placing the front hooks of the bench seat onto the front two ﬂoor pins. 1-14 2. Make sure the bench seat is angled so that the front hooks clear the ﬂoor pins.
Page 21 If the front latches are not attaching correctly, check that the seat is in the full rear position. 3. Firmly push the rear hooks onto the rear ﬂoor pins by pushing down on the rear of the seat. 4. Try to raise the seat to check that it is locked down. 5.
Page 22: Bucket Seats
Bucket Seats If your vehicle has the bucket seats, the seatbacks can be folded down or reclined. The seats can also be adjusted forward or rearward and removed. One of the bucket seats may be equipped with a built-in child restraint. See Built-In Child Restraint on page 1-84. 1-16 Adjusting the Bucket Seats There are two adjustment levers on each seat to adjust...
Page 23 The other lever is located on the rear of the bucket seat. Lift up either lever and slide the seat forward or rearward. Release the lever. Push and pull on the seat to make sure it is locked into place. Folding or Reclining the Seatbacks CAUTION: If the seatback isn’t locked, it could move...
Page 24: Removing The Bucket Seats
Nylon Strap To fold the seatback forward, pull the nylon strap located on the rear of the seat or lift up on the recliner lever located on the front of the seatback. The seatback will lock into place. To raise a seatback, pull the nylon strap or lift the recliner lever while raising the seatback until it locks upright.
Page 25 3. From behind the seat, pull the nylon strap, located at the base of the seat, to release the rear latches from the ﬂoor pins. You can also lift the lever on the side of the seat to release the rear latches from the ﬂoor pins. Do not let go of the strap or lever until the seat is folded all the way forward.
Page 26: Replacing The Bucket Seats
4. To unlatch the front latches, with the seat folded forward, squeeze the angled bar toward the straight crossbar. 5. Remove the seat by rocking it slightly forward, then toward the rear of the vehicle and then pulling it out. This should be done in one motion. 1-20 Replacing the Bucket Seats CAUTION:...
Page 27 CAUTION: A safety belt that is improperly routed, not properly attached, or twisted won’t provide the protection needed in a crash. The person wearing the belt could be seriously injured. After installing the seat, always check to be sure that the safety belts are properly routed and attached, and are not twisted.
Page 28: Captain Chairs
3. Firmly push the rear hooks onto the rear ﬂoor pins by pushing down the rear of the seat. 4. Try to raise the seat to check that it is locked down. 5. Lift the seatback recliner lever or pull the nylon strap on the back of the seat and raise the seatback until it locks upright.
Page 29 Folding or Reclining the Seatbacks CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
Page 30 Removing the Captain’s Chairs 2. The seat can then be lifted off the front ﬂoor pins and removed from the vehicle. 1. Pull the nylon strap behind the chair to release the rear hooks from the ﬂoor pins. 1-24...
Page 31: Replacing The Captain's Chairs
Replacing the Captain’s Chairs CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
Page 32 Make sure the seatbacks are in the upright position, the seat belts are on the correct side of the chairs and the second row captain’s chairs are in the full rear position before beginning this procedure. 1. Hook the front latches over the front ﬂoor pins. 1-26 2.
Page 33: Stowable Seat
Stowable Seat Your vehicle may have a stowable seat. The stowable seat is a full bench seat and comes with the convenience center. See Convenience Center on page 2-58 for more information. The stowable seat can be removed and replaced, or with the seatback folded, it can lie ﬂush with the convenience center.
Page 34: Removing The Stowable Seat
Removing the Stowable Seat 1. Remove the convenience center, if it is in the vehicle. See Convenience Center on page 2-58 for more information. 2. Make sure all items are off of the stowable seat. 3. If the seatback is down, put the seatback in its upright position before removing the seat.
Page 35: Replacing The Stowable Seat
Replacing the Stowable Seat CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
Page 36: Safety Belts
Make sure the seat is in its upright position before beginning this procedure. 1. Place the front hooks of the seat onto the front ﬂoor pins in the third row. To do this, the seat will need to be angled so the front hooks clear the ﬂoor pins.
Page 37 CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 38: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it’s just a seat on wheels. 1-32...
Page 39 Get it up to speed. Then stop the vehicle. The rider doesn’t stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield... 1-33...
Page 40 or the instrument panel... 1-34 or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense.
Page 41 Questions and Answers About Safety Belts Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? You could be – whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down.
Page 42: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 1-57 or Infants and Young Children on page 1-59.
Page 43 Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 5. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder belt. The lap part of the belt should be worn low and snug on the hips, just touching the thighs.
Page 44: Shoulder Belt Height Adjuster
Shoulder Belt Height Adjuster Before you begin to drive, move the shoulder belt adjuster to the height that is right for you. 1-38 To move it down, push down on the button and move the height adjuster to the desired position. You can move the adjuster up just by pushing up on the shoulder belt guide.
Page 45 What’s wrong with this? The shoulder belt is too loose. It won’t give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body.
Page 46 What’s wrong with this? The belt is buckled in the wrong place. 1-40 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 47 What’s wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries.
Page 48 What’s wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-42 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 49 What’s wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 50 To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 51: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they don’t wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 52: Right Front Passenger Position
Right Front Passenger Position To learn how to wear the right front passenger’s safety belt properly, see Driver Position on page 1-36. The right front passenger’s safety belt works the same way as the driver’s safety belt – except for one thing. If you ever pull the shoulder portion of the belt out all the way, you will engage the child restraint locking feature.
Page 53 When you sit in the center position bucket seat, you have a lap safety belt which has a retractor. 1. Pick up the latch plate and, in a single motion, pull the belt across you. Don’t let it get twisted. 2.
Page 54: Center Passenger Position
Center Passenger Position (Bench Seat) 1-48 Lap Belt If your vehicle has a third row rear bench seat, someone can sit in the center position. When you sit in the center position of the bench seat, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt.
Page 55 To make the belt shorter, pull its free end as shown until the belt is snug. Buckle, position and release it the same way as the lap part of a lap-shoulder belt. If the belt isn’t long enough, see Safety Belt Extender on page 1-56. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 56: Rear Seat Passengers
Rear Seat Passengers It’s very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who aren’t safety belted can be thrown out of the vehicle in a crash.
Page 57 In the third row, if the belt stops before it reaches the buckle, tilt the latch plate and keep pulling until you can buckle it. Third Row Outside Passenger Position Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock.
Page 58 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 59 The safety belt locks if there’s a sudden stop or a crash, or if you pull the belt very quickly out of the retractor. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 60 Rear Safety Belt Comfort Guides for Children and Small Adults Rear safety belt comfort guides will provide added safety belt comfort for older children who have outgrown booster seats and for small adults. When installed on a shoulder belt, the comfort guide better positions the belt away from the neck and head.
Page 61 2. Place the guide over the belt and insert the two 3. Be sure that the belt is not twisted and it lies ﬂat. edges of the belt into the slots of the guide. The guide must be on top of the belt. 1-55...
Page 62: Safety Belt Pretensioners
4. Buckle, position and release the safety belt as described in Rear Seat Passengers on page 1-50. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides.
Page 63: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. If you have the choice, a child should sit next to a window so the child can wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. What is the proper way to wear safety belts? If possible, an older child should wear a lap-shoulder belt and get the additional restraint a...
Page 64 1-58 CAUTION: Never do this. Here two children are wearing the same belt. The belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
Page 65: Infants And Young Children
CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 66 Every time infants and young children ride in vehicles, they should have the protection provided by appropriate restraints. Young children should not use the vehicle’s adult safety belts alone, unless there is no other choice. Instead, they need to use a child restraint. 1-60 CAUTION: People should never hold a baby in their arms...
Page 67 CAUTION: Children who are up against, or very close to, any air bag when it inﬂates can be seriously injured or killed. Air bags plus lap-shoulder belts offer outstanding protection for adults and older children, but not for young children and infants.
Page 68 For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards.
Page 69: Child Restraint Systems
Child Restraint Systems An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous ﬂat surface. Make sure that the infant’s head rests toward the center of the vehicle.
Page 70 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields. 1-64 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness.
Page 71 How do child restraints work? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.
Page 72: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We, therefore, recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 73 In Canada, the law requires that forward-facing child restraints have a top strap, and that the strap be anchored. In the United States, some child restraints also have a top strap. If your child restraint has a top strap, it should be anchored. Don’t use a child restraint that requires a top strap in the right front passenger’s position because there’s no place to anchor the top strap.
Page 74: Top Strap Anchor Location
Top Strap Anchor Location Second Row 1-68 Third Row An anchor bar for a top strap is located at the rear of the seat cushion for each second and third row outboard seating position, and for the center position of the second row.
Page 75 The anchor bar for the stowable bench seat is located on the passenger’s side of the crossbar. Use the center seating position to use the anchor bar properly. If the convenience center is in the vehicle, you must lift the tray sill to use the anchor. Do not use a child restraint with a top strap in the right front passenger’s position, because there is no place to anchor the top strap.
Page 76 Lower Anchorages and Top Tethers for Children (LATCH System) Your vehicle has the LATCH system. You will ﬁnd anchors (A) in the second row outboard bucket seats, the 40 side of the 60/40 split bench seat, and both second row captain’s chairs. This system, designed to make installation of child restraints easier, does not use the vehicle’s safety belts.
Page 77 In order to use the LATCH system in your vehicle, you need a child restraint designed for that system. To assist you in locating the lower anchors for this child restraint system, each seating position with the LATCH system has a label on the seatback.
Page 78: Securing A Child Restraint In A Rear Outside Seat Position
Securing a Child Restraint Designed for the LATCH System (Rear) 1. Find the LATCH anchorages for the seating position you want to use, where the bottom of the seatback meets the back of the seat cushion. 2. Put the child restraint on the seat. 3.
Page 79 or local law requires that the top strap be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored. If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint.
Page 80 3. Buckle the belt. Make sure the release button is 4. Pull the rest of the shoulder belt all the way out of positioned so you would be able to unbuckle the the retractor to set the lock. safety belt quickly if you ever had to. 1-74...
Page 81 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 82: Securing A Child Restraint In A Center Seat Position (Third Row Bench Seat)
Securing a Child Restraint in a Center Seat Position (Third Row Bench Seat) If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-70. See Top Strap on page 1-66 if the child restraint has one. If your child restraint does not have the LATCH system, you’ll be using the lap belt to secure the child restraint in this position.
Page 83 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 5. To tighten the belt, pull its free end while you push down on the child restraint. If you’re using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 84: Securing A Child Restraint In A Center Seat Position (Bucket Seat)
Securing a Child Restraint in a Center Seat Position (Bucket Seat) If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-70. See Top Strap on page 1-66 if the child restraint has one. If your child restraint does not have the LATCH system, you’ll be using the lap belt to secure the child restraint in this position.
Page 85 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 5. To tighten the belt, feed it back into the retractor while you push down on the child restraint. If you’re using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 86: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position 1-80 Your vehicle has a front passenger air bag. Never put a rear-facing child restraint in this seat. Here’s why: CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the front passenger’s air bag inﬂates.
Page 87 If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-70. See Top Strap on page 1-66 if the child restraint has one. A rear seat is a safer place to secure a forward-facing child restraint.
Page 88 4. Buckle the belt. Make sure the release button is 5. Pull the rest of the lap belt all the way out of the positioned so you would be able to unbuckle the retractor to set the lock. safety belt quickly if you ever had to. 1-82...
Page 89 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. You may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 90: Built-In Child Restraint
Built-In Child Restraint 60/40 Bench Seat Bucket Seat 1-84...
Page 91 If your vehicle has this option in a bucket seat, each bucket seat that has the built-in child restraint ﬁts in only one location in your vehicle. To ﬁnd out where a bucket seat that has a built-in child restraint must be located in your vehicle see Rear Seat Operation on page 1-7.
Page 92: Securing A Child In The Built-In Child Restraint
A child whose weight is over 40 pounds, whose height is over 40 inches or whose shoulders are above the shoulder belt slots for the harness system, should be restrained in an add-on booster seat appropriate for the child’s size. See Child Restraint Systems on page 1-63.
Page 93 2. Rotate the head restraint rearward until it touches 3. Lower the child restraint cushion. the top of the seatback. Make sure there is no gap between the lower edge of the head restraint and the top of the seatback. 1-87...
Page 94 You will be using the child restraint’s harness (A) to secure your child. Do not use the vehicle’s safety belts. 1-88 CAUTION: Using the vehicle’s regular safety belts on a child seated on the built-in child restraint cushion can cause serious injury to the child in a sudden stop or crash.
Page 95 4. Before placing the child in the child restraint, add slack to the shoulder harness. Pull the black shoulder harness release strap ﬁrmly. At the same time pull both shoulder harness straps through the slots in the seatback as shown. 5.
Page 96 10. Pull up on the latch plates to make sure they are secure. 1-90 11. Now fasten the left and right halves of the shoulder harness clip together. The clip can be easily pulled apart and is designed to pull apart during a collision.
Page 97 CAUTION: A built-in child restraint harness that is not properly adjusted can cause injury to the child in a sudden stop or collision. A harness that is loose, twisted, worn improperly or improperly fastened will not be able to restrain the child’s upper body.
Page 98 13. Adjust the position of the harness on the child’s shoulder by moving the clip along the harness until it is level with the child’s armpits. On each side of the harness, the shoulder part should be centered on the child’s shoulder. The harness should be away from the child’s face and neck, but not falling from the child’s shoulders.
Page 99: Storing The Built-In Child Restraint
2. Unlatch the harness by pushing the button on the buckle. 3. Move one side of the harness off the child’s shoulder. 4. Move the other side of the harness off the child’s shoulder. 5. Remove the child from the child restraint cushion. Storing the Built-In Child Restraint Always properly store the built-in child restraint before using the vehicle’s lap-shoulder belt.
Page 100 2. Fold the child restraint cushion and leg rest up into the seatback. 3. Press the child restraint cushion ﬁrmly into the seatback. 1-94 4. Then press the leg rest ﬁrmly into the seatback, and secure it by pressing the upper corners against the fastener strips on the seatback.
Page 101 Just like the other restraint systems in your vehicle, your built-in child restraint needs to be periodically checked and may need to have parts replaced after a crash. See Checking Your Restraint Systems on page 1-106 and Replacing Restraint System Parts After a Crash on page 1-107.
Page 102: Air Bag Systems
Air Bag Systems This part explains the frontal and side impact air bag systems. Your vehicle has air bags – a frontal air bag for the driver and another frontal air bag for the right front passenger. Your vehicle may also have side impact air bags.
Page 103 CAUTION: (Continued) in many side crashes. And, for some unrestrained occupants, frontal air bags may provide less protection in frontal crashes than more forceful air bags have provided in the past. The side impact air bags for the driver and right front passenger are designed to inﬂate only in moderate to severe crashes where something hits the side of your vehicle.
Page 104 CAUTION: Anyone who is up against, or very close to, any air bag when it inﬂates can be seriously injured or killed. Air bags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its air bag system is designed for them.
Page 105: Where Are The Air Bags
Where Are the Air Bags? The driver’s frontal air bag is in the middle of the steering wheel. The right front passenger’s frontal air bag is in the instrument panel on the passenger’s side. 1-99...
Page 106 If your vehicle has one, the driver’s side impact air bag is in the side of the driver’s seatback closest to the door. 1-100 If your vehicle has one, the right front passenger’s side impact air bag is in the side of the passenger’s seatback closest to the door.
Page 107: When Should An Air Bag Inﬂate
CAUTION: If something is between an occupant and an air bag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating air bag must be kept clear. Don’t put anything between an occupant and an air bag, and don’t attach or put anything on the steering wheel hub or on or near any other air...
Page 108 If your vehicle strikes something that will move or deform, such as a parked car, the threshold level will be higher. The driver’s and right front passenger’s frontal air bags are not designed to inﬂate in rollovers, rear impacts, or in many side impacts because inﬂation would not help the occupant.
Page 109: What Makes An Air Bag Inﬂate
What Makes an Air Bag Inﬂate? In an impact of sufficient severity, the air bag sensing system detects that the vehicle is in a crash. For both frontal and side impact air bags, the sensing system triggers a release of gas from the inﬂator, which inﬂates the air bag.
Page 110: What Will You See After An Air Bag Inﬂates
What Will You See After an Air Bag Inﬂates? After the air bag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the air bag inﬂated. Some components of the air bag module will be hot for a short time. These components include the steering wheel hub for the driver’s frontal air bag and the instrument panel for the right front passenger’s frontal air bag.
Page 111 In many crashes severe enough to inﬂate an air bag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger air bag. • Air bags are designed to inﬂate only once. After an air bag inﬂates, you’ll need some new parts for your air bag system.
Page 112: Servicing Your Air Bag-Equipped Vehicle
Servicing Your Air Bag-Equipped Vehicle Air bags affect how your vehicle should be serviced. There are parts of the air bag systems in several places around your vehicle. Your dealer and the service manual have information about servicing your vehicle and the air bag systems.
Page 113: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 114 NOTES 1-108...
Page 115: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry System ...2-4 Remote Keyless Entry System Operation ...2-5 Doors and Locks ...2-9 Door Locks ...2-9 Power Door Locks ...2-10 Last Door Closed Locking ...2-11 Programmable Automatic Door Locks ...2-12 Lockout Protection ...2-13 Leaving Your Vehicle ...2-13 Dual Sliding Doors ...2-13 Power Sliding Door (PSD) ...2-16 Liftgate ...2-22...
Page 116 Section 2 Storage Areas ...2-52 Glove Box ...2-52 Cupholder(s) ...2-52 Compact Overhead Console ...2-52 Overhead Console ...2-53 Front Seat Storage Net ...2-55 Luggage Carrier ...2-55 Rear Storage Area ...2-56 Convenience Net ...2-57 Convenience Center ...2-58 Vehicle Personalization ...2-60 Entering Programming Mode ...2-60 Delayed Illumination and Exit Lighting ...2-61 Features and Controls Automatic Door Locks ...2-62...
Page 117: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed.
Page 118: Remote Keyless Entry System
® Your vehicle has the PASS-Key system. The key has a transponder in the key head that matches a decoder in the vehicle’s steering column. If a replacement key or any additional key is needed, you must purchase this key from your dealer. The key will have PK3 stamped on it.
Page 119: Remote Keyless Entry System Operation
At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: •...
Page 120: Remote Alarm
When you use your remote keyless entry transmitter to unlock your vehicle or to operate the power sliding door(s), the parking lamps will ﬂash to let you know the command was received. If you would like to change the way the parking lamps operate with remote unlock conﬁrmation, see Vehicle Personalization on page 2-60.
Page 121: Matching Transmitter(S) To Your Vehicle
If the power sliding door(s) is locked, ﬁrst unlock all doors, then press the van symbol to open the power sliding door(s). The parking lamps will ﬂash when the right button with the van symbol is pressed and they will not ﬂash when the left button with the van symbol is pressed.
Page 122: Battery Replacement
Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about three years. You can tell the battery is weak if the transmitter will not work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it is probably time to change the battery.
Page 123: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 124: Power Door Locks
From the inside, use the manual or power door locks. To unlock either front door from the inside, pull back on the manual lever. To lock either front door from the inside, push the manual lever forward. 2-10 Power Door Locks From the inside, press the front of the power door lock switch, located on either front door, to unlock all doors and the liftgate.
Page 125: Last Door Closed Locking
You can lock all doors and the liftgate from the inside by pressing the rear of the power lock switch on either front door. With the content theft-deterrent system, the power door lock switch may cause the system to arm. See Content Theft-Deterrent on page 2-27 for more details.
Page 126: Programmable Automatic Door Locks
Programmable Automatic Door Locks All of the doors will lock automatically when you move your shift lever out of PARK (P). All doors will unlock automatically when the ignition is turned off while the shift lever is in PARK (P). If someone needs to get out while you are not in PARK (P), have that person use the manual lever or the power door lock switch.
Page 127: Lockout Protection
Lockout Protection The lockout protection feature makes it difficult for you to lock your keys in your vehicle. If the driver’s door is open while the keys are in the ignition, a chime will sound and you will not be able to use your power door lock switch to lock the vehicle.
Page 128: Sliding Door Lock
Sliding Door Lock 2-14 CAUTION: If your vehicle is facing downward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone. To make sure the door does not slam shut be sure to hold it open until everyone is clear of the door, and only then allow it to slowly close.
Page 129: Sliding Door Security Lock
Lock either sliding door from inside the vehicle by moving the manual lever down. Unlock it by moving the lever up. With the power door locks, the sliding door lock has a delay feature. See Power Door Locks on page 2-10 and Vehicle Personalization on page 2-60.
Page 130: Power Sliding Door (Psd)
If your vehicle has the power sliding door(s), you can override the security lock by pressing either power door lock switch while the power sliding door override switch(es) is turned off. If the power sliding door override switch(es) is turned on, the power sliding door(s) cannot be opened from the inside while the sliding door security lock is in use.
Page 131 Power Sliding Door Power Sliding Door If you have the one power sliding door, these switches are located in the overhead console switchbank. Override Press the part of the switch(es) with the “don’t” symbol to turn the power to the sliding door(s) off. When the power sliding door(s) is off, you will not be able to open the door(s) by using the power sliding door switch(es) located on the overhead console switchbank,...
Page 132 This switch is in front of the driver’s or the passenger’s side sliding door. The power sliding door override switch(es) will also stop the door(s) immediately, while the door(s) is opening or closing, when the override switch(es) is turned on. The power sliding door(s) will only open if the transaxle is in PARK (P).
Page 133 If an object obstructs the power sliding door(s) while it is closing, the door will automatically reverse to the open position, provided it meets sufficient resistance. Resistance must be as strong as the force of the closing door, or stronger. The force of the closing door increases signiﬁcantly as the door approaches the latched position.
Page 134 To open the power sliding door(s) when the power sliding door override switch(es) is on, pull the inside or outside handle and slide the door all the way back. 2-20 CAUTION: If your vehicle is facing downward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone.
Page 135: Resetting The Power Sliding Door
Resetting the Power Sliding Door The power sliding door may operate incorrectly or not at all because of the following conditions: • A low voltage or dead battery • A disconnected battery • If the instrument panel PWR/HEATED SEAT PSD fuse or the underhood fuse 8, 27, or 29 are removed or blown.
Page 136: Liftgate
Liftgate To unlock or lock the liftgate from the outside, use the remote keyless entry transmitter. For more information, see Remote Keyless Entry System Operation on page 2-5. Open the liftgate using the handle located above the license plate. Once slightly opened, the liftgate will rise by itself.
Page 137 To close the liftgate, pull down on the handle, then ﬁrmly shut the liftgate. Don’t drive with the liftgate open, even slightly. See Engine Exhaust on page 2-43. A message in your instrument panel cluster will warn you if the liftgate is not completely closed. See Rear Hatch Ajar Warning Message on page 3-54.
Page 138: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 139: Power Windows
Power Windows The switches on the driver’s door armrest control the front windows when the ignition is in RUN, ACCESSORY or when Retained Accessory Power (RAP) is active. See “Retained Accessory Power (RAP)” under Ignition Positions on page 2-32. The driver’s power window switch has two down positions.
Page 140: Power Rear Quarter Windows
Power Rear Quarter Windows Your vehicle may have power rear quarter windows. This switch, located in the overhead console switchbank, is used for opening and closing the power rear quarter windows. Press the textured part of the switch to open the windows;...
Page 141: Theft-Deterrent Systems
Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. Content Theft-Deterrent Your vehicle may have a theft-deterrent alarm system. A light located on top of your instrument panel, near the center of the vehicle next to the windshield, will ﬂash slowly to let you know that the system has been armed.
Page 142: Arming With Your Key
Arming with the Remote Keyless Entry Transmitter Your alarm system will arm when you use your remote keyless entry transmitter to lock the doors, if the key is not in the ignition. The security light will turn on to let you know the system is arming.
Page 143: Pass-Key ® Iii
® PASS-Key ® Your PASS-Key III system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 144 If the engine still does not start, and the key appears to be undamaged, try another ignition key. At this time, you may also want to check the instrument panel PASS KEY fuse. If the engine still does not start with the other key, your vehicle needs service.
Page 145: Starting And Operating Your Vehicle
4. Insert the key to be programmed and turn it to RUN within 10 seconds of removing the previous key. 5. The security message will turn off once the key has been programmed. It may not be apparent that the security message went on due to how quickly the key is programmed.
Page 146: Ignition Positions
Ignition Positions With the key in the ignition, you can turn it to ﬁve different positions. A (ACCESSORY): This is the position in which you can operate your electrical accessories. Press in the ignition switch as you turn the top of the key toward you. B (LOCK): This is the only position from which you can remove the key.
Page 147: Retained Accessory Power (Rap)
Retained Accessory Power (RAP) With RAP, the power windows, power rear quarter windows, audio system and the automatic level control will continue to work up to 10 minutes after the ignition key is turned to OFF and none of the doors are opened.
Page 148: Engine Coolant Heater
Engine Coolant Heater Your vehicle may have an engine coolant heater. In very cold weather, 0°F ( 18°C) or colder, the engine coolant heater can help. You’ll get easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
Page 149: Automatic Transaxle Operation
4. Before starting the engine, be sure to unplug and store the cord as it was before to keep it away from moving engine parts. If you don’t, it could be damaged. How long should you keep the coolant heater plugged in? The answer depends on the outside temperature, the kind of oil you have, and some other things.
Page 150 Ensure the shift lever is fully in PARK (P) before starting the engine. Your vehicle has an automatic transaxle shift lock control system. You have to fully apply your regular brakes before you can shift from PARK (P) when the ignition key is in RUN. As you step on the brake pedal while in PARK (P), you may hear a click from the solenoid of the system.
Page 151 To rock your vehicle back and forth to get out of snow, ice or sand without damaging your transaxle, see If You Are Stuck: In Sand, Mud, Ice or Snow on page 4-30. NEUTRAL (N): In this position, your engine does not connect with the wheels.
Page 152: Warm-Up Shift
Warm-Up Shift Your vehicle has a computer controlled transaxle designed to warm up the engine faster when the outside temperature is 35°F (2°C) or colder. You may notice that the transaxle will shift at a higher vehicle speed until the engine is warmed up. This is a normal condition designed to provide heat to the passenger compartment and defrost the windows more quickly.
Page 153: Parking Brake
Parking Brake The parking brake is located under the instrument panel on the driver’s side of the vehicle. To set the parking brake, hold the regular brake pedal down with your right foot and push down on the parking brake pedal with your left foot. If the ignition is on, the brake system warning light will come on.
Page 154: Shifting Into Park (P)
Shifting Into Park (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 155: Leaving Your Vehicle With The Engine Running
2.2. Move the lever up as far as it will go. 3. Turn the ignition key to LOCK. 4. Remove the key and take it with you. If you can leave your vehicle with the ignition key in your hand, your vehicle is in PARK (P). Leaving Your Vehicle With the Engine Running CAUTION:...
Page 156: Torque Lock
Torque Lock If you are parking on a hill and you do not shift your transaxle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transaxle. You may ﬁnd it difficult to pull the shift lever out of PARK (P).
Page 157: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass or other things that can burn. Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can not see or smell.
Page 158: Running Your Engine While You Are Parked
Running Your Engine While You Are Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 159: Mirrors
Mirrors Manual Rearview Mirror To reduce glare from lights behind you, pull the lever toward you to the night position. To return the mirror to the day position, push the lever away from you. Outside Power Mirrors The control located on the driver’s door operates both outside rearview mirrors.
Page 160: Outside Convex Mirror
Outside Convex Mirror Your passenger’s side mirror is convex. A convex mirror’s surface is curved so you can see more from the driver’s seat. CAUTION: A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on your right.
Page 161 ® OnStar Services One of the following plans is normally included for a speciﬁc duration with each vehicle equipped with ® OnStar . You can upgrade or extend your OnStar service plan to meet your needs. Safe and Sound Plan •...
Page 162: Homelink Transmitter
® HomeLink Transmitter HomeLink, a combined universal transmitter and receiver, provides a way to replace up to three hand held transmitters used to activate devices such as gate operators, garage door openers, entry door locks, security systems and home lighting. Additional HomeLink information can be found on the internet at www.homelink.com or by calling 1 800 355 3515.
Page 163 Keep the original transmitter for use in other vehicles as ® well as for future HomeLink programming. It is also recommended that upon the sale of the vehicle, ® the programmed HomeLink buttons should be erased for security purposes. Refer to “Erasing HomeLink Buttons”...
Page 164: Gate Operator And Canadian Programming
6. Locate in the garage, the garage door opener receiver (motor-head unit). Locate the “Learn” or “Smart” button. This can usually be found where the hanging antenna wire is attached to the motor-head unit. 7. Firmly press and release the “Learn” or “Smart” button.
Page 165: Using Homelink
® Using HomeLink Press and hold the appropriate HomeLink least half of a second. The indicator light will come on while the signal is being transmitted. ® Erasing HomeLink Buttons To erase programming from the three buttons do the following: 1.
Page 166: Storage Areas
Storage Areas Your vehicle’s large carrying capacity can store many items. If you have the extended wheelbase version, you can carry things as large as a 4’ x 8’ piece of plywood. You can also use the ﬂoor pins that are used to attach the seats, to secure larger loads.
Page 167: Overhead Console
Overhead Console If your vehicle is equipped with an overhead console, it may contain the following: • Reading lamps. See “Front Reading Lamps” or “Rear Reading Lamps” under Interior Lamps on page 3-17. • Switchbank. See Switchbanks on page 3-20. •...
Page 168 3. Line up the button of the garage door opener with one of the four buttons on the compartment door. Make sure the garage door opener button is facing down and press the opener ﬁrmly into place. 4. Once the opener is installed, use the black pegs inside the compartment door to make sure the lined area on the compartment door will contact the control button on your garage door opener when...
Page 169: Front Seat Storage Net
Front Seat Storage Net There may be a storage net that stretches between the front seats. Pull the hooks towards the passenger’s seat and insert them into the holes. To store the net, lift the hooks up and out of the holes. The net does not detach from the driver’s seat.
Page 170: Rear Storage Area
If you have the luggage carrier, you can load things on top of your vehicle. Notice: Loading cargo on the luggage carrier that weighs more than 150 lbs. (68 kg) or hangs over the rear or sides of the vehicle may damage your vehicle.
Page 171: Convenience Net
Convenience Net Your vehicle may have a convenience net. The convenience net is designed to help keep small loads, like grocery bags, from falling over. Install the convenience net at the rear of your vehicle, inside the liftgate. To use the convenience net, do the following: 1.
Page 172: Convenience Center
Convenience Center CAUTION: If any removable convenience item is not secured properly, it can move around in a collision or sudden stop. People in the vehicle could be injured. Be sure to secure any such item properly. Your vehicle may have a convenience center. It comes with the stowable seat.
Page 173 4. Put the tray sill, located on the back of the convenience center, in the upright position. 5. Slide the convenience center in and align it so that the forks, located on the bottom rear of the convenience center, slide into the seat anchors. 6.
Page 174: Vehicle Personalization
Vehicle Personalization Your vehicle’s locks and lighting systems can be programmed with several different features. The features you can program depend on the options that came with your vehicle. The following chart shows the features that can be programmed. To determine which features your vehicle is equipped with, follow the steps listed for entering the programming mode.
Page 175: Delayed Illumination And Exit Lighting
Delayed Illumination and Exit Lighting This feature allows you to customize the interior lamps when entering and exiting the vehicle. Programmable Modes Mode 1: Both Features Off. The interior lamps will turn on or off at the same instant that a door is opened or closed.
Page 176: Automatic Door Locks
Automatic Door Locks This feature allows you to customize the automatic locking and unlocking of the doors when using the shift lever. Programmable Modes Mode 1: Both Features Off. Automatic door locking and unlocking is disabled. You will always need to lock your doors manually before driving to increase occupant safety.
Page 177: Last Door Locking And Lockout Deterrent
Last Door Locking and Lockout Deterrent This feature allows you to customize the automatic locking of the doors when exiting the vehicle. Programmable Modes Mode 1: Both Features Off. Doors will always lock immediately when you press LOCK on the power door lock switch or the remote keyless entry transmitter.
Page 178: Remote Driver Unlock Control
Remote Driver Unlock Control This feature allows you to customize the UNLOCK button on the remote keyless entry transmitter. Programmable Modes Mode 1: Remote All Doors Unlock. When you press UNLOCK on your remote keyless entry transmitter, all doors and the liftgate will unlock. Mode 2: Remote Driver’s Door Unlock Only.
Page 179: Remote Lock And Unlock Conﬁrmation
Remote Lock and Unlock Conﬁrmation If your vehicle has this feature, it allows you to customize the feedback received when locking or unlocking your vehicle with the remote keyless entry transmitter. Programmable Modes Mode 1: Both Features Off. Remote lock and unlock conﬁrmation are disabled.
Page 180: Content Theft-Deterrent System
3. Count the number of chimes you hear. The number of chimes indicates the vehicle’s current programmed mode. If you do not wish to change the current mode, you can either exit the programming mode by following the instructions later in this section or program the next feature available on your vehicle.
Page 181: Arming And Disarming The Content Theft-Deterrent System
Arming and Disarming the Content Theft-Deterrent System To arm or disarm the content theft-deterrent system, the system must be turned on by using Modes 1, 2, or 4 listed previously. This feature allows you to customize the arming and disarming of the content-theft deterrent system. Programmable Modes Mode 1: Power Door Lock Switch Arming Off •...
Page 182: Exiting Programming Mode
Mode 3: Standard Arming and Disarming • The system will arm when you lock the doors using either power door lock switch while any door or the liftgate is open and the key is removed from the ignition. • The system will arm when you lock the doors with your key or remote keyless entry transmitter and the key is removed from the ignition.
Page 183 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-7 Tilt Wheel ...3-7 Turn Signal/Multifunction Lever ...3-7 Exterior Lamps ...3-14 Interior Lamps ...3-17 Switchbanks ...3-20 Instrument Panel Switchbank ...3-21 Overhead Console Switchbank ...3-22 Ultrasonic Rear Parking Assist (URPA) ...3-22 Accessory Power Outlets ...3-25 Climate Controls ...3-26 Climate Control System ...3-26...
Page 184 Section 3 Change Engine Oil Message ...3-52 Power Sliding Door Warning Message ...3-53 Door Ajar Warning Message ...3-54 Rear Hatch Ajar Warning Message ...3-54 ® PASS-Key III Security Message ...3-55 All-Wheel Drive Disable Warning Message ...3-55 Low Fuel Warning Message ...3-56 Driver Information Center (DIC) ...3-56 Audio System(s) ...3-59 Setting the Time ...3-60...
Page 185 NOTES...
Page 186: Instrument Panel Overview
Instrument Panel Overview...
Page 187 The main components of the instrument panel are the following: A. Side Outlets. See Outlet Adjustment on page 3-29. B. Front Outlets. See Outlet Adjustment on page 3-29. C. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7. D. Hazard Warning Flasher Switch. See Hazard Warning Flashers on page 3-6.
Page 188: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. Your hazard warning ﬂashers button is located on top of the steering column.
Page 189: Horn
Horn You can sound the horn by pressing the horn symbols on your steering wheel. Tilt Wheel A tilt wheel allows you to adjust the steering wheel before you drive. You can raise it to the highest level to give your legs more room when you exit and enter the vehicle.
Page 190 Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down. When the turn is ﬁnished, the lever will return automatically.
Page 191 When the high beams are on, this light on the instrument panel cluster will also be on. Your fog lamps will turn off when you switch to high beams. Using your high beams in fog is not recommended. Flash-to-Pass When the headlamps are off, pull the lever toward you to momentarily switch on the high beams.
Page 192: Windshield Washer
Windshield Washer (Windshield Washer): Press and hold the windshield washer paddle with this symbol on it to wash your windshield. The washers and wipers will operate. When you release the paddle, the washers will stop, and the wipers will continue to operate for two cycles, unless your wipers had already been on.
Page 193: Cruise Control
To wash the rear window when the rear wiper is already on, press the top of the switch with the wash symbol on it. Press in the bottom of the switch to continue the intermittent wiper cycle after the washing cycle is completed.
Page 194 Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 195 Resuming a Set Speed Suppose you set your cruise control at a desired speed and then you apply the brake. This, of course, shuts off the cruise control. But you do not need to reset it. Once you are going about 25 mph (40 km/h) or more, you can move the cruise control switch from ON to resume/ accelerate (R/A) brieﬂy.
Page 196: Exterior Lamps
Passing Another Vehicle While Using Cruise Control To pass another vehicle while using cruise control, use the accelerator pedal to increase your speed. When you take your foot off the pedal, your vehicle will slow down to the cruise control speed you set earlier. Using Cruise Control on Hills How well your cruise control will work on hills depends upon your speed, load and the steepness of the...
Page 197: Lamps On Reminder
(Off/Auto): Turning the control to this setting will activate the automatic headlamp control when it is dark enough outside and turn off all of the lamps and lights during the day, except the Daytime Running Lamps (DRL). (Parking Lamps): Turning the control to this setting turns on the parking lamps together with the following: •...
Page 198: Fog Lamps
When it is dark enough outside, the exterior lamps will come on automatically. When it is bright enough outside, the exterior lamps will turn off and the DRL will turn on. Of course, you may still turn on the headlamps any time you need to.
Page 199: Interior Lamps
Interior Lamps Instrument Panel Brightness The thumbwheel for this feature is located below the exterior lamps control. Turn the thumbwheel to the right to brighten the lights, or to the left to dim them. Interior Lamps Control Turn the thumbwheel all the way to the right to turn on the interior lamps, if the interior lamps override switch is off.
Page 200: Entry Lighting
Entry Lighting With entry lighting, the interior of your vehicle is illuminated so that you can see inside before you enter your vehicle. The lamps will come on for 40 seconds if you unlock your door using your key or the remote keyless entry transmitter and the ignition is in LOCK or OFF.
Page 201: Exit Lighting
Exit Lighting With exit lighting, the interior lamps will come on for about 25 seconds whenever you remove the key from the ignition. If you turn the ignition key to RUN or ACCESSORY, the lamps will fade out. The lamps will also fade out if you lock the doors with the power door lock switch or the remote keyless entry transmitter.
Page 202: Switchbanks
Rear Reading Lamps There may be two reading lamps in the third row headliner. To turn either reading lamp on or off, press the lens of the lamp. There is also a reading lamp in the second row, integrated with the dome lamp. To turn the second row reading lamp on or off, press the button next to the lamp lens.
Page 203: Instrument Panel Switchbank
Instrument Panel Switchbank The instrument panel switchbank is located in the instrument panel below the comfort controls. This switchbank may contain the following: • Rear Fan Knob. See Rear Climate Control System (Without Entertainment System) on page 3-30 or Rear Climate Control System (With Entertainment System) on page 3-32.
Page 204: Overhead Console Switchbank
Overhead Console Switchbank The overhead console switchbank is located in the overhead console. This switchbank may include the following: • Interior Lamps Override. See “Interior Lamps Override” under Interior Lamps on page 3-17. • Power Sliding Door(s)/Override Switch(es). See Power Sliding Door (PSD) on page 2-16. •...
Page 205 CAUTION: Even with the Ultrasonic Rear Park Assist system, the driver must check carefully before backing up. The system does not operate above typical backing speeds of 3 mph (5 km/h) while parking. And, the system does not detect objects that are more than 5 feet (1.5 meters) behind the vehicle.
Page 206: How The System Works
How the System Works Unless disabled, the URPA will turn on automatically when the shift lever is moved into REVERSE (R). When the system turns on, the three lights on the display will illuminate for one and a half seconds to let you know that the system is working.
Page 207: Accessory Power Outlets
Accessory Power Outlets With accessory power outlets you can plug in electrical equipment such as a cellular telephone or CB radio. The front accessory power outlet is located below the cupholder drawer. Pull the cover down to use the accessory power outlet. When not in use, keep the cover on.
Page 208: Climate Controls
Climate Controls Climate Control System With this system you can control the heating, cooling, and ventilation for your vehicle. Operation Turn the right knob clockwise or counterclockwise to direct the airﬂow inside your vehicle. 3-26 To change the current mode, select one of the following: (Vent): This mode directs air to the instrument panel outlets.
Page 209 (Outside Air): Press this button to turn the outside air mode on or off. When this mode is on, outside air will circulate throughout your vehicle. When this mode is on, an indicator light in the button will come on to let you know that it is activated. The outside air mode can be used with all modes, but it cannot be used with the recirculation mode.
Page 210: Rear Window Defogger
Defogging and Defrosting Fog on the inside of windows is a result of high humidity, or moisture, condensing on the cool window glass. This can be minimized if the climate controls system is used properly. There are two modes to clear fog or frost from your windshield.
Page 211: Outlet Adjustment
Outlet Adjustment Use the knob located in the center of the outlet, to change the direction of the air ﬂow. Operation Tips • Clear away any ice, snow or leaves from the air inlets on the hood that may block the ﬂow of air into your vehicle.
Page 212: Rear Climate Control System
Rear Climate Control System (Without Entertainment System) Your vehicle may have a rear climate-control system that allows the driver to adjust the fan speed or a rear-seat passenger to set a separate temperature and adjust the fan speed, for the rear-seating area. This system works with the main climate-control system in your vehicle.
Page 213: Selecting The Fan Speed
Directing the Airﬂow To direct the airﬂow to the rear-seating area, use the right knob located on the main climate-control panel. • Select vent or bi-level mode to direct air to the rear of the vehicle through the overhead outlets. •...
Page 214: (With Entertainment System)
Rear Climate Control System (With Entertainment System) Your vehicle may have a rear climate-control system that allows the driver to adjust the fan speed or a rear-seat passenger to set a separate temperature and adjust the fan speed, for the rear-seating area. This system works with the main climate-control system in your vehicle.
Page 215 Selecting the Fan Speed If the driver is adjusting the fan speed, use the following control: (Fan): Turn the fan knob on the rear fan control located below the main climate-control system on the switchbank to numeral 1, 2, or 3 to increase or decrease airﬂow to the rear-seating area.
Page 216: Passenger Compartment Air Filter
Passenger Compartment Air Filter Passenger compartment air, both outside and recirculated air, is routed through a passenger compartment ﬁlter. The ﬁlter removes certain contaminants from the air, including pollen and dust particles. Reductions in airﬂow, which may occur more quickly in dusty areas, indicate that the ﬁlter needs to be replaced early.
Page 217 2. Then push the tab, located on the left of the inner access panel, to the right. 3. The ﬁrst air ﬁlter will pull straight out. To remove the second, reach in and slide it toward the opening. Pull the second ﬁlter out. 4.
Page 218: Warning Lights, Gages And Indicators
Warning Lights, Gages and Indicators Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 219: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, how much fuel you’re using, and many other things you’ll need to drive safely and economically. The indicator warning lights and gages are explained on the following pages.
Page 220: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). Your vehicle has a tamper-resistant odometer.
Page 221: Tachometer
Retro-Active Reset Each of the two trip odometers has a feature called retro-active reset. This feature can be used to set either or both trip odometer(s) to the number of miles (kilometers) driven since the ignition was last turned on. This can be used if you forget to reset your trip odometer at the beginning of a trip.
Page 222: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to RUN or START, a chime will come on for several seconds to remind people to fasten their safety belts. The safety belt light will also come on and stay on for several seconds.
Page 223: Brake System Warning Light
CAUTION: If the air bag readiness light stays on after you start your vehicle, it means the air bag system may not be working properly. The air bags in your vehicle may not inﬂate in a crash, or they could even inﬂate without a crash. To help avoid injury to yourself or others, have your vehicle serviced right away if the air bag readiness light stays on after you start your...
Page 224: Anti-Lock Brake System Warning Light
If the light comes on while you are driving, pull off the road and stop carefully. You may notice that the pedal is harder to push. Or, the pedal may go closer to the ﬂoor. It may take longer to stop. If the light is still on, have the vehicle towed for service.
Page 225: Traction Control System (Tcs) Warning Light
Traction Control System (TCS) Warning Light United States Your vehicle may have a traction control system warning light. The traction control system warning light may come on for the following reasons: • If you turn the system off by pressing the TCS button located in the instrument panel switchbank the warning light will come on and stay on.
Page 226: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage United States This gage shows the engine coolant temperature. If the gage pointer moves into the red area, your engine is too hot! It means that your engine coolant has overheated. If you have been operating your vehicle under normal driving conditions, you should pull off the road, stop your vehicle and turn off the engine as soon as possible.
Page 227 This system is called OBD II (On-Board Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment. The SERVICE ENGINE SOON or CHECK ENGINE light comes on to indicate that there is a problem and service is required.
Page 228: If The Light Is Flashing
If the Light Is Flashing The following may prevent more serious damage to your vehicle: • Reducing vehicle speed. • Avoiding hard accelerations. • Avoiding steep uphill grades. • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible. If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 229 If you experience one or more of these conditions, change the fuel brand you use. It will require at least one full tank of the proper fuel to turn the light off. If none of the above steps have made the light turn off, your dealer can check the vehicle.
Page 230: Fuel Gage
Fuel Gage United States When the indicator nears empty, you still have a little fuel left, but you should get more soon. If your fuel is low, the warning message in the message center will come on. See Low Fuel Warning Message on page 3-56.
Page 231: Message Center
Message Center The message center is located in the instrument panel cluster. It gives you important safety and maintenance facts. Service Traction System Warning Message United States If your vehicle has the traction control system and this message is displayed when you’re driving, there may be a problem with your traction control system.
Page 232: Traction Active Message
Traction Active Message United States If your vehicle has the traction control system, the TRACTION ACTIVE message will appear when the traction control system is limiting wheel spin. You may feel or hear the system working, but this is normal. Slippery road conditions may exist if this message appears, so adjust your driving accordingly.
Page 233: Charging System Indicator Message
Charging System Indicator Message The charging system battery symbol will come on in the message center when you turn on the ignition as a check to show you it is working. It will remain on as long as the engine is not running. It should go out once the engine is running.
Page 234: Maintenance Schedule
When the engine is running and this message appears, the engine oil level may be too low. There may also be another problem causing low oil pressure. CAUTION: Do not keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches ﬁre.
Page 235: Power Sliding Door Warning Message
Power Sliding Door Warning Message United States This message will come on if the power sliding door is not completely closed and the ignition is turned to RUN or START. If you shift the transaxle out of PARK (P) while the power sliding door is open or in the process of closing, and the power sliding door is turned off, a buzzer will sound.
Page 236: Door Ajar Warning Message
Door Ajar Warning Message United States This message will come on when the ignition is turned to RUN or START and the driver’s or passenger’s door is open. It may also come on if a sliding door is not in the fully latched position.
Page 237: All-Wheel Drive Disable Warning Message
® PASS-Key III Security Message United States If you are ever driving and this message comes on and stays on, you will be able to restart your engine if you turn it off. ® Your PASS-Key III system, however, is not working properly and must be serviced by your dealer.
Page 238: Low Fuel Warning Message
Low Fuel Warning Message United States If your fuel is low, the warning message will come on and stay on until you add fuel. If the warning message is still on after adding fuel, you need to reset the warning message. To reset the warning message, turn the ignition off and then back on.
Page 239: Compass Variance
Off: No driver information is displayed in this mode of operation. Compass/Temperature Mode: One of eight compass readings and the outside temperature are displayed. If the temperature is below 38°F (3°C), the temperature reading will toggle between displaying the outside temperature and the word ICE for two minutes.
Page 240: Trip Computer
Automatic Compass Calibration The compass is self-calibrating, which eliminates the need to manually set the compass. When the vehicle is new, the calibration process may not be complete. In these cases the calibration symbol C will be displayed where the compass reading is normally displayed. To calibrate the compass, in an area free from large metal objects, make three 360°...
Page 241: Audio System(S)
RANGE (Trip Range): This shows the estimated distance that can be traveled with the remaining fuel. The fuel economy used to calculate range is based on the last few hours of driving. FUEL USED (Trip Fuel Used): This shows the accumulated fuel used since the last reset.
Page 242: Setting The Time
Setting the Time Your radio may have a button marked with an H or HR to represent hours and an M or MIN to represent minutes. Press and hold the hour button until the correct hour appears on the display. AM will appear for morning hours.
Page 243: Playing The Radio
This system relies upon receiving speciﬁc information from these stations and will only work when the information is available. In rare cases, a radio station may broadcast incorrect information that will cause the radio features to work improperly. If this happens, contact the radio station.
Page 244: Finding A Station
RCL (Recall): Push this knob to switch the display between the radio station frequency and the time. Pushing this knob with the ignition off will display the time. For XM™ (48 contiguous US states, if equipped), push the RCL knob while in XM™ mode to retrieve four different categories of information related to the current song or channel: Artist, Song Title, Category or PTY, Channel Number/Channel Name.
Page 245: Setting Preset Stations
Setting Preset Stations The six numbered pushbuttons let you return to your favorite stations. You can set up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (48 contiguous US states, if equipped), by performing the following steps: 1.
Page 246: Rds And Xm
Adjusting the Speakers (Balance/Fade) BAL (Balance): To adjust the balance between the right and the left speakers, press and release this button until BAL appears on the display. The SELECT LED indicator will light to show that the speakers can be adjusted.
Page 247 SCAN: You can scan the stations within a PTY by performing the following: 1. Press PROG TYPE to activate program type select mode. The PTY symbol will appear on the display. 2. Turn the SELECT knob to select a PTY. 3.
Page 248: Rds Messages
RDS Messages ALERT!: Alert warns of national or local emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is muted or a CD is playing. If a CD is playing, play will stop during the announcement.
Page 249 CALIBRATE: Your audio system has been calibrated for your vehicle from the factory. If CALIBRATE appears on the display, it means that your radio has not been conﬁgured properly for your vehicle and must be returned to the dealer for service. Radio Display Message XL (Explicit Language...
Page 250 Radio Display Message No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known...
Page 251: Playing A Cd
Playing a CD With the ignition on, insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD when the ignition is off, ﬁrst press the eject button or push the RCL knob.
Page 252 SEEK : Press the down arrow while playing a CD to go to the start of the current track if more than eight seconds have played. Press the up arrow to go to the next track. If you hold either arrow or press it more than once, the player will continue moving backward or forward through the CD.
Page 253: Radio With Cd (Mp3)
Radio with CD (MP3) Radio Data System (RDS) Your audio system is equipped with a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, your radio can do the following: •...
Page 254 Playing the Radio PWR (Power): Push this knob to turn the system on and off. VOL (Volume): Turn this knob to increase or to decrease volume. SCV (Speed-Compensated Volume): With SCV, your audio system adjusts automatically to make up for road and wind noise as you drive.
Page 255 To scan preset stations, press and hold either SCAN arrow for more than four seconds until PSCAN and the preset number appear on the display. You will hear a double beep. The radio will go to the ﬁrst preset station stored on your pushbuttons, play for a few seconds, then go on to the next preset station.
Page 256 5. Press and hold the EQ button or push the SELECT knob to store the equalization setting and the number. You will hear a beep and EQ SAVED will appear on the display. 6. Repeat the steps for the other EQ settings and numbers.
Page 257 SCAN : You can scan the stations within a PTY by performing the following: 1. Press PROG TYPE to activate program type select mode. The PTY symbol will appear on the display. 2. Turn the SELECT knob to select a PTY. 3.
Page 258 INFO (Information): If the current station has a message, INFO will appear on the display. Press this button to see the message. The message may display the artist, song title, call in phone numbers, etc. If the whole message is not displayed, parts of the message will appear every three seconds.
Page 259 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no longer...
Page 260 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr...
Page 261 Playing a CD With the ignition on, insert a CD partway into the slot, label side up. The player will pull it in, READING DISC and the CD symbol will appear on the display and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the EJECT button or push the RCL knob.
Page 262 (Next Folder): This button does not have a function for non-MP3 CDs. (Reverse): Press and hold this pushbutton to reverse quickly within a track. You will hear sound at a reduced volume. Release the pushbutton to play the passage. The display will show the elapsed time of the track.
Page 263: Using An Mp3 Cd
Using an MP3 CD MP3 Format This MP3 player will accept MP3 ﬁles that were recorded on an up to 700 MB CD-R CD. The ﬁles can be recorded with the following ﬁxed bit rates: 32 kbps, 40 kpbs, 56 kpbs, 64 kpbs, 80 kpbs, 96 kpbs, 112 kpbs, 128 kpbs, 160 kpbs, 192 kpbs, 224 kpbs, 256 kpbs and 320 kpbs or a variable bit rate.
Page 264 When the CD contains only playlists and compressed audio ﬁles, but no folders, all ﬁles will be located under the root folder. The folder down and the folder up buttons will search playlists (Px) ﬁrst and then go to the root folder.
Page 265 If you want to insert an MP3 with the ignition off, ﬁrst press the EJECT button or push the RCL knob. If you insert a CD with the radio off and the ignition on, it will start to play. If you select an EQ setting for your CD, it will be activated each time you play a CD.
Page 266 (Next Folder): Press this pushbutton to go to the ﬁrst track in the next folder or playlist. If the CD contains playlists, it will go through the playlist, then the folders. Pressing this button while in folder random mode will take you to the next folder and random the tracks in that folder.
Page 267 Folder/playlist mode will display the current folder or playlist number and the folder/playlist name. Time of day mode will display the time of day and the ID3 tag song name. To change the default on the display, push this knob until you see the display you want, then hold this knob for two seconds.
Page 268: Radio With Six-Disc Cd
Radio with Six-Disc CD Radio Data System (RDS) Your audio system is equipped with a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, your radio can do the following: •...
Page 269 Playing the Radio PWR (Power): Push this knob to turn the system on and off. VOLUME: Turn this knob to increase or to decrease volume. AUTO VOL (Automatic Volume): Your system has a feature called automatic volume. With this feature, your audio system adjusts automatically to make up for road and wind noise as you drive.
Page 270 To scan preset stations, press and hold either SCAN arrow for more than four seconds. PRESET SCAN will appear on the display. You will hear a double beep. The radio will go to the ﬁrst preset station stored on your pushbuttons, play for a few seconds, then go on to the next preset station.
Page 271 Adjusting the Speakers (Balance/Fade) AUDIO: To adjust the balance between the right and the left speakers, push the AUDIO knob until BAL appears on the display. Turn the knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, push and hold the AUDIO knob until FAD appears on the display.
Page 272 1. Press the P-TYPE button to activate program type select mode. P-TYPE and the last selected PTY will appear on the display. 2. Turn the P-TYPE knob to select a PTY. 3. Once the desired PTY is displayed, press and hold either SCAN arrow, and the radio will begin scanning the stations in the PTY.
Page 273 RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is muted or a CD is playing.
Page 274 Radio Messages CAL ERR (Calibration Error): Your audio system has been calibrated for your vehicle from the factory. If CAL ERR appears on the display it means that your radio has not been conﬁgured properly for your vehicle and it must be returned to the dealer for service. Radio Display Message XL (Explicit Language...
Page 275 Radio Display Message CH Off Air Channel not in service CH Unavail Channel no longer available No Info Artist Name/Feature not available No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category...
Page 276 Radio Display Message XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr Hardware failure Playing a CD The CD player can play the smaller 8 cm single CDs with an adapter ring.
Page 277 LOAD CD : Press the LOAD side of this button to load CDs into the CD player. This CD player will hold up to six CDs. To insert one CD, do the following: 1. Turn the ignition on. 2. Press and release the LOAD side of the LOAD CD button.
Page 278: Playing A Speciﬁc Loaded Cd
Playing a Speciﬁc Loaded CD For every CD loaded, a number will appear on the display. To play a speciﬁc CD, ﬁrst press the CD AUX button, then press the numbered pushbutton that corresponds to the CD you want to play. A small bar will appear under the CD number that is playing, and the track number will appear.
Page 279 RDM (Random): With random, you can listen to the tracks in random, rather than sequential, order, on one CD or on all of the CDs. To use random, do one of the following: • To play the tracks on the CD you are listening to in random order, press and release the RDM button.
Page 280: Using Song List Mode
Using Song List Mode The six-CD CD changer has a feature called song list. This feature is capable of saving 20 track selections. To save tracks into the song list feature, perform the following steps: 1. Turn the CD player on and load it with at least one CD.
Page 281 To delete the entire song list, perform the following steps: 1. Turn the CD player on. 2. Press the SONG LIST button to turn song list on. S-LIST will appear on the display. 3. Press and hold the SONG LIST button for more than four seconds.
Page 282: Entertainment System
Entertainment System Your vehicle may have an optional Digital Versatile Disc (DVD) entertainment system. The entertainment system works with the vehicle’s audio system and includes a DVD player, a video display screen, headphones and a remote control. The entertainment system also integrates the rear climate control and rear seat audio functions.
Page 283: Stereo Rca Jacks
If you move too far forward, step out of the vehicle or break the “line of sight” between the headphones and the display above the video screen, the sound in the headphones will be degraded or will cut out entirely. If the system is shut off, or the headphones are out of the “line of sight”...
Page 284: Video Screen
To use the auxiliary function, connect a camcorder or a video game unit to the RCA jacks and turn on the auxiliary device. If you want to view a DVD, insert the DVD into the DVD player. The system will automatically switch to DVD and start to play.
Page 285: Dvd Player
If a DVD is playing and the screen is raised to its locked position, the screen will shut off, but the DVD will continue to play through the previously selected audio source. Notice: Directly touching the video screen may damage it. Do not touch the screen. See Cleaning the Video Screen on page 3-113 for more information.
Page 286 Playing a Disc To play a disc, gently insert the disc with the label side up into the loading slot until it stops. The DVD player will continue loading the disc and the player will automatically start. If a disc is already in the player, press the play/pause button on the face of the player or on the remote control.
Page 287: Remote Control
Remote Control To use the remote control, aim it at the display above the video screen and press the desired button. Direct sunlight or very bright light may affect the ability of the entertainment system to receive signals from the remote control. Be sure the remote’s batteries are not discharged, as this will also affect the function of the remote control.
Page 288 Fwd/ Rev (Fast Forward/Reverse): Press the right or left arrow once to fast forward or reverse the DVD. To resume play, press the button again or press the play/pause button. Pressing and holding an arrow will fast forward or fast reverse the DVD and play will resume when the arrow is released.
Page 289: Rear Seat Audio (Rsa) (Without Entertainment System)
Rear Seat Audio (RSA) (Without Entertainment System) This feature allows rear seat passengers to listen to and control any of the music sources: radio and CDs. However, the rear seat passengers can only control the music sources that the front seat passengers are not listening to.
Page 290 BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (48 contiguous US states, if equipped). If the front passengers are already listening to the radio, the RSA controller will not switch between the bands and cannot change the frequency. Press this button to play a CD when listening to the radio.
Page 291: Rear Seat Audio (Rsa) (With Entertainment System)
Rear Seat Audio (RSA) (With Entertainment System) This feature allows rear seat passengers to listen to and control any of the entertainment sources: radio, CDs, DVD, and auxiliary device. However, the rear seat passengers can only control the music sources that the front seat passengers are not listening to.
Page 292: Theft-Deterrent Feature
(Tune): While listening to the radio, press the right or the left arrow to tune to the next or the previous station and stay there. These arrows are inactive if the front radio is in use. While listening to a CD, press the right arrow to hear the next track on the CD.
Page 293: Audio Steering Wheel Controls
Audio Steering Wheel Controls If your vehicle has this feature, you can control certain radio functions using the buttons on your steering wheel. PRESET: Press this button to play a station you have programmed on the radio preset pushbuttons. The radio will go to a preset station, play for a few seconds, then go to the next station.
Page 294: Dvd Distortion
DVD Distortion You may experience video distortion when operating cellular phones, scanners, CB radios, Global Position Systems (GPS)*, two-way radios, mobile fax, or walkie talkies. It may be necessary to turn off the DVD player when operating one of these devices in or near the vehicle. ®...
Page 295: Care Of Your Cd And Dvd Player
Care of Your CD and DVD Player The use of CD lens cleaner discs is not advised, due to the risk of contaminating the lens of the CD optics with lubricants internal to the CD mechanism. Cleaning Your DVD Player When cleaning the outside DVD cabinet face and buttons, use only a clean cloth dampened with clean water.
Page 296 NOTES 3-114...
Page 297: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-2 Control of a Vehicle ...4-5 Braking ...4-6 Traction Control System (TCS) ...4-8 All-Wheel Drive (AWD) System ...4-10 Steering ...4-10 Off-Road Recovery ...4-12 Passing ...4-13 Loss of Control ...4-14 Driving at Night ...4-16 Driving in Rain and on Wet Roads ...4-18...
Page 298: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-30. Defensive driving really means “be ready for anything.”...
Page 299 Many adults — by some estimates, nearly half the adult population — choose never to drink alcohol, so they never drive after drinking. For persons under 21, it is against the law in every U.S. state to drink alcohol. There are good medical, psychological and developmental reasons for these laws.
Page 300 There is a gender difference, too. Women generally have a lower relative percentage of body water than men. Since alcohol is carried in body water, this means that a woman generally will reach a higher BAC level than a man of her same body weight will when each has the same number of drinks.
Page 301: Control Of A Vehicle
There is something else about drinking and driving that many people do not know. Medical research shows that alcohol in a person’s system can make crash injuries worse, especially injuries to the brain, spinal cord or heart. This means that when anyone who has been drinking —...
Page 302: Braking
Braking Braking action involves perception time and reaction time. First, you have to decide to push on the brake pedal. That is perception time. Then you have to bring up your foot and do it. That is reaction time. Average reaction time is about 3/4 of a second. But that is only an average.
Page 303 When you start your engine, or when you begin to drive away, your anti-lock brake system will check itself. You may hear a momentary motor or clicking noise while this test is going on, and you may even notice that your brake pedal moves or pulses a little.
Page 304: Traction Control System (Tcs)
Remember: Anti-lock does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply your brakes if that vehicle suddenly slows or stops.
Page 305 If your vehicle is in cruise control when the traction control system begins to limit wheel spin, the cruise control will automatically disengage. When road conditions allow you to safely use it again, you may reengage the cruise control. See “Cruise Control” under Turn Signal/Multifunction Lever on page 3-7.
Page 306: Power Steering
All-Wheel Drive (AWD) System If your vehicle has all-wheel drive (AWD), the AWD system operates automatically without any action required by the driver. If the front drive wheels begin to slip, the rear wheels will automatically begin to drive the vehicle as required. There may be a slight engagement noise during hard use but this is normal.
Page 307: Steering In Emergencies
The traction you can get in a curve depends on the condition of your tires and the road surface, the angle at which the curve is banked, and your speed. While you are in a curve, speed is the one factor you can control. Suppose you are steering through a sharp curve.
Page 308: Off-Road Recovery
See Braking on page 4-6. It is better to remove as much speed as you can from a possible collision. Then steer around the problem, to the left or right depending on the space available. An emergency like this requires close attention and a quick decision.
Page 309: Passing
Passing The driver of a vehicle about to pass another on a two-lane highway waits for just the right moment, accelerates, moves around the vehicle ahead, then goes back into the right lane again. A simple maneuver? Not necessarily! Passing another vehicle on a two-lane highway is a potentially dangerous move, since the passing vehicle occupies the same lane as oncoming traffic for several seconds.
Page 310: Loss Of Control
• If other vehicles are lined up to pass a slow vehicle, wait your turn. But take care that someone is not trying to pass you as you pull out to pass the slow vehicle. Remember to glance over your shoulder and check the blind spot.
Page 311 If you have the Traction Control System, remember: It helps avoid only the acceleration skid. If you do not have this system, or if the system is off, then an acceleration skid is also best handled by easing your foot off the accelerator pedal.
Page 312: Driving At Night
Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. 4-16 Here are some tips on night driving. •...
Page 313 What you do in the daytime can also affect your night vision. For example, if you spend the day in bright sunshine you are wise to wear sunglasses. Your eyes will have less trouble adjusting to night. But if you are driving, do not wear sunglasses at night.
Page 314: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you can not stop, accelerate or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 315: Driving Through Deep Standing Water
Driving too fast through large water puddles or even going through some car washes can cause problems, too. The water may affect your brakes. Try to avoid puddles. But if you can not, try to slow down before you hit them. CAUTION: Wet brakes can cause accidents.
Page 316: Some Other Rainy Weather Tips
Driving Through Flowing Water CAUTION: Flowing or rushing water creates strong forces. If you try to drive through ﬂowing water, as you might at a low water crossing, your vehicle can be carried away. As little as six inches of ﬂowing water can carry away a smaller vehicle.
Page 317: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
Page 318: Freeway Driving
Freeway Driving Mile for mile, freeways (also called thruways, parkways, expressways, turnpikes or superhighways) are the safest of all roads. But they have their own special rules. 4-22 The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 319: Before Leaving On A Long Trip
When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up. Drive on to the next exit. The exit ramp can be curved, sometimes quite sharply. The exit speed is usually posted.
Page 320: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as “highway hypnosis”? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 321 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. • Keep your vehicle in good shape. Check all ﬂuid levels and also the brakes, tires, cooling system and transaxle.
Page 322: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your vehicle. 4-26 Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth and a couple of reﬂective warning triangles.
Page 323 What is the worst time for this? “Wet ice.” Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it is about freezing (32°F;...
Page 324: If You Are Caught In A Blizzard
Remember, unless you have anti-lock, if you brake so hard that your wheels stop rolling, you will just slide. Brake so your wheels always keep rolling and you can still steer. • Whatever your braking system, allow greater following distance on any slippery road. •...
Page 325 • Put on extra clothing or wrap a blanket around you. If you have no blankets or extra clothing, make body insulators from newspapers, burlap bags, rags, ﬂoor mats — anything you can wrap around yourself or tuck under your clothing to keep warm. You can run the engine to keep warm, but be careful.
Page 326: If You Are Stuck: In Sand, Mud, Ice Or Snow
Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold. But do it as little as possible. Preserve the fuel as long as you can. To help keep warm, you can get out of the vehicle and do some fairly vigorous exercises every half hour or so until help comes.
Page 327: Towing
Rocking Your Vehicle To Get It Out First, turn your steering wheel left and right. That will clear the area around your front wheels. If your vehicle has traction control, you should turn your traction control system off. See Traction Control System (TCS) on page 4-8.
Page 328: Dolly Towing
Here are some important things to consider before you do recreational vehicle towing: • What’s the towing capacity of the towing vehicle? Be sure you read the tow vehicle manufacturer’s recommendations. • How far will you tow? Some vehicles have restrictions on how far and how long they can tow.
Page 329: Loading Your Vehicle
Loading Your Vehicle It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo, and all nonfactory-installed options. Two labels on your vehicle show how much weight it may properly carry, the Tire and Loading Information label and the Certiﬁcation/Tire label.
Page 330 The Tire and Loading Information label also tells you the size and recommended inﬂation pressure for the original equipment tires on your vehicle. For more information on tires and inﬂation, see Tires on page 5-58 and Inﬂation - Tire Pressure on page 5-68. If your vehicle does not have the Tire and Loading Information label, the Certiﬁcation/Tire label shows the tire size and recommended inﬂation pressures...
Page 331 Example 1 Loading Your Vehicle Item Description Vehicle Capacity Weight for Example 1 Subtract Occupant Weight 150 lbs (68 kg) Available Occupant and Cargo Weight Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs. (317 kg) Example 2 Loading Your Vehicle Description Vehicle Capacity Weight...
Page 332 Example 3 Loading Your Vehicle Item Description Vehicle Capacity Weight for Example 3 Subtract Occupant Weight 200 lbs (91 kg) Available Cargo Weight Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions. The combined weight of the driver, passengers, and cargo should never exceed your vehicle’s capacity weight.
Page 333 The Certiﬁcation/Tire label also tells you the maximum weights for the front and rear axles, called the Gross Axle Weight Rating (GAWR). To ﬁnd out the actual loads on your front and rear axles, you need to go to a weigh station and weigh your vehicle.
Page 334: Towing A Trailer
Automatic Level Control On vehicles equipped with automatic level control, the rear of the vehicle is automatically kept level as you load or unload your vehicle. However, you should still not exceed the GVWR or the GAWR. See Loading Your Vehicle on page 4-33. You may hear the compressor operating when you load or unload your vehicle, and periodically as the system self-adjusts.
Page 335: If You Do Decide To Pull A Trailer
Your vehicle can tow a trailer. To identify what the vehicle trailering capacity is for your vehicle, you should read the information in “Weight of the Trailer” that appears later in this section. But trailering is different than just driving your vehicle by itself. Trailering means changes in handling, acceleration, braking, durability, and fuel economy.
Page 336: Weight Of The Trailer
4-40 You can ask your dealer for our trailering information or advice, or you can write us at: Pontiac - GMC Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, write to:...
Page 337: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total or gross weight of your vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
Page 338: Total Weight On Your Vehicle's Tires
Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inﬂated to the upper limit for cold tires. You will ﬁnd these numbers on the Certiﬁcation/Tire label at the rear edge of the driver’s door, or see Loading Your Vehicle on page 4-33. Then be sure you do not go over the GVW limit for your vehicle, including the weight of the trailer tongue Hitches...
Page 339: Driving With A Trailer
Driving with a Trailer CAUTION: If you have a rear-most window open and you pull a trailer with your vehicle, carbon monoxide (CO) could come into your vehicle. You can not see or smell CO. It can cause unconsciousness or death. See Engine Exhaust on page 2-43.
Page 340: Turns Signals When Towing A Trailer
Passing You will need more passing distance up ahead when you are towing a trailer. And, because you are a good deal longer, you will need to go much farther beyond the passed vehicle before you can return to your lane. Backing Up Hold the bottom of the steering wheel with one hand.
Page 341: Driving On Grades
Driving On Grades Reduce speed and shift to a lower gear before you start down a long or steep downgrade. If you do not shift down, you might have to use your brakes so much that they would get hot and no longer work well. If you are towing a trailer that weighs more than 1,000 lbs.
Page 342: Maintenance When Trailer Towing
When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: • Start your engine. • Shift into a gear. • Release the parking brake. 2. Let up on the brake pedal. 3.
Page 343: Service And Appearance Care
Section 5 Service ...5-3 Doing Your Own Service Work ...5-3 Adding Equipment to the Outside of Your Vehicle ...5-4 Fuel ...5-4 Gasoline Octane ...5-4 Gasoline Speciﬁcations ...5-5 California Fuel ...5-5 Additives ...5-6 Fuels in Foreign Countries ...5-6 Filling Your Tank ...5-7 Filling a Portable Fuel Container ...5-9 Checking Things Under the Hood ...5-10 Hood Release ...5-11...
Page 344 Section 5 Buying New Tires ...5-72 Uniform Tire Quality Grading ...5-73 Wheel Alignment and Tire Balance ...5-74 Wheel Replacement ...5-74 Tire Chains ...5-75 Accessory Inﬂator ...5-76 If a Tire Goes Flat ...5-78 Changing a Flat Tire ...5-78 Compact Spare Tire ...5-96 Appearance Care ...5-97 Cleaning the Inside of Your Vehicle ...5-98 Care of Safety Belts and Built-in Child...
Page 345: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 346: Adding Equipment To The Outside Of Your Vehicle
CAUTION: (Continued) • Be sure to use the proper nuts, bolts and other fasteners. “English” and “metric” fasteners can be easily confused. If you use the wrong fasteners, parts can later break or fall off. You could be hurt. Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it.
Page 347: Gasoline Speciﬁcations
Gasoline Speciﬁcations It is recommended that gasoline meet speciﬁcations which were developed by automobile manufacturers around the world and contained in the World-Wide Fuel Charter which is available from the Alliance of Automobile Manufacturers at www.autoalliance.org. Gasoline meeting these speciﬁcations could provide improved driveability and emission control system performance compared to other gasoline.
Page 348: Additives
Additives To provide cleaner air, all gasolines in the United States are now required to contain additives that will help prevent engine and fuel system deposits from forming, allowing your emission control system to work properly. You should not have to add anything to your fuel.
Page 349: Filling Your Tank
Filling Your Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 350 While refueling, let the fuel cap hang by the tether as shown. CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather.
Page 351: Filling A Portable Fuel Container
CAUTION: If a ﬁre starts while you are refueling, do not remove the nozzle. Shut off the ﬂow of fuel by shutting off the pump or by notifying the station attendant. Leave the area immediately. The malfunction indicator lamp (SERVICE ENGINE SOON or CHECK ENGINE light) will come on if the fuel cap is not properly installed.
Page 352: Checking Things Under The Hood
Checking Things Under the Hood CAUTION: An electric fan under the hood can start up and injure you even when the engine is not running. Keep hands, clothing and tools away from any underhood electric fan. 5-10 CAUTION: Things that burn can get on hot engine parts and start a ﬁre.
Page 353: Hood Release
Hood Release To open the hood, do the following: 1. Pull the hood release handle, located on the driver’s side under the instrument panel. 2. Go to the front of the vehicle and push up on the underhood release, located near the center under the grille.
Page 354: Engine Compartment Overview
Engine Compartment Overview When you lift the hood, you’ll see these items: 5-12...
Page 355: Engine Oil
A. Underhood Fuse Block. See Fuses and Circuit Breakers on page 5-107. B. Remote Positive (+) Terminal. See Jump Starting on page 5-42. C. Windshield Washer Fluid Reservoir. See Windshield Washer Fluid on page 5-36. D. Radiator Pressure Cap. See Radiator Pressure Cap on page 5-25.
Page 356 When to Add Engine Oil If the oil is at or below the cross-hatched area at the tip of the dipstick, then you will need to add at least one quart of oil. But you must use the right kind. This section explains what kind of oil to use.
Page 357 • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle. However, if it is going to be 0°F (–18°C) or above and SAE 5W-30 is not available, you may use SAE 10W-30. These numbers on an oil container show its viscosity, or thickness.
Page 358: When To Change Engine Oil
You should look for this information on the oil container, and use only those oils that are identiﬁed as meeting GM Standard GM6094M and have the starburst symbol on the front of the oil container. Notice: Use only engine oil identiﬁed as meeting GM Standard GM6094M and showing the American Petroleum Institute Certiﬁed For Gasoline Engines starburst symbol.
Page 359: What To Do With Used Oil
How to Reset the Change Engine Oil Message The GM Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where you change your oil prior to a CHANGE ENGINE OIL message being turned on, reset the system.
Page 360: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter See Engine Compartment Overview on page 5-12 for the location of the engine air cleaner/ﬁlter. When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at every oil change and replace it at the ﬁrst oil change after 25,000 miles (40 000 km).
Page 361: Automatic Transaxle Fluid
6. Latch the hooks to secure the panel in place. If the panel moves easily, check that the tabs are seated correctly in the slots. 7. Put the duct back on and reinstall the clamps. CAUTION: Operating the engine with the air cleaner/ﬁlter off can cause you or others to be burned.
Page 362: How To Check Automatic Transaxle Fluid
How to Check Automatic Transaxle Fluid Because this operation can be a little difficult, you may choose to have this done at the dealership service department. If you do it yourself, be sure to follow all the instructions here, or you could get a false reading on the dipstick. Notice: Too much or too little ﬂuid can damage the transaxle.
Page 363 Then, without shutting off the engine, follow these steps: The dipstick is located toward the back of the engine compartment, next to the brake master cylinder reservoir. The dipstick has a bright, red loop design for easy identiﬁcation. See Engine Compartment Overview on page 5-12 for more information on location.
Page 364: Engine Coolant
How to Add Fluid Automatic Transaxle Fluid Refer to the Maintenance Schedule to determine what kind of transaxle ﬂuid to use. See Recommended Fluids and Lubricants on page 6-12. If the ﬂuid level is low, add only enough of the proper ﬂuid to bring the level into the cross-hatched area on the dipstick.
Page 365: What Engine Coolant To Use
What Engine Coolant to Use Use a mixture of one-half clean, drinkable water and ® one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 366: Checking Coolant
Checking Coolant The coolant recovery tank is located on the driver’s side of the vehicle, above the engine air cleaner/ﬁlter. See Engine Compartment Overview on page 5-12 for more information on location. The vehicle must be on a level surface. When your engine is cold, the coolant level should be at the FULL COLD mark, or a little higher.
Page 367: Radiator Pressure Cap
Add coolant mixture at the coolant recovery tank, but be careful not to spill it. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough.
Page 368: If Steam Is Coming From Your Engine
If Steam Is Coming From Your Engine 5-26 CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it. Just turn it off and geteveryone away from the vehicle until it cools down.
Page 369: If No Steam Is Coming From Your Engine
Notice: If your engine catches ﬁre because you keep driving with no coolant, your vehicle can be badly damaged. The costly repairs would not be covered by your warranty. See “Overheated Engine Protection Operating Mode” under Engine Overheating on page 5-25 for information on driving to a safe place in an emergency.
Page 370: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Radiator Pressure Cap B. Electric Engine Cooling Fans C. Coolant Recovery Tank 5-28 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 371 CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine ﬁre, and you could be burned.
Page 372 How to Add Coolant to the Coolant Recovery Tank If you have not found a problem yet, but the coolant level is not at or above the FULL COLD mark, add a 50/50 mixture of clean, drinkable water and ® DEX-COOL engine coolant at the coolant recovery tank.
Page 373: How To Add Coolant To The Radiator
When the coolant in the coolant recovery tank is at or above the FULL COLD mark, start your vehicle. If the overheat warning continues, there’s one more thing you can try. You can add the proper coolant mixture directly to the radiator, but be sure the cooling system is cool before you do it.
Page 374 1. You can remove the radiator pressure cap when the cooling system, including the radiator pressure cap and upper radiator hose, is no longer hot. Turn the pressure cap slowly counterclockwise until it ﬁrst stops. Do not press down while turning the pressure cap.
Page 375 Housing 3. After the engine cools, open the coolant air bleed valves. There are two bleed valves. One is located on the thermostat housing. The other is located on the thermostat bypass tube. Bypass Tube 4. Fill the radiator with the proper DEX-COOL coolant mixture, up to the base of the ﬁller neck.
Page 376 6. Start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fans. 7. By this time, the coolant level inside the radiator ﬁller neck may be lower. If the level is lower, add more of the proper DEX-COOL through the ﬁller neck until the level reaches the base of the ﬁller neck.
Page 377: Power Steering Fluid
Power Steering Fluid 9. Then ﬁll the coolant recovery tank to the FULL COLD mark. When to Check Power Steering Fluid 10. Put the cap back on the coolant recovery tank. It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise.
Page 378: How To Check Power Steering Fluid
How to Check Power Steering Fluid Turn the key off, let the engine compartment cool down, wipe the cap and the top of the reservoir clean, then unscrew the cap and wipe the dipstick with a clean rag. Replace the cap and completely tighten it. Then remove the cap again and look at the ﬂuid level on the dipstick.
Page 379: Adding Washer Fluid
Adding Washer Fluid Open the cap with the washer symbol on it. Add washer ﬂuid until the tank is full. Notice: • When using concentrated washer ﬂuid, follow the manufacturer’s instructions for adding water. • Do not mix water with ready-to-use washer ﬂuid. Water can cause the solution to freeze and damage your washer ﬂuid tank and other parts of the washer system.
Page 380: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 381 When your brake ﬂuid falls to a low level, your brake warning light will come on. See Brake System Warning Light on page 3-41. What to Add When you do need brake ﬂuid, use only DOT-3 brake ﬂuid. Use new brake ﬂuid from a sealed container only.
Page 382: Brake Wear
Brake Wear Your vehicle has front disc brakes and may have rear drum brakes or rear disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving (except when you are pushing on the brake pedal ﬁrmly).
Page 383: Battery
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality GM brake parts.
Page 384: Jump Starting
Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to follow the steps below to do it safely. On vehicles equipped with the optional power sliding door, a low-voltage battery or replacing a battery may cause the system to become inoperative.
Page 385 Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged. The repairs would not be covered by your warranty. Always turn off your radio and other accessories when jump starting your vehicle. 3.
Page 386 CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a ﬂashlight if you need more light. Be sure the battery has enough water. You do not need to add water to the ACDelco installed in your new vehicle.
Page 387 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one. 8. Now connect the black negative ( ) cable to the negative ( ) terminal of the good battery.
Page 388 9. Connect the other end of the negative ( ) cable at least 18 inches (45 cm) away from the dead battery, but not near engine parts that move. The electrical connection is just as good there, and the chance of sparks getting back to the battery is much less.
Page 389 Jumper Cable Removal A. Heavy, Unpainted Metal Engine Part B. Good Battery or Remote Positive (+) Terminal C. Dead Battery or Remote Positive (+) Terminal To disconnect the jumper cables from both vehicles, do the following: 1. Disconnect the black negative ( ) cable from the vehicle that had the dead battery.
Page 390: All-Wheel Drive
All-Wheel Drive If you have an all-wheel-drive vehicle, be sure to perform the lubricant checks described in this section. However, they have two additional systems that need lubrication. Transfer Case (Power Transfer Unit) When to Check Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant.
Page 391: Carrier Assembly-Differential
Carrier Assembly-Differential (Rear Drive Module) When to Check and Change Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant and when to change it. See Scheduled Maintenance on page 6-4. How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface.
Page 392: Bulb Replacement
Bulb Replacement For the type of bulbs, see Replacement Bulbs on page 5-55. For any bulb changing procedure not listed in this section, contact your dealer. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured.
Page 393 7. Install the new bulb through the black retainer ring and into the electrical connector. Tighten the black retainer ring in place. Push the bulb ﬁrmly enough so that the blue tabs hook over the tab on the bulb. 8. Carefully put the bulb assembly back into the lamp housing.
Page 394: Front Turn Signal, Sidemarker And Parking Lamps
9. Align the pins on the bottom of the headlamp assembly with the holes in the lamp support bracket. 10. To reinstall the front turn signal/parking lamp assembly. See Front Turn Signal, Sidemarker and Parking Lamps on page 5-52 next. 5-52 Front Turn Signal, Sidemarker and Parking Lamps...
Page 395 3. Pull the front turn signal/parking lamp assembly away from the vehicle. Front Turn Signal/Parking Lamp Front Sidemarker Lamp 4. Unscrew the bulb socket from the lamp assembly by pressing the tab while turning it counterclockwise. 5. Replace the bulb by pulling the old one out and gently pushing the new one into the lamp socket.
Page 396: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps
7. To reinstall the lamp assembly, line up and insert the tabs on the back of the assembly in the slots in the fender. Engage the lower clip on the back of the lamp assembly into the fender, keeping the upper tab on the front turn signal/parking lamp assembly inboard of the headlamp bracket tab.
Page 397: Replacement Bulbs
4. Remove the bulb holder by pressing the four retaining tabs and pulling the holder away from the assembly. A. Taillamp Bulb C. Turn Signal B. Back-Up Lamp Bulb D. Stop/ 5. Replace the bulb by pulling the old bulb out and gently pushing the new bulb into the bulb holder socket.
Page 398: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear or cracking. See Scheduled Maintenance on page 6-4 for more information. Replacement blades come in different types and are removed in different ways. For proper type and length, see Normal Maintenance Replacement Parts on page 6-14.
Page 399 5. Push the release clip at the connecting point of the blade and the arm up. Then pull the blade assembly down toward the glass to remove it from the wiper arm. 6. Push the new wiper blade securely on the wiper arm until you hear the release clip “click”...
Page 400: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle’s Owner’s Manual.
Page 401 (A) Tire Size Code: The tire size code is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description. See the “Tire Size Code” illustration later in this section for more detail. (B) Tire Performance Criteria Speciﬁcation (TPC Spec): Original equipment tires designed to GM’s speciﬁc tire performance criteria have a TPC...
Page 402 (F) Uniform Tire Quality Grading (UTQG): Tire manufacturers are required to grade tires based on three performance factors: treadwear, traction and temperature resistance. For more information, see Uniform Tire Quality Grading on page 5-73. (G) Maximum Cold Inﬂation Load Limit: Maximum load that can be carried and the maximum pressure needed to support that load.
Page 403 (A) Tire Size: The tire size code is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description. See the “Tire Size” illustration later in this section for more detail. (B) Tire Performance Criteria Speciﬁcation (TPC Spec): Original equipment tires designed to GM’s speciﬁc tire performance criteria have a TPC...
Page 404 (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone ﬂat.
Page 405: Tire Size
(E) Tire Inﬂation: The temporary use tire or compact spare tire should be inﬂated to 60 psi (420 kPa). For more information on tire pressure and inﬂation see Inﬂation - Tire Pressure on page 5-68. (F) Tire Size: A combination of letters and numbers deﬁne a tire’s width, height, aspect ratio, construction type and service description.
Page 406 (C) Aspect Ratio: A two-digit number that indicates the tire height-to-width measurements. For example, if the tire size aspect ratio is “75,” as shown in item “C” of the illustration, it would mean that the tire’s sidewall is 75% as high as it is wide. (D) Construction Code: A letter code is used to indicate the type of ply construction in the tire.
Page 407: Tire Terminology And Deﬁnitions
(D) Construction Code: A letter code is used to indicate the type of ply construction in the tire. The letter “R” means radial ply construction; the letter “D” means diagonal or bias ply construction; and the letter “B” means belted-bias ply construction. (E) Rim Diameter: Diameter of the wheel in inches.
Page 408 GVWR: Gross Vehicle Weight Rating, see Loading Your Vehicle on page 4-33. GAWR FRT: Gross Axle Weight Rating for the front axle, see Loading Your Vehicle on page 4-33. GAWR RR: Gross Axle Weight Rating for the rear axle, see Loading Your Vehicle on page 4-33. Intended Outboard Sidewall: The side of an asymmetrical tire, that must always face outward when mounted on a vehicle.
Page 409 Recommended Inﬂation Pressure: Vehicle manufacturer’s recommended tire inﬂation pressure and shown on the tire placard. See Inﬂation - Tire Pressure on page 5-68 and Loading Your Vehicle on page 4-33. Radial Ply tire: A pneumatic tire in which the ply cords that extend to the beads are laid at 90 degrees to the centerline of the tread.
Page 410: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure The Certiﬁcation/Tire label or Tire and Loading Information label shows the correct inﬂation pressures for your tires when they’re cold. “Cold” means your vehicle has been sitting for at least three hours or driven no more than 1 mile (1.6 km). See Loading Your Vehicle on page 4-33.
Page 411: How To Check
How to Check Use a good quality pocket-type gage to check tire pressure. You can’t tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they’re underinﬂated. Remove the valve cap from the tire valve stem. Press the tire gage ﬁrmly onto the valve to get a pressure measurement.
Page 412 When rotating your tires, always use the correct rotation pattern shown here. Don’t include the compact spare tire in your tire rotation. After the tires have been rotated, adjust the front and rear inﬂation pressures as shown on the Certiﬁcation/Tire label or the Tire and Loading Information label.
Page 413: When It Is Time For New Tires
When It Is Time for New Tires One way to tell when it’s time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining. You need a new tire if any of the following statements are true: •...
Page 414: Buying New Tires
Buying New Tires To ﬁnd out what kind and size of tires you need, look at the Certiﬁcation/Tire label or the Tire and Loading Information label. See Loading Your Vehicle on page 4-33, for examples of the labels and where they can be found on your vehicle.
Page 415: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 416: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 417: Used Replacement Wheels
If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new GM original equipment parts. This way, you will be sure to have the right wheel, wheel bolts and wheel nuts for your vehicle. CAUTION: Using the wrong replacement wheels, wheel bolts or wheel nuts on your vehicle can be...
Page 418: Accessory Inﬂator
Accessory Inﬂator Your vehicle may have an accessory inﬂator. With it, you can inﬂate things like air mattresses and basketballs, and you can also use it to bring your tires up to the proper pressure. The accessory inﬂator is located in the rear compartment on the driver’s side.
Page 419 If the accessory inﬂator system does not turn on or the light does not come on, the fuse may be blown or installed incorrectly. See Fuses and Circuit Breakers on page 5-107 or see your dealer for service. Your accessory inﬂator will automatically shut off after about 10 minutes.
Page 420: If A Tire Goes Flat
If a Tire Goes Flat It’s unusual for a tire to “blowout” while you’re driving, especially if you maintain your tires properly. If air goes out of a tire, it’s much more likely to leak out slowly. But if you should ever have a “blowout,” here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire will create a drag that pulls the vehicle toward that side.
Page 421 CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people. You and they could be badly injured or even killed. Find a level place to change your tire. To help prevent the vehicle from moving: 1.
Page 422: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools The tools you will need are located in the storage compartment at the rear of the vehicle, on the passenger’s side. To remove the tools, do the following: 1. Remove the side convenience net. 2.
Page 423 The tools you will be using include the jack (A), extension (B) and folding wrench (C). The compact spare tire is located under the rear of the vehicle. See “Compact Spare Tire” later in this section for more information about the compact spare. To remove the compact spare tire, do the following: A.
Page 424 3. To remove the compact spare tire from the cable, tilt the retainer at the end of the cable so it can be pulled up through the wheel opening. 5-82 4. If your vehicle is an AWD vehicle, after removing the compact spare tire, turn the wrench clockwise to raise the cable back up.
Page 425 Secondary Latch System Your vehicle may have an underbody mounted tire hoist assembly equipped with a secondary latch system. It is designed to stop a tire from suddenly falling off your vehicle if the cable holding the spare tire is damaged. For the secondary latch to work, the tire must be stowed with the valve stem pointing down.
Page 426 To release the spare tire from the secondary latch, do the following: CAUTION: Someone standing too close during the procedure could be injured by the jack. If the spare tire does not slide off the jack completely, make sure no one is behind you or on either side of you as you pull the jack out from the spare.
Page 427: Removing The Wheel Covers
4. Lower the jack by turning the folding wrench counterclockwise. Keep lowering the jack until the compact spare tire is resting on the folding wrench. 5. Grasp the compact spare tire with both hands and pull it out from under the vehicle. 6.
Page 428: Removing The Flat Tire And Installing The Spare Tire
Removing the Flat Tire and Installing the Spare Tire 1. Loosen the wheel nuts – but do not remove them – using the folding wrench. Turn the handle about 180 degrees, then ﬂip the handle back to the starting position. This avoids taking the wrench off the lug nut for each turn.
Page 429 CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack. CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall.
Page 430 5. Remove all the wheel nuts and take off the ﬂat tire. 6. Remove any rust or dirt from the wheel bolts, mounting surfaces and spare wheel. 5-88 CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time.
Page 431 CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 7. Install the compact spare tire and put the wheel nuts back on with the rounded end of the nuts toward the wheel.
Page 432 9. Tighten the wheel nuts ﬁrmly in a crisscross sequence, as shown. CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts.
Page 433: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. CAUTION: The underbody-mounted spare tire needs to be stored with the valve stem pointing down.
Page 434: Storing The Spare Tire And Tools
Storing the Spare Tire and Tools 1. Lay the tire near the rear of the vehicle with the valve stem down. 2. If the vehicle has aluminum wheels, remove the small center cap by tapping the back of the cap with the extension of the shaft.
Page 435 To put the cover back on, line up the tabs on the right of the cover with the slots in the cover opening. Push the cover in place and push down the tab so that it rests in the groove. This secures the cover in place. A.
Page 436 Storing the Flat Tire on an All-Wheel-Drive Vehicle 1. Remove the tire storage bag and cable package from the jack storage area. 2. If the vehicle has aluminum wheels, remove the small center cap by tapping the back of the cap with the extension of the shaft.
Page 437 5. Hook the cable onto the outside portion of the liftgate hinges. 6. Pull on the cable to make sure it is secure. 7. Make sure the metal tube is centered at the striker. Push the tube towards the front of the vehicle.
Page 438: Compact Spare Tire
Compact Spare Tire Although the compact spare tire was fully inﬂated when your vehicle was new, it can lose air after a time. Check the inﬂation pressure regularly. It should be 60 psi (420 kPa). After installing the compact spare on your vehicle, you should stop as soon as possible and make sure your spare tire is correctly inﬂated.
Page 439: Appearance Care
All-Wheel Drive After installing a compact spare tire on a vehicle with all-wheel drive you will need to drive with light to moderate acceleration, for 10 seconds, in a straight line. This action will allow the vehicle to detect the compact spare tire and disable the all-wheel drive system.
Page 440: Cleaning The Inside Of Your Vehicle
Do not use any of these unless this manual says you can. In many uses, these will damage your vehicle: • Alcohol • Laundry Soap • Bleach • Reducing Agents Cleaning the Inside of Your Vehicle Use a vacuum cleaner often to get rid of dust and loose dirt.
Page 441: Special Fabric Cleaning Problems
Special Fabric Cleaning Problems Stains caused by such things as catsup, coffee (black), egg, fruit, fruit juice, milk, soft drinks, vomit, urine and blood can be removed as follows: 1. Carefully scrape off excess stain, then sponge the soiled area with cool water. 2.
Page 442: Care Of Safety Belts And Built-In Child Restraint Harness
Cleaning the Top of the Instrument Panel Use only mild soap and water to clean the top surfaces of the instrument panel. Sprays containing silicones or waxes may cause annoying reﬂections in the windshield and even make it difficult to see through the windshield under certain conditions.
Page 443: Weatherstrips
Weatherstrips Silicone grease on weatherstrips will make them last longer, seal better, and not stick or squeak. Apply silicone grease with a clean cloth at least every six months. During very cold, damp weather more frequent application may be required. See Recommended Fluids and Lubricants on page 6-12.
Page 444: Finish Care
Finish Care Occasional waxing or mild polishing of your vehicle by hand may be necessary to remove residue from the paint ﬁnish. You can get GM-approved cleaning products from your dealer. See Vehicle Care/Appearance Materials on page 5-104. If your vehicle has a “basecoat/clearcoat” paint ﬁnish. The clearcoat gives more depth and gloss to the colored basecoat.
Page 445: Cleaning Aluminum Wheels
Cleaning Aluminum Wheels Keep your wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied. The surface of these wheels is similar to the painted surface of your vehicle.
Page 446: Underbody Maintenance
Underbody Maintenance Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not removed, corrosion and rust can develop on the underbody parts such as fuel lines, frame, ﬂoor pan and exhaust system even though they have corrosion protection.
Page 447: Vehicle Identiﬁcation
Description Removes swirl marks, ﬁne scratches and other Swirl Remover Polish light surface contamination. Removes light scratches Cleaner Wax and protects ﬁnish. Cleans, shines and Foaming Tire Shine Low protects in one easy step, Gloss no wiping necessary. Medium foaming shampoo.
Page 448: Service Parts Identiﬁcation Label
Service Parts Identiﬁcation Label You will ﬁnd this label on the inside of the glove box door. It is very helpful if you ever need to order parts. On this label, you will ﬁnd the following: • • Model designation •...
Page 449: Windshield Wiper Fuses
Windshield Wiper Fuses The windshield wiper motor is protected by an internal circuit breaker and a fuse. If the motor overheats due to heavy snow, etc., the wiper will stop until the motor cools. If the overload is caused by some electrical problem, be sure to get it ﬁxed.
Page 450: Instrument Panel Fuse Block
Instrument Panel Fuse Block The instrument panel fuse block is located to the right of the glove box on the end of the instrument panel. Pull the door open to access the instrument panel fuse block. 5-108 Fuse Usage Steering Wheel Radio Control BACKLIGHT Switches (Illumination) PCM/PASS...
Page 451 Fuse Usage Blank Not Used Powertrain Control Module (PCM), PCM/CRANK Ignition Crank ® PASS KEY PASS-Key III System PWR LOCK Power Door Locks HTD MIRROR Heated Mirrors RH T/LP Not Used RR FOG LP Not Used CIGAR/DIC/APO Cigarette Lighter, DIC, Front Auxiliary Power Outlets, Data Link T/SIG Turn Signal Switch...
Page 452 Fuse ELC Air Compressor and ELC ELC/TRAILER Height Sensor, Trailer Harness CTSY LAMP Courtesy Lamp BCM, Electronic Brake Control Indicator Lamp Driver Module, IGN 1 Instrument Panel Cluster, Rear Side Door Actuator Control Module, Rear Windows, Rear Parking Aid RR HVAC Rear HVAC-A/C Control TEMP CONT Rear Window Wiper Motor, Rear...
Page 453: Underhood Fuse Block
Underhood Fuse Block This fuse block is located in the engine compartment, in front of the windshield washer ﬂuid reservoir. See Engine Compartment Overview on page 5-12 for more information on location. The fuses marked spare are available if a replacement fuse is needed.
Page 454 Fuse Ignition Switch to Fuses (Instrument Panel): ABS/TCS Ignition, Cruise, DRL, Electronic PRNDL, Ignition 1, AWD, PSD, Air Bag, Turn Signal and Powertrain Control Module [IGN MAIN Relay (Underhood Fuse Block: A/C Clutch, Electronic Ignition, Ignition 1-U/H, INJ, TCC)] Coolant Fans Fuses (Instrument Panel): ABS Module Battery, Cigarette Lighter, Courtesy Lamps, Front Power...
Page 455 Fuse Usage Generator Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to Powertrain Control Module Fuel Pump Relay Powertrain Control Module Not Used Fog Lamp Relay Horn Relay Daytime Running Lamps (DRL) Control Module, Headlamps and Instrument Panel Dimmer Switch Theft-Deterrent Relay to Headlamps Not Used Mini Fuse Puller...
Page 456: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric measurements. Please refer to Recommended Fluids and Lubricants on page 6-12 for more information. Application Air Conditioning Refrigerant Systems Front A/C Front and Rear A/C Automatic Transaxle Pan Removal and Replacement Complete Overhaul AWD Automatic Transaxle...
Page 457: Engine Speciﬁcations
Application Cooling System With A/C With Rear Climate Control Engine Oil with Filter Fuel Capacity Regular Extended Wheel Nut Torque Engine Speciﬁcations Engine VIN Code Transaxle Automatic Capacities English Metric 9.6 quarts 9.1 L 11.9 quarts 11.3 L 4.0 quarts 3.8 L 19.5 gallons 74.0 L...
Page 458 NOTES 5-116...
Page 459 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using Your Maintenance Schedule ...6-3 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-9 At Each Fuel Fill ...6-9 At Least Once a Month ...6-9 At Least Once a Year ...6-10 Recommended Fluids and Lubricants ...6-12...
Page 460: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts and recommended ﬂuids and...
Page 461: Using Your Maintenance Schedule
Using Your Maintenance Schedule We at General Motors want to help you keep your vehicle in good working condition. But we do not know exactly how you will drive it. You may drive very short distances only a few times a week. Or you may drive long distances all the time in very hot, dusty weather.
Page 462: Scheduled Maintenance
Owner Checks and Services on page 6-9 tells you what should be checked, when to check it and what you can easily do to help keep your vehicle in good condition. The proper replacement parts, ﬂuids and lubricants to use are listed in Recommended Fluids and Lubricants on page 6-12 and Normal Maintenance Replacement Parts on page 6-14.
Page 463 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. Reset oil life system. See Engine Oil on page 5-13. An Emission Control Service. Lubricate chassis components. See footnote #. Visually check for any leaks or damage. See footnote (k). Inspect engine air cleaner ﬁlter.
Page 464: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 465: Maintenance Footnotes
Additional Required Services (cont’d) Service Engine cooling system service (or every 5 years, whichever occurs ﬁrst). An Emission Control Service. See footnote (i). Inspect engine accessory drive belt. An Emission Control Service. Maintenance Footnotes † The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the emission warranty or limit recall liability prior to...
Page 466 (d) Visually inspect wiper blades for wear or cracking. Replace blade inserts that appear worn or damaged or that streak or miss areas of the windshield. (e) Make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly.
Page 467: Owner Checks And Services
Owner Checks and Services These owner checks and services should be performed at the intervals speciﬁed to help ensure the safety, dependability and emission control performance of your vehicle. Your GM Goodwrench dealer can assist you with these checks and services. Be sure any necessary repairs are completed at once.
Page 468: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle.
Page 469 Ignition Transaxle Lock Check While parked, and with the parking brake set, try to turn the ignition key to LOCK in each shift lever position. • The key should turn to LOCK only when the shift lever is in PARK (P). •...
Page 470: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines Engine Oil starburst symbol.
Page 471 Usage Fluid/Lubricant Hood Latch Assembly, Lubriplate Lubricant Aerosol Secondary (GM Part No. U.S. 12346293, in Latch, Pivots, Canada 992723) or lubricant Spring Anchor meeting requirements of NLGI #2, Category LB or GC-LB. Release Pawl Hood and Door Hinges, Rear Folding Seat, Multi-Purpose Lubricant, Superlube Fuel Door (GM Part No.
Page 472: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Part Engine Air Cleaner/Filter Engine Oil Filter Passenger Compartment Air Filter Kit Spark Plugs Windshield Wiper Blades Length Type Wiper Blade (Backglass) Length Type 6-14 ® ® Part Number ACDelco 25099149 A1208C 25010792 52482929 12568387 41-101 24.0 inches (60.0 cm) Shepherd’s Hook 16.0 inches (40.6 cm)
Page 473: Engine Drive Belt Routing
Engine Drive Belt Routing 6-15...
Page 474: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2 in this section. Any additional information from Owner Checks and Services on page 6-9 can be added on the following record pages. Also, you should retain all maintenance receipts.
Page 475 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-17...
Page 476 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
Page 477: Customer Assistance And Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Program for Persons with Disabilities ...7-5 Roadside Assistance Program ...7-6 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Records ...7-9 Customer Assistance and Information...
Page 478: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Pontiac. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 479: Online Owner Center
The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to ﬁling a court action, use of the program is free of charge and your case will generally be heard within...
Page 480: Customer Assistance For Text Telephone (Tty) Users
Customer Assistance Offices Pontiac encourages customers to call the toll-free number for assistance. If a U.S. customer wishes to write to Pontiac, the letter should be addressed to Pontiac’s Customer Assistance Center. United States – Customer Assistance Pontiac-GMC Customer Assistance Center P.O.
Page 481: Gm Mobility Program For Persons With Disabilities
Overseas – Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) – Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 482: Roadside Assistance Program
Roadside Assistance Program Security While You Travel 1-800-ROADSIDE (762-3743) As the proud owner of a new Pontiac vehicle, you are automatically enrolled in the Pontiac Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 483: Courtesy Transportation
(762-3743), text telephone (TTY) users, call 1-888-889-2438. Pontiac reserves the right to limit services or reimbursement to an owner or driver when, in Pontiac’s judgement, the claims become excessive in frequency or type of occurrence. Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty.
Page 484: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait Pontiac helps minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following:...
Page 485: Vehicle Data Collection And Event Data Records
Additional Program Information Courtesy Transportation is available during the Bumper-to-Bumper warranty coverage period, but it is not part of the New Vehicle Limited Warranty. A separate booklet entitled Warranty and Owner Assistance Information furnished with each new vehicle provides detailed warranty coverage information. Courtesy Transportation is available only at participating dealers and all program options, such as shuttle service, may not be available at every dealer.
Page 486: Reporting Safety Defects
To read this information, special equipment is needed and access to the vehicle or the SDM is required. GM will not access information about a crash event or share it with others other than • with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee, •...
Page 487: Reporting Safety Defects To The Canadian Government
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1-800-762-2737, or write: Pontiac-GMC Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 488: Service Publications Ordering Information
Service Publications Ordering Information Service Manuals Service Manuals have the diagnosis and repair information on engines, transmission, axle, suspension, brakes, electrical, steering, body, etc. RETAIL SELL PRICE: $120.00 Transmission, Transaxle, Transfer Case Unit Repair Manual This manual provides information on unit repair service procedures, adjustments, and speciﬁcations for GM transmissions, transaxles, and transfer cases.
Page 489: Owner's Information
Owner’s Information Owner publications are written speciﬁcally for owners and intended to provide basic operational information about the vehicle. The owner’s manual will include the Maintenance Schedule for all models. In-Portfolio: Includes a Portfolio, Owner’s Manual, and Warranty Booklet. RETAIL SELL PRICE: $35.00 Without Portfolio: Owner’s Manual only.
Page 490 NOTES 7-14...
Page 491 Accessory Inﬂator ... 5-76 Accessory Power Outlets ... 3-25 Adding Washer Fluid ... 5-37 Additional Program Information ... 7-9 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-106 Adjusting the Bucket Seats ... 1-16 Adjusting the Captain’s Chairs (Second Row) ... 1-22 Adjusting the Speakers (Balance/Fade) ...
Page 492 Audio System(s) (cont.) Radio with CD ... 3-60, 3-71 Radio with Six-Disc CD ... 3-86 Rear Seat Audio (RSA) ... 3-107, 3-109 Setting the Time ... 3-60 Theft-Deterrent Feature ... 3-110 Understanding Radio Reception ... 3-112 XM™ Satellite Radio Antenna System ... 3-113 Automatic Door Locks ...
Page 493 Captain Chairs, Rear ... 1-22 Carbon Monoxide ... 4-26, 4-38, 2-22, 2-43 Care of Safety Belts and Built-in Child Restraint Harness ... 5-100 Your CD and DVD Player ... 3-113 Your CDs and DVDs ... 3-112 Cargo Lamp ... 3-20 Carrier Assembly-Differential (Rear Drive Module) ...
Page 494 Cleaning Tires ... 5-103 Cleaning Vinyl ... 5-99 Cleaning Windshield, Backglass and Wiper Blades ... 5-102 Climate Control System ... 3-26 Air Filter, Passenger Compartment ... 3-34 Outlet Adjustment ... 3-29 Rear ... 3-30, 3-32 Compact Overhead Console ... 2-52 Compact Spare Tire ...
Page 495 Disarming with Your Key ... 2-28 Doing Your Own Service Work ... 5-3 Dolly Towing ... 4-32 Dome Lamp ... 3-17 Door Ajar Warning Message ... 3-54 Dual Sliding Doors ... 2-13 Last Door Closed Locking ... 2-11 Locks ... 2-9 Power Door Locks ...
Page 496 Engine (cont.) Coolant Temperature Gage ... 3-44 Coolant Temperature Warning Message ... 3-50 Drive Belt Routing ... 6-15 Engine Compartment Overview ... 5-12 Exhaust ... 2-43 Oil ... 5-13 Overheating ... 5-25 Starting ... 2-33 Engine Oil Additives ... 5-16 Engine Speciﬁcations ...
Page 497 Front Seat Storage Net ... 2-55 Fuel ... 5-4 Additives ... 5-6 California Fuel ... 5-5 Filling a Portable Fuel Container ... 5-9 Filling Your Tank ... 5-7 Fuels in Foreign Countries ... 5-6 Gage ... 3-48 Gasoline Octane ... 5-4 Gasoline Speciﬁcations ...
Page 498 ® HomeLink Transmitter ... 2-48 ® HomeLink Transmitter, Programming ... 2-48 Hood Checking Things Under ... 5-10 Release ... 5-11 Horn ... 3-7 How the System Works ... 3-24 How to Add Coolant to the Coolant Recovery Tank ... 5-30 How to Add Coolant to the Radiator ...
Page 499 Lamps Exterior ... 3-14 Interior ... 3-17 Lamps on Reminder ... 3-15 Lap Belt ... 1-46, 1-48 Lap-Shoulder Belt ... 1-36, 1-50 Last Door Closed Locking ... 2-11 Last Door Locking ... 2-63 LATCH System Child Restraints ... 1-70 Securing a Child Restraint Designed for the LATCH System ...
Page 500 Maintenance Schedule (cont.) Normal Maintenance Replacement Parts ... 6-14 Owner Checks and Services ... 6-9 Recommended Fluids and Lubricants ... 6-12 Scheduled Maintenance ... 6-4 Using Your ... 6-3 Your Vehicle and the Environment ... 6-2 Maintenance When Trailer Towing ... 4-46 Making Turns ...
Page 501 ® OnStar Personal Calling ... 2-47 ® OnStar Services ... 2-47 ® OnStar System ... 2-46 ® OnStar Virtual Advisor ... 2-47 Operation ... 3-26 Operation Tips ... 3-29 Other Warning Devices ... 3-6 Outlet Adjustment ... 3-29 Outside Convex Mirror ... 2-46 Heated Mirrors ...
Page 502 Primary Radio Controls ... 3-107 Programmable Automatic Door Locks ... 2-12 Programmable Modes ... 2-61, 2-62, 2-63, 2-64, Programming Mode Entering ... 2-60 Exiting ... 2-68 ® Programming the HomeLink Transmitter ... 2-48 Questions and Answers About Safety Belts ... 1-35 Radiator Pressure Cap ...
Page 503 Removing the Convenience Center ... 2-58 Removing the Flat Tire and Installing the Spare Tire ... 5-86 Removing the Spare Tire and Tools ... 5-80 Removing the Split Bench Seat ... 1-11 Removing the Stowable Seat ... 1-28 Removing the Wheel Covers ... 5-85 Replacement Bulbs ...
Page 504 Safety Belts (cont.) Rear Safety Belt Comfort Guides for Children and Small Adults ... 1-54 Rear Seat Passengers ... 1-50 Right Front Passenger Position ... 1-46 Safety Belt Extender ... 1-56 Safety Belt Use During Pregnancy ... 1-45 Safety Belts Are for Everyone ... 1-30 Safety Chains ...
Page 505 Sliding Door Lock ... 2-14 Sliding Door, Power ... 2-16 Sliding Door Security Lock ... 2-15 Sliding Doors, Dual ... 2-13 Some Other Rainy Weather Tips ... 4-20 Special Fabric Cleaning Problems ... 5-99 Speciﬁcations, Capacities ... 5-114 Speedometer ... 3-38 Split Bench Seats ...
Page 506 Tires (cont.) Changing a Flat Tire ... 5-78 Compact Spare Tire ... 5-96 If a Tire Goes Flat ... 5-78 Inﬂation - Tire Pressure ... 5-68 Inspection and Rotation ... 5-69 Uniform Tire Quality Grading ... 5-73 Wheel Alignment and Tire Balance ... 5-74 Wheel Replacement ...
Page 507 Vehicle Control ... 4-5 Damage Warnings ... iv Loading ... 4-33 Symbols ... iv Vehicle Data Collection and Event Data Records ... 7-9 Vehicle Identiﬁcation Number (VIN) ... 5-105 Service Parts Identiﬁcation Label ... 5-106 Vehicle Personalization ... 2-60 Arming and Disarming the Content Theft-Deterrent System ...
Page 508 When to Inspect the Engine Air Cleaner/Filter ... 5-18 When You Are Ready to Leave After Parking on a Hill ... 4-46 Where to Put the Restraint ... 1-66 Why Safety Belts Work ... 1-32 Windows ... 2-24 Power ... 2-25 Power Rear Quarter ...
