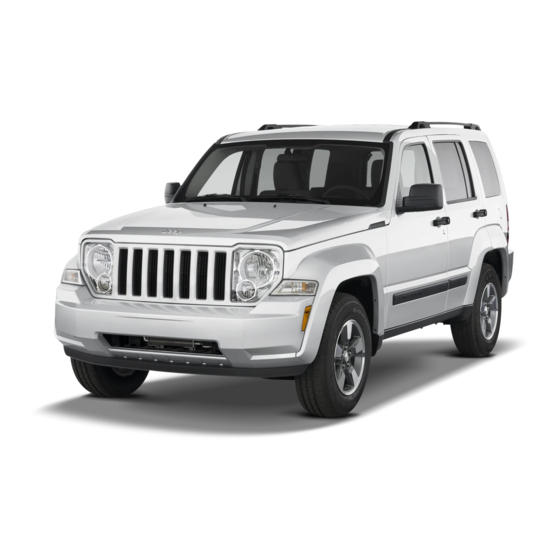

Page 1 Liberty 2 0 1 0 OWNE R ’ S MANUAL...
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION ............3 INTRODUCTION THINGS TO KNOW BEFORE STARTING YOUR VEHICLE UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 4 CONTENTS Introduction ......4 Rollover Warning ..... . . 4 How To Use This Manual .
Page 5: Introduction
4 INTRODUCTION INTRODUCTION Congratulations on selecting your new Chrysler Group LLC vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality - all essentials that are traditional to our vehicles. This Owner’s Manual has been prepared with the assis- tance of service and engineering specialists to acquaint you with the operation and maintenance of your vehicle.
Page 6: How To Use This Manual
control. Failure to operate this vehicle safely may result in an accident, rollover of the vehicle, and severe or fatal injury. Drive carefully. Rollover Warning Label Failure to use driver and passenger seat belts provided is a major cause of severe or fatal injury. In fact, the U.S. government notes that the universal use of existing seat belts could cut the highway death toll by 10,000 or more each year and could reduce disabling injuries by two...
Page 7 6 INTRODUCTION...
Page 8: Warnings And Cautions
INTRODUCTION 7 WARNINGS AND CAUTIONS This Owner’s Manual contains WARNINGS against op- erating procedures that could result in an accident or bodily injury. It also contains CAUTIONS against proce- dures that could result in damage to your vehicle. If you do not read this entire manual, you may miss important information.
Page 9: Vehicle Modifications/Alterations
8 INTRODUCTION VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to an accident resulting in serious injury or death.
Page 10: Things To Know Before Starting Your Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS A Word About Your Keys ....12 Ignition Key Removal ....12 Key-In-Ignition Reminder .
Page 11 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Using The Panic Alarm ....24 Programming Additional Transmitters ..24 Battery Replacement .
Page 12 Seat Belts And Pregnant Women ..55 Seat Belt Extender ..... 55 Supplemental Restraint System (SRS) - Airbags .
Page 13: Things To Know Before Starting Your Vehicle 9
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS You can insert the double-sided keys into the locks with either side up. Vehicle Key The authorized dealer that sold you your new vehicle has the key code numbers for your vehicle locks. These numbers can be used to order duplicate keys from your authorized dealer.
Page 14 Ignition Switch Positions 1 — Lock 3 — On 2 — Acc 4 — Start THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13 NOTE: • For vehicles not equipped with the Electronic Vehicle Information Center (EVIC), features such as the power window switches, radio, power sunroof or Sky Slider (if equipped), and power outlets will remain active for 45 seconds after the ignition switch is turned to the...
Page 15: Key-In-Ignition Reminder
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Never leave children alone in a vehicle. Leaving unattended children in a vehicle is dangerous for a number of reasons. A child or others could be seri- ously or fatally injured. Don’t leave the key in the ignition.
Page 16: Replacement Keys
NOTE: A key that has not been programmed is also considered an invalid key, even if it is cut to fit the ignition switch lock cylinder for that vehicle. During normal operation, after turning on the ignition switch, the Vehicle Security Light will turn on for three seconds for a bulb check.
Page 17: Customer Key Programming
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE At the time of purchase, the original owner is provided with a four-digit Personal Identification Number (PIN). Keep the PIN in a secure location. This number is required for authorized dealer replacement of keys. Du- plication of keys may be performed at an authorized dealer or by following the customer key programming procedure.
Page 18: General Information
The new Sentry Key is programmed. The Remote Keyless Entry (RKE) transmitter will also be pro- grammed during this procedure. Repeat this procedure to program up to eight keys. If you do not have a programmed Sentry Key , contact your authorized dealer for details.
Page 19: Rearming Of The System
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Rearming of the System If something triggers the Vehicle Security Alarm, and no action is taken to disarm it, the Vehicle Security Alarm will turn off the horn after three minutes, turn off all of the visual signals after 15 minutes, and then the Vehicle Security Alarm will rearm itself.
Page 20: Illuminated Entry
• When the Vehicle Security Alarm is armed, the interior power door lock switches will not unlock the doors. The Vehicle Security Alarm is designed to protect your vehicle; however, you can create conditions where the Vehicle Security Alarm will give you a false alarm. If the previously described arming sequence has occurred, the Vehicle Security Alarm will arm regardless of whether you are inside or outside the vehicle.
Page 21: To Unlock The Doors And Liftgate
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE the line of transmission must not be blocked with metal objects when using the RKE transmitter. NOTE: Inserting the key into the ignition switch dis- ables all buttons on the RKE transmitter. Vehicle Key To Unlock the Doors and Liftgate Press and release the UNLOCK button on the RKE...
Page 22: To Lock The Doors And Liftgate
For vehicles not equipped with the EVIC, perform the following steps: 1. Press and hold the LOCK button on a programmed (i.e., functional) RKE transmitter for at least 4 seconds, but no longer than 10 seconds. Then, press and hold the UNLOCK button while still holding the LOCK button.
Page 23 22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Sound Horn with Lock This feature will cause the horn to chirp when the doors are locked with the RKE transmitter. This feature can be turned on or turned off. To change the current setting, proceed as follows: •...
Page 24: To Unlatch The Liftgate Flip-Up Window
Information Center (EVIC)/Personal Settings (Cus- tomer-Programmable Features)” in “Understanding Your Instrument Panel” for further information. • For vehicles not equipped with the EVIC, perform the following steps: 1. Press and hold the UNLOCK button on a programmed (i.e., functional) RKE transmitter for at least 4 seconds, but no longer than 10 seconds.
Page 25: Using The Panic Alarm
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Using the PANIC Alarm NOTE: The PANIC and Security Alarms are quite different. Please take a moment to activate the PANIC and the Security modes to hear the differences in the horn. In case one should go off in the future, you will need to know which mode has been activated in order to deactivate it.
Page 26: General Information
• Do not touch the battery terminals that are on the back housing or the printed circuit board. 1. Remove the screw from the RKE transmitter case (if equipped). 2. With the RKE transmitter buttons facing down, use a flat blade tool to pry the two halves of the RKE transmitter case apart.
Page 27: Remote Starting System - If Equipped
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: Changes or modifications not expressly ap- proved by the party responsible for compliance could void the user’s authority to operate the equipment. If your RKE transmitter fails to operate from a normal distance, check for these two conditions: 1.
Page 28 WARNING! • Do not start or run an engine in a closed garage or confined area. Exhaust gas contains Carbon Mon- oxide (CO) which is odorless and colorless. Car- bon Monoxide is poisonous and can cause serious injury or death when inhaled. •...
Page 29: Door Locks
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Exit Remote Start Mode and Drive the Vehicle Before the end of the 15-minute cycle, press and release the UNLOCK button on the RKE transmitter to unlock the doors and disarm the Vehicle Security Alarm (if equipped).
Page 30: Power Door Locks
WARNING! • For personal security and safety in the event of an accident, lock the vehicle doors as you drive as well as when you park and leave the vehicle. • When leaving the vehicle, always remove the key from the ignition lock, and lock your vehicle. Unsupervised use of vehicle equipment may cause severe personal injuries and death.
Page 31 30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If you press the power door LOCK switch while the key is in the ignition, and any front door is open, the power locks will not operate. This prevents you from acciden- tally locking your keys in the vehicle.
Page 32 3. Press the power door LOCK switch to lock the doors. 4. A single chime will indicate the completion of the programming. 5. Repeat these steps if you want to return this feature to its previous setting. NOTE: Use the Automatic Door Locks feature in accor- dance with local laws.
Page 33: Child-Protection Door Lock System (Rear Doors)
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. Cycle the ignition switch between LOCK and ON and then back to LOCK four times, ending up in the LOCK position. 3. Press the power door UNLOCK switch to unlock the doors.
Page 34 NOTE: When the child lock system is engaged, the door can be opened only by using the outside door handle even though the inside door lock is in the unlocked position. WARNING! Avoid trapping anyone in a vehicle in a collision. Remember that the rear doors can only be opened from the outside when the child protection locks are engaged.
Page 35: Windows
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: After disengaging the Child Protection Door Lock system, always test the door from the inside to make certain it is in the desired position. WINDOWS Power Windows The window controls on the driver’s door trim panel control all the door windows.
Page 36 WARNING! Never leave children in a vehicle, with the key in the ignition switch. Occupants, particularly unattended children, can become entrapped by the windows while operating the power window switches. Such entrapment may result in serious injury or death. Auto-Down Feature The driver’s and front passenger’s (if equipped for pas- senger side) power window switches have an “Auto- Down”...
Page 37 36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Auto Up Feature with Anti-Pinch Protection — If Equipped On some models, the driver’s and front passenger’s (if equipped for passenger side) power window switches have an “Auto Up” feature. Pull the window switch up to the second detent, release, and the window will go up automatically.
Page 38 WARNING! There is no anti-pinch protection when the window is almost closed. Be sure to clear all objects from the window before closing. Window Lockout Button The window lockout button on the driver’s door trim panel allows you to disable the window control on the other doors.
Page 39: Wind Buffeting
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. Push the window switch down firmly to the second detent to open the window completely and continue to hold the switch down for an additional two seconds after the window is fully open. Wind Buffeting Wind buffeting can be described as the perception of pressure on the ears or a helicopter-type sound in the...
Page 40: Liftgate Flipper Glass
NOTE: Use the power door LOCK switch on either front door trim panel or the Remote Keyless Entry (RKE) transmitter to lock and unlock the liftgate. The manual door locks on the doors and the driver’s door lock cylinder will not lock and unlock the liftgate. WARNING! Driving with the liftgate open can allow poisonous exhaust gases into your vehicle.
Page 41: Occupant Restraints
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: If a malfunction to the liftgate latch should occur, an emergency liftgate latch release can be used to open the liftgate. The emergency liftgate latch release can be accessed through a snap-in cover located on the liftgate trim panel.
Page 42 all the way out and then adjusting the belt to the desired length to restrain a child seat or secure a large item in a seat — if equipped If you will be carrying children too small for adult-sized seat belts, the seat belts or the Lower Anchors and Tether for CHildren (LATCH) feature also can be used to hold infant and child restraint systems.
Page 43: Lap/Shoulder Belts
42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ejection and the risk of injury caused by striking the inside of the vehicle. Everyone in a motor vehicle should be belted at all times. Lap/Shoulder Belts All seating positions in your vehicle have combination lap/shoulder belts.
Page 44 WARNING! (Continued) • Two people should never be belted into a single seat belt. People belted together can crash into one another in an accident, hurting one another badly. Never use a lap/shoulder belt or a lap belt for more than one person, no matter what their size.
Page 45 44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. When the belt is long enough to fit, insert the latch plate into the buckle until you hear a “click.” Latch Plate To Buckle WARNING! • A belt that is buckled into the wrong buckle will not protect you properly.
Page 46 WARNING! (Continued) • A shoulder belt placed behind you will not protect you from injury during a collision. You are more likely to hit your head in a collision if you do not wear your shoulder belt. The lap and shoulder belt are meant to be used together.
Page 47 46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 5. Position the shoulder belt on your chest so that it is comfortable and not resting on your neck. The retractor will withdraw any slack in the belt. Removing Slack From Belt 6.
Page 48: Lap/Shoulder Belt Untwisting Procedure
the shoulder belt anchorage to be adjusted in the upward position without pressing the release button. To verify the shoulder belt anchorage is latched, pull downward on the shoulder belt anchorage until it is locked into position. Adjusting Upper Shoulder Belt THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47 As a guide, if you are shorter than average, you will prefer a lower position, and if you are taller than average,...
Page 49: Seat Belt Pretensioner - If Equipped
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Seat Belt Pretensioner — If Equipped The front passenger seat belt is equipped with a preten- sioning device that is designed to remove any slack from the seat belt systems in the event of a collision. These devices improve the performance of the seat belt by assuring that the belt is tight around the occupant early in a collision.
Page 50 When AHR’s deploy during a rear impact, the head restraint front half extends forward to minimize the gap between the back of the head and the AHR. This system is designed to help prevent or reduce the extent of injuries the driver and front passenger in certain types of rear end impacts.
Page 51 50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CAUTION! All occupants, including the driver, should not oper- ate a vehicle or sit in a vehicle’s seat until the head restraints are placed in their proper positions in order to minimize the risk of neck injury in the event of an accident.
Page 52 1 — Downward Movement 2 — Rearward Movement THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51 3 — Final Downward Movement To Engage Locking Mecha- nism...
Page 53: Enhanced Seat Belt Use Reminder System (Beltalert )
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 4. The AHR front soft foam and trim half should lock into the back decorative plastic half. AHR In Reset Position NOTE: • If you have difficulties or problems resetting the head restraints, see an authorized dealer.
Page 54 BeltAlert Programming BeltAlert can be enabled or disabled by your authorized dealer or by performing the following steps: NOTE: Chrysler Group LLC does not recommend de- activating BeltAlert . 1. With all doors closed, and the ignition switch in any position except ON or START, buckle the driver’s seat belt.
Page 55: Automatic Locking Retractors (Alr) Mode - If Equipped
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Automatic Locking Retractors (ALR) Mode — If Equipped In this mode, the shoulder belt is automatically pre- locked. The belt will still retract to remove any slack in the shoulder belt. The Automatic Locking Mode is avail- able on all passenger-seating positions with a combina- tion lap/shoulder belt.
Page 56: Seat Belts And Pregnant Women
WARNING! • The belt and retractor assembly must be replaced if the seat belt assembly “automatic locking retrac- tor” feature or any other seat belt function is not working properly when checked according to the procedures in the Service Manual. •...
Page 57: Supplemental Restraint System (Srs) - Airbags
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Supplemental Restraint System (SRS) - Airbags This vehicle has airbags for both the driver and front passenger as a supplement to the seat belt restraint systems. The driver’s front airbag is mounted in the steering wheel.
Page 58 This vehicle may also be equipped with Supplemental Side Airbag Inflatable Curtains (SABIC) that run the entire length of the headliner to protect the driver, front, and rear passengers sitting next to a window. Supplemental Side Airbag Inflatable Curtains (SABIC) Label Location THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57 NOTE: Airbag covers may not be obvious in the interior trim, but they will open during airbag deployment.
Page 59 58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Knee Impact Bolsters • Front and Side Impact Sensors • Front Seat Belt Pretensioners — if equipped • Occupant Classification System (OCS) — Front Pas- senger Seat Only − Occupant Classification Module (OCM) −...
Page 60 WARNING! (Continued) • Do not put anything on or around the front airbag covers or attempt to manually open them. You may damage the airbags and you could be injured because the airbags may no longer be functional. These protective covers for the airbag cushions are designed to open only when the airbags are inflat- ing.
Page 61 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: • Should a vehicle rollover occur, the pretensioners and/or SABIC airbags on both sides of the vehicle may deploy. • Airbag covers may not be obvious in the interior trim; but they will open during airbag deployment. The system includes sensors adjacent to both front and rear seat occupants that are calibrated to deploy the SABIC airbags during impacts that require airbag occu-...
Page 62 Children that are not big enough to properly wear the vehicle seat belt should be secured in the rear seat, in a child restraint or belt-positioning booster seat. Older children who do not use child restraints or belt- positioning booster seats should ride properly buckled up in the rear seat.
Page 63 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! • Relying on the airbags alone could lead to more severe injuries in a collision. The airbags work with your seat belt to restrain you properly. In some collisions, the airbags won’t deploy at all. Always wear your seat belts even though you have airbags.
Page 64 truck underrides, and angle offset collisions. On the other hand, depending on the type and location of impact, Advanced Front Airbags may deploy in crashes with little vehicle front-end damage but that produce a severe initial deceleration. The side airbags will not deploy in all side collisions. Side airbag deployment will depend on the severity and type of collision.
Page 65 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Ignoring the “Airbag Warning Light” in your instru- ment panel could mean you won’t have the airbags to protect you in a collision. If the light does not come on, stays on after you start the vehicle, or if it comes on as you drive, have the airbag system checked right away.
Page 66 Indicator Light Location The “PAD Indicator Light” should not be illuminated when an adult passenger is properly seated in the front passenger seat. In this case, the airbag is ready to be inflated if a collision requiring an airbag occurs. For all other occupants, the “PAD Indicator Light”...
Page 67 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Passenger Airbag Front Passenger Disable (PAD) In- Seat Occupant dicator Light Empty or Very OFF* Small Objects * Since the system senses weight, some small objects will turn the PAD Indicator Light on. The OCS classifies an occupant using weight sensors mounted in the base of the front passenger seat.
Page 68 seat is removed (or even if the seat attachment bolts are loosened or tightened in any way), take the vehicle to an authorized dealer. If there is a fault present in the OCS, the “Airbag Warning Light” (a red light located in the center of the instrument cluster directly in front of the driver) will be turned on.
Page 69 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Along with seat belts and pretensioners, Advanced Front Airbags work with the knee bolsters to provide improved protection for the driver and front passenger. Side airbags also work with seat belts to improve occupant protection. •...
Page 70 airbag inflates. This especially applies to children. The side curtain airbag is only about 3 when it is inflated. The system includes sensors adjacent to both front and rear seat occupants that are calibrated to deploy the SABIC airbags during impacts that require airbag occu- pant protection.
Page 71 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Unapproved modifications or service procedures to the front passenger seat assembly or its related com- ponents may inadvertently change the airbag deploy- ment in case of a frontal crash. This could result in death or serious injury to the front seat passenger if the vehicle is involved in an accident.
Page 72 throat irritation, move to fresh air. If the irritation continues, see your doctor. If these particles settle on your clothing, follow the garment manufacturer’s in- structions for cleaning. Do not drive your vehicle after the airbags have de- ployed. If you are involved in another collision, the airbags will not be in place to protect you.
Page 73 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Maintaining Your Airbag System WARNING! • Modifications to any part of the airbag system could cause it to fail when you need it. You could be injured if the airbag system is not there to protect you.
Page 74: Event Data Recorder (Edr)
Airbag Warning Light You will want to have the airbag system ready to inflate for your protection in an impact. The airbag system is designed to be maintenance free. If any of the following occurs, have an authorized dealer service the system promptly: •...
Page 75 74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE injuries in order to assess and improve vehicle perfor- mance. In addition to crash investigations initiated by Chrysler Group LLC, such investigations may be re- quested by customers, insurance carriers, government officials, and professional crash researchers, such as those associated with universities, and with hospital and insur- ance organizations.
Page 76: Child Restraint
Data parameters that are recorded: • Diagnostic trouble code(s) and warning light status for electronically-controlled safety systems, including the airbag system • Vehicle speed • Engine RPM • Brake switch status • Pedal position • And other parameters depending configuration Child Restraint Everyone in your vehicle needs to be buckled up all the time, including babies and children.
Page 77 76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Infants and Child Restraints • Safety experts recommend rearward-facing in the vehicle until they are at least one year old and weigh at least 20 lbs (9 kg). Two types of child restraints can be used rearward-facing: infant carriers and “convertible”...
Page 78 restraint anchorage system. Refer to “LATCH — Child Seat Anchorage System (Lower Anchors and Tether for CHildren)”. The belt-positioning booster seat is for children weighing more than 40 lbs (18 kg), but who are still too small to fit the vehicle’s seat belts properly. If the child cannot sit with knees bent over the vehicle’s seat cushion while the child’s back is against the seatback, they should use a belt-positioning booster seat.
Page 79 78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! • Improper installation can lead to failure of an infant or child restraint. It could come loose in a collision. The child could be badly injured or killed. Follow the manufacturer’s directions ex- actly when installing an infant or child restraint.
Page 80 LATCH — Child Seat Anchorage System (Lower Anchors and Tether for CHildren) Your vehicle’s rear seat is equipped with the child restraint anchorage system called LATCH. The LATCH system provides for the installation of the child restraint without using the vehicle’s seat belts, instead securing the child restraint using lower anchorages and upper tether straps from the child restraint to the vehicle structure.
Page 81 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE center position. If your child restraints are not LATCH- compatible, you can only install the child restraints using the vehicle’s seat belts. Please refer to “Installing the LATCH-Compatible Child Restraint System” and “In- stalling Child Restraints Using the Vehicle Seat Belt”...
Page 82 Tether Strap Mounting Many, but not all restraint systems will be equipped with separate straps on each side, with each having a hook or connector for attachment to the lower anchorage and a means of adjusting the tension in the strap. Forward- facing toddler restraints and some rear-facing infant restraints will also be equipped with a tether strap, a THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81...
Page 83 82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Improper installation of a child restraint to the LATCH anchorages can lead to failure of an infant or child restraint. The child could be badly injured or killed. Follow the manufacturer’s directions exactly when installing an infant or child restraint.
Page 84 If the belt still can’t be tightened, or if pulling and pushing on the restraint loosens the belt, you may need to do something more. Disconnect the latch plate from the buckle, turn the buckle around, and insert the latch plate into the buckle again.
Page 85: Engine Break-In Recommendations
84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Transporting Pets Airbags deploying in the front seat could harm your pet. An unrestrained pet will be thrown about and possibly injured, or injure a passenger during panic braking or in a collision. Pets should be restrained in the rear seat in pet harnesses or pet carriers that are secured by seat belts.
Page 86: Safety Tips
SAFETY TIPS Transporting Passengers NEVER TRANSPORT PASSENGERS IN THE CARGO AREA. WARNING! • It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seri- ously injured or killed.
Page 87: Safety Checks You Should Make Inside The Vehicle
86 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If you are required to drive with the trunk/liftgate open, make sure that all windows are closed and the climate control BLOWER switch is set at high speed. DO NOT use the recirculation mode. The best protection against carbon monoxide entry into the vehicle body is a properly maintained engine exhaust system.
Page 88: Periodic Safety Checks You Should Make Outside The Vehicle
Defroster Check operation by selecting the defrost mode and place the blower control on high speed. You should be able to feel the air directed against the windshield. See your authorized dealer for service if your defroster is inoperable. Periodic Safety Checks You Should Make Outside the Vehicle Tires Examine tires for excessive tread wear and uneven wear...
Page 90: Understanding The Features Of Your Vehicle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS Mirrors ......94 Inside Day/Night Mirror ....94 Automatic Dimming Mirror —...
Page 91 90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Command — If Equipped ... 126 Voice Command System Operation ..126 Commands ......128 Voice Training .
Page 92 Headlights With Wipers (Available With Automatic Headlights Only) ... . 150 Headlight Time Delay — If Equipped ..150 Daytime Running Lights — If Equipped ..151 Lights-On Reminder .
Page 93 92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Deactivate ..... . . 163 To Resume Speed ....163 To Vary The Speed Setting .
Page 94 Pinch Protect Feature ....183 Pinch Protect Override ....183 Venting Sunroof —...
Page 95: Mirrors
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE MIRRORS Inside Day/Night Mirror A two-point pivot system allows for horizontal and vertical mirror adjustment. Adjust the mirror to center on the view through the rear window. Headlight glare can be reduced by moving the small control under the mirror to the night position (toward the rear of vehicle).
Page 96: Outside Mirrors
Automatic Dimming Mirror CAUTION! To avoid damage to the mirror during cleaning, never spray any cleaning solution directly onto the mirror. Apply the solution onto a clean cloth and wipe the mirror clean. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95 Outside Mirrors To receive maximum benefit, adjust the outside mirror(s) to center on the adjacent lane of traffic and a slight...
Page 97: Power Mirrors
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Power Mirrors The power mirror switch is located on the driver’s door trim panel. Power Mirror Switch 1 — Mirror Direction Control 2 — Left and Right Mirror Select Models with Express Window Feature Press and release the mirror select button marked L (left) or R (right) and then press one of the four arrow buttons to move the mirror in the direction the arrow is pointing.
Page 98: Heated Mirrors - If Equipped
Heated Mirrors — If Equipped These mirrors are heated to melt frost or ice. This feature is activated whenever you turn on the rear window defroster. Refer to “Rear Window Features” in “Understanding the Features of Your Vehicle” for further information.
Page 99: Uconnect™ Phone - If Equipped
For Uconnect™ customer support, visit the following websites: • www.chrysler.com/uconnect • www.dodge.com/uconnect • www.jeep.com/uconnect • or call 1–877–855–8400 Uconnect™ Phone allows you to transfer calls between the system and your cellular phone as you enter or exit your vehicle and enables you to mute the system’s microphone for private conversation.
Page 100 it your purse, pocket, or briefcase), as long as your phone is turned on and has been paired to the vehicle’s Uconnect™ Phone. The Uconnect™ Phone allows up to seven cellular phones to be linked to the system. Only one linked (or paired) cellular phone can be used with the system at a time.
Page 101: Operation
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The Uconnect™ Phone is fully integrated with the vehi- cle’s audio system. The volume of the Uconnect™ Phone can be adjusted either from the radio volume control knob or from the steering wheel radio control (right switch), if so equipped.
Page 102 Help Command If you need assistance at any prompt, or if you want to know your options at any prompt, say Help following the beep. The Uconnect™ Phone will play all the options at any prompt if you ask for help. To activate the Uconnect™...
Page 103 102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • For identification purposes, you will be prompted to give the Uconnect™ Phone a name for your cellular phone. Each cellular phone that is paired should be given a unique phone name. • You will then be asked to give your cellular phone a priority level between one and seven, with one being the highest priority.
Page 104 • The system will prompt you to say the name of the person you want to call. • After the Ready prompt and the following beep, say the name of the person you want to call. For example, you can say John Doe, where John Doe is a previ- ously stored name entry in the Uconnect™...
Page 105 104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The Uconnect™ Phone will allow you to enter up to 32 names in the phonebook with each name having up to four associated phone numbers and designations. Each language has a separate 32-name phonebook accessible only in that language.
Page 106 • This downloaded phonebook cannot be edited or deleted on the Uconnect™ Phone. These can only be edited on the cellular phone. The changes are trans- ferred and updated to Uconnect™ Phone on the next phone connection. Phonebook Download — Single Entry If equipped and supported by your phone, Uconnect™...
Page 107 106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Edit Uconnect™ Phonebook Entries NOTE: • Editing names in the phonebook is recommended when the vehicle is not in motion. • Automatic downloaded phonebook entries cannot be deleted or edited. • Press the button to begin.
Page 108 • After you enter the Phonebook Delete menu, you will then be asked for the name of the entry that you wish to delete. You can either say the name of a phonebook entry that you wish to delete or you can say List Names to hear a list of the entries in the phonebook from which you choose.
Page 109: Phone Call Features
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • After the Ready prompt and the following beep, say Phonebook List Names. • The Uconnect™ Phone will play the names of all the phonebook entries, including the downloaded phone- book entries, if available. •...
Page 110 call waiting that you normally hear when using your cellular phone. Press the button to place the current call on hold and answer the incoming call. NOTE: The Uconnect™ Phone compatible phones in the market today do not support rejecting an incoming call when another call is in progress.
Page 111 110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Three-Way Calling To initiate three-way calling, press the while a call is in progress, and make a second phone call, as described under Making a Second Call While Current Call is in Progress. After the second call has established, press and hold the button until you hear a double beep, indicating that the two calls have been joined into...
Page 112: Uconnect™ Phone Features
• After the ignition key is switched to OFF, a call can continue on the Uconnect™ Phone for a certain dura- tion, after which the call is automatically transferred from the Uconnect™ Phone to the cellular phone. • An active call is automatically transferred to the cellular phone after the ignition key is switched to OFF.
Page 113 112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE If the phone is not reachable and the Uconnect™ Phone is operational, you may reach the emergency number as follows: • Press the button to begin. • After the Ready prompt and the following beep, say Emergency and the Uconnect™...
Page 114 NOTE: • The towing assistance number dialed is based on the country where the vehicle is purchased (1-800-528- 2069 for the U.S., 1-877-213-4525 for Canada, 55-14- 3454 for Mexico City and 1-800-712-3040 for outside Mexico City in Mexico). Please refer to the 24-Hour Towing Assistance coverage details on the DVD in the Warranty Information Booklet and the 24-Hour Towing Assistance references.
Page 115 114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE your PIN followed with a pound, (3 7 4 6 #), you can press the button and say, 3 7 4 6 # Send. Saying a number, or sequence of numbers, followed by Send, is also to be used for navigating through an automated customer service center menu structure, and to leave a number on a pager.
Page 116 • After the Ready prompt and the following beep, say Setup Confirmations. The Uconnect™ Phone will play the current confirmation prompt status and you will be given the choice to change it. Phone and Network Status Indicators If available on the radio and/or on a premium display such as the instrument panel cluster, and supported by your cellular phone, the Uconnect™...
Page 117: Advanced Phone Connectivity
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE In order to un-mute the Uconnect™ Phone: • Press the button. • Following the beep, say Mute off. Advanced Phone Connectivity Transfer Call to and from Cellular Phone The Uconnect™ Phone allows ongoing calls to be trans- ferred from your cellular phone to the Uconnect™...
Page 118: Things You Should Know About Your Uconnect™ Phone
Select Another Cellular Phone This feature allows you to select and start using another phone paired with the Uconnect™ Phone. • Press the button to begin. • After the Ready prompt and the following beep, say Setup Select Phone and follow the prompts. •...
Page 119 118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Phone Voice Training feature may be used. To enter this training mode, follow one of the two following proce- dures: From outside the Uconnect™ Phone mode (e.g., from radio mode): • Press and hold the button for five seconds until the session begins, or, •...
Page 120 • low-to-medium vehicle speed, • low road noise, • smooth road surface, • fully closed windows, • dry weather condition. • Even though the system is designed for users speaking in North American English, French, and Spanish ac- cents, the system may not always work for some. •...
Page 121 120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • low road noise, • smooth road surface, • fully closed windows, • dry weather conditions, and • operation from the driver’s seat. • Performance, such as audio clarity, echo, and loudness to a large degree rely on the phone and network, and not the Uconnect™...
Page 122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121...
Page 123 122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123...
Page 125 124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Commands Primary Alternate(s) zero three four five seven eight nine star (*) plus (+) pound (#) add location Voice Commands Primary Alternate(s) call cancel confirmation prompts continue delete dial download edit emergency English erase all Espanol...
Page 126 Voice Commands Primary Alternate(s) language list names list phones mobile mute mute off new entry pager pair a phone phone pairing pairing phonebook phone book previous record again redial UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125 Voice Commands Primary Alternate(s) return to main menu return or main menu select phone...
Page 127: General Information
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE General Information This device complies with Part 15 of the FCC rules and RSS 210 of Industry Canada. Operation is subject to the following conditions: • Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Page 128 NOTE: If you do not say a command within a few seconds, the system will present you with a list of options. If you ever wish to interrupt the system while it lists options, press the Voice Command for the beep, and say your command. Pressing the Voice Command system is speaking is known as “barging in.”...
Page 129: Commands
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Commands The Voice Command system understands two types of commands. Universal commands are available at all times. Local commands are available if the supported radio mode is active. Changing the Volume 1. Start a dialogue by pressing the Voice Command button.
Page 130 Radio FM To switch to the FM band, say “FM” or “Radio FM”. In this mode, you may say the following commands: • “Frequency” (to change the frequency) • “Next Station” (to select the next station) • “Previous Station” (to select the previous station) •...
Page 131 130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Memo To switch to the voice recorder mode, say “Memo”. In this mode, you may say the following commands: • “New Memo” (to record a new memo) — During the recording, you may press the Voice Command button to stop recording.
Page 132: Voice Training
NOTE: Keep in mind that you have to press the Voice Command button first and wait for the beep before speaking the “Barge In” commands. Voice Training For users experiencing difficulty with the system recog- nizing their voice commands or numbers the Uconnect™ Voice “Voice Training”...
Page 133: Manual Front Seat Adjustments
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Manual Front Seat Adjustments The manual seat adjustment bar is at the front of the seat, near the floor. Manual Seat Adjustment Pull the bar upward to move the seat forward or rear- ward.
Page 134: Lumbar Support - If Equipped
Seatback Release Lever To recline the seatback, lean forward slightly and lift the lever. Then lean back to the position desired and release the lever. To return the seatback to its normal upright position, lean forward and lift the lever. Release the lever once the seatback is in the upright position.
Page 135: Fold-Flat Front Passenger Seat - If Equipped
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Fold-Flat Front Passenger Seat — If Equipped This feature allows the front passenger seatback to fold flat for extended cargo space. Some fold flat seats also have a hardback surface that you can use as a work surface when the seat is folded flat.
Page 136: Adjusting Active Head Restraints
to tilt the seat. For vehicles equipped with a passenger power seat, use this switch to move the seat forward and rearward. CAUTION! DO NOT place any article under a power seat or impede its ability to move as it may cause damage to the seat controls.
Page 137 136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To raise the head restraint, pull upward on the head restraint (on some models, you may need to press the push button). To lower the head restraint, press the push button, located at the base of the head restraint, and push downward on the head restraint.
Page 138 Active Head Restraint (Tilted) NOTE: • The head restraints should only be removed by quali- fied technicians, for service purposes only. If either of the head restraints require removal, see your autho- rized dealer. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137 •...
Page 139: Heated Seats - If Equipped
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! (Continued) • Do not place items over the top of the Active Head Restraint, such as coats, seat covers or portable DVD players. These items may interfere with the operation of the Active Head Restraint in the event of an accident and could result in serious injury or death.
Page 140: 60/40 Split Folding Rear Seat With Fold-Flat Feature
continuous operation. At that time, the number of indi- cator lights changes from two to one, indicating the change. Operation on the Low-level heating will also turn OFF automatically after approximately 30 minutes. NOTE: When a heat setting is selected, heat will be felt within two to five minutes.
Page 141 140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: Prior to folding the rear seat, it may be necessary to position the front seat to its mid-track position. Also, be sure that the front seats are fully upright and posi- tioned forward. This will allow the rear seat to fold down easily.
Page 142 4. If desired, push down on the seatback to lock it in the folded position. To Raise the Rear Seat NOTE: If interference from the cargo area prevents the seatback from fully locking, you will have difficulty returning the seat to its proper position. 1.
Page 143: Driver Memory Seat - If Equipped
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! Do not ride with the seatback reclined so that the shoulder belt is no longer resting against your chest. In a collision you could slide under the seat belt and be seriously or even fatally injured. Use the recliner only when the vehicle is parked.
Page 144 1. Turn the ignition ON. 2. Adjust all memory profile settings to desired prefer- ences (i.e., seat, side mirror and radio station presets). 3. Press and release the SET button on the memory switch, then press the side of the rocker switch labeled (1) within five seconds.
Page 145: Linking And Unlinking The Remote Keyless Entry Transmitter To Memory
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Linking and Unlinking the Remote Keyless Entry Transmitter to Memory Your Remote Keyless Entry (RKE) transmitters can be programmed to recall one of two pre-programmed memory profiles with a press of the UNLOCK button on the RKE transmitter.
Page 146: Easy Entry/Exit Seat (Available With Memory Seat Only)
To recall the memory settings for driver one, press MEMORY button number 1 or the UNLOCK button on the RKE transmitter linked to memory position 1. To recall the memory setting for driver two, press MEMORY button number 2 or the UNLOCK button on the RKE transmitter linked to memory position 2.
Page 147: To Open And Close The Hood
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • The Easy Entry/Easy Exit feature is disabled when the driver’s seat position is less than 0.9 in (23 mm) forward of the rear stop. At this position, there is no benefit to the driver by moving the seat for Easy Exit or Easy Entry.
Page 148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147 Hood Prop Rod Hole Location Underhood Safety Latch Use the hood prop rod to secure the hood in the open position. Place the upper end of the prop rod in the hole on the underside of the hood.
Page 149: Lights
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! To prevent possible damage: • Before closing hood, make sure the hood prop rod is fully seated into its storage retaining clips. • Lower the hood to approximately 6 in (15.2 cm) above the closed position and drop the hood to latch it.
Page 150: Headlights And Parking Lights
Multifunction Lever Headlights and Parking Lights Turn the end of the multifunction lever to the first detent for parking light operation. Turn the end of the lever to the second detent for headlight operation. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149 Headlight Switch Automatic Headlights —...
Page 151: Headlights With Wipers (Available With Automatic Headlights Only)
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE headlights will stay on for up to 90 seconds after you turn the ignition switch to the LOCK position. To turn the Automatic System off, turn the end of the multifunction lever out of the AUTO position. Headlight Switch NOTE: The engine must be running before the head- lights will turn on in the Automatic mode.
Page 152: Daytime Running Lights - If Equipped
To activate the delay, turn the ignition switch to the LOCK position while the headlights are still on. Then, turn off the headlights within 45 seconds. The delay interval begins when you turn off the headlights. Only the headlights will illuminate during this time. If you turn the headlights, or parking lights, or ignition switch ON again, the system will cancel the delay.
Page 153: Fog Lights - If Equipped
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Fog Lights — If Equipped To activate the front fog lights, turn on the parking lights or the low beam headlights and pull out on the end of the multifunction lever. Front Fog Light Control NOTE: The front fog lights will only operate with the headlights on low beam.
Page 154: Lane Change Assist
light bulb. If an indicator fails to light when the lever is moved, it would suggest that the indicator bulb is defective. Lane Change Assist Tap the lever up or down once, without moving beyond the detent, and the turn signal (right or left) will flash three times then automatically turn off.
Page 155: Map/Reading Lights
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Rotate the center portion of the lever upward to the last detent to turn on the interior lighting. Dimmer Control Map/Reading Lights These lights are mounted between the sun visors on the overhead console and above the rear doors by the grab handles.
Page 156: Windshield Wipers And Washers
WINDSHIELD WIPERS AND WASHERS The windshield wiper/washer control lever is located on the right side of the steering column. The front wipers are operated by rotating a switch, located at the end of the lever. For information on using the rear window wiper/ washer, refer to “Rear Window Features”...
Page 157: Intermittent Wiper System
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: The wipers will automatically return to the “park” position if you turn OFF the ignition switch while they are operating. The wipers will resume operation when you turn the ignition switch back to the ON position.
Page 158: Windshield Washers
Front Wiper Control There are five delay settings, which allow you to regulate the wipe interval from a minimum of one cycle every second to a maximum of approximately 36 seconds between cycles or from a minimum of one cycle every UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157 second to a maximum of approximately 18 seconds between cycles at vehicle speeds greater than 10 mph...
Page 159: Mist Feature
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! Sudden loss of visibility through the windshield could lead to an accident. You might not see other vehicles or other obstacles. To avoid sudden icing of the windshield during freezing weather, warm the windshield with defroster before and during wind- shield washer use.
Page 160 the end of the windshield wiper/washer control lever to one of the five intermittent wiper settings to activate this feature. The sensitivity of the system is adjustable from the windshield wiper/washer control lever. Wiper delay position 1 is the least sensitive and wiper delay position 5 is the most sensitive.
Page 161: Headlights With Wipers (Available With Automatic Headlights Only)
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 0 mph (0 km/h), or the outside temperature rises above freezing the rain-sensing feature will then op- erate. • Neutral Wipe Inhibit — The rain-sensing feature will not operate when the ignition is ON, and the shift lever is in the NEUTRAL position, and the vehicle speed is less than 5 mph (8 km/h), unless the wiper control is moved or the shift lever is moved out of the...
Page 162: Electronic Speed Control - If Equipped
below the steering wheel at the end of the steering column. Tilt Steering Control Handle To unlock the steering column, push the control handle downward. To tilt the steering column, move the steering UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161 wheel upward or downward as desired.
Page 163: To Activate
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The Electronic Speed Control lever is located on the right side of the steering wheel. Electronic Speed Control Lever NOTE: In order to ensure proper operation, the Elec- tronic Speed Control System has been designed to shut down if multiple Speed Control functions are operated simultaneously.
Page 164: To Set A Desired Speed
WARNING! Leaving the Electronic Speed Control system on when not in use is dangerous. You could accidentally set the system or cause it to go faster than you want. You could lose control and have an accident. Always leave the Electronic Speed Control system off when you are not using it.
Page 165: To Vary The Speed Setting
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Vary the Speed Setting When the Electronic Speed Control is set, you can in- crease speed by pushing up and holding the RESUME ACCEL lever. If the lever is continually held in the RESUME ACCEL position, the set speed will continue to increase until the lever is released, then the new set speed will be established.
Page 166: Parksense Rear Park Assist - If Equipped
Using Electronic Speed Control On Hills NOTE: The Electronic Speed Control system maintains speed up and down hills. A slight speed change on moderate hills is normal. On steep hills, a greater speed loss or gain may occur so it may be preferable to drive without Electronic Speed Control.
Page 167: Parksense Sensors
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ParkSense will remember the last system state (enabled or disabled) from the last ignition cycle when the ignition is changed to the RUN/ON position. ParkSense can be active only when the shift lever is in REVERSE.
Page 168: Parksense Display
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167 ParkSense Display When the vehicle is in REVERSE, the warning display will turn ON indicating the system status. Rear Park Assist Display Rear Park Assist ON...
Page 169 168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Rear Park Assist Disabled Slow Tone The system will indicate a detected obstacle by showing three solid arcs and will produce a ⁄ second tone. As the vehicle moves closer to the object the EVIC display will show fewer arcs and the sound tone will change from slow, to fast, to continuous.
Page 170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169 Fast Tone Continuous Tone The vehicle is close to the obstacle when the EVIC display shows one flashing arc and sounds a continuous tone. The following chart shows the warning display operation when the system is detecting an obstacle:...
Page 171: Enabling And Disabling Parksense
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING DISPLAY DISTANCES DISPLAY MESSAGE OBSTACLE DISTANCE FROM: REAR CORNERS Park Assist ON Warning Object Detected Warning Object Detected Warning Object Detected 27.5 in (70 cm) Warning Object Detected 25.5 in (65 cm) Warning Object Detected 19.7 in (50 cm) Warning Object Detected...
Page 172: Service The Parksense Rear Park Assist System
When the ParkSense switch is pressed to disable the system, the instrument cluster will display the “PARK ASSIST DISABLED” mes- sage for approximately five seconds. Refer to “Electronic Vehicle Information Center (EVIC)” in “Un- derstanding Your Instrument Panel” for further informa- tion.
Page 173: Cleaning The Parksense System
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Cleaning the ParkSense System Clean the ParkSense sensors with water, car wash soap and a soft cloth. Do not use rough or hard cloths. Do not scratch or poke the sensors. Otherwise, you could dam- age the sensors.
Page 174 • Clean the ParkSense sensors regularly, taking care not to scratch or damage them. The sensors must not be covered with ice, snow, slush, mud, dirt or debris. Failure to do so can result in the system not working properly. The ParkSense system might not detect an obstacle behind the fascia/bumper, or it could provide a false indication that an obstacle is behind the fascia/ bumper.
Page 175: Garage Door Opener - If Equipped
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! • Drivers must be careful when backing up even when using the ParkSense Rear Park Assist Sys- tem. Always check carefully behind your vehicle, look behind you, and be sure to check for pedes- trians, animals, other vehicles, obstructions, and blind spots before backing up.
Page 176 door openers, motorized gates, lighting or home security systems. The HomeLink unit operates off your vehicle’s battery. The HomeLink buttons that are located in the headliner or sun visor designate the three different HomeLink channels. HomeLink Buttons UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175 NOTE: HomeLink is disabled when the Vehicle Secu- rity Alarm is active.
Page 177: Programming Homelink
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! (Continued) • Vehicle exhaust contains carbon monoxide, a dan- gerous gas. Do not run your vehicle in the garage while training the transceiver. Exhaust gas can cause serious injury or death. Programming HomeLink Before You Begin If you have not trained any of the HomeLink buttons, erase all channels before you begin training.
Page 178 NOTE: • Some gate operators and garage door openers may require you to replace Step 3 with procedures noted in the “Gate Operator/Canadian Programming” section. • After training a HomeLink channel, if the garage door does not operate with HomeLink and the ga- rage door opener was manufactured after 1995, the garage door opener may have a rolling code.
Page 179 178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE This can usually be found where the hanging antenna wire is attached to the garage door opener motor (it is NOT the button normally used to open and close the door). 1 — Garage Door Opener 2 —...
Page 180: Gate Operator/Canadian Programming
Gate Operator/Canadian Programming Canadian radio-frequency laws require transmitter sig- nals to “time-out” (or quit) after several seconds of transmission – which may not be long enough for HomeLink to pick up the signal during programming. Similar to this Canadian law, some U.S. gate operators are designed to “time-out”...
Page 181: Security
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 2. Press and hold the desired HomeLink button until the indicator light begins to flash after 20 seconds. Do not release the button. 3. Without releasing the button, proceed with Program- ming HomeLink Step 2 and follow all remaining steps. Security It is advised to erase all channels before you sell or turn in your vehicle.
Page 182: General Information
General Information This device complies with FCC rules Part 15 and Industry Canada RSS-210. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may be received including interference that may cause undesired operation.
Page 183: Opening Sunroof - Express
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! • Never leave unattended children in a vehicle with the key in the ignition switch. Occupants, particu- larly unattended children, can become entrapped by the power sunroof while operating the power sunroof switch. Such entrapment may result in serious injury or death.
Page 184: Closing Sunroof - Manual Mode
position. The sunroof will close fully and stop automati- cally. This is called “Express Close”. During Express Close operation, any movement of the switch will stop the sunroof. Closing Sunroof — Manual Mode To close the sunroof, press and hold the switch in the forward position.
Page 185: Wind Buffeting
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: The sunshade cannot be closed if the sunroof is open. Wind Buffeting Wind buffeting can be described as the perception of pressure on the ears or a helicopter-type sound in the ears. Your vehicle may exhibit wind buffeting with the windows down, or the sunroof (if equipped) in certain open or partially open positions.
Page 186: Sky Slider™ Usage Precautions
Sky Slider™ Usage Precautions NOTE: • The system will not operate when ambient tempera- ture is at –4°F (–20°C) or lower. • The system will not operate at vehicle speeds of 86 mph (138 km/h) or above. • Opening and closing the Sky Slider™ repeatedly with- out the engine running may run the battery down.
Page 187 186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! Failure to follow these warnings can result in injuries that are serious or fatal to you, your passengers, and others around you: • In an accident, there is a greater risk of being thrown from a vehicle with the Sky Slider™...
Page 188: Sky Slider™ Control
Sky Slider™ Control The Sky Slider™ switch is located between the sun visors on the overhead console. Sky Slider™ Switch NOTE: The Sky Slider™ switch will operate when the ignition switch is turned to the ON or ACC position. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187 Opening the Sky Slider™...
Page 189: Closing The Sky Slider
188 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Using Operator Mode Press the switch rearward and hold it, the Sky Slider™ will open from the front and move toward the rear of the vehicle. Press the switch forward and hold it, the Sky Slider™ will open from the rear and move toward the front of the vehicle.
Page 190: Anti-Pinch Protect Feature
completely. The left motor facing forward will close the top when it is open from the rear of the vehicle. The right motor will close the top when it is open from the front of the vehicle. Anti-Pinch Protect Feature The Sky Slider™...
Page 191 190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE available when the ignition switch is in the ON or ACC position. Front Power Outlet Insert the cigar lighter or accessory plug into the outlet for use to ensure proper operation. NOTE: • To ensure proper operation a MOPAR element must be used.
Page 192 CAUTION! • Many accessories that can be plugged in draw power from the vehicle’s battery, even when not in use (i.e., cellular phones, etc.). Eventually, if plugged in long enough, the vehicle’s battery will discharge sufficiently to degrade battery life and/or prevent the engine from starting.
Page 193: Cupholders
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CUPHOLDERS There are two cupholders for the front seat passengers, located in the center console. Front Cupholders The rear passengers have cupholders at the rear of the center console. Rear Cupholders...
Page 194: Storage
STORAGE Front Storage Compartment The front storage compartment (located on the left side of the instrument panel) can hold cell phones, PDAs, and other small items. Front Storage Compartment UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193 Console Storage Compartment To open, press the latch and lift the cover. Center Console...
Page 195: Cargo Area Features
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The center console has a removable storage tray which can hold cell phones, PDAs, and other small items. Removable Storage Tray CARGO AREA FEATURES Cargo Load Floor The cargo load floor system has a load capacity of 400 lbs (181 kg).
Page 196 Cargo Load Floor Loops 2. Pull the loops upward and twist them one-quarter turn so that they are parallel to the slots in the storage bin cover. 3. Lift the cover upward over the loops. 4. Turn over the cover and reinstall it. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195 NOTE: You can install the cover with either side facing upward.
Page 197 196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Cargo Tie-Down Hooks and Loops The tie-downs located on cargo area floor should be used to secure loads safely when the vehicle is moving. Cargo Tie-Down Loops Cargo tie-down loops are located on the trim panels. Cargo Tie-Down Hooks...
Page 198 WARNING! • Cargo tie-downs are not safe anchors for a child seat tether strap. In a sudden stop or collision, a tie-down could pull loose and allow the child seat to come loose. A child could be badly injured. Use only the anchors provided for child seat tethers.
Page 199 198 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! (Continued) • Do not pile luggage or cargo higher than the top of the seatback. This could impair visibility or become a dangerous projectile in a sudden stop or collision. Retractable Cargo Area Cover — If Equipped NOTE: The purpose of this cover is for privacy, not to secure loads.
Page 200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 199 Then, insert the spring-loaded post on the opposite end of the cover housing into the attachment point on the opposite side of the vehicle. Next, grab the cover handle and pull the cover toward you.
Page 201: Rear Window Features
200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! In an accident, a cargo cover loose in the vehicle could cause injury. It could fly around in a sudden stop and strike someone in the vehicle. Do not store the cargo cover on the cargo floor or in the passenger compartment.
Page 202: Rear Window Defroster
Rotate the switch upward to the “washer” position to activate that rear washer. The washer pump will continue to operate as long as the lever or ring is engaged. Upon release, the wipers will cycle two times before returning to the set position. If the rear wiper is operating when the ignition is turned OFF, the wiper will automatically return to the “park”...
Page 203: Roof Luggage Rack - If Equipped
202 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ROOF LUGGAGE RACK — IF EQUIPPED NOTE: Roof rack and crossbars cannot be used on vehicles equipped with Skyslider . The load carried on the roof, when equipped with a luggage rack, must not exceed 150 lbs (68 kg), and it should be uniformly distributed over the cargo area.
Page 204 CAUTION! (Continued) • Travel at reduced speeds and turn corners care- fully when carrying large or heavy loads on the roof rack. Wind forces, due to natural causes or nearby truck traffic, can add sudden upward loads. This is especially true on large flat loads and may result in damage to the cargo or your vehicle.
Page 206: Understanding Your Instrument Panel
UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS Instrument Panel Features ....208 Instrument Cluster ....209 Instrument Cluster Descriptions .
Page 207 206 UNDERSTANDING YOUR INSTRUMENT PANEL List Button (Disc Mode For MP3/WMA Play) ..251 Info Button (Disc Mode For MP3/WMA Play) ..251 Media Center 730N/430 (RER/REN/RBZ) — AM/FM Stereo Radio And CD/DVD/HDD/ NAV —...
Page 208 Info Button (CD Mode For MP3 Play) ..277 Uconnect™ Multimedia (Satellite Radio) — If Equipped (REN/REQ/RER/RES Radios Only)....... 278 System Activation .
Page 209: Instrument Panel Features
208 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT PANEL FEATURES 1 — Air Outlet 2 — Instrument Cluster 3 — Storage Tray 4 — Radio 5 — Glove Compartment 6 — Climate Control 7 — Power Outlet 8 — Lower Switch Bank 9 —...
Page 210: Instrument Cluster
UNDERSTANDING YOUR INSTRUMENT PANEL 209 INSTRUMENT CLUSTER...
Page 211: Instrument Cluster Descriptions
210 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER DESCRIPTIONS 1. Fuel Gauge The fuel gauge shows level of fuel in tank when ignition switch is in the ON position. 2. Fuel Door Reminder This symbol indicates the side of the vehicle where the fuel cap is located.
Page 212 maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale. Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly.
Page 213 212 UNDERSTANDING YOUR INSTRUMENT PANEL 5. Electronic Throttle Control (ETC) Light This light informs you of a problem with the Electronic Throttle Control (ETC) system. If a problem is detected, the light will come on while the engine is running. Cycle the ignition key when the vehicle has completely stopped and the shift lever is placed in the PARK position.
Page 214 CAUTION! Prolonged driving with the MIL on could cause damage to the engine control system. It also could affect fuel economy and drivability. If the MIL is flashing, severe catalytic converter damage and power loss will soon occur. Immediate service is required.
Page 215 214 UNDERSTANDING YOUR INSTRUMENT PANEL continuous chime will sound to alert you to turn the signals off. If either indicator flashes at a rapid rate, check for a defective outside light bulb. 11. Electronic Stability Program (ESP) Indicator Light / Traction Control System (TCS) Indicator Light If this indicator light flashes during accelera- tion, apply as little throttle as possible.
Page 216 14. Anti-Lock Brake (ABS) Light This light monitors the Anti-Lock Brake System (ABS). The light will turn on when the ignition switch is turned to the ON position and may stay on for as long as four seconds. If the ABS light remains on or turns on while driving, it indicates that the Anti-Lock portion of the brake system is not functioning and that service is required.
Page 217 216 UNDERSTANDING YOUR INSTRUMENT PANEL (48 km/h). If these conditions are not met while attempt- ing to use the HDC feature, the HDC indicator light will flash on/off. 18. TOW/HAUL Indicator — If Equipped This light will illuminate when selecting TOW/HAUL.
Page 218 sound will stop when the ESP becomes inactive following a maneuver that caused the ESP activation. WARNING! If a warning light remains on the system may not be working and you will not have the benefit of ESP or BAS. Under certain driving conditions, where ESP or BAS would be beneficial, you - if you have not adjusted your driving speeds and stopping in or to account for the lack of the feature, may be in acci-...
Page 219 218 UNDERSTANDING YOUR INSTRUMENT PANEL 23. Temperature Gauge The temperature gauge shows engine coolant tempera- ture. Any reading within the normal range indicates that the engine cooling system is operating satisfactorily. The gauge pointer will likely indicate a higher tempera- ture when driving in hot weather, up mountain grades, or when towing a trailer.
Page 220 CAUTION! Continuous driving with the Transmission Tempera- ture Warning Light illuminated will eventually cause severe transmission damage or transmission failure. WARNING! In some circumstances a Transmission Temperature Warning Light, under continued operation, could cause the fluid to boil over, come in contact with hot engine or exhaust components and cause a fire.
Page 221 220 UNDERSTANDING YOUR INSTRUMENT PANEL torque split of 42% front axle and 58% rear axle. It can redirect up to 100% of torque to the front or rear axle, if necessary. 27. Odometer/Trip Odometer The odometer shows the total distance the vehicle has been driven.
Page 222 Center (EVIC) messages when the appropriate conditions exist. Refer to Electronic Vehicle Information Center (EVIC) for further information. ECO / ECO-ON (Fuel Saver Indicator) — If Equipped The ECO-ON indicator will illuminate when you are driving in a fuel efficient manner and can be used to modify driving habits in order to increase fuel economy.
Page 223 222 UNDERSTANDING YOUR INSTRUMENT PANEL CHAngE OIL Message (Base And Mid Line Clusters Only) Your vehicle is equipped with an engine oil change indicator system. The “CHANgE OIL” message will flash in the instrument cluster odometer for approximately 12 seconds after a single chime has sounded to indicate the next scheduled oil change interval.
Page 224 belt remains unbuckled. Refer to “Occupant Restraints” in “Things To Know Before Starting Your Vehicle” for further information. 31. Brake Warning Light This light monitors various brake functions, including brake fluid level and parking brake application. If the brake light turns on, it may indicate that the parking brake is applied, that the brake fluid level is low, or that there is a problem with the anti-lock brake system reservoir.
Page 225 224 UNDERSTANDING YOUR INSTRUMENT PANEL WARNING! Driving a vehicle with the red brake light on is dangerous. Part of the brake system may have failed. It will take longer to stop the vehicle. You could have an accident. Have the vehicle checked immediately. Vehicles equipped with the Anti-Lock Brake System (ABS), are also equipped with Electronic Brake Force Distribution (EBD).
Page 226: Electronic Vehicle Information Center (Evic) - If Equipped
dealer. Refer to “Occupant Restraints” in “Things To Know Before Starting Your Vehicle” for further informa- tion. 34. Electronic Vehicle Information Center (EVIC) / Compass Display — If Equipped On vehicles equipped with a Premium Cluster, this display shows the Electronic Vehicle Information Center (EVIC) messages when the appropriate conditions exist.
Page 227 226 UNDERSTANDING YOUR INSTRUMENT PANEL • Vehicle information warning message displays • Tire Pressure Monitor System (if equipped) • Personal Settings (Customer-Programmable Features) • Compass display • Outside temperature display • Trip computer functions • Uconnect™ gps system screens (if equipped) •...
Page 228: Electronic Vehicle Information Center (Evic) Displays
Press the FUNCTION SELECT button to accept a selection. FUNCTION SELECT Button Electronic Vehicle Information Center (EVIC) Displays When the appropriate conditions exist, the EVIC displays the following messages. • Turn Signal On (with a continuous warning chime) • Left Front Turn Signal Light Out (with a single chime) •...
Page 229: Oil Change Required
228 UNDERSTANDING YOUR INSTRUMENT PANEL • Left/Right Rear Door Ajar (one or more, with a single chime if speed is above 1 mph(1.6 km/h)) • Door(s) Ajar (with a single chime if vehicle is in motion) • Liftgate Ajar (with a single chime) •...
Page 230: Trip Functions
Unless reset, this message will continue to display each time you turn the ignition switch to the ON position. To turn off the message temporarily, press and release the MENU button. To reset the oil change indicator system (after performing the scheduled maintenance) perform the following procedure: 1.
Page 231 230 UNDERSTANDING YOUR INSTRUMENT PANEL history information will be erased, and the averaging will continue from the last fuel average reading before the reset. • Distance To Empty (DTE) Shows the estimated distance that can be traveled with the fuel remaining in the tank. This estimated distance is determined by a weighted average of the instantaneous and average fuel economy, according to the current fuel tank level.
Page 232: Compass Display / Eco (Fuel Saver Mode) - If Equipped
three seconds of resetting the currently displayed func- tion (reset ALL will display during this three-second window). Compass Display / ECO (Fuel Saver Mode) — If Equipped The compass readings indicate the direction the vehicle is facing. Press and release the COMPASS button to display one of eight com- pass readings and the outside temperature.
Page 233 232 UNDERSTANDING YOUR INSTRUMENT PANEL NOTE: A good calibration requires a level surface and an environment free from large metallic objects such as buildings, bridges, underground cables, railroad tracks, etc. Manual Compass Calibration If the compass appears erratic and the “CAL” indicator does not appear in the EVIC display, you must put the compass into the Calibration Mode manually as follows: 1.
Page 234: Personal Settings (Customer-Programmable Features)
Compass Variance Map 1. Turn the ignition switch ON. 2. Press and hold the COMPASS button for approxi- mately two seconds. UNDERSTANDING YOUR INSTRUMENT PANEL 233 3. Press the SCROLL button until “Compass Variance” message and the last variance zone number displays in the EVIC.
Page 235 234 UNDERSTANDING YOUR INSTRUMENT PANEL Use the SCROLL button to display one of the following choices: Language When in this display you may select one of five lan- guages for all display nomenclature, including the trip functions and the navigation system (if equipped). Press the FUNCTION SELECT button while in this display to select English, Espanol, Deutsch, Italiano, or Francais.
Page 236 memory profile contains desired position settings for the driver seat, side mirror, adjustable pedals (if equipped), power tilt and telescopic steering column (if equipped), and a set of desired radio station presets. When OFF is selected, only the memory switch on the driver’s door panel will recall memory profiles.
Page 237 236 UNDERSTANDING YOUR INSTRUMENT PANEL Headlights On with Wipers (Available with Auto Headlights Only) When on is selected, and the headlight switch is in the AUTO position, the headlights will turn on approxi- mately 10 seconds after the wipers are turned on. If the headlights were turned on by this feature they will also turn off when the wipers are turned off.
Page 238 your selection, press and release the FUNCTION SE- LECT button until “Off,” “45 sec.,” “5 min.,” or “10 min.” appears. Illumination Approach When this feature is selected, the headlights will activate and remain on for up to 90 seconds when the doors are unlocked with the RKE transmitter.
Page 239: Media Center 230 (Req) - Am/Fm Stereo Radio And 6-Disc Cd/Dvd Changer (Mp3/Wma Aux Jack)
238 UNDERSTANDING YOUR INSTRUMENT PANEL MEDIA CENTER 230 (REQ) — AM/FM STEREO RADIO AND 6–DISC CD/DVD CHANGER (MP3/WMA AUX JACK) NOTE: The radio sales code is located on the lower right side of the radio faceplate. REQ Radio Operating Instructions - Radio Mode NOTE: The ignition switch must be in the ON or ACC position to operate the radio.
Page 240 to seek up and the left switch to seek down. The radio will remain tuned to the new station until you make another selection. Holding either button will bypass stations without stopping until you release it. SCAN Button Pressing the SCAN button causes the tuner to search for the next listenable station in AM, FM or Satellite (if equipped) frequencies, pausing for five seconds at each listenable station before continuing to the next.
Page 241 240 UNDERSTANDING YOUR INSTRUMENT PANEL 3. After adjusting the hours, press the right side TUNE/ SCROLL control knob to set the minutes. The minutes will begin to blink. 4. Adjust the minutes using the right side TUNE/ SCROLL control knob. Press the TUNE/SCROLL control knob to save the time change.
Page 242 Push the rotary TUNE/SCROLL control knob a third time and TREBLE will display. Turn the TUNE/SCROLL control knob to the right or left to increase or decrease the treble tones. Push the rotary TUNE/SCROLL control knob a fourth time and BALANCE will display. Turn the TUNE/ SCROLL control knob to the right or left to adjust the sound level from the right or left side speakers.
Page 243 242 UNDERSTANDING YOUR INSTRUMENT PANEL Program Type 16-Digit Character Display News Nostalgia Oldies Personality Public Rhythm and Blues Religious Music Religious Talk Rock Soft Soft Rock Soft Rhythm and Blues Sports Talk Top 40 Weather By pressing the SEEK button when the Music Type icon is displayed, the radio will be tuned to the next frequency News station with the same selected Music Type name.
Page 244 • DVD Enter - When the disc is in DVD Menu mode, selecting DVD Enter will allow you to play the current highlighted selection. Use the remote control to scroll up and down the menu (if equipped). • DISC Play/Pause - You can toggle between playing the DVD and pausing the DVD by pushing the SELECT button (if equipped).
Page 245 244 UNDERSTANDING YOUR INSTRUMENT PANEL • Set Home Clock - Pressing the SELECT button allows you to set the clock. Turn the TUNE/SCROLL control knob to adjust the hours and then press and turn the TUNE/SCROLL control knob to adjust the minutes. Press the TUNE/SCROLL control knob again to save changes.
Page 246 Audio DRC — If Equipped Selecting this item allows you to limit maximum audio dynamic range. The default is set to High, and under this setting, dialogues will play at 11 db higher than if the setting is Normal. Aspect Ratio — If Equipped Selecting this item allows you to choose between wide screen, pan scan, and letter box.
Page 247: Operation Instructions - (Disc Mode For Cd And Mp3/Wma Audio Play, Dvd-Video)
246 UNDERSTANDING YOUR INSTRUMENT PANEL both AM and FM. This allows a total of 12 AM, 12 FM, and 12 Satellite (if equipped) stations to be stored into pushbutton memory. The stations stored in SET 2 memory can be selected by pressing the pushbutton twice.
Page 248 NOTE: The ignition switch must be in the ON or ACC position to operate the radio. LOAD Button — Loading Compact Disc(s) Press the LOAD button and the pushbutton with the corresponding number (1-6) where the CD is being loaded. The radio will display PLEASE WAIT and prompt when to INSERT DISC.
Page 249: Notes On Playing Mp3/Wma Files
248 UNDERSTANDING YOUR INSTRUMENT PANEL SCAN Button (CD MODE) Press the SCAN button to scan through each track on the CD currently playing. TIME Button (CD MODE) Press this button to change the display from a large CD playing time display to a small CD playing time display. RW/FF (CD MODE) Press and hold FF (Fast Forward) and the CD player will begin to fast forward until FF is released, or RW or...
Page 250 The radio uses the following limits for file systems: • Maximum number of directory levels: 8 • Maximum number of files: 255 • Maximum number of folders: 100 • Maximum number of characters in file/folder names: • Level 1: 12 (including a separator . and a three- character extension) •...
Page 251 250 UNDERSTANDING YOUR INSTRUMENT PANEL MPEG Specifi- Sampling cation Frequency (kHz) MPEG-1 Audio 48, 44.1, 32 Layer 3 MPEG-2 Audio 24, 22.05, 16 Layer 3 WMA Specifica- Sampling tion Frequency (kHz) 44.1 and 48 ID3 Tag information for artist, song title, and album title are supported for ID3 version 1 tags.
Page 252: List Button (Disc Mode For Mp3/Wma Play)
LIST Button (DISC Mode for MP3/WMA Play) Pressing the LIST button will bring up a list of all folders on the disc. Scrolling up or down the list is done by turning the TUNE/SCROLL control knob. Selecting a folder by pressing the TUNE/SCROLL control knob will begin playing the files contained in that folder (or the next folder in sequence if the selection does not contain playable files).
Page 253 252 UNDERSTANDING YOUR INSTRUMENT PANEL SCAN Button (Auxiliary Mode) No function. EJECT Button (Auxiliary Mode) No function. TIME Button (Auxiliary Mode) Press the TIME button to change the display from elapsed playing time to time of day. The time of day will display for five seconds.
Page 254: Media Center 730N/430 (Rer/Ren/Rbz) - Am/Fm Stereo Radio And Cd/Dvd/Hdd/ Nav - If Equipped
Operating Instructions - Video Entertainment System (VES)™ (If Equipped) Refer to separate “Video Entertainment System (VES)™ Guide.” Dolby Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Macrovision This product incorporates copyright protection technol- ogy that is protected by U.S.
Page 255: Operating Instructions - Voice Command System - If Equipped
254 UNDERSTANDING YOUR INSTRUMENT PANEL Operating Instructions — Voice Command System — If Equipped For the radio, refer to “Voice Command” in “Understand- ing The Features Of Your Vehicle”. Operating Instructions — Uconnect™ Phone — If Equipped Refer to “Uconnect™ Phone” in “Understanding The Features Of Your Vehicle”.
Page 256: Clock Setting Procedure - Rer/Ren Radio
2. Touch the screen where the time is displayed. The clock setting menu will appear on the screen. 3. When this feature is on, a check mark will appear in the box next to the words “Daylight Savings.” Touch the screen where the words “Daylight Savings”...
Page 257 256 UNDERSTANDING YOUR INSTRUMENT PANEL satellite clock is Greenwich Mean Time (GMT). This is the worldwide standard for time. This makes the system’s clock very accurate once the appropriate time zone and daylight savings information is set. To Manually Set the Clock — RER/REN 1.
Page 258 Show Time if Radio is Off When selected, this feature will display the time of day on the touch screen when the radio is turned off. Proceed as follows to change the current setting: 1. Turn on the radio. 2. Touch the screen where the time is displayed. 3.
Page 259: Media Center 130 (Res) - Am/Fm Stereo Radio With Cd Player (Mp3 Aux Jack)
258 UNDERSTANDING YOUR INSTRUMENT PANEL MEDIA CENTER 130 (RES) — AM/FM STEREO RADIO WITH CD PLAYER (MP3 AUX JACK) NOTE: The radio sales code is located on the lower right side of the radio faceplate. RES Radio Operating Instructions — Radio Mode NOTE: The ignition switch must be in the ON or ACC position to operate the radio.
Page 260 SEEK Buttons Press and release the SEEK buttons to search for the next listenable station in AM/FM mode. Press the right switch to seek up and the left switch to seek down. The radio will remain tuned to the new station until you make another selection.
Page 261 260 UNDERSTANDING YOUR INSTRUMENT PANEL Push the rotary TUNE/SCROLL control knob a second time and MID will display. Turn the TUNE/SCROLL control knob to the right or left to increase or decrease the mid-range tones. Push the rotary TUNE/SCROLL control knob a third time and TREBLE will display.
Page 262: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
You may add a second station to each pushbutton by repeating the above procedure with this exception: Press the SET/RND button twice and SET 2 will show in the display window. Each button can be set for SET 1 and SET 2 in both AM and FM.
Page 263 262 UNDERSTANDING YOUR INSTRUMENT PANEL If you insert a disc with the ignition ON and the radio ON, the unit will switch from radio to CD mode and begin to play when you insert the disc. The display will show the track number, and index time in minutes and seconds.
Page 264: Notes On Playing Mp3 Files
the current selection. Pressing and holding the SEEK button will allow faster scrolling through the tracks in CD and MP3 modes. TIME Button Press this button to change the display from a large CD playing time display to a small CD playing time display. RW/FF Press and hold the FF (Fast Forward) button and the CD player will begin to fast forward until FF is released, or...
Page 265 264 UNDERSTANDING YOUR INSTRUMENT PANEL Supported Medium Formats (File Systems) The medium formats supported by the radio are ISO 9660 Level 1 and Level 2 and includes the Joliet extension. When reading discs recorded using formats other than ISO 9660 Level 1 and Level 2, the radio may fail to read files properly and may be unable to play the file nor- mally.
Page 266 When using the MP3 encoder to compress audio data to an MP3 file, the bit rate and sampling frequencies in the following table are supported. In addition, variable bit rates (VBR) are also supported. The majority of MP3 files use a 44.1 kHz sampling rate and a 192, 160, 128, 96 or VBR bit rate.
Page 267: Operation Instructions - Auxiliary Mode
266 UNDERSTANDING YOUR INSTRUMENT PANEL To increase the speed of disc loading, it is recommended to use CD-R media and single-session discs. To create a single-session disc, enable the “Disc at Once” option before writing to the disc. Operation Instructions - Auxiliary Mode The auxiliary (AUX) jack is an audio input jack, which allows the user to plug in a portable device, such as an MP3 player, or cassette player, and utilize the vehicle’s...
Page 268: Operating Instructions - Radio Mode
RES/RSC Radio Operating Instructions — Radio Mode NOTE: The ignition switch must be in the ON or ACC position to operate the radio. UNDERSTANDING YOUR INSTRUMENT PANEL 267 Power Switch/Volume Control (Rotary) Push the ON/VOLUME control knob to turn on the radio.
Page 269 268 UNDERSTANDING YOUR INSTRUMENT PANEL Voice Command System (Radio) — If Equipped Refer to “Voice Command” in “Understanding The Fea- tures If Your Vehicle”. Voice Command Button Uconnect™ Phone — If Equipped Press this button to operate the Uconnect™ Phone feature (if equipped).
Page 270 5. To exit, press any button/knob or wait five seconds. The clock can also be set by pressing the SETUP button. For vehicles equipped with satellite radio, press the SETUP button, use the TUNE/SCROLL control to select SET CLOCK, and then follow the above procedure, starting at Step 2.
Page 271 270 UNDERSTANDING YOUR INSTRUMENT PANEL SCROLL control knob to the right or left to adjust the sound level from the right or left side speakers. Push the rotary TUNE/SCROLL control knob a fifth time and FADE will display. Turn the TUNE/SCROLL control knob to the left or right to adjust the sound level between the front and rear speakers.
Page 272 Program Type 16-Digit Character Display Public Rhythm and Blues Religious Music Religious Talk Rock Soft Soft Rock Soft Rhythm and Blues Sports Talk Top 40 Weather By pressing the SEEK button when the Music Type icon is displayed, the radio will be tuned to the next frequency UNDERSTANDING YOUR INSTRUMENT PANEL 271 station with the same selected Music Type name.
Page 273: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
272 UNDERSTANDING YOUR INSTRUMENT PANEL AM/FM Button Press the button to select either AM or FM mode. SET/RND Button — To Set the Pushbutton Memory When you are receiving a station that you wish to commit to pushbutton memory, press the SET/RND button.
Page 274 • This radio is capable of playing compact discs (CD), recordable compact discs (CD-R), rewritable compact discs (CD-RW), compact discs with MP3 tracks and multisession compact discs with CD and MP3 tracks. Inserting Compact Disc(s) Gently insert one CD into the CD player with the CD label facing up.
Page 275 274 UNDERSTANDING YOUR INSTRUMENT PANEL If you have ejected a disc and have not removed it within 10 seconds, it will be reloaded. If the CD is not removed, the radio will reinsert the CD but will not play it. A disc can be ejected with the radio and ignition OFF.
Page 276: Notes On Playing Mp3 Files
Notes On Playing MP3 Files The radio can play MP3 files; however, acceptable MP3 file recording media and formats are limited. When writing MP3 files, pay attention to the following restric- tions. Supported Media (Disc Types) The MP3 file recording media supported by the radio are CDDA, CD-R, CD-RW, MP3, and CDDA+MP3.
Page 277 276 UNDERSTANDING YOUR INSTRUMENT PANEL Discs created with an option such as keep disc open after writing are most likely multisession discs. The use of multisession for CD audio or MP3 playback may result in longer disc loading times. Supported MP3 File Formats The radio will recognize only files with the *.MP3 exten- sion as MP3 files.
Page 278: List Button (Cd Mode For Mp3 Play)
Playback of MP3 Files When a medium containing MP3 data is loaded, the radio checks all files on the medium. If the medium contains a lot of folders or files, the radio will take more time to start playing the MP3 files. Loading times for playback of MP3 files may be affected by the following: •...
Page 279: Uconnect™ Multimedia (Satellite Radio) - If Equipped
278 UNDERSTANDING YOUR INSTRUMENT PANEL Press and hold the INFO button again for three seconds to return to elapsed time display. Operation Instructions - Auxiliary Mode The auxiliary (AUX) jack is an audio input jack which allows the user to plug in a portable device such as an MP3 player or cassette player and utilize the vehicle’s audio system to amplify the source and play through the vehicle speakers.
Page 280: System Activation
sports, news, entertainment, and programming for chil- dren, directly from its satellites and broadcasting studios. NOTE: Sirius service is not available in Hawaii and has limited coverage in Alaska. System Activation Sirius Satellite Radio service is pre-activated, and you may begin listening immediately to the one year of audio service that is included with the factory-installed satellite radio system in your vehicle.
Page 281: Selecting Uconnect™ Multimedia (Satellite) Mode
280 UNDERSTANDING YOUR INSTRUMENT PANEL ESN/SID Access With REN/RER Radios While in SAT mode, press the MENU button on the radio faceplate. Next, touch the SUBSCRIPTION tab on the touch screen. All the ESNs that apply to your vehicle will display. Selecting Uconnect™...
Page 282 SEEK Buttons Press and release the SEEK buttons to search for the next channel in Satellite mode. Press the right switch to seek up and the left switch to seek down. The radio will remain tuned to the new channel until you make another selection.
Page 283 282 UNDERSTANDING YOUR INSTRUMENT PANEL Toggle the MUSIC TYPE button again to select the music type. By pressing the SEEK button when the Music Type function is active, the radio will be tuned to the next channel with the same selected Music Type name. If a preset button is activated while in the Music Type (Program Type) mode, the Music Type mode will be exited and the radio will tune to the preset channel.
Page 284: Operating Instructions - Uconnect™ Phone (If Equipped)
Every time a preset button is used, a corresponding button number will display. Buttons 1 - 6 These buttons tune the radio to the channels that you commit to pushbutton memory (12 Satellite stations). Operating Instructions - Uconnect™ Phone (If Equipped) Refer to “Uconnect™...
Page 285: Left-Hand Switch Functions For Radio Operation
284 UNDERSTANDING YOUR INSTRUMENT PANEL • Press the button in the center of the switch to change modes (i.e., AM, FM, etc.). Left-Hand Switch Functions for Radio Operation • Press the top of the switch to SEEK the next listenable station up from the current setting.
Page 286: Radio Operation And Cellular Phones
4. Do not use solvents such as benzene, thinner, cleaners, or anti-static sprays. 5. Store the disc in its case after playing. 6. Do not expose the disc to direct sunlight. 7. Do not store the disc where temperatures may become too high.
Page 287: Manual Heating And Air Conditioning
286 UNDERSTANDING YOUR INSTRUMENT PANEL Manual Heating and Air Conditioning The Manual Temperature Controls consist of a series of outer rotary dials and inner push knobs. Blower Control Rotate this control to regulate the amount of air forced through the ven- tilation system in any mode.
Page 288 NOTE: If your air conditioning performance seems lower than expected, check the front of the A/C con- denser located in front of the radiator for an accumula- tion of dirt or insects. Clean with a gentle water spray from behind the radiator and through the condenser. Fabric front fascia protectors may reduce airflow to the condenser, reducing air conditioning performance.
Page 289 288 UNDERSTANDING YOUR INSTRUMENT PANEL Floor Air is directed through the floor outlets with a small amount flowing through the defrost and side window demist outlets. Air is directed through the floor, defrost, and side window demist outlets. This setting works best in cold or snowy conditions that require extra heat to the windshield.
Page 290 because of moisture buildup inside the vehicle. Select the Outside Air position for maximum defogging. • The A/C will engage automatically to prevent fogging when the recirculation button is pressed and the mode control is set to panel or panel / floor. •...
Page 291: Automatic Temperature Control (Atc)
290 UNDERSTANDING YOUR INSTRUMENT PANEL Automatic Temperature Control (ATC) — If Equipped Automatic Temperature Control Automatic Operation The Automatic Temperature Control system automati- cally maintains the climate in the cabin of the vehicle at the comfort levels desired by the driver and passenger. Operation of the system is quite simple.
Page 292 the desired comfort level require air conditioning, the system will automatically make the adjustment. You will experience the greatest efficiency by simply allowing the system to function automatically. Selecting the “O” (OFF) position on the blower control stops the system completely and closes the outside air intake. The recommended setting for maximum comfort is 72°F (22°C) for the average person;...
Page 293 292 UNDERSTANDING YOUR INSTRUMENT PANEL Blower Control For full automatic operation or for automatic blower operation turn the knob to AUTO position. In manual mode there are seven blower speeds that can be individual selected. In off position the blower will shut off. Manual Operation This system offers a full complement of manual override features, which consist of Blower Preferred Automatic,...
Page 294 UNDERSTANDING YOUR INSTRUMENT PANEL 293...
Page 295 294 UNDERSTANDING YOUR INSTRUMENT PANEL The operator can override the AUTO mode setting to change airflow distribution by rotating the Mode Control knob (on the right) to one of the following positions. • Panel Air is directed through the outlets in the instrument panel.
Page 296 • Air Conditioner Control Press this button to turn on the air conditioning during manual operation only. When the air conditioning is turned on, cool dehumidified air will flow through the outlets selected with the Mode control dial. Press this but- ton a second time to turn OFF the air conditioning.
Page 297: Operating Tips
296 UNDERSTANDING YOUR INSTRUMENT PANEL visibility. For this reason, the system will not allow Recirculation to be selected while in floor, defrost, or defrost/floor mode. Attempting to use the recircula- tion while in these modes will cause the LED in the control button to blink and then turn off.
Page 298 Winter Operation Use of the air Recirculation Mode during winter months is not recommended because it may cause window fogging. Vacation Storage Anytime you store your vehicle, or keep it out of service (i.e., vacation) for two weeks or more, run the air conditioning system at idle for about five minutes in the fresh air and high blower settings.
Page 299 298 UNDERSTANDING YOUR INSTRUMENT PANEL Outside Air Intake Make sure the air intake, located directly in front of the windshield, is free of obstructions such as leaves. Leaves collected in the air intake may reduce airflow, and if they enter the plenum, they could plug the water drains. In winter months, make sure the air intake is clear of ice, slush, and snow.
Page 300 UNDERSTANDING YOUR INSTRUMENT PANEL 299 Control Setting Suggestions for Various Weather Conditions...
Page 302 STARTING AND OPERATING CONTENTS Starting Procedures ....305 Normal Starting ..... 305 Extreme Cold Weather (Below –20°F Or –29°C) .
Page 303 302 STARTING AND OPERATING On-Road Driving Tips ....327 Off-Road Driving Tips ....327 When To Use 4WD Low Range .
Page 304 Tire Identification Number (TIN) ..355 Tire Terminology And Definitions ..356 Tire Loading And Tire Pressure ..357 Tires —...
Page 305 304 STARTING AND OPERATING Carbon Monoxide Warnings ... . 385 Adding Fuel ......386 Fuel Filler Cap (Gas Cap) .
Page 306: Starting Procedures
STARTING PROCEDURES Before starting your vehicle, adjust your seat, adjust both inside and outside mirrors, and fasten your seat belts. WARNING! Do not leave children or animals inside parked vehicles in hot weather. Interior heat build-up may cause serious injury or death. Start the engine with the shift lever in the NEUTRAL or PARK position.
Page 307: Extreme Cold Weather (Below -20°F Or -29°C)
306 STARTING AND OPERATING Extreme Cold Weather (below –20°F or –29°C) To ensure reliable starting at these temperatures, use of an externally powered electric engine block heater (avail- able from your authorized dealer) is recommended. If Engine Fails to Start WARNING! •...
Page 308: After Starting
With Tip Start If the engine fails to start after you have followed the “Normal Starting” or “Extreme Cold Weather” proce- dures, it may be flooded. To clear any excess fuel, press the accelerator pedal all the way to the floor and hold it. Then, turn the ignition switch to the START position and release it as soon as the starter engages.
Page 309: Automatic Transmission
308 STARTING AND OPERATING WARNING! Remember to disconnect the cord before driving. Damage to the 110-115 Volt AC electrical cord could cause electrocution. Use the heater when temperatures below 0 °F (-18 °C) are expected to last for several days. AUTOMATIC TRANSMISSION CAUTION! Damage to the transmission may occur if the follow-...
Page 310: Key Ignition Park Interlock
WARNING! It is dangerous to move the shift lever out of PARK or NEUTRAL if the engine speed is higher than idle speed. If your foot is not firmly on the brake pedal, the vehicle could accelerate quickly forward or in reverse.
Page 311 310 STARTING AND OPERATING 3. Using a flat blade screwdriver, carefully remove the shift lock manual override cover which is located on the PRNDL bezel. 4. Press and maintain firm pressure on the brake pedal. 5. Using the screwdriver, reach into the manual override opening.
Page 312: Four-Speed Automatic Transmission
Four–Speed Automatic Transmission NOTE: Under extreme cold temperatures (-6°F (-21°C) and when in DRIVE, transmission operation may be briefly limited to only second gear operation. Normal operation will resume once the transmission temperature has risen to a suitable level. Shifting from DRIVE to PARK or REVERSE should be done only after the accelerator pedal is released and the vehicle is stopped.
Page 313 312 STARTING AND OPERATING the parking brake when leaving the vehicle in this range. Always apply the parking brake first, then place the shift lever in the PARK position. WARNING! • Never use the PARK position as a substitute for the parking brake.
Page 314 2 (Second) This range is used for moderate grades and to assist braking on dry pavement or in mud and snow. Begins at a stop in low gear with automatic upshift into second gear. Will not shift into third gear. 1 (First) This range is used for hard pulling at low speeds in mud, sand, snow, or on steep grades.
Page 315 314 STARTING AND OPERATING NOTE: TOW/HAUL mode locks out Overdrive. Tow/Haul Button The “TOW/HAUL Indicator Light” will illuminate in the instrument cluster to indicate when the switch has been activated. Pressing the switch a second time restores normal operation. If the TOW/HAUL mode is desired, the switch must be pressed each time the engine is started.
Page 316: Four-Wheel Drive Operation
If the problem is no longer detected, the transmission will return to normal operation. If the problem persists, PARK, REVERSE, and NEUTRAL will continue to oper- ate. Only second gear range will operate in the DRIVE position. Have the transmission checked at your autho- rized dealer as soon as possible.
Page 317 316 STARTING AND OPERATING position locks the front driveshaft and rear driveshaft together and forces the front and rear wheels to rotate at the same speed. Use the transfer case NEUTRAL position for recreational towing only. Refer to “Recreational Towing” in “Starting and Operating”...
Page 318 WARNING! • You or others could be injured if you leave the vehicle unattended with the transfer case in the NEUTRAL position without first fully engaging the parking brake. The transfer case NEUTRAL position disengages both the front driveshaft and rear driveshaft from the powertrain and it will allow the vehicle to move even if the transmission is in PARK.
Page 319 318 STARTING AND OPERATING Shift Positions The transfer case switch is located on the center console next to the shift lever. Transfer Case Switch Rear Wheel Drive High Range - This range is used for normal street and highway driving on dry hard-surfaced roads.
Page 320 Transfer Case Position Indicator Lights The four-wheel drive indicator lights (4WD and 4 LOW) are located in the instrument cluster. The NEUTRAL indicator light is located on the transfer case switch. If there is no indicator light on or flashing, the transfer case position is two-wheel drive (2WD).
Page 321 320 STARTING AND OPERATING engine either OFF or RUNNING. This shift cannot be completed if the ignition switch is in the ACC position. NOTE: The four-wheel drive system will not allow shifts between 2WD and 4WD LOCK if the rear wheels are spinning (no traction).
Page 322: Mp3022 Selec-Trac Ii Transfer Case - If Equipped
2. With the ignition switch in the ON position, and the engine OFF or RUNNING, shift the transmission into NEUTRAL. 3. Move the transfer case switch to the desired position. 4. After the desired position indicator light is on (not flashing), shift the transmission into gear.
Page 323 322 STARTING AND OPERATING For added capability when traversing steep grades, rough terrain, or extremely poor traction surfaces, select the transfer case 4WD LOW position. This position locks the front driveshaft and rear driveshaft together and forces the front and rear wheels to rotate at the same speed while multiplying engine torque.
Page 324 WARNING! • You or others could be injured if you leave the vehicle unattended with the transfer case in the NEUTRAL position without first fully engaging the parking brake. The transfer case NEUTRAL position disengages both the front driveshaft and rear driveshaft from the powertrain and it will allow the vehicle to move despite the transmission position.
Page 325 324 STARTING AND OPERATING Shift Positions The transfer case switch is located on the center console next to the shift lever. Transfer Case Switch Rear Wheel Drive High Range - This range is for normal street and highway driving on dry hard-surfaced roads. 4WD Auto Four-Wheel Drive Auto High Range –...
Page 326 Neutral - This range disengages both the front driveshaft and rear driveshaft from the powertrain. To be used for flat towing behind another vehicle. Refer to “Recreational Towing” in “Starting and Operating” for further information. Transfer Case Position Indicator Lights The four-wheel drive indicator lights (4WD, 4 LOW) are located in the instrument cluster.
Page 327 326 STARTING AND OPERATING vehicle stopped or in motion. If the vehicle is stopped, the ignition switch must be in the ON position with the engine either OFF or RUNNING. This shift cannot be completed if the ignition switch is in the ACC position. 2WD or 4WD Auto to 4WD Low When shifting into or out of 4WD LOW, some gear noise may be heard.
Page 328: On-Road Driving Tips
process, then the indicator light will flash, and the current transfer case position will be maintained. To retry a shift, move the transfer case switch back to the original position, make certain all shift requirements have been met, wait five seconds, and try the shift again. The ignition switch must be in the ON position for a shift to take place and for the position indicator lights to be operable.
Page 329: Driving Through Water
328 STARTING AND OPERATING Driving Through Water Although your vehicle is capable of driving through water, there are a number of precautions that must be considered before entering the water: CAUTION! When driving through water, do not exceed 5 mph (8 km/h).
Page 330: Driving In Snow, Mud And Sand
Maintenance After driving through deep water, inspect your vehicle fluids and lubricants (engine, transmission, axle, transfer case) to assure they have not been contaminated. Con- taminated fluids and lubricants (milky, foamy in appear- ance) should be flushed/changed as soon as possible to prevent component damage.
Page 331: Traction Downhill
330 STARTING AND OPERATING WARNING! If the engine stalls or you lose headway or cannot make it to the top of a steep hill or grade, never attempt to turn around. To do so may result in tipping and rolling the vehicle. Always back straight down a hill in REVERSE gear carefully.
Page 332: Power Steering
• Completely inspect the underbody of your vehicle. Check tires, body structure, steering, suspension, and exhaust system for damage. • Check threaded fasteners for looseness, particularly on the chassis, drivetrain components, steering, and sus- pension. Retighten them, if required, and torque to the values specified in the Service Manual.
Page 333 332 STARTING AND OPERATING If for some reason the power assist is interrupted, it will still be possible to steer your vehicle. Under these condi- tions, you will observe a substantial increase in steering effort, especially at very low vehicle speeds and during parking maneuvers.
Page 334: Power Steering Fluid Check
Power Steering Fluid Check Checking the power steering fluid level at a defined service interval is not required. The fluid should only be checked if a leak is suspected, abnormal noises are apparent, and/or the system is not functioning as antici- pated.
Page 335 334 STARTING AND OPERATING The parking brake lever is located in the center console. To apply the parking brake, pull the lever up as firmly as possible. To release the parking brake, pull the lever up slightly, press the center button, then lower the lever completely.
Page 336 make it difficult to move the shift lever out of PARK. The parking brake should always be applied whenever the driver is not in the vehicle. WARNING! • Never use the PARK position as a substitute for the parking brake. Always apply the parking brake fully when parked to guard against vehicle movement and possible injury or damage.
Page 337: Anti-Lock Brake System
336 STARTING AND OPERATING ANTI-LOCK BRAKE SYSTEM The Anti-Lock Brake System (ABS) is designed to aid the driver in maintaining vehicle control under adverse braking conditions. The system operates with a separate computer to modulate hydraulic pressure, to prevent wheel lock-up and help avoid skidding on slippery surfaces.
Page 338: Starting And Operating 337
WARNING! (Continued) • The ABS cannot prevent the natural laws of phys- ics from acting on the vehicle, nor can it increase braking or steering efficiency beyond that af- forded by the condition of the vehicle brakes and tires or the traction afforded. •...
Page 339: Electronic Brake Control System
338 STARTING AND OPERATING • Engines may idle at higher speeds during warm-up, which could cause rear wheels to spin and result in loss of vehicle control. Be especially careful while driving on slippery roads, in close-quarter maneuver- ing, parking, or stopping. •...
Page 340: Traction Control System (Tcs)
WARNING! The Anti-Lock Brake System (ABS) cannot prevent the natural laws of physics from acting on the ve- hicle, nor can it increase the traction afforded by prevailing road conditions. ABS cannot prevent acci- dents, including those resulting from excessive speed in turns, driving on very slippery surfaces, or hydro- planing.
Page 341: Electronic Roll Mitigation (Erm)
340 STARTING AND OPERATING benefit of the system, you must apply continuous brak- ing pressure during the stopping sequence, (do not “pump” the brakes). Do not reduce brake pedal pressure unless braking is no longer desired. Once the brake pedal is released, the BAS is deactivated.
Page 342: Trailer Sway Control (Tsc) - If Equipped
WARNING! Many factors, such as vehicle loading, road condi- tions, and driving conditions, influence the chance that wheel lift or rollover may occur. Electronic Roll Mitigation (ERM) cannot prevent all wheel lift or rollovers, especially those that involve leaving the roadway or striking objects or other vehicles.
Page 343: Hill Start Assist (Hsa)
342 STARTING AND OPERATING WARNING! (Continued) • Failure to follow these warnings can result in an accident or serious personal injury. Hill Start Assist (HSA) The HSA system is designed to help the driver accelerate the vehicle from a complete stop while on an incline. If the driver releases the brake while stopped on an incline, HSA will continue to hold the brake pressure for a short period.
Page 344 WARNING! There may be situations where the Hill Start Assist (HSA) will not activate and slight rolling may occur, such as on minor hills (i.e., less than 7%), or with a loaded vehicle, or while pulling a trailer. HSA is not a substitute for active driving involvement.
Page 345 344 STARTING AND OPERATING Disabling and Enabling HSA This feature can be turned on or turned off. To change the current setting, proceed as follows: For vehicles equipped with the Electronic Vehicle Infor- mation Center (EVIC), refer to “Hill Start Assist,” under Personal Settings (Customer Programmable Features),”...
Page 346: Hill Descent Control (Hdc) - If Equipped
Hill Descent Control (HDC) – If Equipped HDC is only intended for low speed off-road driving. HDC maintains vehicle speed while descending hills in off-road driving conditions by applying the brakes when necessary. When enabled, HDC senses the terrain and activates when the vehicle is descending a hill.
Page 347: Electronic Stability Program (Esp)
346 STARTING AND OPERATING The “Hill Descent” button is located in the lower switch bank below the climate control. Hill Descent Button Enabling HDC 1. Shift the transfer case into 4WD LOW range. Refer to “Four-Wheel Drive Operation” in “Starting and Operat- ing”...
Page 348 The ESP uses sensors in the vehicle to determine the path that the driver intends to steer the vehicle and compares it to the actual path of the vehicle. When the actual path does not match the intended path, the ESP applies the brake of the appropriate wheel to assist in counteracting the condition of over-steer or under-steer.
Page 349 348 STARTING AND OPERATING Depending upon model and mode of operation, the ESP system has up to three operating modes: “ESP On” “Partial Off,” and “Full Off.” ESP On — Two-Wheel Drive Vehicles and Four-Wheel Drive Vehicles in 2WD and 4WD High Range This is the normal operating mode for ESP when operat- ing a two-wheel drive vehicle.
Page 350 ESP Off Button NOTE: To improve the vehicle’s traction when driving with snow chains, or when starting off in deep snow, sand, or gravel, it may be desirable to switch to the “Partial Off” mode by momentarily pressing the “ESP OFF”...
Page 351: Esp/Bas Warning Light And Esp/Tcs Indicator Light
350 STARTING AND OPERATING In this mode, ESP and TCS are turned off (except for the “limited slip” feature described in the TCS section) until the vehicle reaches a speed of 40 mph (64 km/k). At speeds over 40 mph (64 km/k), the system automatically switches to “Partial Off”...
Page 352: Tire Safety Information
ON position. They should both turn off with the engine running. If the “ESP/BAS Malfunction Indicator Light” turns on continuously with the engine running, a mal- function has been detected in either the ESP or the BAS system, or both. If this light remains on after several ignition cycles, and the vehicle has been driven several miles/kilometers at speeds greater than 30 mph (48 km/h), see your authorized dealer as soon as possible...
Page 353 352 STARTING AND OPERATING NOTE: • P (Passenger) - Metric tire sizing is based on U.S. design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designa- tion. Example: P215/65R15 95H. • European-Metric tire sizing is based on European design standards.
Page 354 Tire Sizing Chart Size Designation: P = Passenger car tire size based on U.S. design standards ...blank... = Passenger car tire based on European design standards LT = Light truck tire based on U.S. design standards T = Temporary spare tire 31 = Overall diameter in inches (in) 215 = Section width in millimeters (mm) 65 = Aspect ratio in percent (%)
Page 355 354 STARTING AND OPERATING Service Description: 95 = Load Index — A numerical code associated with the maximum load a tire can carry H = Speed Symbol — A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions —...
Page 356: Tire Identification Number (Tin)
Tire Identification Number (TIN) The TIN may be found on one or both sides of the tire, however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including the date code, located on the white sidewall side of the tire. DOT = Department of Transportation —...
Page 357: Tire Terminology And Definitions
356 STARTING AND OPERATING Tire Terminology and Definitions Term B-Pillar Cold Tire Pressure Maximum Inflation Pressure Recommended Inflation Pressure Tire Placard Definition The vehicle B-Pillar is a structural member of the body located between the front and rear door (of a four-door vehicle) running from the sill to the roof.
Page 358: Tire Loading And Tire Pressure
STARTING AND OPERATING 357 Tire Loading and Tire Pressure Tire and Loading Information Placard Tire Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar. Tire and Loading Information Placard Tire Placard Location...
Page 359 358 STARTING AND OPERATING This placard tells you important information about the: 1) number of people that can be carried in the vehicle 2) total weight your vehicle can carry 3) tire size designed for your vehicle 4) cold tire inflation pressures for the front, rear, and spare tires.
Page 360 3. Subtract the combined weight of the driver and pas- sengers from XXX lbs or XXX kg. 4. The resulting figure equals the available amount of cargo and luggage load capacity. For example, if “XXX” amount equals 1,400 lbs (635 kg) and there will be five 150 lb (68 kg) passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs (295 kg) (since 5 x 150 = 750, and 1400 –...
Page 361 360 STARTING AND OPERATING...
Page 362: Tires - General Information
WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the recommended load capacity for your vehicle. Never overload them. TIRES — GENERAL INFORMATION Tire Pressure Proper tire inflation pressure is essential to the safe and satisfactory operation of your vehicle.
Page 363: Tire Inflation Pressures
362 STARTING AND OPERATING WARNING! (Continued) • Unequal tire pressures from one side of the ve- hicle to the other can cause the vehicle to drift to the right or left. • Always drive with each tire inflated to the recom- mended cold tire inflation pressure.
Page 364 CAUTION! After inspecting or adjusting the tire pressure, al- ways reinstall the valve stem cap. This will prevent moisture and dirt from entering the valve stem, which could damage it. Inflation pressures specified on the placard are always cold tire inflation pressure. Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been driven for at least three hours, or driven less than 1 mile (1.6 km) after a three-hour period.
Page 365: Tire Pressures For High Speed Operation
364 STARTING AND OPERATING Tire Pressures For High Speed Operation The manufacturer advocates driving at safe speeds within posted speed limits. Where speed limits or condi- tions are such that the vehicle can be driven at high speeds, maintaining correct tire inflation pressure is very important.
Page 366: Tire Spinning
WARNING! Temporary use spare tires are for emergency use only. With these tires, do not drive more than 50 mph (80 km/h). Temporary use spare tires have limited tread life. When the tread is worn to the tread wear indicators, the temporary use spare tire needs to be replaced.
Page 367: Tread Wear Indicators
366 STARTING AND OPERATING Tread Wear Indicators Tread wear indicators are in the original equipment tires to help you in determining when your tires should be replaced. 1 — Worn Tire 2 — New Tire These indicators are molded into the bottom of the tread grooves.
Page 368: Life Of Tire
Life Of Tire The service life of a tire is dependent upon various factors including but not limited to: • Driving style • Tire pressure • Distance driven WARNING! Tires and the spare tire should be replaced after six years, regardless of the remaining tread. Failure to follow this warning can result in sudden tire failure.
Page 369: Tire Chains
368 STARTING AND OPERATING WARNING! • Do not use a tire, wheel size or rating other than that specified for your vehicle. Some combinations of unapproved tires and wheels may change sus- pension dimensions and performance characteris- tics, resulting in changes to steering, handling, and braking of your vehicle.
Page 370 CAUTION! To avoid damage to your vehicle, tires, or chains, observe the following precautions: • Do not use tire chains on vehicles equipped with tires other than P225/75R16 or smaller tires. There may not be adequate clearance for the chains and you are risking structural or body damage to your vehicle.
Page 371: Tire Rotation Recommendations
370 STARTING AND OPERATING These cautions apply to all chain traction devices, includ- ing link and cable (radial) chains. TIRE ROTATION RECOMMENDATIONS Tires on the front and rear axles of vehicles operate at different loads and perform different steering, handling, and braking functions.
Page 372: Tire Pressure Monitor System (Tpms)
CAUTION! Proper operation of four-wheel drive vehicles de- pends on tires of equal size, type and circumference on each wheel. Any difference in tire size can cause damage to the transfer case. Tire rotation schedule should be followed to balance tire wear. Refer to “Maintenance Schedule”...
Page 373 372 STARTING AND OPERATING The TPMS will continue to warn the driver of low tire pressure as long as the condition exists, and will not turn off until the tire pressure is at or above the recommended cold placard pressure. Once the low tire pressure warn- ing (Tire Pressure Monitoring Telltale Light) illuminates, you must increase the tire pressure to the recommended cold placard pressure in order for the “Tire Pressure...
Page 374 CAUTION! • The TPMS has been optimized for the original equipment tires and wheels. TPMS pressures and warning have been established for the tire size equipped on your vehicle. Undesirable system operation or sensor damage may result when us- ing replacement equipment that is not of the same size, type, and/or style.
Page 375: Base System
374 STARTING AND OPERATING • Seasonal temperature changes will affect tire pressure, and the TPMS will monitor the actual tire pressure in the tire. Base System The Tire Pressure Monitor System (TPMS) uses wireless technology with wheel rim mounted electronic sensors to monitor tire pressure levels.
Page 376 vehicle may need to be driven for up to 20 minutes above 15 mph (25 km/h) in order for the TPMS to receive this information. Check TPMS Warning When a system fault is detected, the “Tire Pressure Monitoring Telltale Light” will flash on and off for 75 seconds and then remain on solid.
Page 377: Premium System - If Equipped
376 STARTING AND OPERATING Vehicles with Compact Spare 1. The compact spare tire does not have a tire pressure monitoring sensor. Therefore, the TPMS will not monitor the pressure in the compact spare tire. 2. If you install the compact spare tire in place of a road tire that has a pressure below the low-pressure warning limit, a chime will sound and the “TPMS Telltale Light”...
Page 378 • Three Trigger Modules (mounted in three of the four wheel-wells) • Various Tire Pressure Monitoring System messages, which display in the Electronic Vehicle Information Center (EVIC) • Tire Pressure Monitoring Telltale Light The matching full size spare wheel and tire assembly (if equipped) has a tire pressure monitoring sensor.
Page 379 378 STARTING AND OPERATING Should this occur, you should stop as soon as possible and inflate the tires with low pressure (those flashing in the EVIC graphic) to the vehicle’s recommended cold placard pressure value. Once the system receives the updated tire pressures, the system will automatically update, the graphic display in the EVIC will stop flash- ing, and the “Tire Pressure Monitoring Telltale Light”...
Page 380 If the ignition key is cycled, this sequence will repeat, providing the system fault still exists. If the system fault no longer exists, the “Tire Pressure Monitoring Telltale Light” will no longer flash, and the CHECK TPM SYSTEM message will no longer display, and a pressure value will display in place of the dashes.
Page 381 380 STARTING AND OPERATING value. The EVIC will also display a “SPARE LOW PRESSURE” message to remind you to service the flat tire. Vehicles with Compact Spare 1. The compact spare tire does not have a tire pressure monitoring sensor. Therefore, the TPMS will not monitor the pressure in the compact spare tire.
Page 382: General Information
vehicle may need to be driven for up to 20 minutes above 15 mph (25 km/h) in order for the TPMS to receive this information. General Information This device complies with Part 15 of the FCC rules and RSS 210 of Industry Canada. Operation is subject to the following conditions: •...
Page 383: Reformulated Gasoline
382 STARTING AND OPERATING Over 40 auto manufacturers worldwide have issued and endorsed consistent gasoline specifications (the World- wide Fuel Charter, WWFC) which define fuel properties necessary to deliver enhanced emissions, performance, and durability for your vehicle. The manufacturer recom- mends the use of gasoline that meets the WWFC speci- fications if they are available.
Page 384: E-85 Usage In Non-Flex Fuel Vehicles
E-85 Usage In Non-Flex Fuel Vehicles Non-FFV vehicles are compatible with gasoline contain- ing 10% ethanol (E10). Gasoline with higher ethanol content may void the vehicle’s warranty. If a Non-FFV vehicle is inadvertently fueled with E-85 fuel, the engine will have some or all of these symptoms: •...
Page 385: Materials Added To Fuel
384 STARTING AND OPERATING MMT can be used at levels higher than those allowed in the United States. MMT is prohibited in Federal and California reformulated gasoline. Materials Added To Fuel All gasoline sold in the United States is required to contain effective detergent additives.
Page 386: Carbon Monoxide Warnings
NOTE: Intentional tampering with emissions control systems can result in civil penalties being assessed against you. Carbon Monoxide Warnings WARNING! Carbon monoxide (CO) in exhaust gases is deadly. Follow the precautions below to prevent carbon monoxide poisoning. WARNING! (Continued) • Do not inhale exhaust gases. They contain carbon monoxide, a colorless and odorless gas, which can kill.
Page 387: Adding Fuel
386 STARTING AND OPERATING ADDING FUEL Fuel Filler Cap (Gas Cap) The gas cap is located behind the fuel filler door, on the driver’s side of the vehicle. If the gas cap is lost or damaged, be sure the replacement cap has been designed for use with this vehicle.
Page 388: Loose Fuel Filler Cap Message
WARNING! • Never have any smoking materials lit in or near the vehicle when the gas cap is removed or the tank filled. • Never add fuel when the engine is running. This is in violation of most state and federal fire regula- tions and will cause the MIL to turn on.
Page 389: Vehicle Loading
388 STARTING AND OPERATING VEHICLE LOADING Certification Label As required by National Highway Traffic Safety Admin- istration regulations, your vehicle has a certification label affixed to the driver’s side door or B-Pillar. This label contains the month and year of manufacture, Gross Vehicle Weight Rating (GVWR), Gross Axle Weight Rating (GAWR) front and rear, and Vehicle Identification Number (VIN).
Page 390 components, sometimes specified by purchasers for in- creased durability, does not necessarily increase the ve- hicle’s GVWR. Tire Size The tire size on the label represents the actual tire size on your vehicle. Replacement tires must be equal to the load capacity of this tire size.
Page 391: Trailer Towing
390 STARTING AND OPERATING heavier items down low and be sure that the weight is distributed equally. Stow all loose items securely before driving. Improper weight distributions can have an adverse affect on the way your vehicle steers and handles, and the way the brakes operate.
Page 392 Gross Trailer Weight (GTW) The GTW is the weight of the trailer plus the weight of all cargo, consumables, and equipment (permanent or tem- porary) loaded in or on the trailer in its loaded and ready for operation condition. The recommended way to measure GTW is to put your fully loaded trailer on a vehicle scale.
Page 393 392 STARTING AND OPERATING Tongue Weight (TW) The tongue weight is the downward force exerted on the hitch ball by the trailer. In most cases, it should not be less than 10% or more than 15% of the trailer load. You must consider this as part of the load on your vehicle.
Page 394 WARNING! • An improperly adjusted Weight Distributing Hitch system may reduce handling, stability, brak- ing performance, and could result in an accident. • Weight Distributing Systems may not be compat- ible with Surge Brake Couplers. Consult with your hitch and trailer manufacturer or a reputable Rec- reational Vehicle dealer for additional information.
Page 395 394 STARTING AND OPERATING With Weight Distributing Hitch (Correct) Improper Adjustment of Weight- Distributing Hitch (Incorrect)
Page 396: Trailer Hitch Classification
Trailer Hitch Classification Your vehicle is capable of towing trailers up to 2,000 lbs (907 kg) without added equipment or alterations to the standard equipment. Your vehicle may be factory equipped for safe towing of trailers weighing over 2,000 lbs (907 kg) with the optional Trailer Tow Prep Package.
Page 397: Trailer Towing Weights (Maximum Trailer Weight Ratings)
396 STARTING AND OPERATING Trailer Towing Weights (Maximum Trailer Weight Ratings) The following chart provides the maximum trailer weight ratings towable for your given drivetrain. Engine/ Model Transmission 3.7L/Automatic 3.7L/Automatic Refer to local laws for maximum trailer towing speeds. NOTE: The trailer tongue weight must be considered as part of the combined weight of occupants and cargo, and it should never exceed the weight referenced on the “Tire and Loading Information”...
Page 398: Trailer And Tongue Weight
Engine/ Model Transmission 3.7L/Automatic w/Trailer Tow Package 3.7L/Automatic w/Trailer Tow package Refer to local laws for maximum trailer towing speeds. NOTE: The trailer tongue weight must be considered as part of the combined weight of occupants and cargo, and it should never exceed the weight referenced on the “Tire and Loading Information”...
Page 399: Towing Requirements
398 STARTING AND OPERATING Never exceed the maximum tongue weight stamped on your bumper or trailer hitch. Consider the following items when computing the weight on the rear axle of the vehicle: • The tongue weight of the trailer. • The weight of any other type of cargo or equipment put in or on your vehicle.
Page 400 CAUTION! (Continued) • Then, during the first 500 miles (805 km) that a trailer is towed, do not drive over 50 mph (80 km/h) and do not make starts at full throttle. This helps the engine and other parts of the vehicle wear in at the heavier loads.
Page 401 400 STARTING AND OPERATING WARNING! (Continued) • Vehicles with trailers should not be parked on a grade. When parking, apply the parking brake on the tow vehicle. Put the tow vehicle transmission in PARK. Always, block or chock the trailer wheels.
Page 402 − When replacing tires, refer to “Tires – General Infor- mation” in “Starting and Operating” for information on replacement tires and for the proper tire replace- ment procedures. Replacing tires with a higher load carrying capacity will not increase the vehicle’s GVWR and GAWR limits.
Page 403 402 STARTING AND OPERATING WARNING! • Do not connect trailer brakes to your vehicle’s hydraulic brake lines. It can overload your brake system and cause it to fail. You might not have brakes when you need them and could have an accident.
Page 404 Four-Pin Connector 1 — Female Pins 4 — Park 2 — Male Pin 5 — Left Stop/Turn 3 — Ground 6 — Right Stop/Turn STARTING AND OPERATING 403 Seven-Pin Connector 1 — Battery 5 — Ground 2 — Backup Lamps 6 —...
Page 405: Towing Tips
404 STARTING AND OPERATING Towing Tips Before setting out on a trip, practice turning, stopping, and backing the trailer in an area located away from heavy traffic. Automatic Transmission The “D” range can be selected when towing. However, if frequent shifting occurs while in this range, you will want to activate the TOW/HAUL feature.
Page 406: Recreational Towing (Behind Motorhome, Etc.)
Cooling System To reduce potential for engine and transmission over- heating, take the following actions: − City Driving When stopped for short periods of time, shift the trans- mission into NEUTRAL and increase engine idle speed. − Highway Driving Reduce speed. −...
Page 407: Four-Wheel Drive Models
406 STARTING AND OPERATING The parking brake must be firmly engaged and the wheels chocked during driveshaft removal and installa- tion. The parking brake must remain engaged unless the vehicle is securely and properly connected to the tow vehicle, or the driveshaft is completely reinstalled. See your authorized dealer for proper driveshaft removal and reinstallation procedures, including flange orienta- tion/alignment, use of thread-locking compound, proper...
Page 408 WARNING! You or others could be injured if you leave the vehicle unattended with the transfer case in the NEUTRAL position without first fully engaging the parking brake. The transfer case NEUTRAL position disengages both the front driveshaft and rear drive- shaft from the powertrain and it will allow the vehicle to move, even if the transmission is in PARK.
Page 409 408 STARTING AND OPERATING 13. Turn the ignition switch to the unlocked OFF posi- tion. 14. Shift the transmission into PARK. 15. Attach the vehicle to a tow vehicle with a tow bar. 16. Release the parking brake. NOTE: Steps 1 through 5 are requirements for shifting the transfer case.
Page 410 3. Turn the ignition switch to the ON position, but do not start the engine. 4. Press the brake pedal. 5. Shift the transmission into NEUTRAL. 6. Use the point of a ballpoint pen or similar object to press the recessed transfer case NEUTRAL button. Re- lease the NEUTRAL button after the NEUTRAL indicator light turns off (approximately one second).
Page 412 WHAT TO DO IN EMERGENCIES CONTENTS Hazard Warning Flasher ....412 If Your Engine Overheats ....412 Jacking And Tire Changing .
Page 413: Hazard Warning Flasher
412 WHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHER The Hazard Warning flasher switch is located in the switch bank below the climate controls. Press the switch to turn on the Hazard Warning flasher. When the switch is activated, all directional turn signals will flash on and off to warn oncoming traffic of an emergency.
Page 414: What To Do In Emergencies 413
NOTE: There are steps that you can take to slow down an impending overheat condition: • If your air conditioner (A/C) is on, turn it off. The A/C system adds heat to the engine cooling system and turning the A/C off can help remove this heat. •...
Page 415: Jack Location
414 WHAT TO DO IN EMERGENCIES Jack Location The scissor-type jack and tire changing tools are located in the cargo compartment behind a trim cover on the left rear trim panel. The latch is located at the bottom of the trim cover.
Page 416: Preparations For Jacking
Lowering/Raising Spare Tire CAUTION! The winch mechanism is designed for use with the jack extension tube only. Use of an air wrench or other power tools is not recommended and they can damage the winch. WHAT TO DO IN EMERGENCIES 415 When the spare is clear, tilt the retainer at the end of the cable, and pull it through the center of the wheel.
Page 417: Jacking Instructions
416 WHAT TO DO IN EMERGENCIES 3. Place the shift lever into PARK (automatic transmis- sion) or REVERSE (manual transmission). 4. Turn the ignition to the LOCK position. 5. Turn on the Hazard Warning flasher. 6. Block both the front and rear of the wheel diagonally opposite of the jack- ing position.
Page 418 WARNING! (Continued) • Do not let anyone sit in the vehicle when it is on a jack. • Do not get under the vehicle when it is on a jack. • Only use the jack in the positions indicated and for lifting this vehicle during a tire change.
Page 419 418 WHAT TO DO IN EMERGENCIES 4. Locate the jack as shown. For the front tires, place it (rearward) of the notch on the body weld seam behind wheel to be changed. For the rear tires, place it under the axle by the wheel to be changed.
Page 420 WARNING! Raising the vehicle higher than necessary can make the vehicle less stable and cause an accident. It could slip off the jack and hurt someone near it. Raise the vehicle only enough to remove the tire. 6. Remove the lug nuts and wheel. 7.
Page 421: Jump-Starting Procedures
420 WHAT TO DO IN EMERGENCIES JUMP-STARTING PROCEDURES If your vehicle has a discharged battery it can be jump- started using a set of jumper cables and a battery in another vehicle or by using a portable battery booster pack. Jump-starting can be dangerous if done improperly so please follow the procedures in this section carefully.
Page 422 Positive Battery Post WHAT TO DO IN EMERGENCIES 421 WARNING! • Take care to avoid the radiator cooling fan when- ever the hood is raised. It can start anytime the ignition switch is on. You can be injured by moving fan blades. •...
Page 423: Jump-Starting Procedure
422 WHAT TO DO IN EMERGENCIES 3. If using a another vehicle to jump-start the battery, park the vehicle within the jumper cables reach, set the parking brake and make sure the ignition is OFF. WARNING! Do not allow vehicles to touch each other as this could establish a ground connection and personal injury could result.
Page 424 WARNING! Do not connect the cable to the negative post (-) of the discharged battery. The resulting electrical spark could cause the battery to explode and could result in personal injury. 5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then start the engine in the vehicle with the discharged battery.
Page 425: Towing A Disabled Vehicle
424 WHAT TO DO IN EMERGENCIES TOWING A DISABLED VEHICLE Two-Wheel Drive Vehicles If the rear wheels are on the ground (whether front wheels are raised or not), the vehicle may be towed with the transmission in NEUTRAL, if the speed does not exceed 30 mph (50 km/h) and the distance does not exceed 15 miles (25 km).
Page 426 MAINTAINING YOUR VEHICLE CONTENTS Engine Compartment — 3.7L ... . . 427 Onboard Diagnostic System — OBD II ..428 Loose Fuel Filler Cap Message ... 428 Emissions Inspection And Maintenance Programs .
Page 427 426 MAINTAINING YOUR VEHICLE Cooling System ..... 442 Brake System ..... . . 448 Automatic Transmission .
Page 428: Engine Compartment - 3.7L
ENGINE COMPARTMENT — 3.7L 1 — Air Cleaner Filter 2 — Engine Oil Dipstick 3 — Brake Fluid Reservoir 4 — Integrated Power Module 5 — Battery MAINTAINING YOUR VEHICLE 427 6 — Washer Fluid Reservoir 7 — Engine Coolant Reservoir 8 —...
Page 429: 428 Maintaining Your Vehicle
428 MAINTAINING YOUR VEHICLE ONBOARD DIAGNOSTIC SYSTEM — OBD II Your vehicle is equipped with a sophisticated Onboard Diagnostic system called OBD II. This system monitors the performance of the emissions, engine, and automatic transmission control systems. When these systems are operating properly, your vehicle will provide excellent performance and fuel economy, as well as engine emis- sions well within current government regulations.
Page 430: Emissions Inspection And Maintenance Programs
“Electronic Vehicle Information Center (EVIC)” in “Un- derstanding Your Instrument Panel” for further informa- tion. Tighten the gas cap until a clicking sound is heard. This is an indication that the gas cap is properly tight- ened. Press the odometer reset button to turn the message off. If the problem persists, the message will appear the next time the vehicle is started.
Page 431: Replacement Parts
430 MAINTAINING YOUR VEHICLE 2. If you crank or start the engine, you will have to start this test over. 3. As soon as you turn the ignition switch to the ON position, you will see the MIL symbol come on as part of a normal bulb check.
Page 432: Dealer Service
DEALER SERVICE Your authorized dealer has the qualified service person- nel, special tools, and equipment to perform all service operations in an expert manner. Service Manuals are available which include detailed service information for your vehicle. Refer to these manuals before attempting any procedure yourself.
Page 433: Engine Oil
432 MAINTAINING YOUR VEHICLE CAUTION! (Continued) • Your vehicle has been built with improved fluids that protect the performance and durability of your vehicle and also allow extended maintenance intervals. Do not use chemical flushes in these components as the chemicals can damage your engine, transmission, power steering or air condi- tioning.
Page 434 NOTE: Under no circumstances should oil change intervals exceed 6,000 miles (10 000 km) or six months, whichever occurs first. Engine Oil Selection For best performance and maximum protection under all types of operating conditions, the manufacturer recom- mends engine oils that are API Certified and meet the requirements of Chrysler Material Standard MS-6395.
Page 435: Engine Oil Filter
434 MAINTAINING YOUR VEHICLE Synthetic Engine Oils You may use synthetic engine oils provided the recom- mended oil quality requirements are met, and the recom- mended maintenance intervals for oil and filter changes are followed. Materials Added to Engine Oil The manufacturer strongly recommends against the addi- tion of any additives (other than leak detection dyes) to the engine oil.
Page 436: Maintenance-Free Battery
WARNING! The air induction system (air cleaner, hoses, etc.) can provide a measure of protection in the case of engine backfire. Do not remove the air induction system (air cleaner, hoses, etc.) unless such removal is necessary for repair or maintenance. Make sure that no one is near the engine compartment before starting the vehicle with the air induction system (air cleaner, hoses, etc.) removed.
Page 437: Air Conditioner Maintenance
436 MAINTAINING YOUR VEHICLE WARNING! (Continued) • Battery posts, terminals, and related accessories contain lead and lead compounds. Wash hands after handling. CAUTION! • It is essential when replacing the cables on the battery that the positive cable is attached to the positive post and the negative cable is attached to the negative post.
Page 438: A/C Air Filter - If Equipped
WARNING! • Use only refrigerants and compressor lubricants approved by the manufacturer for your air condi- tioning system. Some unapproved refrigerants are flammable and can explode, injuring you. Other unapproved refrigerants or lubricants can cause the system to fail, requiring costly repairs. Refer to Warranty Information Book, located on the DVD, for further warranty information.
Page 439: Windshield Wiper Blades
438 MAINTAINING YOUR VEHICLE tailgate, sliding doors and hood hinges, should be lubri- cated periodically with a lithium based grease, such as MOPAR Spray White Lube or equivalent, to assure quiet, easy operation and to protect against rust and wear. Prior to the application of any lubricant, the parts concerned should be wiped clean to remove dust and grit;...
Page 440: Adding Washer Fluid
present please proceed to clean wiper blades with humid cloth removing any debris that may be affecting its function. Adding Washer Fluid The windshield and rear window washers share the same fluid reservoir. The fluid reservoir is located in the front of the engine compartment.
Page 441 440 MAINTAINING YOUR VEHICLE have an authorized technician inspect the complete ex- haust system and adjacent body areas for broken, dam- aged, deteriorated, or mispositioned parts. Open seams or loose connections could permit exhaust fumes to seep into the passenger compartment. In addition, inspect the exhaust system each time the vehicle is raised for lubri- cation or oil change.
Page 442 CAUTION! Damage to the catalytic converter can result if your vehicle is not kept in proper operating condition. In the event of engine malfunction, particularly involv- ing engine misfire or other apparent loss of perfor- mance, have your vehicle serviced promptly. Contin- ued operation of your vehicle with a severe malfunction could cause the converter to overheat, resulting in possible damage to the converter and the...
Page 443: Cooling System
442 MAINTAINING YOUR VEHICLE To minimize the possibility of catalytic converter dam- age: • Do not shut off the engine or interrupt the ignition when the transmission is in gear and the vehicle is in motion. • Do not try to start the engine by pushing or towing the vehicle.
Page 444 spraying water from a garden hose vertically down the face of the A/C condenser (if equipped) or the back of the radiator core. Check the engine cooling system hoses for brittle rubber, cracking, tears, cuts, and tightness of the connection at the coolant recovery bottle and radiator.
Page 445 444 MAINTAINING YOUR VEHICLE CAUTION! • Mixing of engine coolant (antifreeze) other than specified HOAT engine coolant (antifreeze), may result in engine damage and may decrease corro- sion protection. If a non-HOAT engine coolant (antifreeze) is introduced into the cooling system in an emergency, it should be replaced with the specified engine coolant (antifreeze) as soon as possible.
Page 446 When adding engine coolant (antifreeze): • The manufacturer recommends using MOPAR Anti- freeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic Additive Technology) or equivalent. • Mix a minimum solution of 50% HOAT engine coolant (antifreeze) and distilled water. Use higher concentra- tions (not to exceed 70%) if temperatures below 34°F ( 37°C) are anticipated.
Page 447 446 MAINTAINING YOUR VEHICLE WARNING! • The warning words “DO NOT OPEN HOT” on the cooling system pressure cap are a safety pre- caution. Never add engine coolant (antifreeze) when the engine is overheated. Do not loosen or remove the cap to cool an overheated engine. Heat causes pressure to build up in the cooling system.
Page 448 the engine operating temperature is satisfactory, the coolant bottle need only be checked once a month. When additional engine coolant (antifreeze) is needed to maintain the proper level, it should be added to the coolant bottle. Do not overfill. Points to Remember NOTE: When the vehicle is stopped after a few miles/ kilometers of operation, you may observe vapor coming from the front of the engine compartment.
Page 449: Brake System
448 MAINTAINING YOUR VEHICLE • Do not change the thermostat for Summer or Winter operation. If replacement is ever necessary, install ONLY the correct type thermostat. Other designs may result in unsatisfactory cooling performance, poor gas mileage, and increased emissions. Brake System In order to assure brake system performance, all brake system components should be inspected periodically.
Page 450: Automatic Transmission
WARNING! • Use only manufacturer’s recommended brake fluid. Refer to “Fluids, Lubricants, and Genuine Parts” in “Maintaining Your Vehicle” for further informa- tion. Using the wrong type of brake fluid can severely damage your brake system and/or impair its performance. The proper type of brake fluid for your vehicle is also labeled on the original factory installed hydraulic master cylinder reservoir.
Page 451: Transfer Case
450 MAINTAINING YOUR VEHICLE CAUTION! Using a transmission fluid other than the manufac- turer’s recommended fluid may cause deterioration in transmission shift quality and/or torque converter shudder. Using a transmission fluid other than that recommended by the manufacturer will result in more frequent fluid and filter changes.
Page 452 1 — Fill Plug 2 — Drain Plug Adding Fluid Fluid should be added only to fill hole until fluid begins to run out of the hole. MAINTAINING YOUR VEHICLE 451 Draining Fluid First remove the fill plug (1), then the drain plug (2). Recommended tightening torque for the drain and fill plugs is 15–25 ft lbs (20–34 N·m).
Page 453: Front/Rear Axle Fluid
452 MAINTAINING YOUR VEHICLE Frequency of Fluid Change Under normal operating conditions, the fluid installed at the factory will give satisfactory lubrication for the life of the vehicle. Fluid changes are not necessary unless the fluid becomes contaminated with water. Change the fluid immediately if contaminated with water.
Page 454 CAUTION! Avoid pointing a high-pressure hand held spray wand directly at the sides of the top, as this can damage the seal and force water past the weather strips. General Cleaning Careful vacuuming of the top before washing is helpful in removing dust and other foreign particles.
Page 455 454 MAINTAINING YOUR VEHICLE CAUTION! Never use an abrasive type cleaner or bleaches. Cleaners should not contain silicones, organic sol- vents, petroleum distillates, or plasticizers. Always wait until the top is thoroughly dry before opening Additional Cleaning Procedure For additional cleaning assistance in removing stubborn stains, apply MOPAR Convertible Cloth Top Cleaner or equivalent to the complete stain, extending 2 in (50 mm) beyond the stain.
Page 456: Appearance Care And Protection From Corrosion
Appearance Care and Protection from Corrosion Protection of Body and Paint from Corrosion Vehicle body care requirements vary according to geo- graphic locations and usage. Chemicals that make roads passable in snow and ice and those that are sprayed on trees and road surfaces during other seasons are highly corrosive to the metal in your vehicle.
Page 457 456 MAINTAINING YOUR VEHICLE • Use a high quality cleaner wax, such as MOPAR Cleaner Wax or equivalent, to remove road film, stains, and to protect your paint finish. Take care never to scratch the paint. • Avoid using abrasive compounds and power buffing that may diminish the gloss or thin out the paint finish.
Page 458 • If you carry special cargo such as chemicals, fertilizers, de-icer salt, etc., assure that such materials are well packaged and sealed. • If a lot of driving is done on gravel roads, consider mud or stone shields behind each wheel. •...
Page 459 458 MAINTAINING YOUR VEHICLE • For grease stains, apply MOPAR Cleaner or equivalent to a clean, damp cloth and remove the stain. Use a fresh, damp towel to remove soap residue. • Do not use any harsh solvents or any other form of protectants on Stain Repel products.
Page 460 leather upholstery. Application of a leather conditioner is not required to maintain the original condition. WARNING! Do not use volatile solvents for cleaning purposes. Many are potentially flammable, and if used in closed areas they may cause respiratory harm. Cleaning Headlights Your vehicle has plastic headlights that are lighter and less susceptible to stone breakage than glass headlights.
Page 461: Fuses
460 MAINTAINING YOUR VEHICLE Cleaning Plastic Instrument Cluster Lenses The lenses in front of the instruments in this vehicle are molded in clear plastic. When cleaning the lenses, care must be taken to avoid scratching the plastic. 1. Clean with a wet soft rag. A mild soap solution may be used, but do not use high alcohol content or abrasive cleaners.
Page 462 Totally Integrated Power Module (TIPM) Cavity Cartridge Mini- Fuse Fuse — — — 30 Amp — Transfer Case Pink Module – If Equipped Cavity Cartridge Fuse 30 Amp Pink 25 Amp Natural 25 Amp Natural 40 Amp Green 30 Amp Pink Description 40 Amp...
Page 463 462 MAINTAINING YOUR VEHICLE Cavity Cartridge Mini- Fuse Fuse 30 Amp — Pink 30 Amp — Pink 60 Amp — Yellow 40 Amp — Green 30 Amp — Pink Description Cavity Cartridge Headlamp Wash Relay – If Equipped/ Man Tuning Valve –...
Page 464 Cavity Cartridge Mini- Fuse Fuse — 20 Amp Trailer Lighting – Yellow If Equipped — 20 Amp Frt/Rr Axle Yellow Lockers – If Equipped — 10 Amp Trailer Tow – If Equipped — 25 Amp Power Inverter – Natural If Equipped —...
Page 465 464 MAINTAINING YOUR VEHICLE Cavity Cartridge Mini- Fuse Fuse — 20 Amp Yellow — 20 Amp Yellow Description Cavity Cartridge Cabin Compartment Node (CCN)/Wireless Control Module (WCM)/ Multifunction Control Switch Trailer Tow (BUX) – If Equipped Mini- Description Fuse Fuse —...
Page 466 Cavity Cartridge Mini- Fuse Fuse — 15 Amp Exterior Lighting – Blue Left Front Park and Side Marker, Left Tail and Running, License Lights — 15 Amp Exterior Lighting – Blue Right Front Park and Side Marker, Right Tail and Running Lights —...
Page 467 466 MAINTAINING YOUR VEHICLE Cavity Cartridge Mini- Fuse Fuse — 20 Amp Yellow — 10 Amp — 10 Amp — 10 Amp — 10 Amp — 15 Amp Blue Description Cavity Cartridge Fuel Pump Power Mirror Switch/ Driver Window Switch Ignition Switch/ Wireless Control Module (WCM)/...
Page 468: Replacement Bulbs
Cavity Cartridge Mini- Fuse Fuse — 10 Amp Anti-Lock Brake Sys- tem (ABS)/Electronic Stability Program (ESP) Module/Stop Light Switch — 25 Amp Door and Liftgate Natural Lock/Unlock Motors CAUTION! • When installing the Integrated Power Module cover, it is important to ensure the cover is prop- erly positioned and fully latched.
Page 469: Bulb Replacement
468 MAINTAINING YOUR VEHICLE LIGHT BULBS – Exterior Headlamp ......9008 H13 Front Park/Turn Signal Lamp... . . 3757AK Front Side Marker Lamp .
Page 470: Front Turn Signal And Front Side Marker Lamp
Front Turn Signal and Front Side Marker Lamp 1. Turn the steering wheel all the way to the right to access the left front turn signal or side marker. Turn the steering wheel all the way to the left to access the right front turn signal or side marker.
Page 471: Rear Tail/Stop, Turn Signal, And Back-Up Lamp
470 MAINTAINING YOUR VEHICLE 5. Install the bulb and socket assembly into the into the fog lamp housing, and rotate the connector clockwise to lock it in place. 6. Close the hood. Rear Tail/Stop, Turn Signal, and Back-Up Lamp 1. Open the liftgate. 2.
Page 472: Fluid Capacities
FLUID CAPACITIES Fuel (Approximate) Engine Oil with Filter 3.7 Liter Engine (SAE 5W-20, API Certified) Cooling System * 3.7 Liter Engine (MOPAR Antifreeze/Engine Coolant 5 Year/100,000 Mile Formula or equivalent) * Includes heater and coolant recovery bottle filled to MAX level. MAINTAINING YOUR VEHICLE 471 U.S.
Page 473: Fluids, Lubricants, And Genuine Parts
472 MAINTAINING YOUR VEHICLE FLUIDS, LUBRICANTS, AND GENUINE PARTS Engine Component Engine Coolant Engine Oil Engine Oil Filter Spark Plugs Fuel Selection Fluid, Lubricant, or Genuine Part MOPAR Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy- brid Organic Additive Technology) or equivalent. Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395.
Page 474: Chassis
Chassis Component Automatic Transmission Transfer Case Front Axle Rear Axle Brake Master Cylinder Power Steering Reservoir Fluid, Lubricant, or Genuine Part MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product. MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product. SAE 80W-90 Multi-Purpose Type, GL-5 Gear Lubricant or equivalent.
Page 476: Maintenance Schedules
MAINTENANCE SCHEDULES CONTENTS Emissions Control System Maintenance ..476 Maintenance Schedule ....476 Required Maintenance Intervals ..478...
Page 477 476 MAINTENANCE SCHEDULES EMISSIONS CONTROL SYSTEM MAINTENANCE The Scheduled Maintenance services listed in bold type must be done at the times or mileages specified to ensure the continued proper functioning of the emissions control system. These and all other maintenance services in- cluded in this manual, should be done to provide best vehicle performance and reliability.
Page 478 NOTE: • The oil change indicator message will not monitor the time since the last oil change. Change your vehicles oil if it has been six months since your last oil change even if the oil change indicator message is NOT illumi- nated.
Page 479 478 MAINTENANCE SCHEDULES Once a Month • Check tire pressure and look for unusual wear or damage. • Inspect the battery and clean and tighten the terminals as required. • Check the fluid levels of the coolant reservoir and brake master cylinder, and add as needed. •...
Page 480 6,000 Miles (10,000 km) or 6 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. Odometer Reading Date Repair Order # Dealer Code Signature Authorized Chrysler Dealer 12,000 Miles (20,000 km) or 12 Months Maintenance Service Schedule ❏...
Page 481: Service Schedule
480 MAINTENANCE SCHEDULES 18,000 Miles (30,000 km) or 18 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Inspect the front and rear axle fluid; change if using your vehicle for police, taxi, fleet, off-road or frequent trailer towing.
Page 482 30,000 Miles (50,000 km) or 30 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Replace the engine air cleaner filter. ❏ Replace the spark plugs (3.7L Engine). ❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
Page 483 482 MAINTENANCE SCHEDULES 42,000 Miles (70,000 km) or 42 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. Odometer Reading Repair Order # Dealer Code Signature Authorized Chrysler Dealer 48,000 Miles (80,000 km) or 48 Months Maintenance Service Schedule ❏...
Page 484 54,000 Miles (90,000 km) or 54 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Inspect the front and rear axle fluid; change if using your vehicle for police, taxi, fleet, off-road or frequent trailer towing.
Page 485 484 MAINTENANCE SCHEDULES 60,000 Miles (100,000 km) or 60 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Replace the engine air cleaner filter. ❏ Replace the ignition cables (3.7L Engine). ❏ Replace the spark plugs (3.7L Engine). ❏...
Page 486 66,000 Miles (110,000 km) or 66 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. Odometer Reading Date Repair Order # Dealer Code Signature Authorized Chrysler Dealer 72,000 Miles (120,000 km) or 72 Months Maintenance Service Schedule ❏...
Page 487 486 MAINTENANCE SCHEDULES 78,000 Miles (130,000 km) or 78 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. Odometer Reading Repair Order # Dealer Code Signature Authorized Chrysler Dealer 84,000 Miles (140,000 km) or 84 Months Maintenance Service Schedule ❏...
Page 488 90,000 Miles (150,000 km) or 90 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Replace the engine air cleaner filter. ❏ Inspect and replace PCV valve if necessary. † ❏ Replace the spark plugs (3.7L Engine). ❏...
Page 489 488 MAINTENANCE SCHEDULES 96,000 Miles (160,000 km) or 96 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the engine air cleaner filter;...
Page 490 108,000 Miles (180,000 km) or 108 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the engine air cleaner filter; replace if necessary. ❏...
Page 491 490 MAINTENANCE SCHEDULES 120,000 Miles (200,000 km) or 120 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Replace the engine air cleaner filter. ❏ Replace the ignition cables (3.7L Engine). ❏ Replace the spark plugs (3.7L Engine). ❏...
Page 492 126,000 Miles (210,000 km) or 126 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Inspect the front and rear axle fluid; change if using your vehicle for police, taxi, fleet, off-road or frequent trailer towing.
Page 493 492 MAINTENANCE SCHEDULES 138,000 Miles (230,000 km) or 138 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. Odometer Reading Repair Order # Dealer Code Signature Authorized Chrysler Dealer 144,000 Miles (240,000 km) or 144 Months Maintenance Service Schedule ❏...
Page 494 150,000 Miles (250,000 km) or 150 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate tires. ❏ Replace the engine air cleaner filter. ❏ Replace the spark plugs (3.7L Engine). ❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
Page 495 494 MAINTENANCE SCHEDULES † This maintenance is recommended by the manufacturer to the owner, but is not required to maintain emissions warranty. WARNING! • You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment.
Page 496: If You Need Consumer Assistance
IF YOU NEED CONSUMER ASSISTANCE CONTENTS Suggestions For Obtaining Service For Your Vehicle......497 Prepare For The Appointment .
Page 497 496 IF YOU NEED CONSUMER ASSISTANCE Department Of Transportation Uniform Tire Quality Grades ......502 Treadwear ......503 Traction Grades .
Page 498: Suggestions For Obtaining Service For Your Vehicle
SUGGESTIONS FOR OBTAINING SERVICE FOR YOUR VEHICLE Prepare For The Appointment If you’re having warranty work done, be sure to have the right papers with you. Take your warranty folder. All work to be performed may not be covered by the warranty.
Page 499: Chrysler Group Llc Customer Center
498 IF YOU NEED CONSUMER ASSISTANCE This is why you should always talk to an authorized dealer’s service manager first. Most matters can be re- solved with this process. • If for some reason you are still not satisfied, talk to the general manager or owner of the authorized dealer- ship.
Page 500: Customer Assistance For The Hearing Or Speech Impaired (Tdd/Tty)
Customer Assistance For The Hearing Or Speech Impaired (TDD/TTY) To assist customers who have hearing difficulties, the manufacturer has installed special TDD (Telecommuni- cation Devices for the Deaf) equipment at its customer center. Any hearing or speech impaired customer, who has access to a TDD or a conventional teletypewriter (TTY) in the United States, can communicate with the manufacturer by dialing 1–800–380–CHRY.
Page 501: Warranty Information (U.s. Vehicles Only)
500 IF YOU NEED CONSUMER ASSISTANCE has also made a major investment in facilities, tools, and training to assure that you are absolutely delighted with the ownership experience. You’ll be pleased with their sincere efforts to resolve any warranty issues or related concerns.
Page 502: In Canada
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your authorized dealer, and the manufacturer.
Page 503 502 IF YOU NEED CONSUMER ASSISTANCE vehicle, system, and/or components is written in straightforward language with illustrations, diagrams, and charts. • Diagnostic Procedure Manuals Diagnostic Procedure Manuals are filled with dia- grams, charts and detailed illustrations. These practi- cal manuals make it easy for students and technicians to find and fix problems on computer-controlled ve- hicle systems and features.
Page 504 in each category is shown on the sidewall of the tires on your vehicle. All passenger car tires must conform to Federal safety requirements in addition to these grades. Treadwear The Treadwear grade is a comparative rating, based on the wear rate of the tire when tested under controlled conditions on a specified government test course.
Page 505 504 IF YOU NEED CONSUMER ASSISTANCE Temperature Grades The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat, when tested under controlled conditions on a specified indoor laboratory test wheel.
Page 506: Index
INDEX...
Page 507 506 INDEX About Your Brakes ..... . . 333 ABS (Anti-Lock Brake System) ... . 336,338 Adding Engine Coolant (Antifreeze) .
Page 508 Automatic Door Locks ....30,31 Automatic Headlights ....149 Automatic Oil Change Indicator .
Page 509 508 INDEX Break-In Recommendations, New Vehicle ..84 Bulb Replacement ..... 467,468 Bulbs, Light ......87,467 Calibration, Compass .
Page 510 Cold Weather Operation ....306 Command-Trac Operation ....315 Compact Disc (CD) Maintenance .
Page 511 510 INDEX Disposal Antifreeze (Engine Coolant) ....446 Engine Oil ......434 Door Locks .
Page 512 Checking Oil Level ..... 432 Compartment ......427 Coolant (Antifreeze) .
Page 513 512 INDEX Flashers Hazard Warning ..... . . 412 Turn Signal ....87,152,213,469,470 Flash-To-Pass .
Page 514 Specifications ......472 Tank Capacity ......471 Fuses .
Page 515 514 INDEX On With Wipers ....150,160 Passing ......153 Replacing .
Page 516 Introduction ......4 Jack Location ......414 Jack Operation .
Page 517 516 INDEX Daytime Running ..... . 151 Dimmer Switch, Headlight ... . . 148,153 Electronic Stability Program (ESP) Indicator .
Page 518 Voltage ......214 Warning (Instrument Cluster Description) ..210 Load Floor, Cargo .
Page 519 518 INDEX Electric Powered ..... . . 96 Electric Remote ......96 Heated .
Page 520 Oil Filter, Change ......434 Onboard Diagnostic System ....428,429 Opener, Garage Door (HomeLink ) .
Page 521 520 INDEX Pretensioners Seat Belts ......48 Programmable Electronic Features ... . 233 Programming Transmitters (Remote Keyless Entry) .
Page 522 Restraints, Child ......75 Restraints, Occupant ..... . 40 Retractable Cargo Area Cover .
Page 523 522 INDEX Memory ......142 Power ......134 Rear Folding .
Page 524 Starting ......26,305 Cold Weather ......306 Engine Block Heater .
Page 525 524 INDEX Tire Safety Information ....351 Tires ......87,361,502 Air Pressure .
Page 526 Trailer Towing ......390 Cooling System Tips ....405 Hitches .
Page 527 526 INDEX Vanity Mirrors ......97 Variance, Compass ..... . . 232 Vehicle Certification Label .
Page 528 Chrysler Group LLC 10KK74-126-AB Printed in U.S.A. 2nd Edition...

Jeep 2010 Liberty Owner's Manual

Liberty
