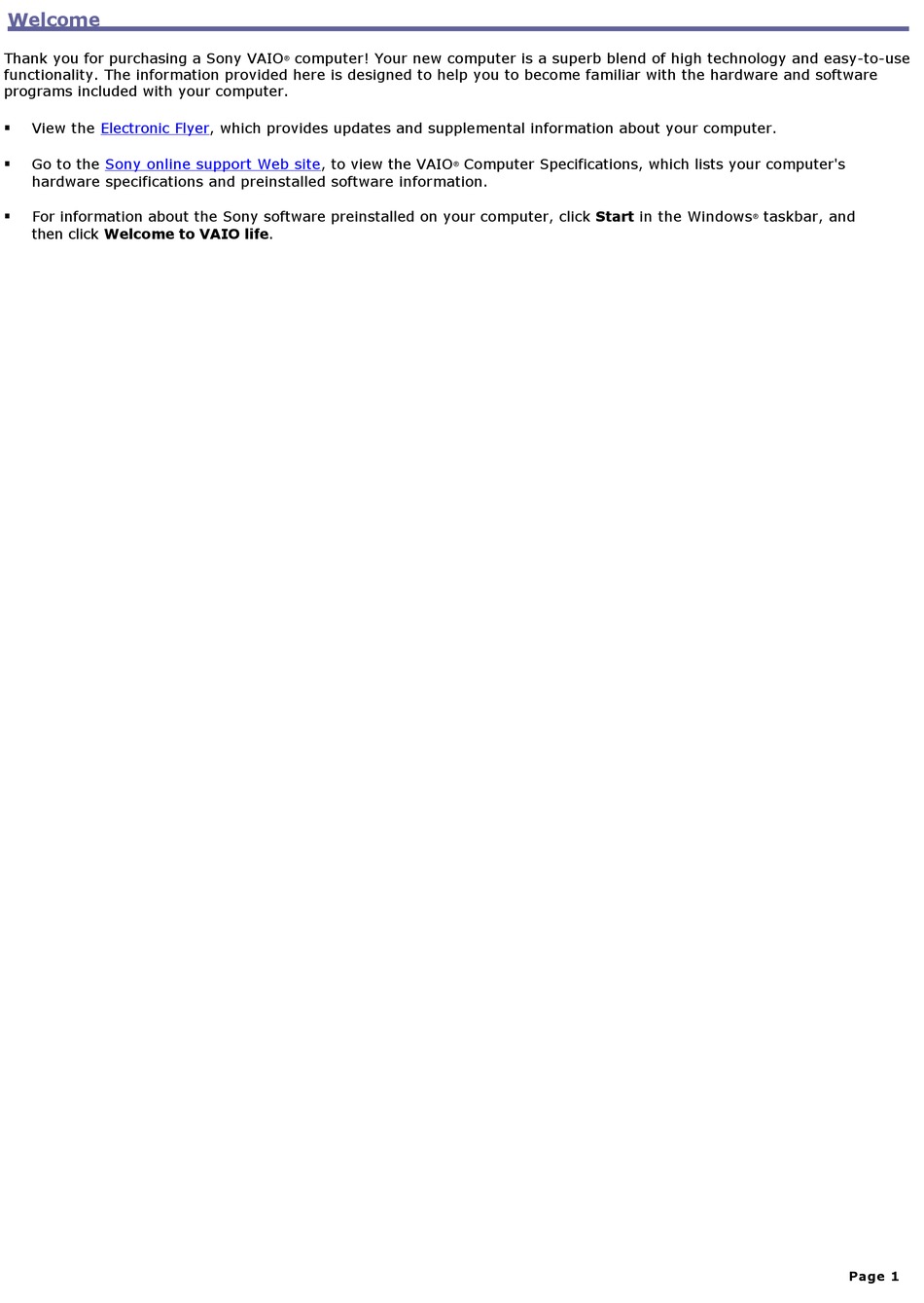

Page 1  For information about the Sony software preinstalled on your computer, click Start in the Windows then click Welcome to VAIO life. computer! Your new computer is a superb blend of high technology and easy-to-use ®...
Page 2: Getting Started
Getting Started Congratulations on your purchase of the Sony VAIO state-of-the-art computer functionality with the latest audio, video and information technology features.  Unpacking Your Computer  Planning an Ergonomic Work Space computer! Your new, high-performance, multimedia computer combines ®...
Page 3: Unpacking Your Computer
Your computer may not be supplied with all of the accessories shown, depending on the system configuration purchased. For details on the accessories supplied with your computer, go to the Sony Online Support Web site at http://www.sony.com/pcsupport, to view the online specifications sheet.
Page 4  Create music CDs with: SonicStage software — Burn music CDs from MP3, WMA, WAV, and OpenMG files; create ATRAC CDs for your Sony ATRAC CD Walkman; or make backup copies of your CDs. SonicStage Mastering Studio software — Burn music CDs of your collection of vinyl records or cassette tapes.
Page 5 Your computer may not be supplied with all of the accessories shown, depending on the system configuration purchased. For details on the accessories supplied with your computer, go to the Sony Online Support Web site at http://www.sony.com/pcsupport, to view the online specifications sheet.
Page 6  Create music CDs with: SonicStage software — Burn music CDs from MP3, WMA, WAV, and OpenMG files; create ATRAC CDs for your Sony ATRAC CD Walkman; or make backup copies of your CDs. SonicStage Mastering Studio software — Burn music CDs of your collection of vinyl records or cassette tapes.
Page 7 Your computer may not be supplied with all of the accessories shown, depending on the system configuration purchased. For details on the accessories supplied with your computer, go to the Sony Online Support Web site at http://www.sony.com/pcsupport, to view the online specifications sheet.
Page 8  Create music CDs with: SonicStage software — Burn music CDs from MP3, WMA, WAV, and OpenMG files; create ATRAC CDs for your Sony ATRAC CD Walkman; or make backup copies of your CDs. SonicStage Mastering Studio software — Burn music CDs of your collection of vinyl records or cassette tapes.
Page 9: Planning An Ergonomic Work Space
Planning an Ergonomic Work Space Before you set up your new computer, find the best location for your new computer and plan your work space. There are several ergonomic factors to consider when you arrange your work space:  Stable work surface — Use a stable work surface large enough to support the computer and other peripheral equipment.
Page 10: Locating Controls And Ports
For more information about your computer and peripheral equipment, see the specifications sheet for your computer on the Sony Online Support Web site at http://www.sony.com/pcsupport.
Page 11: About The Front Panel
About the Front Panel The front panel of your VAIO computer is equipped with built-in speakers and indicator lights. ® Front panel Infrared receiver Enables communication with the remote control, to turn on TV, change TV channels, and raise or lower volume. Hard disk drive access indicator Light is amber while reading and writing data.
Page 12 angle or moving the computer to another location. Adjusting the monitor viewing angle Place your hands on the sides of the monitor, as shown in the picture. Tilt the monitor to achieve the desired viewing angle. To adjust m onitor v iewing angle Lifting the computer Grasp the computer on both sides, holding the bottom edges firmly.
Page 13 About the Front Panel The front panel of your VAIO computer is equipped with built-in speakers and indicator lights. ® Front panel Infrared receiver Enables communication with the remote control, to turn on TV, change TV channels, and raise or lower volume. Hard disk drive access indicator Light is amber while reading and writing data.
Page 14 angle or moving the computer to another location. Adjusting the monitor viewing angle Place your hands on the sides of the monitor, as shown in the picture. Tilt the monitor to achieve the desired viewing angle. To adjust m onitor v iewing angle Lifting the computer Grasp the computer on both sides, holding the bottom edges firmly.
Page 15: About The Back Panel
About the Back Panel The back panel of your VAIO computer provides access to the memory modules. For information on replacing or increasing ® your computer's memory, see the section, Back panel Back panel (removable) Slide the back panel up to access the audio, video, USB, and i.LINK ports located on your computer's interior panel. Back panel release tab Press the release tab to enable lowering of the back panel.
Page 16 About the Interior Panel Your VAIO computer may not be equipped with all of these hardware features and the location of the controls, ports, and ® jacks may vary from the illustrations shown in this section. Interior panel Audio, video, USB, and i.LINK ports and jacks are located on an interior panel of your computer.
Page 17 A n optional "1 -to-2 " jac k adapter devic e (s plitter) is required to c onnec t both a telephone and modem line to your c omputer. i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary, depending on the software programs, operating system, and compatible i.LINK devices.
Page 18 About the Interior Panel Your VAIO computer may not be equipped with all of these hardware features and the location of the controls, ports, and ® jacks may vary from the illustrations shown in this section. Interior panel Audio, video, USB, and i.LINK ports and jacks are located on an interior panel of your computer.
Page 19 A n optional "1 -to-2 " jac k adapter devic e (s plitter) is required to c onnec t both a telephone and modem line to your c omputer. i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary, depending on the software programs, operating system, and compatible i.LINK devices.
Page 20 About the Side Panel The side panels of your computer provide the connections for supplied and optional accessories. The icons on the side panel help to locate and identify the appropriate jack or port. Right panel PC Card slot A PC card (PCMCIA card) can be inserted into this slot to increase your computer's functional capabilities. Power button Press the power button to turn the computer on and off.
Page 21 N ot available on all models . For details about your c omputer's hardware c onfiguration, s ee the online s pec ific ations s heet. i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary, depending on the software programs, operating system and compatible i.LINK devices.
Page 22 About the Wireless Keyboard Your VAIO computer is supplied with a wireless keyboard that has a standard key arrangement and additional keys that ® perform specific functions. The keyboard model or features may vary, based on the computer model purchased. After setting up your wireless keyboard and inserting the batteries, establish the communication between the keyboard and the computer.
Page 23 About the Wireless Keyboard Your VAIO computer is supplied with a wireless keyboard that has a standard key arrangement and additional keys that ® perform specific functions. The keyboard model or features may vary, based on the computer model purchased. After setting up your wireless keyboard and inserting the batteries, establish the communication between the keyboard and the computer.
Page 24 About the wireless keyboard (VGP-WKB1) Wireless keyboard (VGP- WKB1) Power switch Slide the switch to turn the keyboard power on or off. Keyboard feet Extend the feet to adjust the keyboard height. CONNECT button Press to enable the wireless keyboard to communicate with the computer. Battery compartment Compartment for the supplied AA batteries.
Page 25 Wireless keyboard (VGP- WKB1) ITEM DESCRIPTION Pointing device and buttons Use the input area to move the pointer on the monitor. The left and right buttons provide the same functions as wireless mouse buttons. Indicators Indicators light when the Caps Lock, Num Lock, or Scroll Lock functions are active. The indicators also light to show battery power levels.
Page 26 Press to display a shortcut menu in certain software programs. Pressing this key is equivalent to clicking the right mouse button. Windows The Microsoft Windows key, displays the Start menu. Pressing this key is equivalent to clicking Start on the ®...
Page 27 About the wireless keyboard (VGP-WKB1) Wireless keyboard (VGP- WKB1) Power switch Slide the switch to turn the keyboard power on or off. Keyboard feet Extend the feet to adjust the keyboard height. CONNECT button Press to enable the wireless keyboard to communicate with the computer. Battery compartment Compartment for the supplied AA batteries.
Page 28 Wireless keyboard (VGP- WKB1) ITEM DESCRIPTION Pointing device and buttons Use the input area to move the pointer on the monitor. The left and right buttons provide the same functions as wireless mouse buttons. Indicators Indicators light when the Caps Lock, Num Lock, or Scroll Lock functions are active. The indicators also light to show battery power levels.
Page 29 Press to display a shortcut menu in certain software programs. Pressing this key is equivalent to clicking the right mouse button. Windows The Microsoft Windows key, displays the Start menu. Pressing this key is equivalent to clicking Start on the ®...
Page 30 About the wireless keyboard (PCVA-KB6) Wireless keyboard (PCVA- KB6) Keyboard feet Extend the feet to adjust the keyboard height. CONNECT button Press to enable the wireless keyboard to communicate with the computer. Battery compartment Compartment for the supplied AA batteries. Wrist rest Detachable wrist rest that doubles as a keyboard cover.
Page 31 Identifying keys and functions Wireless keyboard (PCVA- KB6) ITEM DESCRIPTION Stand by Press to place the computer into Stand by mode. Press again to resume normal operation S keys Press to activate specific applications. Brightness Press increase (+) or decrease (-) the brightness of the LCD screen. Mute Press to turn off speaker sound.
Page 32 Page 32...
Page 33 About the wireless keyboard (PCVA-KB6) Wireless keyboard (PCVA- KB6) Keyboard feet Extend the feet to adjust the keyboard height. CONNECT button Press to enable the wireless keyboard to communicate with the computer. Battery compartment Compartment for the supplied AA batteries. Wrist rest Detachable wrist rest that doubles as a keyboard cover.
Page 34 Identifying keys and functions Wireless keyboard (PCVA- KB6) ITEM DESCRIPTION Stand by Press to place the computer into Stand by mode. Press again to resume normal operation S keys Press to activate specific applications. Brightness Press increase (+) or decrease (-) the brightness of the LCD screen. Mute Press to turn off speaker sound.
Page 35 Page 35...
Page 36: About The Mouse
About the Mouse Your VAIO computer is supplied with a wireless optical mouse. Before attempting to use the wireless optical mouse with ® your computer, see the section, Connecting the Wireless Mouse. Wireless m ouse (top) Left mouse button Press to perform specific mouse functions. Wheel Rotate the wheel to scroll up or down on the LCD screen.
Page 37 Lights to show battery power levels. T he battery power level indic ators are only available on the mous e model, V GP -WM S1 . See your s pec ific ations s heet for details on s upplied ac c es s ories . To set up the wireless mouse Insert the AA batteries (supplied) into the wireless mouse as shown.
Page 38 About the Mouse Your VAIO computer is supplied with a wireless optical mouse. Before attempting to use the wireless optical mouse with ® your computer, see the section, Connecting the Wireless Mouse. Wireless m ouse (top) Left mouse button Press to perform specific mouse functions. Wheel Rotate the wheel to scroll up or down on the LCD screen.
Page 39 Lights to show battery power levels. T he battery power level indic ators are only available on the mous e model, V GP -WM S1 . See your s pec ific ations s heet for details on s upplied ac c es s ories . To set up the wireless mouse Insert the AA batteries (supplied) into the wireless mouse as shown.
Page 40: About The Remote Control
About the Remote Control The supplied remote control can start and stop video recording and playback, select channels, and set viewing preferences. This section describes the basic functions of your remote control Rem ote control MUTE button Press to turn off the sound. Press again to restore the sound. Channel number buttons (0-9) Press to select specific channels.
Page 41 RECD TV button Press to start playback of TV programs recorded with VAIO Zone PICTURES button Press to watch a photo slide show with VAIO Zone MENU button Press to view a shortcut menu of available VAIO Zone software options. Press again to hide this menu. GUIDE button Press to view the TV program guide.
Page 42 Press to move back to the previous screen or forward to the next screen. PLAY button Press to begin playback. PAUSE button Press to pause playback. STOP button Press to stop playback. MUSIC button Press to listen to music using VAIO Zone CD/DVD button Press to play DVDs or audio CDs using VAIO Zone VAIO button...
Page 43 Do not mix old (used) and new batteries when replacing batteries in the remote control. Always use the same type and manufacture of battery — do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used, new or different types of batteries can damage the remote control. If your remote control does not operate properly, the batteries may need to be replaced.
Page 44 About the Remote Control The supplied remote control can start and stop video recording and playback, select channels, and set viewing preferences. This section describes the basic functions of your remote control Rem ote control MUTE button Press to turn off the sound. Press again to restore the sound. Channel number buttons (0-9) Press to select specific channels.
Page 45 RECD TV button Press to start playback of TV programs recorded with VAIO Zone PICTURES button Press to watch a photo slide show with VAIO Zone MENU button Press to view a shortcut menu of available VAIO Zone software options. Press again to hide this menu. GUIDE button Press to view the TV program guide.
Page 46 Press to move back to the previous screen or forward to the next screen. PLAY button Press to begin playback. PAUSE button Press to pause playback. STOP button Press to stop playback. MUSIC button Press to listen to music using VAIO Zone CD/DVD button Press to play DVDs or audio CDs using VAIO Zone VAIO button...
Page 47 Do not mix old (used) and new batteries when replacing batteries in the remote control. Always use the same type and manufacture of battery — do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used, new or different types of batteries can damage the remote control. If your remote control does not operate properly, the batteries may need to be replaced.
Page 48: About The I.link Port
About the i.LINK Port Your VAIO computer is equipped with a 4-pin i.LINK ® A 4-pin i.LINK port cannot supply power to a connected i.LINK device. A 6-pin i.LINK port is required to supply power (10V to 12V) to a connected i.LINK device, if the device is equipped with a 6-pin connector. See the instructions supplied with your i.LINK device for more information on installation and use.
Page 49 About the i.LINK Port Your VAIO computer is equipped with a 4-pin i.LINK ® A 4-pin i.LINK port cannot supply power to a connected i.LINK device. A 6-pin i.LINK port is required to supply power (10V to 12V) to a connected i.LINK device, if the device is equipped with a 6-pin connector. See the instructions supplied with your i.LINK device for more information on installation and use.
Page 50 About the PCI Card Slot Your computer has a card bus PC Card slot that supports Type I or Type II PC (PCMCIA) Cards. You do not need to shut down your computer when inserting or removing a PC Card. For details about your PC Card, see the information supplied with the Card.
Page 51 carefully. Close the PC Card panel on the computer. If you eject the PC Card incorrectly, your computer may not work properly. Page 51...
Page 52 About the PCI Card Slot Your computer has a card bus PC Card slot that supports Type I or Type II PC (PCMCIA) Cards. You do not need to shut down your computer when inserting or removing a PC Card. For details about your PC Card, see the information supplied with the Card.
Page 53 carefully. Close the PC Card panel on the computer. If you eject the PC Card incorrectly, your computer may not work properly. Page 53...
Page 54 About the PCI Card Slot Your computer has a card bus PC Card slot that supports Type I or Type II PC (PCMCIA) Cards. You do not need to shut down your computer when inserting or removing a PC Card. For details about your PC Card, see the information supplied with the Card.
Page 55 carefully. Close the PC Card panel on the computer. If you eject the PC Card incorrectly, your computer may not work properly. Page 55...
Page 56: Setting Up Your Computer
Setting Up Your Computer You can set up your system quickly and easily with the instructions provided in this section. See the specifications sheet for your computer on the Sony Online Support Web site at http://www.sony.com/pcsupport, for details about your computer's hardware configuration.
Page 57: Connecting The Power Cord
Connecting the Power Cord The computer's power cord must be plugged into an AC power source, such as an AC wall outlet, surge protector, or Uninterruptible Power Supply (UPS), before you can establish communication with your wireless keyboard and wireless mouse.
Page 58: Connecting The Wireless Keyboard
Connecting the Wireless Keyboard Your VAIO computer is supplied with a wireless keyboard ® enable communication between the computer and the keyboard. To connect your wireless keyboard, it must be within 11 inches of the computer When attempting to connect the wireless keyboard, confirm that the AA batteries (supplied) are properly inserted into the keyboard before your computer is turned on.
Page 59  Do not place metal furniture near your computer or wireless keyboard, as this may create interference, causing your keyboard to stop working properly. Do not mix old (used) and new batteries when replacing batteries in the wireless keyboard. Always use the same type and manufacture of battery —...
Page 60: Connecting The Wireless Mouse
Connecting the Wireless Mouse Your VAIO computer is supplied with a wireless mouse. Before attempting to use the wireless mouse, you must enable ® communication between the computer and the mouse. To connect your wireless mouse, it must be within 11 inches of the computer When attempting to connect the wireless mouse, confirm that the AA batteries (supplied) are properly inserted into the mouse before your computer is turned on.
Page 61 type and manufacture of battery — do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used, new or different types of batteries can damage the mouse. A wireless optical mouse requires an appropriate surface texture in order to provide precision pointing and tracking. ...
Page 62: Connecting The Modem Cable
Connecting the Modem Cable Your computer is equipped with a single modem line jack to connect your installed modem with your telephone wall jack. To use your wall jack for both telephone and modem lines, purchase an additional RJ-11 telephone cable and a "1-to-2" jack adapter device (splitter).
Page 63: Turning On Your Computer
Turning On Your Computer Press the power button to turn the computer on. When you start your computer, it may detect new hardware and prompt you to restart your computer. Respond to this prompt immediately. To turn on your com puter Page 63...
Page 64: Registering Your Computer
If you are not able to register your computer during the first session, you can register your computer online at the Sony VAIO PC Registration Web site. Go to http://www.sony.com/vaioregistration. Sony produc t regis tration is voluntary; failure to regis ter will not diminis h your limited warranty rights . Page 64...
Page 65: Turning Off Your Computer
Turning Off Your Computer Follow these steps when you are ready to turn off your computer for an extended period of time. To avoid loss of data, do not use the Power button to turn off the computer. To turn off your computer Click Start in the Windows ®...
Page 66 Setting up TV viewing T he hardware c onfiguration of your c omputer may vary from the illus trations s hown in this s ec tion. Go to the Sony O nline Support Web s ite at http://www.s ony.c om/pc s upport, to s ee the s pec ific ations s heet for your c omputer...
Page 67 To set up TV connections The best method of connecting your computer system, TV monitor or display, and cable service access, is determined by the type of cable connection or service available in your home. Your VAIO computer is supplied with certain cables. Your in-home cable access may require extra cables, adapters or ®...
Page 68 Connecting to standard cable access (CATV) Option 1 Connect one end of the TV coaxial cable (supplied) to your cable service access. Connect the other end of the TV coaxial cable to the VHF/UHF port on the interior panel of your computer. To connect in CATV m ode (Option 1) Option 2 Connect one end of a TV coaxial cable (optional) to your cable service access.
Page 69 Connecting to a standard antenna (air) You can connect your computer to an indoor/outdoor antenna system, using Option 1 or 2 from the previous section, Connecting to standard cable access require a VHF/UHF RF combiner/transformer (optional) to connect your computer and the indoor/outdoor antenna system. If you are connecting to an indoor/outdoor antenna, you may need to reorient the antenna for best reception.
Page 70 Connecting with a cable or satellite set-top box (STB) You can connect your computer to cable service access that uses a set-top box (cable or satellite). When using the set-top box (STB) setup, you can only change channels through the STB, using its controls or supplied remote control. When using the STB setup: ...
Page 71 Connect the double mini-plugs of the audio cable (supplied) to the Audio-OUT (L/R) jacks on the back panel of your STB unit, matching the plug and jack colors. Connect the single plug end of the audio cable to the Audio In jack on the interior panel of your computer. To connect in STB m ode (Option 2) Connect one end of an S-video cable (optional) to the Video-Out jack on the back panel of your STB unit.
Page 72 Setting up additional equipment This section illustrates how to set up additional equipment. To connect a compatible VCR or camcorder Your VAIO computer has both audio and video connection capability. You can locate the appropriate connections on the ® interior panel of the system unit. You can connect a VCR or camcorder, using the audio jack and video port. Your VCR or camcorder may have either standard video or S-video connection capability.
Page 73 Connecting a TV monitor (display) Connect an S-video cable (optional) to the S-video In jack, located on the interior panel of your computer. Connect the other end of the same cable to the S-video Out jack on your TV monitor or display, located on either the side or back of your TV monitor.
Page 74 Setting up TV viewing When starting VAIO Zone software for the first time, you are prompted to set up your TV channel source and establish the listings for your local TV program guide. The VAIO Zone setup wizard opens automatically to provide step-by-step instructions.
Page 75 Setting your computer's time and date To maintain accuracy for your TV program guide listings and for timer recording, verify that your computer's time and date settings are correct. The time and date settings are displayed in the Windows To correct these settings: Right-click with your mouse, or use the pointing device's right button.
Page 76 Starting VAIO Zone software You can start VAIO Zone software using your remote control, wireless mouse, or the wireless keyboard's pointing device. To start VAIO Zone software with the remote control Point the remote control towards the infrared receiver on the front panel of the computer. Press the VAIO button on the remote control.
Page 77 Starting the setup wizard (first time use) Connect your computer to the Internet. Your computer uses an active Internet connection to set up TV program listings in the electronic program guide (iEPG). Click Start in the Windows taskbar and select VAIO Zone from the Start menu. When you start VAIO Zone software for the first time, the setup wizard appears, prompting you to select your TV connection situation.
Page 78 Follow the on-screen instructions, if necessary, and Select Next. While VAIO Zone software is scanning for TV channels, you may see or hear intermittent TV programming. This is part of the channel scanning process. VAIO Zone Setup wizard - Channel scanning in process When channel scanning is complete, the wizard displays available channels.
Page 79 If the channels displayed are correct and complete, select Next. A message window appears, prompting you to begin configuring your electronic TV program guide. VAIO Zone Setup wizard - Set up electronic TV program guide Select Yes to begin iEPG setup. The iEPG Channel Setup - Step 1 appears.
Page 80 On the iEPG Channel Setup window (Step 1), use the remote control or wireless mouse to enter in your zip code. Select Continue. A list of local cable service providers appears. iEPG Channel Setup - Step 2 On the iEPG Channel Setup window (Step 2), use the remote control or wireless mouse to select your service provider.
Page 81 Additional information about VAIO Zone software VAIO Zone software is a media player and a personal video recorder software that provides many options for  Watching TV programs, DVD movies, and other video content.  Copying TV programs and your own video content to DVDs. ...
Page 82 Using Memory Cards and Memory Card Readers This section provides basic information about using your computer's installed memory card readers. Your computer may not be equipped with all of the memory card readers described in this section, depending on the computer model or configuration purchased.
Page 83 About Your Memory Card Readers Your VAIO computer is equipped with memory card readers that are compatible with many popular types of memory cards. ® You can use your computer's memory card readers to transfer data between digital cameras, camcorders, music players, and other audio/video devices.
Page 84: Inserting A Memory Card
Inserting a Memory Card Your memory card reader(s) may be located behind a protective cover on the front of the computer. The style and location of front panel cover varies, depending on the computer model purchased. Certain VAIO memory card reader(s) or the readers may be located on the side panel. See your computer's specification sheet for details about your computer's memory card reader configuration.
Page 85: Removing A Memory Card
Removing a Memory Card The correct way to remove a memory card from a memory card reader varies, depending upon the media, reader, or computer model. Use care when removing a memory card to avoid damage to the reader or card. Do not remove a memory card while the media access indicator light is on.
Page 86: About Memory Stick Media
— Provides the same features and benefits of MagicGate form that is 1/3 smaller in size. Compatibility between software programs and Memory Stick media formats may vary. At this time, Sony suggests using only MagicGate Memory Stick media to store and transfer any data created with SonicStage...
Page 87 Sharing Memory Cards If you plan to share your memory card between your VAIO the card must be formatted properly.  Format the memory card by using it in the device first. See the information supplied with the device for details how to format the memory card.
Page 88 Upgrading and Maintaining Your VAIO Computer In the future you may want to increase the functionality of your VAIO upgrading your system.  Overview  Installing Memory  Replacing the Lithium Battery  Replacing a Hard Disk Drive computer. This section provides information about ®...
Page 89 Overview Sony recommends contacting your local dealer for upgrade or maintenance of your new computer. Your local dealer is familiar with this specialized personal computer and is familiar with the safety practices and regulatory compliance required for modifying electronic equipment.
Page 90: Installing Memory
For memory replacement or upgrades, use the correct memory module for your computer's configuration.See the specifications sheet for your computer on the Sony Online Support Web site at http://www.sony.com/pcsupport, for details about the amount of memory installed in your computer.
Page 91 For memory replacement or upgrades, use the correct memory module for your computer's configuration.See the specifications sheet for your computer on the Sony Online Support Web site at http://www.sony.com/pcsupport, for details about the amount of memory installed in your computer.
Page 92 Removing the back cover Shut down your computer and turn off all peripheral devices, such as your printer. Unplug your computer and disconnect any peripheral devices. Gently place the system unit on a flat and stable surface, with the LCD screen facing down. Slide the back panel cover open, as shown.
Page 93 Removing the memory cover Remove the back cover. See Remove the screws on the memory cover and set aside. Lift the edge of the memory cover and disengage the memory cover tabs from the slots on the computer. Rem ov ing the m em ory cov er Remove the memory cover to access the memory module slots.
Page 94 Removing a memory module Locate the memory module(s) you wish to remove. Push down on the latches, located on both sides of the module, to gently eject it from the slot. Rem ov ing a m em ory m odule Grasp the memory module by the sides and remove from the system unit.
Page 95 Installing a memory module Remove the memory module from its anti-static package, handling it by the edges. Locate the center notch on the bottom edge of the memory module and align it to the center notch in the open module slot. Firmly insert the lower edge of the module into the slot by pressing down evenly against the module's upper corners.
Page 96 Replacing the memory cover Align the memory cover tabs to the slots on the computer. Gently press down on the memory cover until the cover snaps into place. Replace the screws in the memory cover. Replace the back cover. See Replacing the m em ory cov er Replacing the back cover.
Page 97 Replacing the back cover Place the back panel cover against the computer, aligning it to the tracks on each side. Gently slide the back cover onto the computer until it gently snaps into place. Replacing the back cov er Page 97...
Page 98: Replacing The Lithium Battery
Dispose of the lithium battery properly. In some areas, the disposal of lithium batteries in household or business trash may be prohibited. You can return your unwanted lithium batteries to your nearest Sony Service Center or Factory Service Center. To locate a Service Center near you, visit the Sony Computing Web site at http://www.sony.com/pcsupport.
Page 99: Replacing A Hard Disk Drive
Replacing a Hard Disk Drive Your computer has an installed ATA-100, 3½-inch hard disk drive. Do not attempt to replace the hard drive. Contact your local dealer for replacement or upgrade of the hard disk drive. Page 99...
Page 100: Troubleshooting
Troubleshooting This section describes how to solve common problems and provides helpful information about using your computer's hardware features and preinstalled software. Your computer may not be equipped with all of the features or software discussed in this section, depending on the computer model or configuration purchased. ...
Page 101: About Vaio Computer Functions
About VAIO Computer Functions My computer does not start.  Verify that the computer is plugged into a power source and that it is turned on. Check that the power indicator is lit on the front panel of the computer. ...
Page 102 About VAIO Computer Functions My computer does not start.  Verify that the computer is plugged into a power source and that it is turned on. Check that the power indicator is lit on the front panel of the computer. ...
Page 103 What can I do if my computer or software stop responding? You can try to locate and close the software program that has stopped responding. Press the Ctrl+Alt+Delete keys. The Windows Task Manager window appears. From the Applications tab, locate the software program that has the status message, "Not responding." Select the software program that has a Not Responding status and click End Task.
Page 104 Why does the Windows operating system stop responding during shutdown? The Windows operating system may not shut down properly for many reasons, including incompatible or conflicting drivers, damaged files, or non-responsive hardware. For troubleshooting information, you can search Windows Help. Click Start in the Windows taskbar and select Help and Support.
Page 105 Why is my computer running slowly?  The computer's responsiveness varies depending with the number of software programs that are open and running. Close any programs that you are not currently using.  Increasing the computer memory may also help. For information on installing memory, please see the online VAIO User Guide.
Page 106 How do I change the video resolution of my display? Click Start in the Windows taskbar, and then select Control Panel. Select Appearance and Themes, and then select Change the screen resolution. Click the Settings tab. Change the Screen resolution and Color quality to the desired levels. Click Apply and then click OK.
Page 107 Why doesn't my computer resume normal operation from Stand by mode?  If your keyboard has a Stand by key  If your keyboard is not equipped with a Stand by key, press any key to resume normal operation.  For troubleshooting information, you can search Windows Help.
Page 108 About System Security This section provides information about keeping your computer operating smoothly and protecting against potential threats to your computer's security. How can I protect my computer against security threats, such as viruses? The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against ®...
Page 109 About System Security This section provides information about keeping your computer operating smoothly and protecting against potential threats to your computer's security. How can I protect my computer against security threats, such as viruses? The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against ®...
Page 110 How do I keep my preinstalled antivirus software updated? You can keep the preinstalled Norton Internet Security Corporation. To download and install the latest security update Double-click the Norton Internet Security icon If you have not previously registered the antivirus software, a series of information wizards appear. Follow the on-screen instructions to complete each wizard Double-click the Norton Internet Security icon again.
Page 111: About Media Center
About Media Center The Microsoft Windows XP Media Center Edition operating system is not installed on all VAIO Digital Studio computers. ® ® ® See your online specifications sheet for more information about your computer's configuration. Why doesn't the REW button on the remote control work when I use My Music? The REW button does not "rewind"...
Page 112 About Media Center The Microsoft Windows XP Media Center Edition operating system is not installed on all VAIO Digital Studio computers. ® ® ® See your online specifications sheet for more information about your computer's configuration. Why doesn't the REW button on the remote control work when I use My Music? The REW button does not "rewind"...
Page 113 Why aren't my song information edits visible in My Music? If you record a song in OpenMG ATRAC format and make edits, such as title, artist, or genre, using SonicStage software, the changes become visible when the music file is played in My Music. If you make changes to a music file using Media Center, the changes are not visible when played in SonicStage software.
Page 114 Why do my song information edits revert to the original content when I use My Music? When you record songs with SonicStage software, and then use Windows Media Player software to edit the song's ® information, you may not see your changes when you play the song in My Music. Windows Media Player supports playback of songs recorded in OpenMG (ATRAC3 or ATRAC3+ ) format, but does not support any edits made to the OpenMG format music files.
Page 115 Why do my optimized music files take so long to appear in My Music? When you use SonicStage software to optimize music files to ATRAC3 or ATRAC3+ format, it may take a few moments for the music files to be available in My Music. To access these files sooner, start Windows Media Player software first, and then play the song with My Music.
Page 116 Why do I get the error message, "The input media is invalid" when I try to play an MP3 file in My Music? If you have added cover art to the MP3 file using SonicStage software, your file may contain an unsynchronized ID3v2 header.
Page 117 Why won't My Music show the albums (playlists) I recorded with SonicStage software? Playlists (albums) recorded with SonicStage software may not be immediately available in the Media Center Album window. To access these files sooner, start Windows Media Player software first, and then play the song with My Music. ®...
Page 118 Why did my Click to DVD software recording session capture television instead of video? If Media Center starts a scheduled TV recording while you are capturing analog video with Click to DVD programming may be captured instead of the video and the timed recording may fail. Media Center and the analog capture feature of Click to DVD software both require the use a TV tuner/MPEG encoder card and cannot access the card at the same time.
Page 119 Why can't I view or record a movie when my computer is connected to an external device, such as a VCR or DVD player, or when I am using an analog input connection? If you see a blue background in the View window, the movie may be copyright-protected. Your computer is not able to display or record a video or DVD that is copyright-protected by Macrovision or CGMS-A (Copy Generation Management System - Analog).
Page 120 Why can't I fast forward or rewind a video? The rewind and fast forward features are not supported by all video formats. Try using the Skip or Replay buttons, which provides a similar function. Page 120...
Page 121 How do I use the Media Center software or remote control to adjust my monitor when viewing TV programs? Media Center software and remote control do not have video adjustment capability. Use the controls on the monitor to adjust video settings, such as contrast, hue, and brightness. See the information provided with your monitor for instructions on adjusting its video controls.
Page 122 What can I do if my computer freezes and restarts while I'm watching a DVD or live TV? Verify that the monitor refresh rate is set to 60 Hz, using the following steps: Right-click on the desktop, and click Properties from the shortcut menu. The Display Properties window appears.
Page 123: About The Mouse And Keyboard
About the Mouse and Keyboard Why doesn't my mouse work properly?  Confirm that the mouse is plugged securely into the mouse port. If you are using a USB mouse, verify that the mouse is plugged securely into the appropriate USB port. ...
Page 124 Do not mix old (used) and new batteries when replacing batteries in the wireless mouse. Always use the same type and manufacture of battery — do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used, new or different types of batteries can damage the mouse. For wireles s or s tandard optic al mic e.
Page 125 About the Mouse and Keyboard Why doesn't my mouse work properly?  Confirm that the mouse is plugged securely into the mouse port. If you are using a USB mouse, verify that the mouse is plugged securely into the appropriate USB port. ...
Page 126 Do not mix old (used) and new batteries when replacing batteries in the wireless mouse. Always use the same type and manufacture of battery — do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used, new or different types of batteries can damage the mouse. For wireles s or s tandard optic al mic e.
Page 127 How do I set up my mouse for left-hand use? Click Start in the Windows taskbar, then click Control Panel. Click Printers and Other Hardware, then click Mouse. The Mouse Properties dialog box appears. From the Buttons tab, select Switch primary and secondary buttons under the Button Configuration options. Click Apply, then click OK.
Page 128 Why doesn't my keyboard work properly?  Check that the keyboard is securely plugged into the keyboard port.  Save and close all open software programs. Turn off your computer, wait approximately 10 seconds, and then restart your computer.  If you are using a wireless keyboard: ...
Page 129: About The Modem
About the Modem Why is my modem connection slow? Many factors can influence modem connection speed, such as:  Telephone line noise.  Incompatibility with other telephone equipment such as fax machines or other modems.  Internet Service Providers (ISP) connection capability may vary. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your ISP, check the following: ...
Page 130 About the Modem Why is my modem connection slow? Many factors can influence modem connection speed, such as:  Telephone line noise.  Incompatibility with other telephone equipment such as fax machines or other modems.  Internet Service Providers (ISP) connection capability may vary. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your ISP, check the following: ...
Page 131 Check that the access telephone number (POP) is correct.  All software programs that are preinstalled by Sony are compatible with your computer's modem. If you have installed other software, contact the software publisher for information on how to configure the software in order to recognize the modem.
Page 132 How do I change my modem to rotary or touch-tone dialing? Click Start in the Windows taskbar, then click Control Panel. Click Printers and Other Hardware, then click Phone and Modem options. From the Dialing Rules tab, click Edit. The Edit Location dialog box appears. Select the Tone or Pulse option.
Page 133 How do I set up a dial-up connection? After you have connected your computer's modem to a telephone wall jack, follow these steps to set up your dial-up connection to the Internet: Click Start from the Windows taskbar and select All Programs. Point to Accessories, point to Communications, and then click New Connection Wizard.
Page 134: About The Speakers
About the Speakers Why is there no sound in any software program?  Check that the speakers are plugged into the Headphones jack.  If your speakers have a mute button, verify that it is turned off.  If your speakers are powered by batteries, verify that the batteries are inserted properly and that they are charged.
Page 135 About the Speakers Why is there no sound in any software program?  Check that the speakers are plugged into the Headphones jack.  If your speakers have a mute button, verify that it is turned off.  If your speakers are powered by batteries, verify that the batteries are inserted properly and that they are charged.
Page 136 Why is the S/PDIF option disabled in the Microsoft S/PDIF is enabled in Media Center setting is not selected in the InterVideo To change audio settings in the WinDVD software program Click Start in the Windows ® Point to InterVideo WindDVD 5, and the click on InterVideo WinDVD 5 for VAIO. The InterVideo WinDVD for VAIO window opens.
Page 137 Why can't I hear dialogue during DVD movie playback, using my 5.1 channel  Verify that your speaker system is connected correctly.  Change the computer's audio settings to 6-channel, to match your 5.1 speaker system.  Change the audio settings in the RealTek ...
Page 138 About Using a Microphone Why doesn't my microphone work properly? Check that the microphone is plugged into the Microphone jack. Page 138...
Page 139 About Using a Microphone Why doesn't my microphone work properly? Check that the microphone is plugged into the Microphone jack. Page 139...
Page 140 Why is my microphone so sensitive to background noise? If you find there is too much background noise when you record sound, you should adjust the microphone by following these steps: Click Start in the Windows taskbar, then click Control Panel. Click Sounds, Speech, and Audio Devices, then click Sounds and Audio Devices.
Page 141: About Using Peripheral Equipment
About Using Peripheral Equipment How do I install a printer?  Connect your USB or IEEE 1394 printer to the appropriate port on your computer's front, back or side panels your printer has a USB, IEEE 1394, or infrared connection, contact the printer manufacturer for information or updates that may be required for proper installation.
Page 142 About Using Peripheral Equipment How do I install a printer?  Connect your USB or IEEE 1394 printer to the appropriate port on your computer's front, back or side panels your printer has a USB, IEEE 1394, or infrared connection, contact the printer manufacturer for information or updates that may be required for proper installation.
Page 143 The connected printer does not function properly when the computer resumes from a power saving mode.  Clear the printer memory by turning the printer off for approximately 10 seconds, and then turning it back on.  If your printer does not resume normal operations, try restarting your computer. Page 143...
Page 144: Notes On Use
Notes On Use The information in this section provides basic procedures for handling your computer and common peripheral devices, and using storage media.  About the Power Source  About Handling the Computer  About Using a Monitor (Display)  About Disposing of the Lithium Battery ...
Page 145: About The Power Source
About the Power Source Before opening your computer, turn the computer off and let it cool down for 10 minutes. This protects you against internal components that may be too hot to handle.  Your computer operates on 100-220 V AC 50/60 Hz only. ...
Page 146 Your computer, keyboard, and mouse consist of high-precision electronic parts. Do not drop them or bump them against other objects.  Your Sony computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a private branch exchange (PBX). ...
Page 147  Use the CONNECT buttons on the wireless device and your computer, if available, to establish communication between the equipment.  Avoid using radio-controlled toys or equipment, CB radios, and other wireless devices in the area near your wireless keyboard. These other devices may cause interference, causing your wireless keyboard or mouse to stop working properly.
Page 148 About Using a Monitor (Display)  DVD playback and certain video-related software may not function correctly when your monitor is set to a high refresh rate. If your monitor does not play back video content properly, try setting the display to a lower refresh rate.
Page 149: About Disposing Of The Lithium Battery
Do not handle damaged or leaking lithium batteries. The lithium battery may explode if mistreated. Do not disassemble it or dispose of it in fire. Replace the battery with a Sony CR2032 lithium battery. Using a type of battery other than a CR2032 may present a risk of fire or explosion.
Page 150 Memory Stick and Memory Stick PRO Currently, Sony SonicStage ® Sony suggests using only the MagicGate Memory Stick media to store and transfer any data created with SonicStage and OpenMG software.  VAIO computers may not support all of the high-speed data transfer or access control features of the new Memory ®...
Page 151: Support Options
Support Options Sony provides several options to help solve common problems or to locate support for your VAIO describes all available resources and offers suggestions on how to access this information for maximum results.  Immediate Help and Support ...
Page 152: Immediate Help And Support
T his booklet is only s upplied with c ertain V A I O about your c omputer's hardware c onfiguration. Y ou c an loc ate the online H elp for Sony ® — The Quick Start contains information on how to set up your computer quickly and taskbar, then click Help and Support.
Page 153: Software Help And Support
Software Help and Support Technical support information for the preinstalled software on your computer is located in this section. Sony software support is free of charge for 90 days after the original date of purchase. Your computer may not be supplied with all of the software discussed in this section, depending on the computer purchased.
Page 154 Sony Electronics Inc. PictureGear Studio is picture management software that can display photos from your hard drive or a Sony digital still camera. The photos appear in a convenient light-table format so that you can easily view the contents of an entire folder, create your own photo albums, and make prints.
Page 155 888-4-SONY-PC (888-476-6972) hours 7 days a week, 24 hours a day VAIO Edit Components Sony Electronics Inc. VAIO Edit Components is a software plug-in for Adobe quality when capturing video with your Sony digital camcorder. Web site http://www.sony.com/pcsupport telephone 888-4-SONY-PC (888-476-6972)
Page 156 7 days a week, 24 hours a day WinDVD for VAIO ® ® InterVideo, Inc. Web site http://www.intervideo.com/jsp/Support.jsp telephone 510-651-0888 WordPerfect ® Corel Corporation Web site http://www.corel.com computer by regularly checking the Sony Online Support Web site for ® computers (media ® Page 156...
Page 157: Resources For Additional Help And Support
Sony online support Web site Online help and support are available 24 hours a day, seven days a week, when you visit the Sony online support Web site. You can access the Web site at http://www.sony.com/pcsupport.

This manual is also suitable for:

Vaio vgc-v520g

Sony VGC-V517G VAIO User Manual

Quick Links

Related Manuals for Sony VGC-V517G VAIO

Summary of Contents for Sony VGC-V517G VAIO

This manual is also suitable for:

Table of Contents
