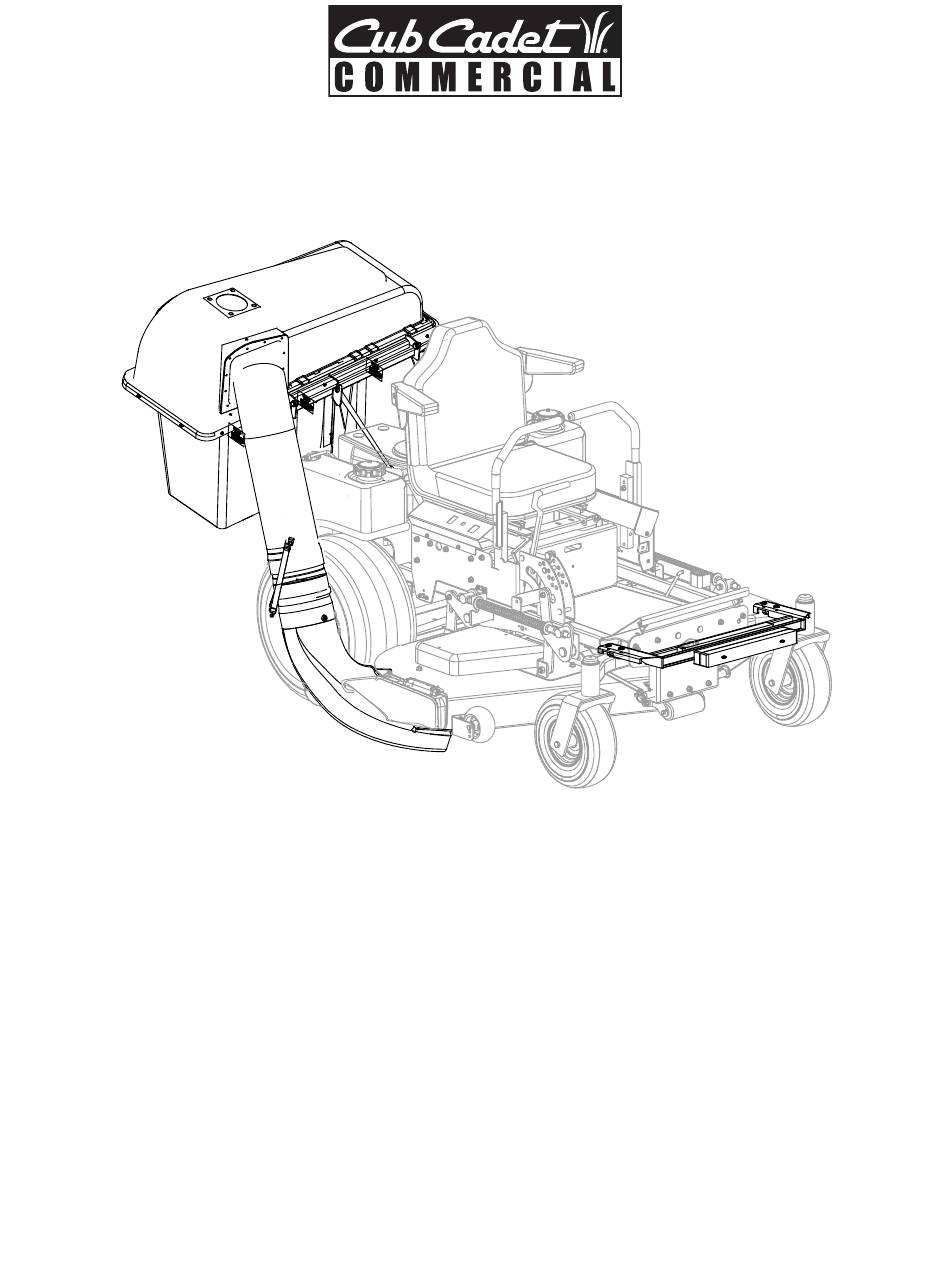

Operator's Manual
Triple Rear Bagger Kit for Fan Assisted Kit
Model 590-852-150
for use on M48/54/60 "Tank" Model Mowers
(Mower sold separately)
IMPORTANT: Read safety rules and instructions carefully
Cub Cadet LLC., P.O. Box 368023, Cleveland, Ohio 44136
PRINTED IN U.S.A.
FORM NO. 769-01702A.fm
(3/2005)
Advertisement
Related Manuals for Cub Cadet Commercial 590-852-150
Summary of Contents for Cub Cadet Commercial 590-852-150
- Page 1 Operator’s Manual Triple Rear Bagger Kit for Fan Assisted Kit Model 590-852-150 for use on M48/54/60 “Tank” Model Mowers (Mower sold separately) IMPORTANT: Read safety rules and instructions carefully Cub Cadet LLC., P.O. Box 368023, Cleveland, Ohio 44136 PRINTED IN U.S.A.
- Page 2 TABLE OF CONTENTS Content Page Loose Parts........................7 Assembly & Operation .....................8 Parts List..........................12 FINDING MODEL NUMBER This Operator’s Manual is an important part of your new accessory for your mower. It will help you assemble, and operate the unit for best performance. Please read and understand what it says. Before you start assembling your new equipment, please locate the model plate on the equipment and copy the information from it in the space provided below.
- Page 3 SECTION 1: IMPORTANT SAFE OPERATION PRACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.
- Page 4 Children understand and follow all instructions provided with the accessory or attachment. Tragic accidents can occur if the operator is not alert to 28. Data indicates that operators, age 60 years and above, the presence of children. Children are often attracted to are involved in a large percentage of tractor-related the machine and the mowing activity.
- Page 5 Restrict the use of this accessory and the tractor to persons who read, understand and follow the warnings and instructions in this manual and on the machine. This Triple Rear Bagger with Fan Assist Kit is designed for use on Cub Cadet Commercial IMPORTANT: Tractor models only.
- Page 6 Slope Gauge Use this page as a guide to determine slopes where you may not operate safely. Do not operate your equipment on such slopes.
- Page 7 SECTION 2: LOOSE PARTS The grass catcher kit is shipped with following loose parts in the carton. Please remove all loose parts from the carton before discarding it. Compare with Figure 1 to check that no parts are missing or misplaced. Also identification of these loose parts at this point will help in assembly.
- Page 8 SECTION 3: ASSEMBLY & OPERATION Before Assembly • Secure all weight bars to the weight bar bracket and the mower frame with hex bolt (6.25”) and top lock flange nut NOTE: References to left, right, front and rear of the from Group A of the hardware pack.
- Page 9 • Secure the upright mounting brackets to the bumper • Hang the three grass bags using notches on the catcher plate with the hardware removed earlier. Do not tighten support bracket. See Figure 8. the nuts at this point. Grass Bag Cover Notches Catcher...
- Page 10 NOTE: • Insert a hex bolt from Group E of the hardware pack Make sure that longer end of the boot mount firmly through the retainer hook and the chute tube at this hole. secures around the bolt head on the chute mounting bracket. Secure with flange lock nut from the same hardware pack The other end of boot mount should be securely placed group.
- Page 11 Operating the Grass Catcher NOTE: Mower cutter deck must be equipped with the designated hi-lift blades for all three (3) spindle locations for • Lift up the grass bag cover and hold it. proper performance. • Lift each grass bag from the notches which hold it, and NOTE: Make sure to dispose of the grass clippings at move it away from the mower.
- Page 12 SECTION 4: PARTS LIST FOR MODEL 590-852-150 14 21 Chute Elbow shown for reference, see “Fan Assist Manual” for details From the Mower From the Mower...
- Page 13 PARTS LIST FOR MODEL 590-852-150 Ref. No. Part No. Description Qty. 16606 Retainer Hook 603-04098 Catcher Support Bracket 664-04018 Catcher Cover 703-05237 Upright Mounting Bracket LH 703-05239 Upright Mounting Bracket RH 703-05240 Upright Gusset LH 703-05241 Upright Gusset RH 703-05245A...
- Page 14 NOTES:...
- Page 15 NOTES:...
