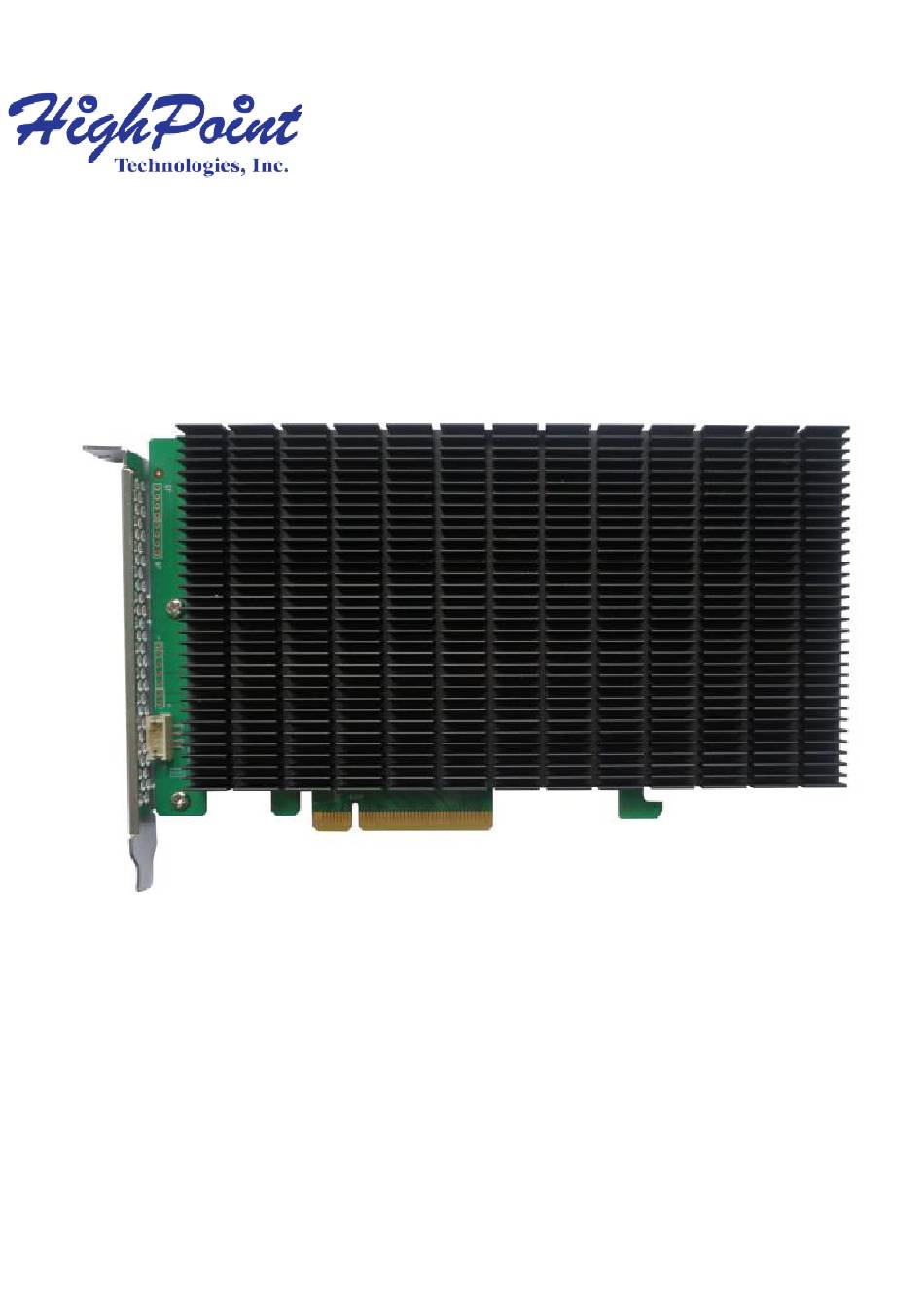

- Page 1 SSD6204 4x M.2 Port to PCIe 3.0 x8 NVMe RAID Controller SSD6204 Quick Installation Guide V1.00...
-
Page 2: System Requirements
System Requirements PC Requirements • System with a free PCIe 4.0/3.0 x16 or PCIe 4.0/3.0 x8 slot • Windows • Linux • VMware SSD6204 Kit Content • SSD6204 Controller Card • Quick Installation Guide... - Page 3 SSD6204 Hardware Front View Heat sink for M.2 SSD’s PCIe 3.0 x8 Host Interface...
- Page 4 SSD6204 Hardware Installation: Step 1. On the rear of the SSD6204, remove the six screws that secure the unit’s heat sink to the PCB. After removing the screws, carefully remove the heat sink from the SSD6204. Step 2. These 4 screws are used to install the NVMe SSD’s. Step 3.
- Page 5 Step 4. Refasten the screw to secure the SSD. Step 5. Repeat Steps 3 to 5 to install the remaining SSDs. The following example shows four NVMe SSD’s installed into Port 1, 2, 3 & 4; Step 6. Carefully align the heat sink and refasten the 6 screws that were removed in step 1 to the rear of the PCB.
-
Page 6: Customer Support
Resources We recommend visiting the SSD6200 series webpage for the latest software and installation guides Software Download: https://highpoint-tech.com/USA_new/series-ssd6200-overview.html Customer Support If you encounter any problems while utilizing the SSD6204, or have any questions about this or any other HighPoint Technologies, Inc.
