Welcome
Congratulations on your purchase of the Sony VAIO Digital Studio
computer combines audio, video, and information technology features.
About Your VAIO Digital Studio Computer
To Unpack Your Computer
To Choose an Ergonomic Location
Click
here
to find the latest updates and supplemental information about your computer.
Click
here
to view your computer's hardware specifications and software information.
computer! Your new, high-performance, multimedia
Page 1

Advertisement

Table of Contents
loading

Related Manuals for Sony PCV-RX770 Computer User Guide (primary manual)

Summary of Contents for Sony PCV-RX770 Computer User Guide (primary manual)

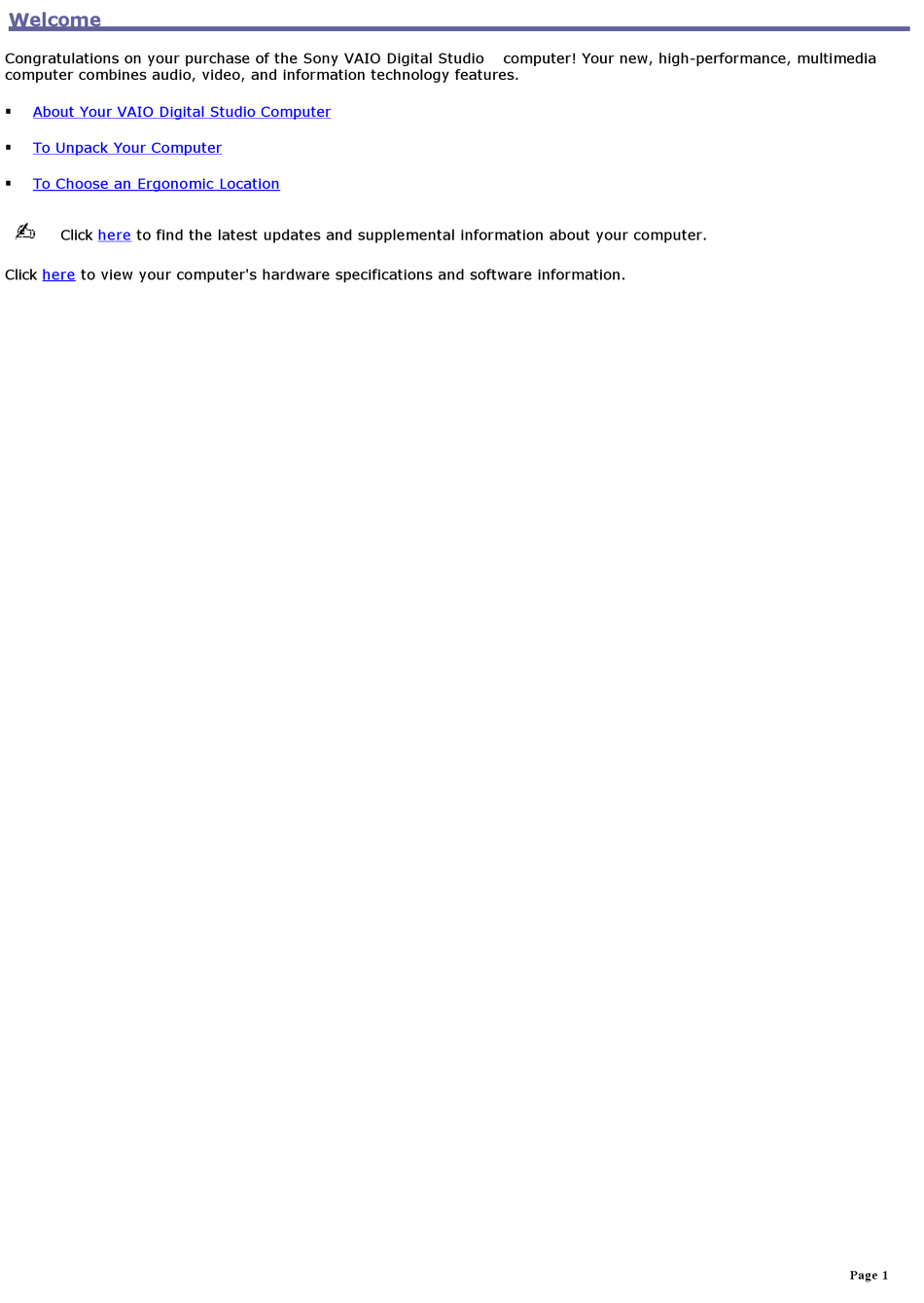

  • Page 1 Welcome Congratulations on your purchase of the Sony VAIO Digital Studio computer combines audio, video, and information technology features.  About Your VAIO Digital Studio Computer  To Unpack Your Computer  To Choose an Ergonomic Location Click here to find the latest updates and supplemental information about your computer.
