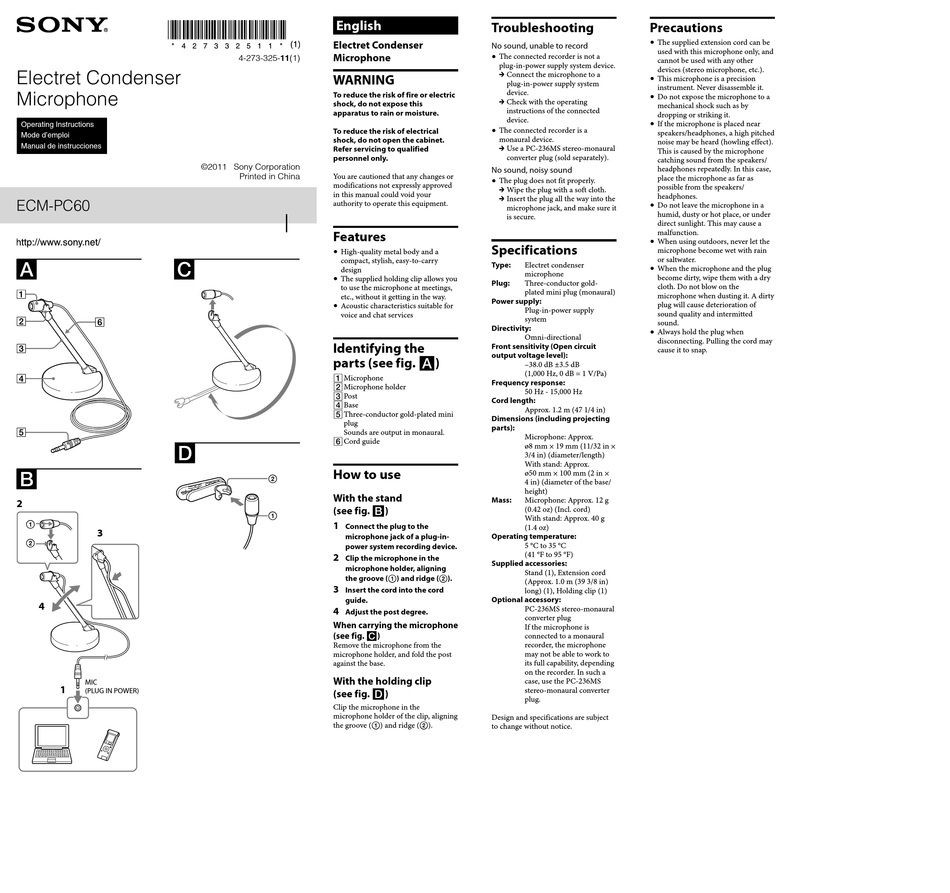

Sony ECM-PC60 Operating Instructions

Electret Condenser
Microphone
Operating Instructions
Mode d'emploi
Manual de instrucciones
ECM-PC60
 


2

3

4
MIC
1
(PLUG IN POWER)
English
Electret Condenser
Microphone
4-273-325-11(1)
WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical
shock, do not open the cabinet.
Refer servicing to qualified
personnel only.
©2011 Sony Corporation
Printed in China You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
Features
 High-quality metal body and a
compact, stylish, easy-to-carry
design
 The supplied holding clip allows you
to use the microphone at meetings,
etc., without it getting in the way.
 Acoustic characteristics suitable for
voice and chat services
Identifying the
parts (see fig. )
 Microphone
 Microphone holder
 Post
 Base
 Three-conductor gold-plated mini
plug
Sounds are output in monaural.
 Cord guide
How to use

With the stand
(see fig. )

1
Connect the plug to the
microphone jack of a plug-in-
power system recording device.
2
Clip the microphone in the
microphone holder, aligning
the groove () and ridge ().
3
Insert the cord into the cord
guide.
4
Adjust the post degree.
When carrying the microphone
(see fig. )
Remove the microphone from the
microphone holder, and fold the post
against the base.
With the holding clip
(see fig. )
Clip the microphone in the
microphone holder of the clip, aligning
the groove () and ridge ().

Troubleshooting

Precautions
 The supplied extension cord can be
No sound, unable to record
used with this microphone only, and
 The connected recorder is not a
cannot be used with any other
plug-in-power supply system device.
devices (stereo microphone, etc.).
 Connect the microphone to a
 This microphone is a precision
plug-in-power supply system
instrument. Never disassemble it.
device.
 Do not expose the microphone to a
 Check with the operating
mechanical shock such as by
instructions of the connected
dropping or striking it.
device.
 If the microphone is placed near
 The connected recorder is a
speakers/headphones, a high pitched
monaural device.
noise may be heard (howling effect).
 Use a PC-236MS stereo-monaural
This is caused by the microphone
converter plug (sold separately).
catching sound from the speakers/
headphones repeatedly. In this case,
No sound, noisy sound
place the microphone as far as
 The plug does not fit properly.
possible from the speakers/
 Wipe the plug with a soft cloth.
headphones.
 Insert the plug all the way into the
 Do not leave the microphone in a
microphone jack, and make sure it
humid, dusty or hot place, or under
is secure.
direct sunlight. This may cause a
malfunction.
 When using outdoors, never let the

Specifications

microphone become wet with rain
or saltwater.
Type: Electret condenser
 When the microphone and the plug
microphone
become dirty, wipe them with a dry
Plug: Three-conductor gold-
cloth. Do not blow on the
plated mini plug (monaural)
microphone when dusting it. A dirty
Power supply:
plug will cause deterioration of
Plug-in-power supply
sound quality and intermitted
system
sound.
Directivity:
 Always hold the plug when
Omni-directional
disconnecting. Pulling the cord may
Front sensitivity (Open circuit
cause it to snap.
output voltage level):
–38.0 dB ±3.5 dB
(1,000 Hz, 0 dB = 1 V/Pa)
Frequency response:
50 Hz - 15,000 Hz
Cord length:
Approx. 1.2 m (47 1/4 in)
Dimensions (including projecting
parts):
Microphone: Approx.
ø8 mm × 19 mm (11/32 in ×
3/4 in) (diameter/length)
With stand: Approx.
ø50 mm × 100 mm (2 in ×
4 in) (diameter of the base/
height)
Mass: Microphone: Approx. 12 g
(0.42 oz) (Incl. cord)
With stand: Approx. 40 g
(1.4 oz)
Operating temperature:
5 °C to 35 °C
(41 °F to 95 °F)
Supplied accessories:
Stand (1), Extension cord
(Approx. 1.0 m (39 3/8 in)
long) (1), Holding clip (1)
Optional accessory:
PC-236MS stereo-monaural
converter plug
If the microphone is
connected to a monaural
recorder, the microphone
may not be able to work to
its full capability, depending
on the recorder. In such a
case, use the PC-236MS
stereo-monaural converter
plug.
Design and specifications are subject
to change without notice.
