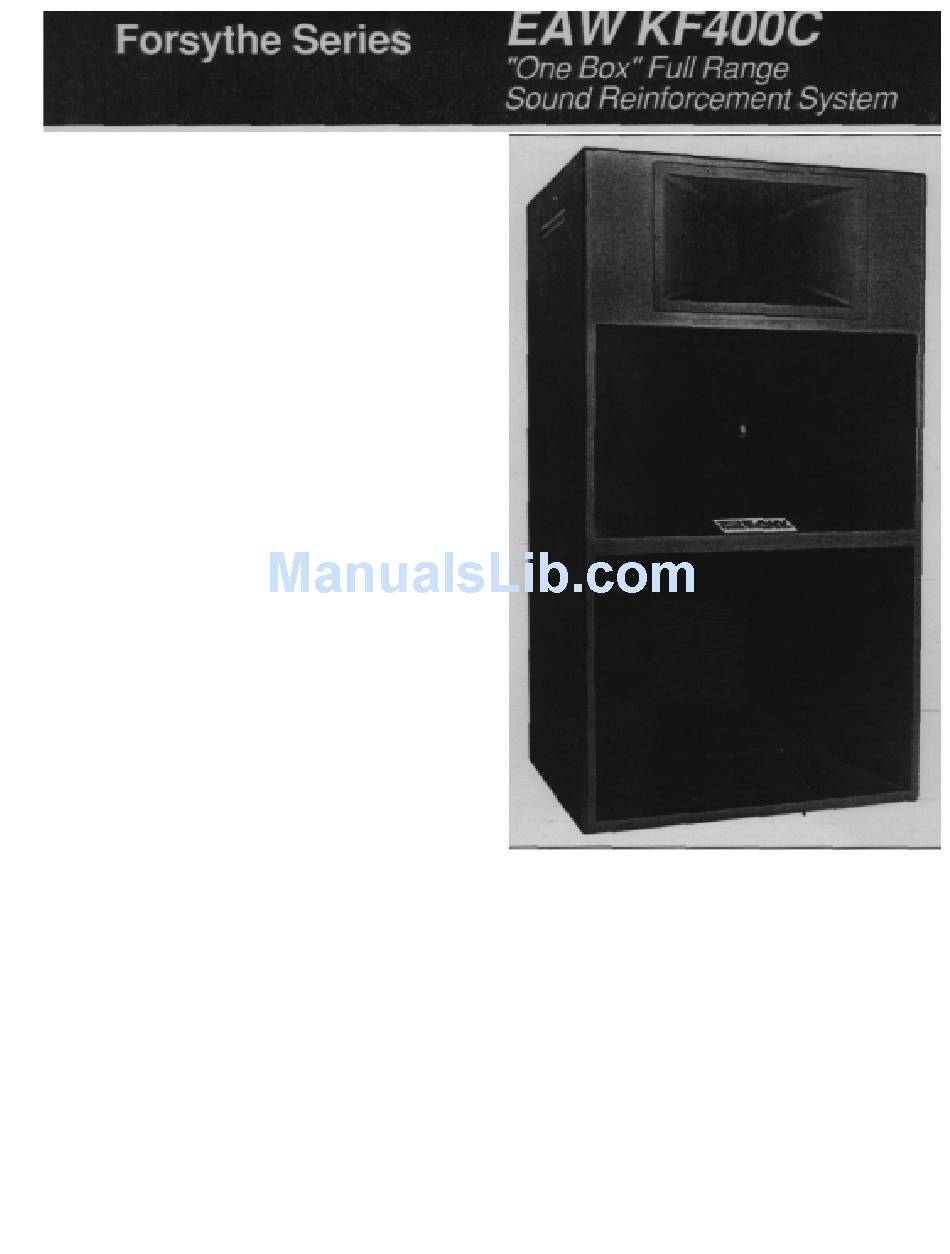

EAW KF400C Specifications

System
Features:
• High Output 137 dB
SPL
• Wide Bandwidth 40 to 20,000 Hz (with
Optional TAD Driver) enabling the
reproduction of all the subtleties in
modern electronic keyboard based music.
• Advanced Mid-Bass Forsythe
MR102L for low distortion vocal
reproduction at high sound pressure
levels.
• Constant Horizontal Coverage 90
degrees to 16k Hz is ideal for side stage
monitor or large cluster use.
- High Technology RCF LAB
Drivers including the new RCF
L18/851 18-in driver with 1000 watts
AES power handling.
Introduction
The EAW Forsythe Series KF400 is an all
level
horn loaded high output, three way, sound
reinforcement loudspeaker system. Its "One
Box" design permits ease of transport and also
of
ensures optimum driver alignment and
16,000
integration for ideal frequency and phase
response linearity. The KF400 benefits from the
years of development EAW has amassed since
we introduced the world's first "One Box" horn
systems,
Applications
The KF-400 is intended for use in high
sound reinforcement, music playback, motion
picture sound, and performing arts appli
cations. It will produce sound pressure levels
greater than 135 dB @ 1m over the 40 to
Hz band. Its ability to provide natural sonic
reproduction nearfield at high sound pressure
levels make it a natural side stage monitoring
-system. As with all EAW horn loaded
