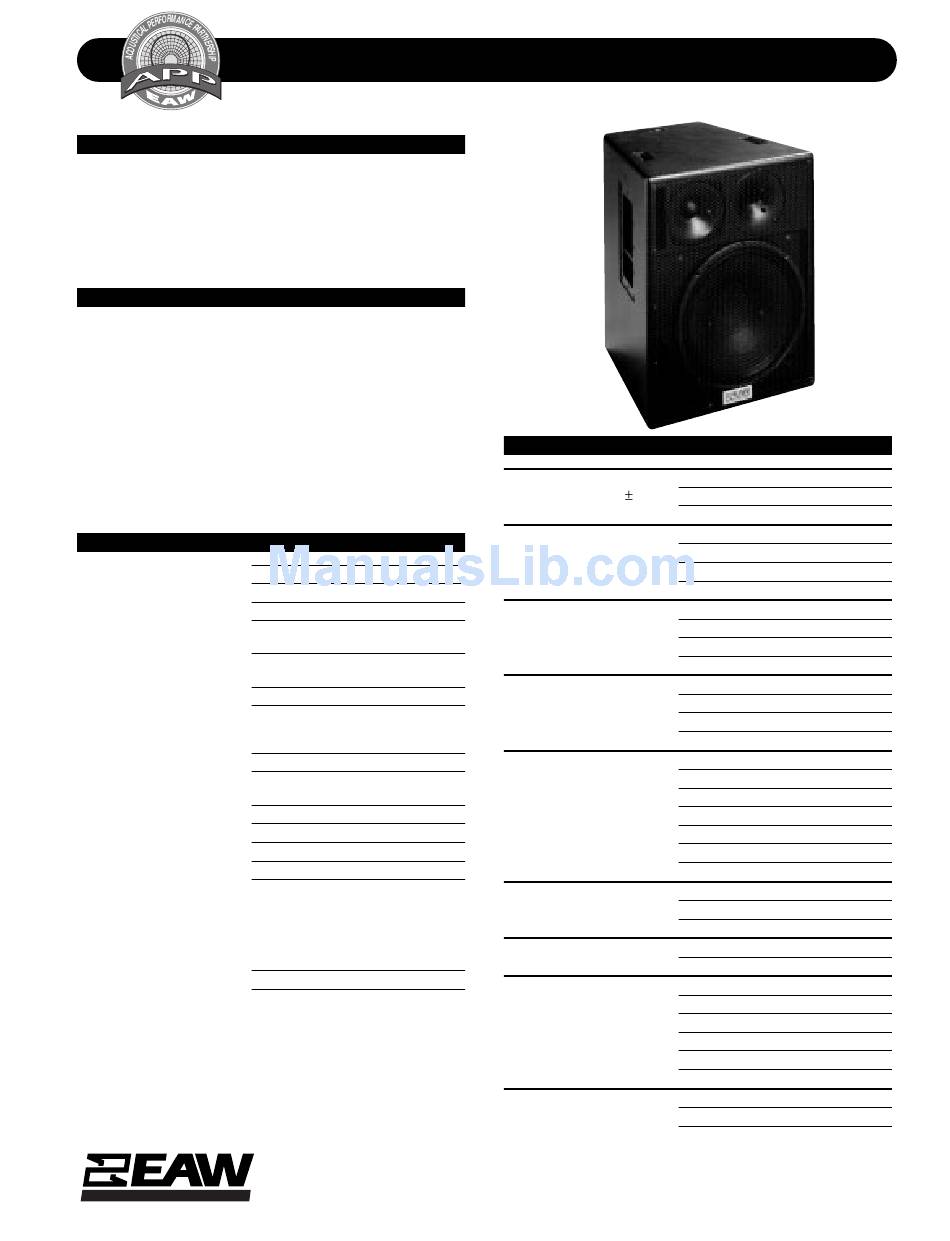

EAW FL103 Technical Specifications

DESCRIPTION
A 3-way full range system in a dual vent, trapezoidal enclo-
sure. Includes a 15-in woofer (vented), a 7-in midrange cone
(separated vented subenclosure) and a 1-in exit compres-
sion driver on a Wave Guide Plate™. Powering mode is swit-
chable: passive (3-way crossover) or biamplified (passive MF/
HF crossover).
APPLICATIONS
The FL103 delivers extremely high output and studio fidelity
from a compact enclosure. True 3-way design dramatically
improves the quality of speech reproduction. Midrange vent-
ing smooths response at LF/MF crossover. Low "Q" provides
exceptionally natural reproduction in permanent or portable
applications demanding the highest quality sound. Compre-
hensive mounting/suspension hardware. Six year warranty.
Applications include:
Concert Halls
Theaters
Small HOW's
DESCRIPTIVE DATA
Part Number 999066
Product Group J
LF Subsystem & Loading 1x 15-in, Vented
MF Subsystem & Loading 1x 7-in Cone in Vented
Subenclosure
HF Subsystem & Loading 1x 1-in Exit Compression Driver on
Wave Guide Plate™
System Configuration 3-way, Full Range
Powering Configuration(s) Switchable: Full Range (passive LF/
MF/HF crossover) or Biamplified
(passive MF/HF crossover)
Controls (switches, knobs) Powering Mode Switch
Recommended High-Pass
Frequency (24 dB/Octave) 30Hz
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 2 Neutrik NL4 Speakon
Suspension Hardware 6x 3-position flytracks (2 each on
top, bottom and back), 12x 3/8"-
16 threaded mounting/suspension
points (3 each top and bottom, 2
each sides and back)
stand mount cup (bottom)
Grill Vinyl Coated Perforated Steel
Options CCEP Config MX200i-FL103
(biamped mode)
MX300i-FL103 (w/ SB528)
MX300i-FLS18 (w/ SB180)
179001 Flyclip with ring
179002 Flyclip with hook
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# FL103-888029 (A)/2 pp/1/29/99 • Printed In USA
TECHNICAL SPECIFICATIONS FL103
Recital Halls
MultiMedia
Live Music Club
NOMINAL DATA
Frequency Response (Hz)
3 db 50Hz to 18kHz
-10 dB 38Hz
Axial Sensitivity (dB SPL/1 Watt/1m)
Full Range 95
Biamped MF/HF 95
Biamped LF 95
Impedance (Ohms)
Full Range Passive 8
Biamped MF/HF 8
Biamped LF 8
Power Handling, AES Standard (Watts)
Full Range 500
Biamped MF/HF 500
Biamped LF 800
Calculated Maximum Output (dB SPL, @ 1m)
Full Range Peak 128.0
Biamped MF/HF Peak 128.0
Biamped LF Peak 130.0
Full Range Long Term 122.0
Biamped MF/HF Long term 122.0
Biamped LF Long Term 124.0
Nominal Coverage Angle / -6 dB points (degrees)
Horizontal 100
Vertical 100
Recommended Complementary Systems
Sub SB180/SB528
Dimensions inches
Height 24.625
Width 19.75
Depth 19.75
Back Width 12.75
Trapezoid Angle 10 degrees per side
Weights pounds kilograms
Net Weight 111
Shipping Weight 118
millimeters
625
502
502
324
50.5
53.7
