Summary of Contents for Saelig QianLi LC-IRP01

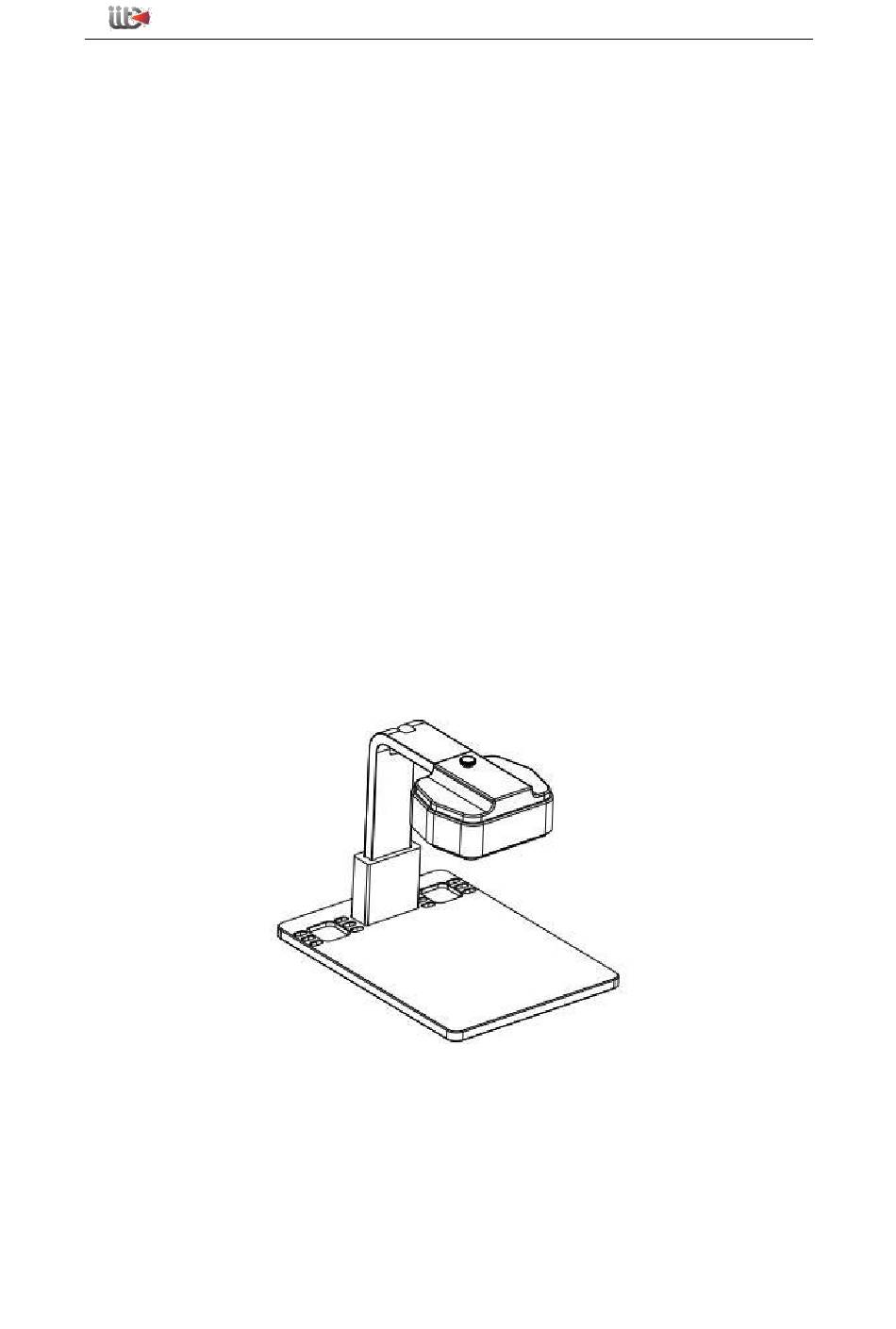

- Page 1 Launch user's guidance PCB Thermal Camera Quick Guide User Guide...
-
Page 3: Table Of Contents
Launch user's guidance table of Contents 、Product composition......................3 2、 Basic operating instructions..................... 3 、Client software instructions....................4 、Parameter Description...................... 4 5、 Packing List........................5 、Precautions........................6 、 FAQ............................6... -
Page 4: Product Composition

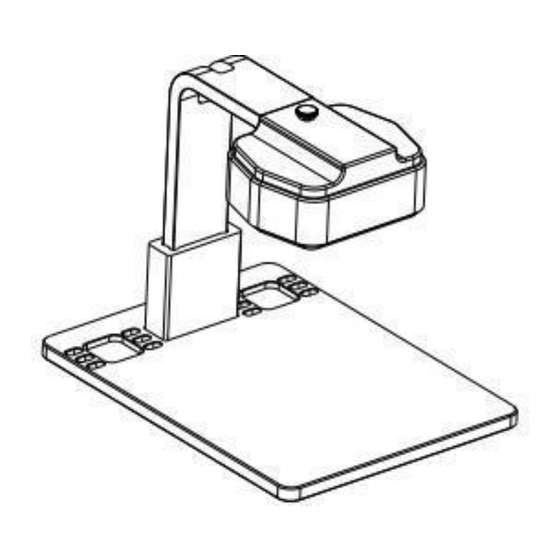

Launch user's guidance 、Product composition Image 1 LC-IRP01 PCB Thermal Camera Numbering description Base Bracket Host 2、 Basic operating instructions 1. The PCB quick-diagnosis instrument consists of a front-end mainframe, a bracket and a base. The host, the bracket and the base are first used. -
Page 5: Client Software Instructions
Launch user's guidance 4. During the software installation process, follow the instructions to perform the next step. All prompts are allowed to modify the operation. Select Allow modification. After the installation is complete, there will be a black page upgrade box to automatically add the device IP address network segment. -
Page 6: Parameter Description
、Parameter Description Infrared part parameters Detector type Uncooled vanadium oxide (VOx) detector Resolution 160×120 Wavelength range 7.5-13.5 μm... -
Page 7: 5、 Packing List
user's guidance Launch Lens angle 57°×44° Visible light parameter Resolution 1920×1080 Interface and display function Visible/infrared thermal imaging/double optical Display mode interlacing Video output RJ45 Picture storage format JPEG Physical characteristics Bracket size 19cm×24.5cm×21mm Gross Weight Installation Removable installation power supply Input supply voltage 5-26 V DC Power consumption... -
Page 9: Precautions
Launch user's guidance 、Precautions 1、PCB quick-diagnosis software has certain requirements for running computer configuration. It is recommended to use processor I3 and above, memory. Computers with 2G and above can operate normally. 2、The computer and PCB quick-access device can be connected by USB to the RJ45 network interface. - Page 10 Double-click "Change Network Adapter Options" Double-click the currently connected "Ethernet" network or click the right mouse button and click "Properties" in the pop-up menu bar. Double-click "Internet Protocol Version (TCP/IPV4)" and click on "Advanced" IP Address (R) Click "Add" as follows.
- Page 11 Launch user's guidance IP address: 192.168.2.99 Subnet mask: 255.255.255.0 Click "Add" and always click "Confirm" as prompted until the setting is completed. 3, the software installation process prompts to install NET Framework 4.0 how to operate? A: The PCB quick-diagnosis software runs with the NET Framework 4.0 operating environment. If prompted to install, follow the prompts to install it step by step.
- Page 12 http://www.launchirview.com/technology.html Software download address: （1）change to English page, pls click “ English” button in the pink circle (2) Click “fuwuzhichi”, and download, in the pink circle...
- Page 13 (3) Pls download the last one to downlaod the newest desktop software...
- Page 14 How to change language to English: 1. Click here 2. Choose English 3. Done...
- Page 15 How to change the shot and no shadow? Press “Space” button to change normal image and infared image. 1. Turn around the shot here until clear when normal image 2. Click here to change the direction to remove shadow when infrared image...
