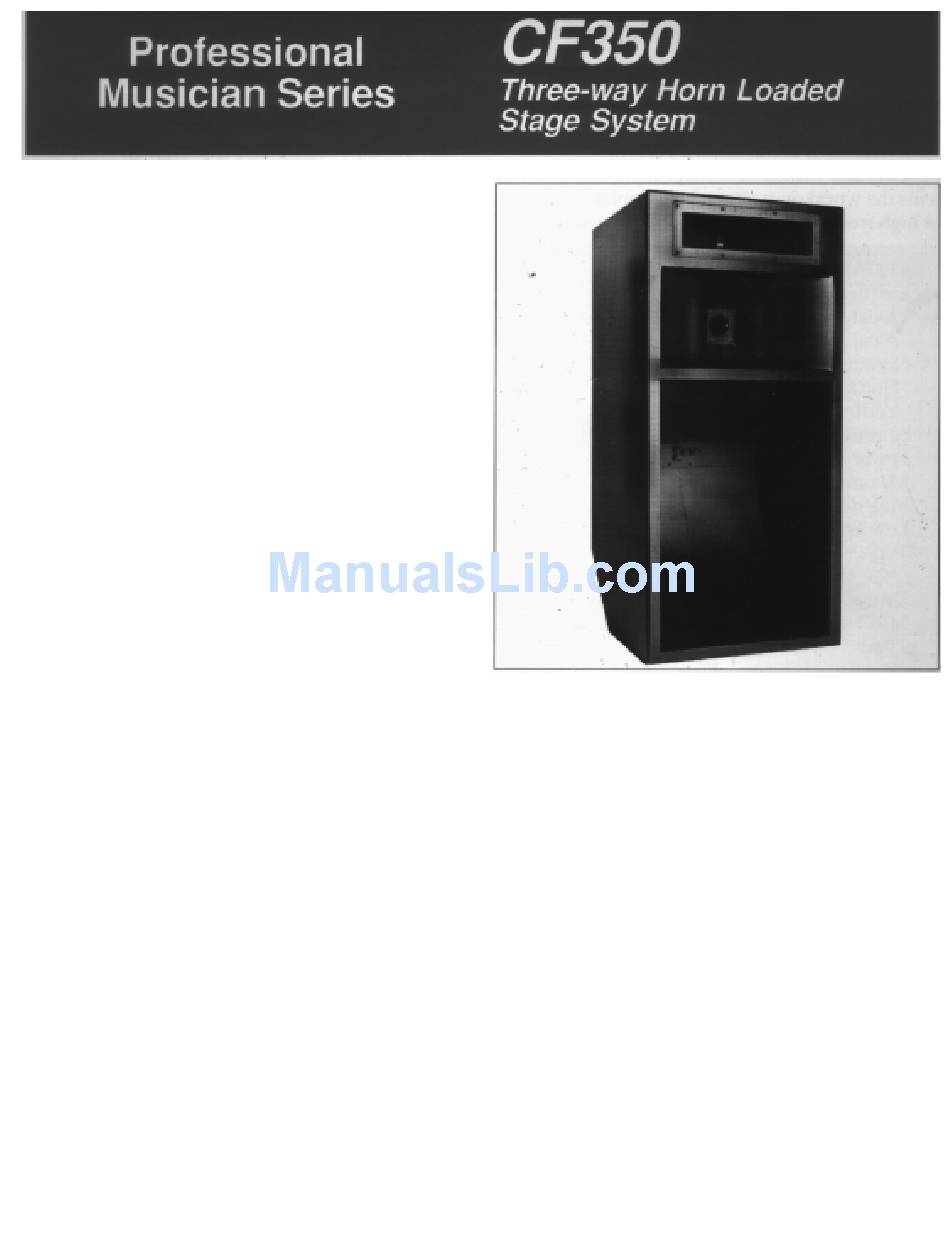

EAW Cinema CF350 Specifications

System.

Features

• High Output Capabilities with over 130 dB SPL
maximum output the CF350 provides enough sound.
pressure- level for virtually all stage performance
applications.
• Complex Equalized Crossover Network
provides smooth transition between drivers in full
bandwidth passive operation or simply plug into the low
frequency input for easy bi-amp operation.
• Advanced Forsythe Designed Mid Horn
utilizing a complex two piece molded phasing plug
for true flat power response over the critical vocal
band.
• Sets New Standards For Value by incorporating
EAW engineering and design leadership with the latest
developments in production efficiency enabling the
CF350 to bring "state of the art" performance and
legend ary EAW reliability within the reach of every
performing musician.

Description

The CF350 brings the smooth
response,
low distortion and high output capabilities of
EAW's larger horn loaded systems in a slightly
smaller package and at a price that is within
the reach of all performing musicians. It is
intended for use as the main sound reinforce
ment system for musical performing groups.
The use of true horn loading over its entire
operating range results in significantly higher
efficiency than any competitive system using
vented enclosures., Additionally, the advanced
Forsythe designed horns exhibit response
accu
racy greater than most direct radiating
systems,
eliminating the response peaks that plague all
competitively priced horn loaded systems.
The low frequency section of the CF350 consists
of an RCF L18/854 380 mm (15-in) driver loaded into a
Forsythe designed bent bass horn. The bass horn and
cabinet is constructed from 3/4 inch plywood with
birch hardwood exterior for excellent resistance to
transport abuse. This material offers better strength-to-weight
ratio and sheering resistance than the carpet covered particle
board or cheap plywood that is used in competitive systems.
This domestic birch faced plywood is considerably less
expensive than the imported', cross-grain-laminated birch
used in EAW's ., larger systems and is one of the key
elements in keeping this advanced system competitively.
priced.
The critical vocal mid frequency** band (350 to 3,500
Hz) is the heart of any system as it is where the PM350
clearly excels, even in relation to. competitive systems
costing'-many times more. This new Forsythe design utilizes
a phasing / displacement throat plug so complex -it must be
manufactured in multiple parts and then assembled to
achieve the precise driver horn alignment specified in the
"state of the art" Forsythe design. The horn flare is
constructed of 3 mm imported birch hardwood reinforced
with high density polyurethane
