EAW Cinema CB2592 Technical Specifications

Technical Specifications CB2592
CB2592
20
28.91
111.25
7.25
24.50
16.36
FRONT RIGHT SIDE
One Main Street, Whitinsville, MA 01588 • (508) 234-6158 • FAX (508) 234-8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# CB2592/11/17/98 • Printed In USA
INDICATES 3/8-16 THREADED MOUNTING HOLE
INDICATES 5/16-18 THREADED MOUNTING HOLE
INDICATES CENTER OF BALANCE
7.5
1.50
5.25
2.25
17.75 13.13
999440 (0)
exp 11/16/98
CINEMA SERIES
APPLICATION
• For very large theaters
• Biamplified 2-way screen channel loudspeaker
PRODUCT INFORMATION

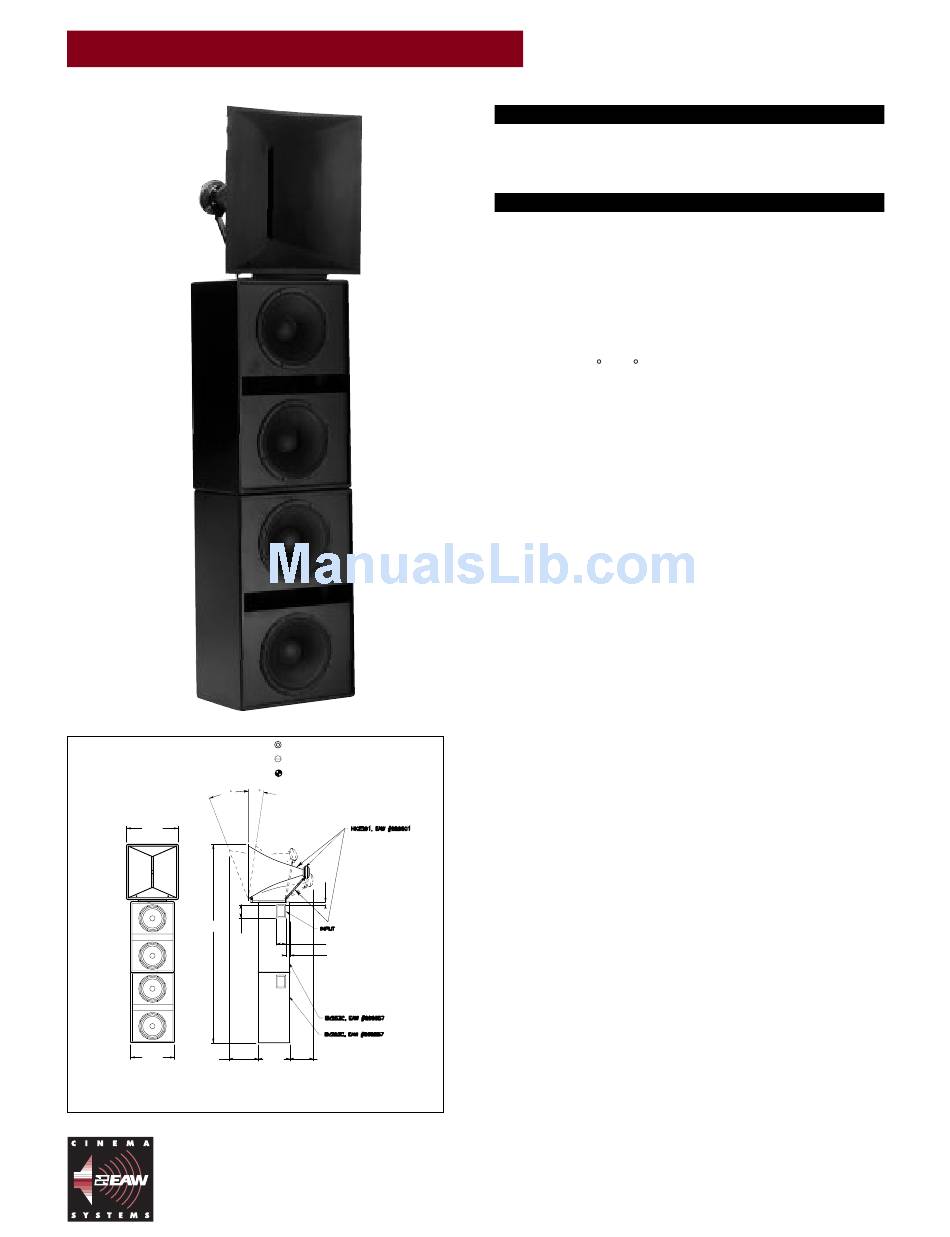

The CB2592 large format 2-way screen channel loudspeaker system
fills the largest theaters with all the high-impact, full-range sound
encoded on today's digital soundtracks while reproducing voices
clearly and naturally.
The three component system includes two BV253C vented dual 15-
in low frequency units and EAW's HK2591 high frequency system –
a large format 90 x 40 horn loading a large diaphragm 2-in exit
compression driver.
The HK2591's large format HF cinema horn ensures even distribution
of HF information over the entire audience area.
The BV253C's optimally vented enclosures use enclosure resonance
to increase LF response while limiting driver excursion. This method
produces less distortion and minimizes driver strain while extending
LF response to the lowest octaves. Their shallow enclosure dimen-
sions allow convenient placement behind the screen.
Each LF enclosure has 3 mounting points to allow optimum front/
rear positioning of the HF component. The adjustable mounting
bracket attaching the HF horn to the LF enclosure allows the HF horn
to be aimed independently of the LF section in both the horizontal
and vertical planes and can be locked once it is positioned.
The LF section includes a two-terminal barrier strip that accomodates
bare wire, tinned leads or spade lugs. The HF component uses heavy
duty spring-loaded push button type connectors. Input connectors
for the LF section are located on the side of the enclosure for
convenient access in cramped installation areas. HF input connec-
tors are directly on the compression driver.
All components feature a "dead" flat black finish to eliminate the
reflection of light through perforated cinema screens.
