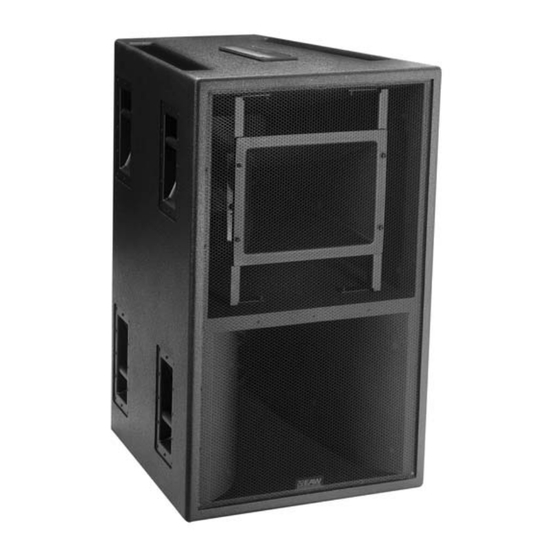

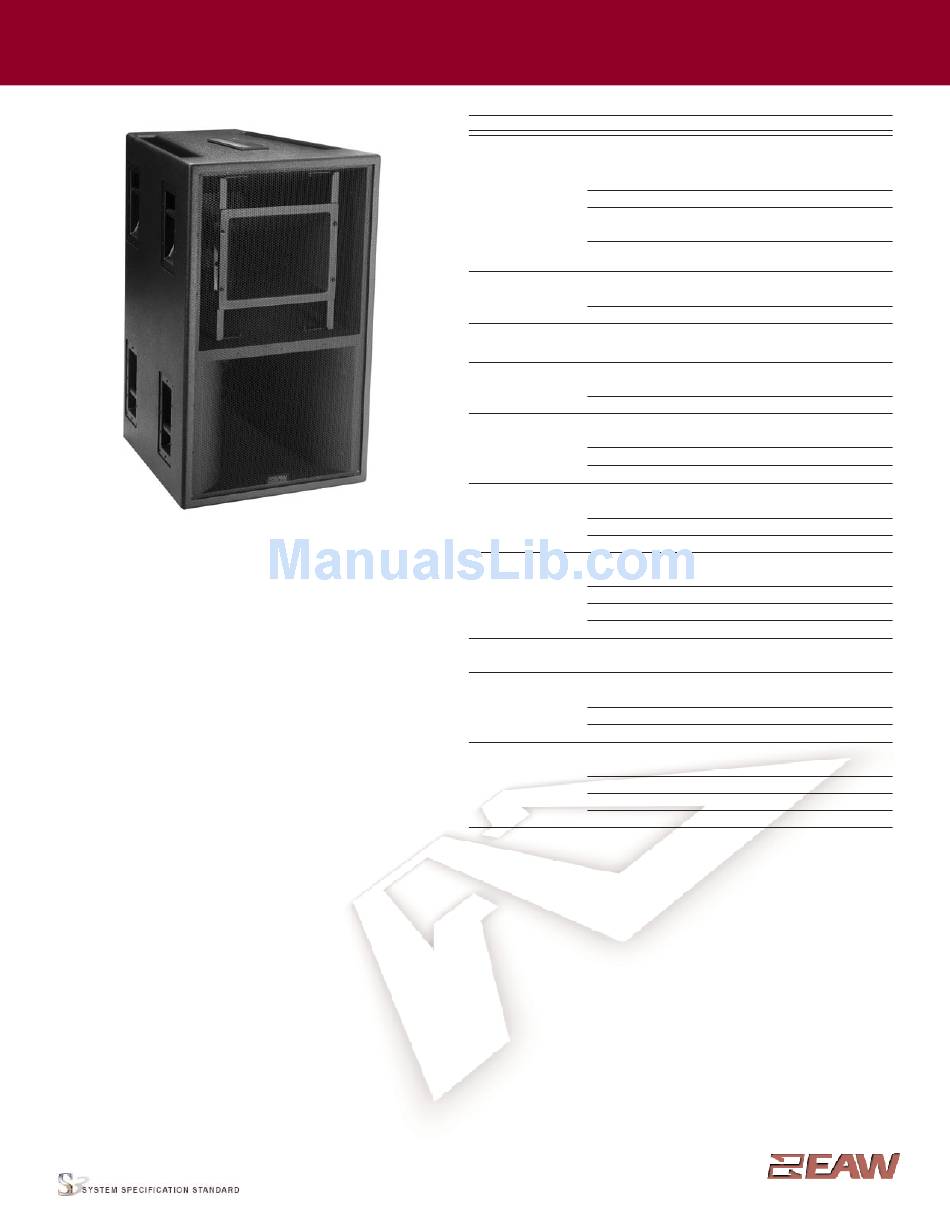

EAW Virtural Array KF850ZF Specifications

K F 8 5 0 z F S p e c i f i c a t i o n s
FEATURES
•
Tri-amplified VA™ 3-way full-range system
•
Touring industry standard
•
Flyable version with fly-track hardware
•
Companion SB850zR subwoofer
DESCRIPTION
The KF850 Series has been the touring system standard for well
over ten years, being acceptable in more technical riders than any
other loudspeaker. The KF850z incorporates a number of advances
in loudspeaker technology and performance developed over that
time by EAW Engineers. The result is a KF850 with higher impact
and fidelity than ever before.
Legendary KF850 performance is enhanced with a neodymium,
Orbital Magnet Array™ HF driver offering increased surface area for
better cooling, and higher reliability. A new HF horn extends HF
response and fidelity while minimizing throat distortion. The critical MF
subsystem is based on EAW's Radial Phase Plug™ design used in
the KF650, KF750, and KF760. An optional user-installed, passive
MF/HF crossover kit allows more economical, bi-amplified operation.
The KF850z's advanced performance will not be sonically
compatible with existing KF850E inventories. To facilitate
integration, kits are available to upgrade them to the KF850z. The
KF850z's enclosure and rigging hardware are fully compatible with
the KF850E Series. However, the "z" enclosures incorporate a
stacking pad on top that mates with a recess in the bottoms. KF850z
DSP processor settings are available online for EAW's MX8750 as
well a select group of other popular touring processors.
KF850 Series applications continue to include: concert tours,
corporate events, large theaters, stadiums, cathedrals, large live
music clubs. Six year warranty.
1 To achieve specified performance, the listed external signal processing with EAW-provided settings is required.
2 For recommendations to select power amplifier size refer to : "HOW MUCH AMPLIFIER POWER DO I NEED?" on the EAW web site.
EAW products are continually improved. All specifications are therefore subject to change without notice.
Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel 800 992 5013 / 508 234 6158 fax 508 234 8251 www.eaw.com
3-WAY FULL-RANGE TRI-AMP
See TABULAR DATA notes for details
CONFIGURATION
Subsystem
Transducer
LF 1x 15 in cone
MF 1x 10 in cone
HF 1x 2 in exit, 3 in voice
coil neodymium compression driver
Operating Mode
Amplifier Channels
Tri-amp LF, MF, HF
1
PERFORMANCE
Operating Range 70 Hz to 20 kHz
Nominal Beamwidth
Horz 55°
Vert 40°
Axial Sensitivity (whole space SPL)
LF 101 dB
MF 110 dB
HF 111 dB
Peak Sensitivity (whole space SPL)
LF 104 dB
MF 111 dB
HF 117 dB
Input Impedance (ohms)
Nominal
LF 8
MF 8
HF 8
Recommended High Pass Filter
High Pass =>60 Hz, 24 dB/octave Butterworth
2
Accelerated Life Test
LF 75 V
MF 56 V
HF 40 V
Calculated Axial Output Limit (whole space SPL)
Average
LF 129 dB
MF 136 dB
HF 134 dB
ORDERING DATA
Description
KF850zF Black
Optional Accessories
KF850z/SB850z caster pallet
KF850z/SB850z caster pallet kit
KF850z bi-amp crossover kit*
KF850z upgrade kit [AP6]
KF850z upgrade kit [NL8]
Fly clip w/ ring
Fly clip w/ hook
* The bi-amp crossover kit can only be used on a factory-built KF850z. It cannot be used on a KF850
originally manufactured as an "E" series and later upgraded to a KF850z.
group · S
Loading
Horn-loaded
Horn-loaded
Radial Phase Plug™
Horn-loaded
External Signal Processing
DSP w/3-way filters
70 Hz to 275 kHz
275 Hz to 1050 Hz
1050 Hz to 20 kHz
20 Hz to 20 kHz
20 Hz to 20 kHz
20 Hz to 20 kHz
Minimum
7.7 @ 120 Hz
9.7 @ 1000 Hz
9.2 @ 5010 Hz
700 W @ 8 ohm
400 W @ 8 ohm
200 W @ 8 ohm
Peak
135 dB
142 dB
140 dB
Part Number
0006816
0007683
0008835
0007951
0006241
0006242
0001386
179001
RD0165 (A) KF850zF SPEC February 2004
