Disassembly and Reassembly

Repairs must be carreid out by trained professional.

For any repairs, please contact our service provider or independent qualified professional.

Parts

Panel

Procedure

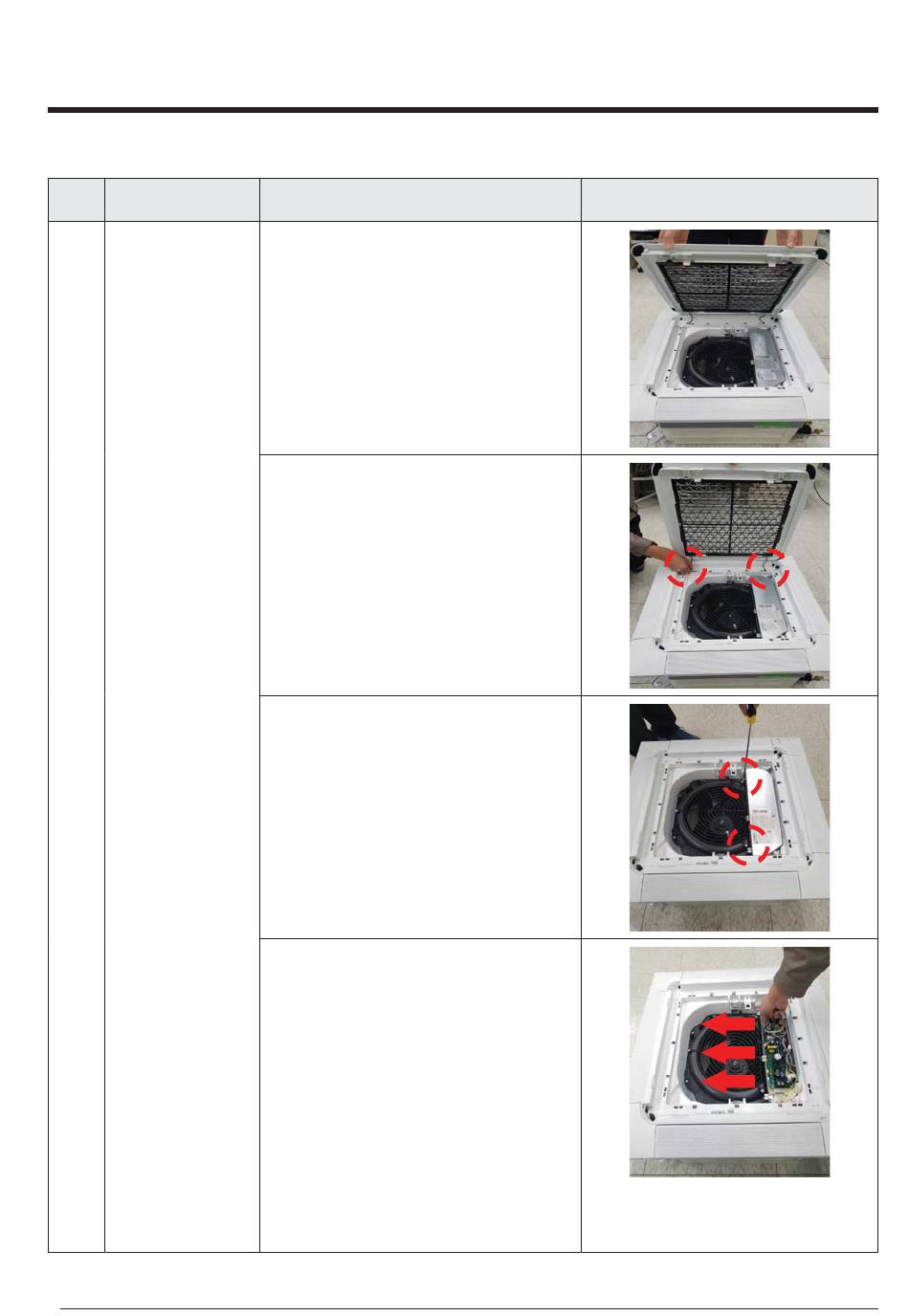

1) Pull both hooks and take the grille downward.

Two safety clips are mounted to the front grille

to prevent it from dropping.

2) Detach the safity clip and take up the grille.

3) Remove the 2 fixed screws to remove the

Control-Box Cover. (Use +Screw Driver)

4) Remove the Remocon-Receiver and Blade

Connector Wire from the PBA. (3EA)

Remark

Page 1 Disassembly and Reassembly Repairs must be carreid out by trained professional. For any repairs, please contact our service provider or independent qualified professional. Parts Procedure Remark Panel 1) Pull both hooks and take the grille downward. Two safety clips are mounted to the front grille to prevent it from dropping.
Page 2 Parts Procedure Remark Panel 5) Push the 4 panel corners and cover downwards to remove it. 6) Disassemble the bolts that are assembled with the indoor unit at the 4 panel corners. 7) Press the Hangers at both sides of the panel inwards, to remove it from the indoor unit’s hook.
Page 3 Disassembly and Reassembly Parts Procedure Remark Control-Box 2) Unscrew the 2 fixed screws on both sides of the Control Box, and disassemble the Control Box from the indoor unit. (Use +Screw Driver) Bell-Mouth 1) Unscrew the screw fixed on the Bell-Mouth. (Use +Screw Driver) 2) Push the Bell-Mouth in the direction opposite to where it’s installed on the Control-Box to...
Page 4 Parts Procedure Remark Drain Pan 2) Remove the Drain Pan from the indoor unit...
