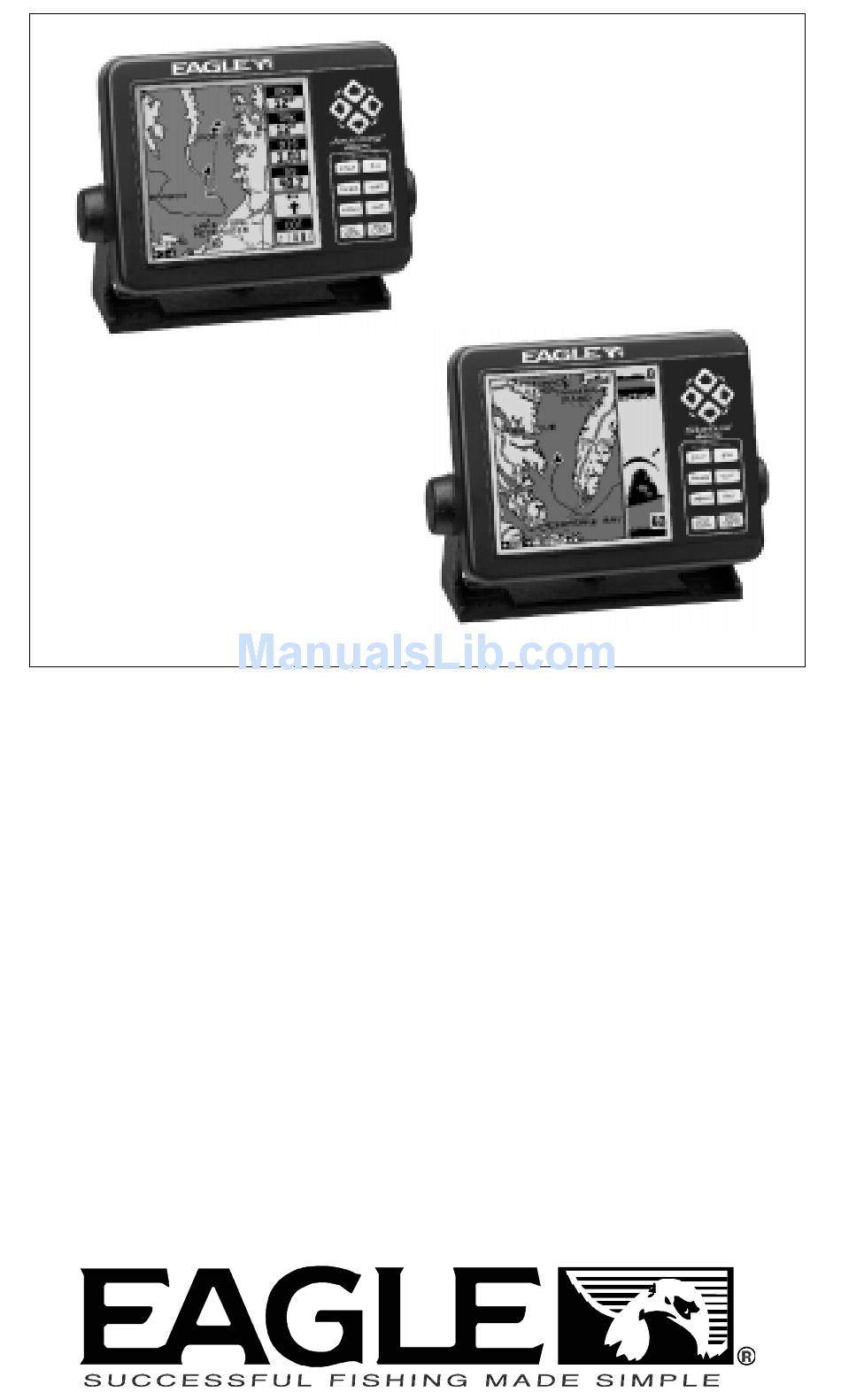

- Page 1 Journey Status INSTALLATION AND OPERATION INSTRUCTIONS...
- Page 2 For more information, consult the factory customer service department. All features and specifications subject to change without notice. Eagle Electronics may find it necessary to change or end our policies, regulations, and special offers at any time. We reserve the right to do so without notice.
- Page 3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 4: Table Of Contents
Cable Connections ... 3 Journey ... 3 Status ... 4 Antenna ... 5 Transducer ... 6 INTRODUCTION TO GPS ... 10 OPERATION ... 12 Satellite Status Screen ... 13 Finding Your Position ... 14 Auto Search ... 14 Manual Initialization ... 14 Position Acquisition ... - Page 5 SONAR OPERATION ... 58 Sonar Modes ... 58 Full Chart ... 58 Split Chart ... 58 Digital/Chart ... 58 Automatic ... 59 Sonar Options ... 59 Sensitivity ... 59 Grayline ... 60 Adjust Surface Clarity (SCC) ... 60 ASP (Advanced Signal Processing) ... 61 Range - Automatic ...
- Page 6 Notes:...
-
Page 7: Installation
Thank you for purchasing an Eagle product! You won't find another com- bination GPS and sonar unit with these features and power for the money! Each of our products is designed and manufactured to precision toler- ances for long life under extreme conditions. We hope that you'll enjoy this product for years. -
Page 8: Power Connections
Power Connections - All Units This unit works from a twelve-volt battery system. For the best results, attach the power cable directly to the battery. You can attach the power cable to an accessory or power buss, however you may have problems with electrical interference. -
Page 9: Cable Connections
You may need to route the sonar unit’s power cable directly to the battery to isolate it from other wiring on the boat. CABLE CONNECTIONS - Journey Only EAGLE GREEN (NMEA (+12... - Page 10 CABLE +12 VDC TRANSDUCER Notes 1. If the NMEA wires are not used, then the NMEA adapter cable is not required. The speed/temperature sensor's cable can be attached directly to the Status. EAGLE BLACK (GROUND) BLACK ANTENNA See Note 1...
-
Page 11: Antenna
Now attach the antenna to the mounting surface, using 4mm screws and the supplied lock washers. Route the cable to the GPS receiver and the antenna in- stallation is finished. -
Page 12: Transducer
A slot next to the threads in the pole mount adapter places the cable next to the pole where it can be easily routed down the pole to the GPS receiver. The threads on the pole mount adapter accept a standard marine antenna POLE MOUNT mount. - Page 13 Read this section carefully before attempting the installation. Determine which of the mounting positions is right for your boat. Remember, the transducer location is the most critical part of a sonar installation. Location - General 1. The transducer must be placed in a location that has a smooth flow of water at all times.
- Page 14 Transducer Assembly and Mounting The best way to install this transducer is to loosely assemble all of the parts first, then place the transducer’s bracket against the transom and see if you can move the transducer so that it’s parallel with the ground. 1.
- Page 15 3. Once you determine the correct position for the ratchets, assemble the transducer as shown below. Don’t tighten the lock nut at this time. RUBBER WASHERS 4. Hold the transducer and bracket assembly against the transom. The transducer should be roughly parallel to the ground. The bottom of the transducer bracket should be in line with the bottom of the hull.
-
Page 16: Introduction To Gps
The signals can be blocked easily by trees, buildings, even your body. Never use this GPS receiver while operating a vehicle! Like most GPS receivers, this unit doesn’t have a compass or any other navigation aid built inside. It relies solely on the signals from the satellites IMPORTANT! - Page 17 Currently, we are seeing an accuracy of 20 meters or less. Far better than when SA was on. However, if you do want better performance, many manufacturers (including Eagle) sell a DGPS receiver that attaches to your GPS receiver. The DGPS system transmits correction signals that increase the accuracy of the GPS receiver to about 10 meters.
-
Page 18: Operation
For example, if the sonar is show- ing, and you press the MENU key, GPS map items won’t show on the list. This helps you find the needed item without scrolling through unneces-... -
Page 19: Satellite Status Screen
The GPS receiver is tracking satellites that are surrounded by a black box. The receiver hasn't locked onto a satellite if it's number isn't sur- rounded by a box, therefore it isn’t being used to solve the position. -
Page 20: Finding Your Position
FINDING YOUR POSITION Auto Search To lock onto the satellites, the GPS receiver needs to know it’s current position, UTC time, and date. (Elevation (altitude) is also used in the equa- tion, but it’s rarely required to determine a position.) It needs this data so that it can calculate which satellites should be in view. -
Page 21: Position Acquisition
Using the manual initialization method loads a position that’s close to yours into the GPS receiver. It should now have position, time, and date, thereby giving it the data it needs to determine which satellites are in view. Once the satellites are known, the receiver searches for only those satellites, making a lock faster than an auto search method. - Page 22 STATUS NAVIGATION SONAR (Status Only) MAPPING WINDOW GROUPS Navigation There are two different navigation screens. Nav screen number one shows a graphical view of your trip, Nav screen number 2 shows all navigation details in large digital numbers. You can also customize both navigation screens to show data other than the default.
- Page 23 pointing up towards the compass, above the present position arrow. Distance from the present position to the waypoint (DIS) shows beneath the compass on the lower left side of the screen. Next to the distance box is estimated time enroute (ETE).
-
Page 24: Course Deviation Indicator (Cdi)
CDI range is .20 mile, which is the default. You can adjust the range by selecting “ALARMS” on the main menu, then “GPS ALARMS”. Highlight the “CDI DIS” label, then use the left or right arrow key to adjust it. The CDI range is also shown by the dotted lines at the far left and right side of the CDI indicator. -
Page 25: Cursor
The "ACTIVE MODE" menu at the top of this screen lets you switch the arrow and zoom keys between the GPS side and the sonar side of Map-3 (Status only). The Z-IN and Z-OUT keys zoom-in and out all maps to enlarge or reduce their coverage area. -
Page 26: Map Setup
from your present position. The zoom-in and zoom-out keys work from the cursor’s position when it’s active - not the present position. You can zoom in on any detail, anywhere. The cursor can also place icons and waypoints. When the cursor is used with map-1, it’s posi- tion, bearing, and distance from your present position show at the top of the screen. -
Page 27: Map Options
Map Options The following map options are listed under the “Map Options” menu: Map Orientation, Auto Zoom, Range Rings, and Latitude/Longitude Grids. Map Orientation By default, this receiver shows the map with north always at the top of the screen. This is the way most maps and charts are printed on paper. This is fine if you’re always travelling due north. -
Page 28: Range Rings/Grid Lines
Range Rings/Grid Lines The map screen can be customized with rings that are 1/4 of the range and/or grids that divide the plotter into equal segments of latitude and longitude. To do this, press the MENU key, select “Map 1 Setup”, then “Map Options”. Highlight the desired option, then press the right arrow key to turn it on. -
Page 29: Map Details
MAP DETAILS This unit lets you change many of the built-in background map’s features. To change the op- tions, first press the MENU key, then select the Map Details label. Press the right arrow key. The screen shown at right appears. Earth Map On/Off The map can be turned on or off using the “All Map Details”... -
Page 30: Gray Fill
Gray Fill When this unit is first turned on, all water (lakes, oceans, rivers) is filled with gray to distinguish it from land, which is clear. (See below) To make the land fill with gray and water remain clear, select the “Fill with Gray” label from the Map Detail menu, then press the left arrow key. -
Page 31: Locations
Locations Normally, text disappears as you zoom out. This declutters the screen, making it easier to see significant map detail. Turning “LOCATION DOTS” on from the Map Details menu places a dot on the screen where a text label should be when the screen is zoomed out. Contour Lines Some nav aid data shows depth contour lines in navigable waters. -
Page 32: Update Trail
plot trail in a specific memory location, choose “SAVE TRAIL” from the “TRAIL OPTIONS” menu. A new screen appears. Highlight the desired number that you wish to save the current trail under, (i.e. “Trail 1 or Trail 2) and press the right arrow key. Your current trail is saved. Press the EXIT key to erase this menu. - Page 33 MAP SCREEN SELECT ICON ICON PLACED AT PRESS ENT KEY PRESS ENT KEY POSITION Icons can be erased from the plotter individually, all of a specific type, or all at once. They can also simply be turned off without erasing them. To make changes to the icons, press the MENU key, then select MAP SETUP, and finally select Icon Options.
-
Page 34: Map Downloading
Next, plug the AC adapter into a wall socket, and attach its cable to the unit. Connect the cable supplied with this unit from a serial port on the computer to the GPS receiver. Now turn the unit on and adjust the com- munication port baud rate to its highest level (Press MENU/SYSTEM SETUP/COM PORT SETUP). -
Page 35: Windows
4. Click the Transfer Map Data Button. A status bar appears on both the PC and the GPS unit’s screen. When the bar disappears, the transfer is complete. You’ll be able to see the dif- ference when the unit is zoomed in to ranges of ten miles or less. - Page 36 Group B This screen has a map on the top half with bear- ing (BRG), distance to go (DIS), track (TRK) and the CDI on the lower half. Group C A half screen map is on the left side of the screen. A quarter-size map is in the upper right corner.
- Page 37 The DGPS corrections at the bottom of the screen shows a list of the satellites in view. The satellite’s number is follow by an identifier showing its status. They are as follows: DGPS corrections are in use by GPS receiver and corrections are available. Unit hasn’t received corrections in last 60 seconds.
- Page 38 then select “CLOCK ALARM” and press the right arrow key. Now select "SET CLOCK ALARM". The screen at right appears. Using the arrow keys, enter the alarm’s time. Press the ENT key. The unit returns to the clock alarm menu. Highlight the “CLOCK ALM OFF ON”...
- Page 39 When the MENU key is pressed while Map-3 is showing, the "ACTIVE MODE" menu at the top of the menu lets you switch the arrow and zoom keys between the GPS side and the sonar side of group K.
-
Page 40: Reprogram Boxes
Group L (Status Only) This group has a digital depth display along with the sonar alarms setting in the upper left corner of the screen. (See the sonar section for more information on the sonar alarms.) A quarter-size sonar screen shows in the upper right corner. Surface water temperature shows in the lower left corner of the screen, both digital and a tem- perature graph. -
Page 41: Reset Groups
WAYPOINTS This GPS receiver gives you the ability to create your own database of locations, called “waypoints’. You can save your present position, cursor position, or enter a coordinate and save it as a waypoint. For example, you may wish to store the location of your parked car as a waypoint be- fore starting on a hike. -
Page 42: Saving The Cursor Position As A Waypoint
this menu is showing, simply press the WPT key once and the unit will store your present position on the waypoint list. Saving the Cursor Position as a Waypoint When the cursor is showing on the map and you press the WPT key twice, the cursor’s position is placed into the first available waypoint num- ber. -
Page 43: Saving A New Position
Longer times will result in a better position. The unit averages all of the positions reported by its GPS re- ceiver, resulting in typically higher position accuracy. -
Page 44: Project A Waypoint
Project Position You can save a waypoint even if you don’t know it’s position or location on the map. This unit lets you project the location of a waypoint from a known waypoint using only bearing and distance from the known waypoint. This is useful if you don’t know the latitude/longitude of a location, but you do know the distance and bearing from a saved waypoint or your own position. -
Page 45: Selecting A Waypoint
and bearing from your present position showing at the bottom of the screen, as shown at right. In this example, the new waypoint is 3.53 miles on a bearing of 68° from our position. Now press the ENT key. The unit saves the projected location under the waypoint number that you picked at the beginning. -
Page 46: Editing A Waypoint
EDIT A WAYPOINT You can customize a waypoint by giving it a name or change it’s position or icon. To do this, first press the WPT key. The waypoint screen appears. Follow the instructions below for each item. Position Any latitude/longitude can be assigned to any waypoint by manually entering it using the key- board. -
Page 47: Delete All Waypoints
POINT” label and press the right arrow key. A message appears, asking if you really want to delete this waypoint. Press the right arrow key to delete it, the left to exit without deleting the waypoint. Delete All Waypoints You can remove all of the waypoints from the unit’s memory. To do this, press the MENU key, then highlight the “SYSTEM SETUP”... -
Page 48: Waypoint Navigation
WAYPOINT NAVIGATION This unit makes it easy to navigate to any way- point. All you have to do is select the waypoint, then highlight the “GO TO WAYPOINT” label on the waypoint screen and press the right arrow key. The unit immediately shows navigation in- formation to the waypoint on all navigation, map, and windows screens. -
Page 49: Navigate To A Waypoint Using The Map
Navigating to a Waypoint using the Map The unique “birds-eye” view used by the map gives you an easy way to navigate to a waypoint. On the map screen shown at right, the arrow is your present position. The box with the “S” in it was your starting location when the waypoint was recalled. -
Page 50: Add From Waypoint List
If you wish to name the route, highlight the “EDIT ROUTE NAME” label and press the right arrow key. Use the arrow keys to name the route, (you can use up to eight characters in the name) then press the ENT key when you’re finished. -
Page 51: Delete A Waypoint
create a waypoint and add it to the route. To add another location or waypoint to the route, move the cursor to that location and press the ENT key. When you’re finished, press the EXIT key. The screen below right appears. The total route distance shows at the bottom of the screen. - Page 52 until the desired route number appears. In this example we’re using route number one. To run the route from the last waypoint to the first, highlight the “RUN ROUTE” label and press the right arrow key to change it from forward to reverse.
-
Page 53: Waypoint Information
Waypoint Information To see details about the highlighted waypoint, select the waypoint from the list of waypoints on the route screen, then press the right arrow key. Now select “WAYPOINT INFO”. The screen at right appears. The selected waypoint number appears at the top of this screen. -
Page 54: System Setup
SYSTEM SETUP Many features are listed under the “System Setup” label on the main menu. These commands affect the basic operation of the unit. To use them, press the MENU key, then “System Setup”. The screen at right appears. Audio/Screen This unit gives you three audio options. -
Page 55: Units Of Measure
DGPS gives you more accurate positions than is otherwise possible. See the installation section for cable connections. See the sample wiring diagram below for general wiring procedures. Read your other product’s owner’s manual for more wiring information. WHITE (TRANSMIT) GREEN (RECEIVE) TO GPS UNIT BLACK (GROUND) Nautical Metric RECEIVE... -
Page 56: Configure Nmea Output
Once the cables are wired, turn the unit on, press the menu key, and select “NMEA / DGPS CONFIG” from the System Setup menu. A screen similar to the one at right appears. To turn the NMEA output on, highlight the “NMEA OUT”... -
Page 57: Serial Communication Setup
These menus select the beacon receiver’s fre- quency and bit rate (in bits per second). To change one of these settings, simply highlight the menu item you wish to change, then press the right or left arrow key until the desired number appears. The “STARLINK AUTO”... -
Page 58: System Info
(covered at the beginning of this manual), position format, datums, and more. To use any of these features, first press the MENU key, highlight GPS Setup and press the right ar- row key. The screen shown at right appears. Position Format/Alternate Format This unit can show the position in degrees, min- utes, and thousandths of a minute (36°... -
Page 59: Datum
All datums are named. The GPS system is based on the WGS-84 datum, which covers the entire world. Other datums may also cover the entire world, or just a small portion. By default, your position shows using the WGS-84 datum. -
Page 60: Pcf (Position Correction Factor)
Position Pinning When using a GPS receiver at extremely low speeds, it can have trouble determining your course over ground, or direction you’re travelling. This is due in large part to SA, or selective availability. SA is small inaccuracies purposefully put into the GPS satellite’s signal by the government. -
Page 61: Gps Alarms
This also affects the navigational displays. The easiest way to see the effects of S/A is to stand still with the GPS receiver turned on and watch your plot trail with position pinning turned off. -
Page 62: Dgps Messages
ting still. This typically happens when using small (less than .05 mile) anchor alarm ranges. If you have a DGPS beacon receiver connected to this unit, smaller ranges may be usable. Arrival Alarm - If you set the arrival alarm’s distance to a small number, and you run a route (see the routes section), this unit may not show navi- gation data to the next waypoint, once you arrive at the first one, since you may not be able to come close enough to the first waypoint to trip the... -
Page 63: Simulator
SIMULATOR A simulator is built into this unit that moves the GPS position and pro- duces a simulated sonar chart (Status only). You can use nearly all of the unit’s features - even save and recall waypoints. This is useful for trip planning. -
Page 64: Sonar Operation
SONAR OPERATION - Status Only SONAR MODES This unit has three different sonar modes: full chart (sonar 1), split-chart (sonar 2), and sonar with digital information (sonar 3). To select a mode, first press the PAGES key. Press the up or down arrow key to select sonar modes, then press the left or right arrow key to select the de- sired mode. -
Page 65: Automatic
AUTOMATIC When this unit is first turned on, the automatic feature is enabled. This is indicated by the word “AUTO” at the top of the screen. The automatic feature adjusts the sensitivity and range so the bottom signal is displayed in the lower half of the screen at all times. -
Page 66: Grayline
the key, the menu’s bar graph will grow wider and the percentage will increase in value. You can also see the difference on the chart record as it scrolls. When the sensitivity is at the desired level, release the key. To decrease the sensitivity level, press the left arrow key. -
Page 67: Asp (Advanced Signal Processing)
The Surface Clarity Control (SCC) reduces or eliminates surface clutter signals from the display. SCC varies the sensitivity of the receiver, de- creasing it near the surface and gradually increasing it as the depth in- creases. There are three levels of SCC available on this unit: low, medium, and high. -
Page 68: Manual
while the unit is in automatic, as shown at right. However, depending upon the bottom depth and the current range, you can change the range to a different depth. In the example screen shown at right, the bottom depth has descended to a point where you can change the range to XX feet. -
Page 69: Chart Options
CHART OPTIONS Chart Speed The rate echoes scroll across the screen is called the chart speed. It’s adjustable by selecting “CHART SPEED” from the "CHART OPTIONS" menu. Increase the chart speed by pressing the right arrow key or decrease it by pressing the left arrow key. -
Page 70: Fishtrack
SETUP”. Now choose “FISH ID” from this menu. Press the left arrow key to turn the fish ID feature off. To turn the Fish ID feature on again, repeat the above steps, but press the right arrow key until the “ON” is highlighted. Any targets the mi- crocomputer determines are fish will be displayed as fish symbols. -
Page 71: Zoom Bar
Zoom Bar The zoom bar shows the section of water on the right side of SONAR-2 that is being enlarged on the left side. To turn the zoom bar on continu- ously, select “ ZOOM BAR” on the “CHART DIS- PLAY”... -
Page 72: Alarms
depth will flash on the display. When the digital finds the bottom, it will automatically display the bottom depth again. The digital sonar can be turned off, however this also turns all automatic features off also, such as auto sensitivity, auto ranging, and the Fish ID. feature. To turn the digital off, first press the MENU key and select “SONAR SETUP”, then select “DIGITAL SONAR”. -
Page 73: Zone Alarm
Use the up or down arrow keys to select the num- ber, the right and left keys to move from number to number in the depth. For example, to set the shallow alarm depth to 10 feet, press the right arrow key once, then press the up arrow key once. -
Page 74: Keel Offset
arrow key. The unit will revert to the sonar display with the fish alarm turned on. Repeat the above steps to turn the fish alarm off. Note: If the unit is in the manual mode, turning the Fish Alarm on will also turn the automatic mode and Fish ID on, also. - Page 75 If the digital speed display is slower than your actual speed, add a positive percentage to make it read faster. If the digital speed display is faster, use a negative percentage to make it read slower. Use the arrow keys to change the speed, then press the ENT key.
-
Page 76: Sonar Troubleshooting
SONAR TROUBLESHOOTING If your unit is not working, or if you need technical help, please use the following troubleshooting section before contacting the factory customer service department. It may save you the trouble of returning your unit. Unit won’t turn on: 1. - Page 77 3. The water may be deeper than the sonar’s ability to find the bottom. If the sonar can’t find the bottom signal while it’s in the automatic mode, the digital will flash continuously. It may change the range to limits far greater than the water you are in.
- Page 78 NOISE A major cause of sonar problems is electrical noise. This usually appears on the sonar’s display as random patterns of dots or lines. In severe cases, it can completely cover the screen with black dots, or cause the unit oper- ate erratically, or not at all.
-
Page 79: Warranty
EAGLE ELECTRONICS FULL ONE-YEAR WARRANTY “We”, “our”, or “us” refers to EAGLE ELECTRONICS, a division of LEI, the manufacturer of this product. “You” or “your” refers to the first person who purchases this product as a consumer item for personal, family, or household use. -
Page 80: Datum List
DATUMS WGS 84 ... WGS 1984 DEFAULT Default ADINDAN ... Adindan MEAN Mean for Ethiopia, Sudan ADINDAN ... Adindan BURKINA Burkina Faso FASO ADINDAN ... Adindan CAMEROON Cameroon ADINDAN ... Adindan ETHIOPIA Ethiopia ADINDAN ... Adindan MALI Mali ADINDAN ... Adindan SENEGAL Senegal... - Page 81 CARTHAGE ... Carthage - Tunisia TUNISIA CH-1903 ... Switzerland CHATHAM ... Chatham Island Astro 1971 ISLAND ASTRO New Zealand (Chatham Island) NEW ZEALAND CHUA ASTRO ... Chua Astro PARAGUAY Paraguay CORREGO ... Corrego Alegre ALEGRE Brazil BRAZIL DABOLA ... Dabola GUINEA Guinea DJAKARTA ...
- Page 82 IRELAND ... Ireland 1965 1965 Ireland ISTS 061 ... ISTS 061 Astro 1968 ASTRO 1968 South Georgia Islands S GEORGIA ISTS 073 ... ISTS 073 Astro 1969 ASTRO 1969 Diego Garcia DIEGO GARCIA JOHNSTON ... Johnston Island 1961 ISLAND Johnston Island 1961 KANDAWALA ...
- Page 83 N AMERICAN ... North American 1927 1927 CANAL Canal Zone ZONE N AMERICAN ... North American 1927 1927 CUBA Cuba N AMERICAN ... North American 1927 1927 Greenland (Hayes Peninsula) GREENLAND N AMERICAN ... North American 1927 1927 MEXICO Mexico N AMERICAN ...
- Page 84 RT 90 ... Sweden SANTO (DOS) ... Santo (DOS) ’65 ESPIRITO 1965 Espirito Santo Island SANTO ISLAND SAO BRAZ ... Sao Braz AZORES Azores (Sao Miguel, Santa Maria Islands) SAPPER HILL ... Sapper Hill 1943 1943 EAST East Falkland Island FALKLND ISLE SCHWARZECK ...
- Page 85 THIS IS A LEGAL AGREEMENT BETWEEN THE END-USER WHO FIRST PURCHASES THIS PRODUCT AS A CONSUMER ITEM FOR PERSONAL, FAMILY, OR HOUSEHOLD USE (“YOU”) AND EAGLE ELECTRONICS, THE MANUFACTURER OF THIS PRODUCT. (“WE”, “OUR”, OR “US”). USING THE PRODUCT ACCOMPANIED BY THIS LICENSE AGREEMENT CONSTITUTES ACCEPTANCE OF THESE TERMS AND CONDITIONS.
-
Page 86: Databases Limited Warranty
DATABASES LIMITED WARRANTY “We”, “our”, or “us” refers to Eagle Electronics, the manufacturer of this product. “You” or “your” refers to the first person who purchases the product as a consumer item for personal, family, or household use. The Databases Limited Warranty applies to the one or more databases that your product may contain. - Page 87 GPS MODULE TEMPLATE 4.75MM (3/16”) 4 PLACES 25MM (1”) (If Necessary)
-
Page 89: How To Obtain Service
1. Always use the original shipping container and filler material the product was packed in when shipping your product. 2 Always insure the parcel against damage or loss during shipment. Eagle does not assume responsibility for goods lost or damaged in transit. - Page 90 How to Obtain Service We back your investment in quality products with quick, expert service and genuine Eagle replacement parts. If you’re in the United States and you have questions, please contact the Factory Customer Service De- partment using our toll-free number listed below. You must send the unit to the factory for warranty service or repair.
