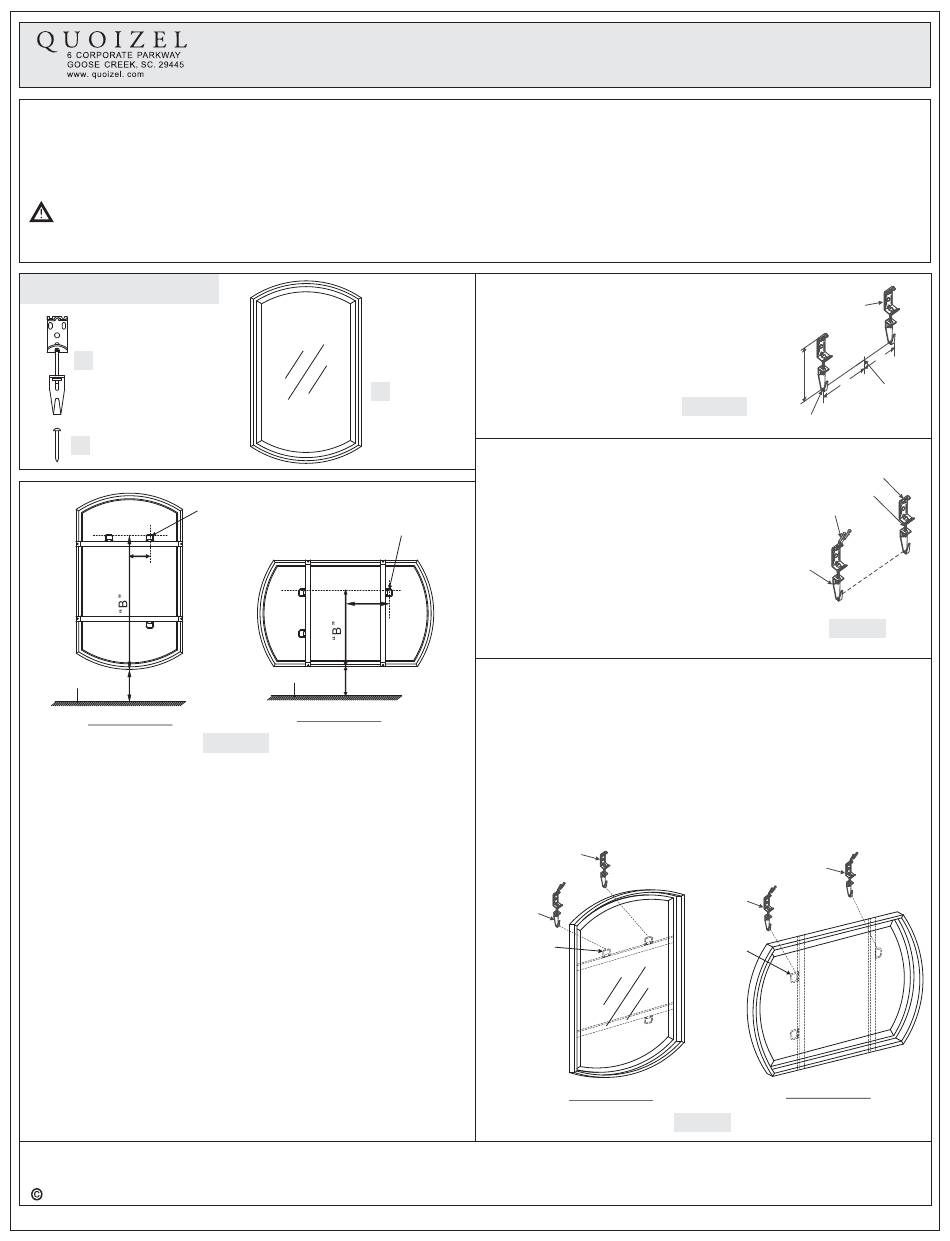

Quoizel QR1419BN Assembly Instruction

Please go to www.quoizel.com
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, gloves, safety glasses.
Estimated Assembly Time: 20-30 minutes
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the mirror. Contact customer service for replacement
parts.
Warnings and Cautions
These instructions are provided for your safety. It is very important you read them completely before installing the mirror. We strongly
recommend that a licensed, professional electrician perform the installation. Quoizel recommends 2 people for each step during assembly.
Package Contents
Mirror Hanger
A
x 2
Hanger Nail
B
x 4
"D" Hanger
"C"
BACK
Floor
"A"
Surface
OPTIONAL A
-
STEP 1 Identify the Points for mounting the Mirror Hangers By
Using Measurement
A. Determine where the mirror will be placed on the wall and hold the
mirror on the wall in the position you wish. Mark the wall at the
bottom center of the mirror with a pencil lightly. This will be
Measurement A, the distance from the floor to the bottom of the
mirror.
B. Place the mirror on a flat surface again and measure from the
bottom of the mirror to the "D" hangers that will be used to hang the
mirror, this is measurement B.
C. Add measurement A from step A above and measurement B together
and mark this spot on the wall where the mirror will be hung.
Measurement B is straight up from Measurement A you marked on
the wall in step A above.
D. Measure the distance between the centerline of each "D" hanger
and then divide this measurement by 2, this is Measurement C. In
order to locate the exact hanger location on the wall, from
Measurement B go to the right the distance of Measurement C and
mark the wall. Do this going to the left of Measurement B as well and
mark the wall. These two marks are the center of the hangers,
Measurement C. The two marks you just made on the wall are the
same distance apart as the two hangers.
E. (Refer Figure 1B) To determine where the Mirror Hangers (A) will be
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
2017 QuoizelInc.
Assembly Instruction Sheet #IS-QR1419BN
for product cleaning tips. Go to the
C
"D" Hanger
"C"
"A"
Floor Surface
OPTIONAL B
Figure 1A
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
For Style QR1419BN
Care + Maintenance selection.
(Step 1 Continued)
fastened to the wall, measure up
from Measurement C 3". Do this in
two locations as illustrated and mark
the wall.
Mirror
x 1
-
STEP 2 Installing the 2 Mirror Hangers
A. Using the Nails (B) provided with the
Mirror Hangers (A) attach the 2 Mirror
Hangers (A) to the wall at the position
just marked by Option A or Option B.
Please note the Mirror Hangers are
adjustable allowing for easy leveling
of the mirror as needed.
B. Once you have both Mirror Hangers (A)
securely nailed in place, adjust as the
length of the Mirror Hangers (A) so that
each Mirror Hanger (A) is the same
length.
BACK
-
STEP 3 Hanging the Mirror
A. With the help of another person place the mirror onto the mirror
hanger hooks. Making sure each hook is securely hooked into the
hangers before letting go of the mirror.
B. If needed you May remove the mirror and adjust the mirror hanger
hooks to level the mirror and replace the mirror.
Clean glass with household glass cleaner. Retain this sheet for
future reference.
Mirror Hanger
Bracket
Catch
"D" Hanger
OPTIONAL A
1of2
_R1
Mirror Hanger
3"
C
Figure 1B
Hook
Mirror Hanger
Adjustment Screw
Hanger Nail
Hook
Figure 2
Mirror Hanger
Bracket
Catch
"D" Hanger
OPTIONAL B
Figure 3
RevisedDate:2017-06-29
C
Mark "B"
