Installation and Conversion Instructions
PORSCHE Front Camera (Dashcam)
Revision:
This bulletin replaces bulletin Group 9 15/20, dated June 18, 2021.
As of 2018
Model Year:
Information:
Retrofitting
Information
Note:
The Porsche front camera (dashcam
direction of travel) on the windscreen and is connected to the vehicle electrical system.
It is ideal for making video recordings of driving situations and while parking. It can be configured and
operated using a related app on your smartphone.
Recorded videos are stored on the supplied SD card and previous recordings are overwritten.
If the dashcam detects a shake/vibration or if the radar sensor is triggered, the recorded video is stored
separately and not overwritten. Recordings can be downloaded directly from the SD card or via the app.
Figure 1
Figure 1) is affixed to the LEFT of the interior mirror (viewed in
Tequipment
Cayenne (9YA)
15/20
9163
ENU
Sep 28, 2021
Page 1 of 21
9
Advertisement
Table of Contents
Related Manuals for Porsche 9Y0.044.930
Summary of Contents for Porsche 9Y0.044.930

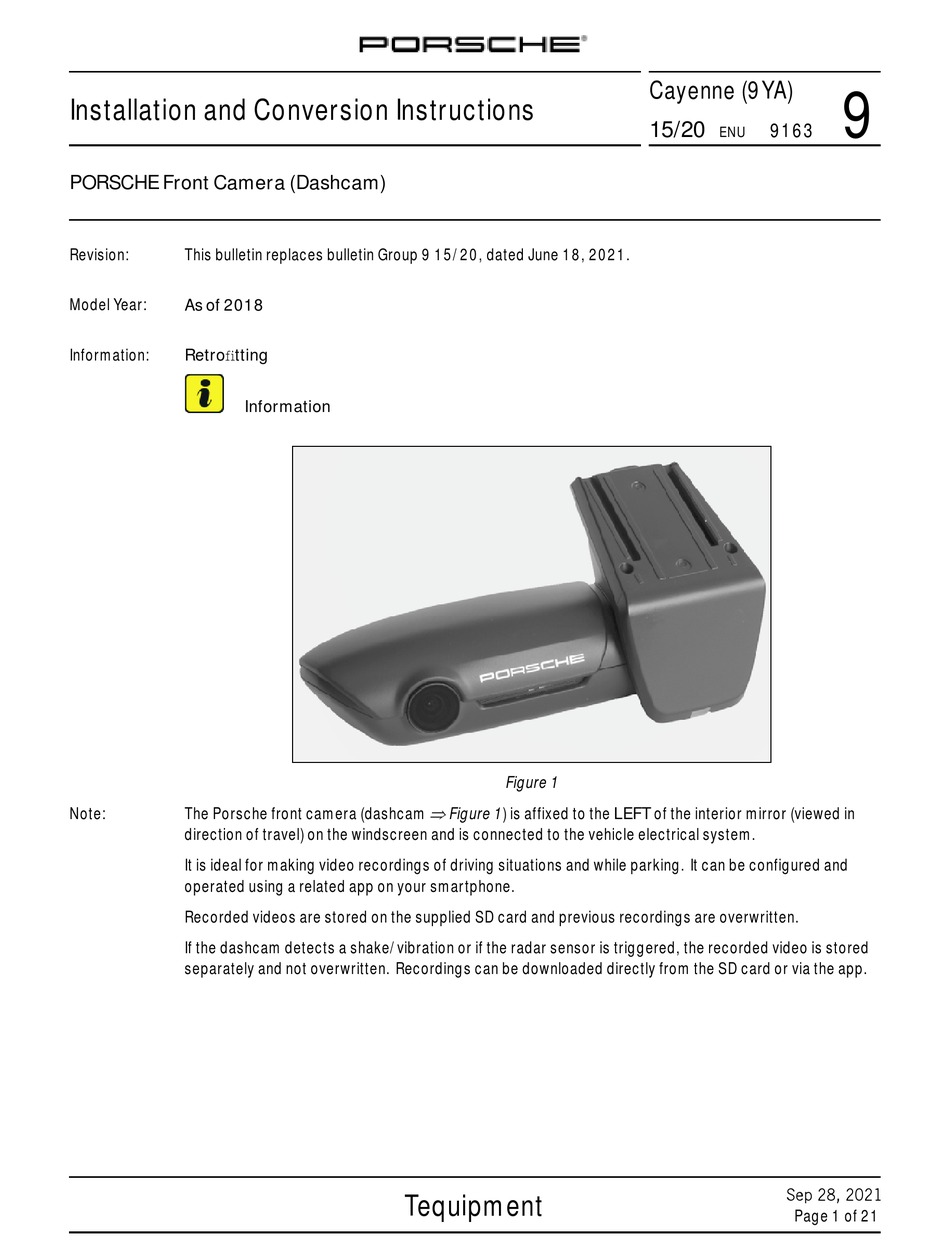

- Page 1 Figure 1 Note: The Porsche front camera (dashcam Figure 1) is affixed to the LEFT of the interior mirror (viewed in direction of travel) on the windscreen and is connected to the vehicle electrical system. It is ideal for making video recordings of driving situations and while parking. It can be configured and operated using a related app on your smartphone.
- Page 2 9163 Information Important information for customers/customer service advisors: • Ask customers to download and install the "Porsche Dashcam App" from the App Store (Apple or Google Play) on their device (smartphone/tablet) in advance. For vehicle handover: • Together with the customer, check whether a firmware update via "Porsche Dashcam App" is necessary.
- Page 3 Figure 2 -14- Figure 2 -15- N .017.131.16 Blade-type fuse, 5 amp — — — PORSCHE dashcam operating instructions Figure 2 -16- Repair kits: ONLY order when replacing the windscreen/rear window: 9Y0.044.931 "Adhesive pad" repair kit, includes: — — —...
- Page 4 Cayenne (9YA) Installation and Conversion Instructions 15/20 9163 Technical • Video recording in Quad High Definition (QHD) details: • Lens with polarization filter to reduce reflections and improve colors and contrasts • Audio recording (can be deactivated) • Global positioning system (GPS) sensor •...
- Page 5 Loosen front headliner, left and center, using the VAS 6427 - release pliers. Workshop Manual '708419 Removing and installing headliner' Install PORSCHE front camera (dashcam) in the vehicle Figure 5 (LHD vehicle) Sep 28, 2021 Tequipment Page 5 of 21...
- Page 6 Installation and Conversion Instructions 15/20 9163 Overview of installation position – Interior mirror – Installation position of PORSCHE front camera (dashcam) – Electric wire harness – Fuse box in footwell (left) – Ground pin 13 (MB13) Position front camera (dashcam) to the LEFT...
- Page 7 • Get another person standing in front of the vehicle to check and confirm the horizontal alignment of the camera with the PORSCHE logo! 2.1.4 Position front camera with retainer plate in the vehicle at the marking on the wind- screen ( ...
- Page 8 Cayenne (9YA) Installation and Conversion Instructions 15/20 9163 Install front camera (dashcam) on the windscreen NOTICE Adhesive films not prepared/installed correctly • Damage to adhesive films • Inadequate adhesion of adhesive films Carefully clean the areas on which you intend to stick the film to ensure that all traces of oil, grease and silicone are completely removed.
- Page 9 Get another person standing Figure 10 in front of the vehicle to check and confirm the horizontal alignment of the camera with the PORSCHE logo! Align front camera with retainer plate symmetrically with respect to the 3M privacy film ( ...
- Page 10 Cayenne (9YA) Installation and Conversion Instructions 15/20 9163 Routing wire harness 3.1.1 On the connector side, push one protective foam roll onto the wire harness for the front camera retainer plate and the (3-wire) wire harness. – Protective foam roll –...
- Page 11 Cayenne (9YA) Installation and Conversion Instructions 15/20 9163 3.1.6 Route the rest of the wire harness as follows: – Headliner – Wire harness (3-wire) – Tie-wrap • Roof console → under headliner along windscreen frame → left A-pillar (top, if required in the cable duct) →...
- Page 12 Fasten front headliner at the left and center. Workshop Manual '708419 Removing and installing headliner' Assemble A-pillar area (left). Assemble front roof/(internal) rear-view mirror area. Coding: Code the PORSCHE front camera (dashcam) in Dealer mode Sep 28, 2021 Tequipment Page 12 of 21...
- Page 13 Cayenne (9YA) Installation and Conversion Instructions 15/20 9163 Preparatory work – PORSCHE front camera – Micro SD memory card (32 GB) – Retainer plate – Power button – WiFi status LED display – PRESS (release button) 5.1.1 Remove micro SD memory card (32 ...
- Page 14 Cayenne (9YA) Installation and Conversion Instructions 15/20 9163 Options: ( Figure 17) – Browser's address line – "Options" menu item Figure 17 Diagnostics: ( Figure 18) – Browser's address line – "Diagnostics" menu item Basic settings for front camera (dashcam) in the "Options"...
- Page 15 Figure 19 Information It is ONLY possible to select the country for the PORSCHE front camera (dashcam) starting with the serial number "PDF2102*****"! For cameras with serial numbers "PDF2101*****", the country can be selected directly via the app on the customer's device (smartphone/tablet).
- Page 16 Figure 21 Information Check which vehicle electrical system battery is installed in the vehicle if necessary by entering the vehicle identification number (VIN) in the Porsche Central Service System (PCSS). Background: The front camera shuts down if the correct battery voltage (switch-off threshold) is not reached over a period of 5 minutes.
- Page 17 Cayenne (9YA) Installation and Conversion Instructions 15/20 9163 • Switch-off threshold for lithium-ion battery (LiFePO) = 13 V 5.3.4 Select the battery type ( Figure – Battery – PbAcid • Select the vehicle electrical system battery installed in the vehicle.
- Page 18 Cayenne (9YA) Installation and Conversion Instructions 15/20 9163 5.3.6 Select the time limit ( Figure 24) – Time limit until radar/video is switched off – 1 hour • Turn off radar/video moni- toring in Park mode (battery management). After the selected time limit, fast activation of the monitoring system ONLY occurs if the...
- Page 19 Cayenne (9YA) Installation and Conversion Instructions 15/20 9163 Information about the model name, hardware and software version, radar and more Figure 25). – Model name – Hardware version – Software version Figure 25 Display of live images from front camera, connection status, memory card status, GPS ...
- Page 20 Vehicle handover to customer Information Please pass all this information on to the customer. Also give the customer the PORSCHE dashcam operating instructions. Also give the first 3 pages of these Installation and Conversion Instructions to the customer. 7.3.1 Download the app from the App Store to the customer's device (smartphone/tablet).
- Page 21 Technical Bulletins issued by Porsche Cars North America, Inc. are intended only for use by professional automotive technicians who have attended Porsche service training courses. They are written to inform those technicians of conditions that may occur on some Porsche vehicles, or to provide information that could assist in the proper servicing of a vehicle. Porsche special tools may be necessary in order to perform certain operations identified in these bulletins.
