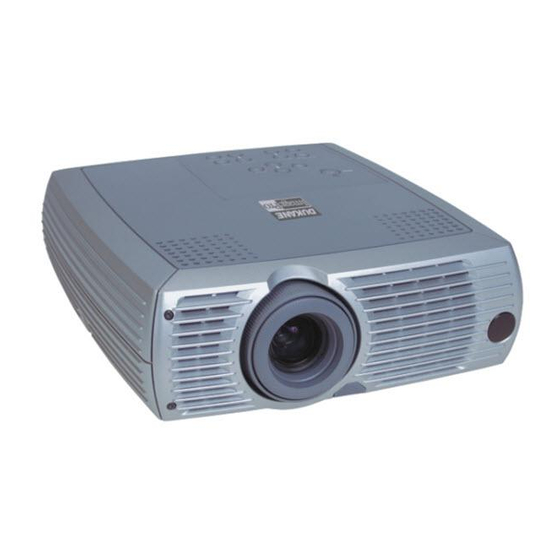

Summary of Contents for Dukane ImagePro 8043A
- Page 2 FCC Warning Canada Safety Certifications Trademarks Important Operating Considerations Do not place objects in this area behind the projector Table of Contents...
-
Page 3: Projector Components
Introduction Included items lens cap power cord* computer cable audio/video cable *country-dependent audio cable Projector components projector remote control receiver (IR) remote control documentation SCART adapter speaker zoom focus foot release remote control receiver (IR) leveling foot lamp door keypad... -
Page 4: Connecting A Computer
Connecting a computer Required computer connections % Optional computer connections connect computer cable Computer In connect power cable connect audio cable connect mouse cable connect monitor cable... -
Page 5: Displaying A Computer Image
Displaying a computer image Power ? No startup screen? Computer ? No computer image? remove lens cap press Power turn on computer activate laptop’s external port Auto Image Power... -
Page 6: Using The Projector With Windows 98 For The First Time
Using the projector with Windows 98 for the first time Next Next Next Next... -
Page 7: Adjusting The Image
Adjusting the image adjust height adjust distance zoom adjust zoom and focus focus adjust keystone Keystone Keystone adjust Picture menu... -
Page 8: Connecting A Video Device
Connecting a video device Standard video connections connect A/V cable Video Audio In connect power cable % connect S-video and A/V cables Optional video connections S-video... -
Page 9: Displaying A Video Image
Displaying a video image remove lens cap Power press Power Power ? No startup screen? turn on video device Video ? No video image? adjust height adjust distance... - Page 10 zoom adjust zoom and focus focus adjust keystone Keystone Keystone adjust volume adjust Picture menu...
-
Page 11: Shutting Down The Projector
Table 1: LED behavior and meaning Meaning The projector is plugged in, or the projector has been turned on and the software has initialized, or the projec- tor has been turned off and the fans have stopped. -
Page 12: Startup Screen
Problem No startup screen Only startup screen appears Solution Plug power cord in Remove lens cap Press Power button Press the Computer button Activate laptop’s external port startup screen Restart laptop Result Correct image startup screen Computer image projected... - Page 13 Problem No computer image, just the words “Signal out of range” Solution Adjust computer refresh rate in Control Panel>Display>Settings>Advanced >Adapter (location varies by operating system) You may also need to set a different resolution on your computer, as shown in the following problem, “Image fuzzy or cropped.”...
- Page 14 Image fuzzy or cropped Set your computer’s display resolution to the native resolution of the projector (Start>Settings>Control Panel>Display>Settings tab, select 800x600 for the SVGA version, 1024x768 for XGA) For a laptop, disable laptop monitor or turn-on dual- display mode Image clear and not cropped...
- Page 15 Remote control not controlling my computer’s mouse Connect optional mouse cable (page 4) Load USB drivers, if necessary (page 6) See page 20 for more info on the remote Remote controls computer cursor (note that the mouse is not functional in zoom mode).
- Page 16 Image not centered on screen Image not square Move projector, adjust zoom, adjust height zoom Adjust horizontal or vertical position in Picture>Advanced menu Adjust keystone on keypad Correct image Square image...
- Page 17 Image not sharp Image does not fit 16:9 screen Image upside down Adjust Sharpness in the Picture>Advanced menu Change aspect ratio to 16:9 in Picture>Aspect ratio menu Turn on/off Ceiling in Settings>System menu Correct image Correct image Correct image...
- Page 18 Turn on/off Rear in Settings>System menu Adjust color, tint, color temperature, brightness, contrast in the menus Make sure vents aren’t blocked, turn off the projector and allow it to cool for a minute Correct image Correct image COLOR Lamp turns on...
- Page 19 Lamp won’t turn on, LED blinking red, “Change lamp” message appears at startup blinks red Still having problems? If lamp hours > 2000, lamp must be replaced. See page 32. Check lamp hours: should be less than 2000 hours in the Main>About menu Lamp turns on startup...
-
Page 20: Using The Remote Control
Using the remote control button backlight cursor control mouse buttons Menu menu navigation Select buttons Power Volume Mute Video Computer Troubleshooting the remote Blank Effect... -
Page 21: Using The Audio
Using the audio Volume Mute Troubleshooting Audio Using the keypad buttons Power Menu Select Up/Down arrows Auto Image Presets Keystone Volume Video Audio In connect audio cable adjust volume Mute Volume menu navigation buttons Computer... -
Page 22: Optimizing Computer Images
Optimizing computer images Presentation features Effect Blank... -
Page 23: Optimizing Video Images
Optimizing video images Customizing the projector Settings>System Set- tings>System Effect... -
Page 24: Using The Menus
Using the menus Menu Main menu keypad navigation buttons Select Menu dots Picture menu Settings menu About menu... -
Page 25: Picture Menu
Picture menu increasing keystone decreasing keystone Keystone Picture menu Contrast Brightness Color NOTE Tint Aspect Ratio Aspect ratio... - Page 26 Presets Settings>Service Save User Settings Presets Room Lighting Room Lighting...
- Page 27 Advanced menu Sharpness Sharpness Advanced menu Color Temperature Color Temperature Phase Tracking Horizontal/Vertical Position...
-
Page 28: Settings Menu
Settings menu Sources>Startup Source: Sources Autosource Settings menu Computer Video Startup Source System Rear Ceiling System menu Display Messages Power Save Power Screen Save... - Page 29 Startup Logo: Blank Screen Blank Effect Select Blank Mute Aspect Ratio: Source: Auto Image: Freeze: Zoom Effect Effect About: Effect Blank screen Startup Logo Effect...
- Page 30 PiP: Mask: Language Service Factory Reset Reset Lamp Service Info Service Code About Effect Picture in Picture Language Service menu About menu PiP size PiP Position Service Info menu...
-
Page 31: Maintenance
Maintenance Cleaning the lens Cleaning the dust filter... -
Page 32: Replacing The Projection Lamp
Replacing the projection lamp NOTE CAUTION Lamp hours used 60 minutes... - Page 33 WARNING WARNING WARNING Power Settings>Service Reset Lamp...
- Page 34 Cleaning the lamp housing screens Using the security lock...
-
Page 35: Specifications
Ceiling Mount UL tested/listed ceiling mount with minimum capacity of 23 lbs (10.4 kg) Accessories ° C) at sea level ° Standard Accessories (ship with the projector) Soft Case Computer Cable 6 ft (1.8 m) Audio/Video Cable 6 ft (1.8 m) Audio Cable Power Cord (country-dependent) Remote... -
Page 36: Projected Image Size
Projected image size Table 2: Range of distance to the screen for a given screen size for SVGA Distance to screen Diagonal Maximum Screen Size Image Width distance (inches/m) (inches/m) (feet/m) 40/1 32/0.8 5.8/1.8 50/1.3 40/1 7.3/2.2 60/1.5 48/1.2 8.8/2.7 100/2.5 80/2 14.6/4.5...
