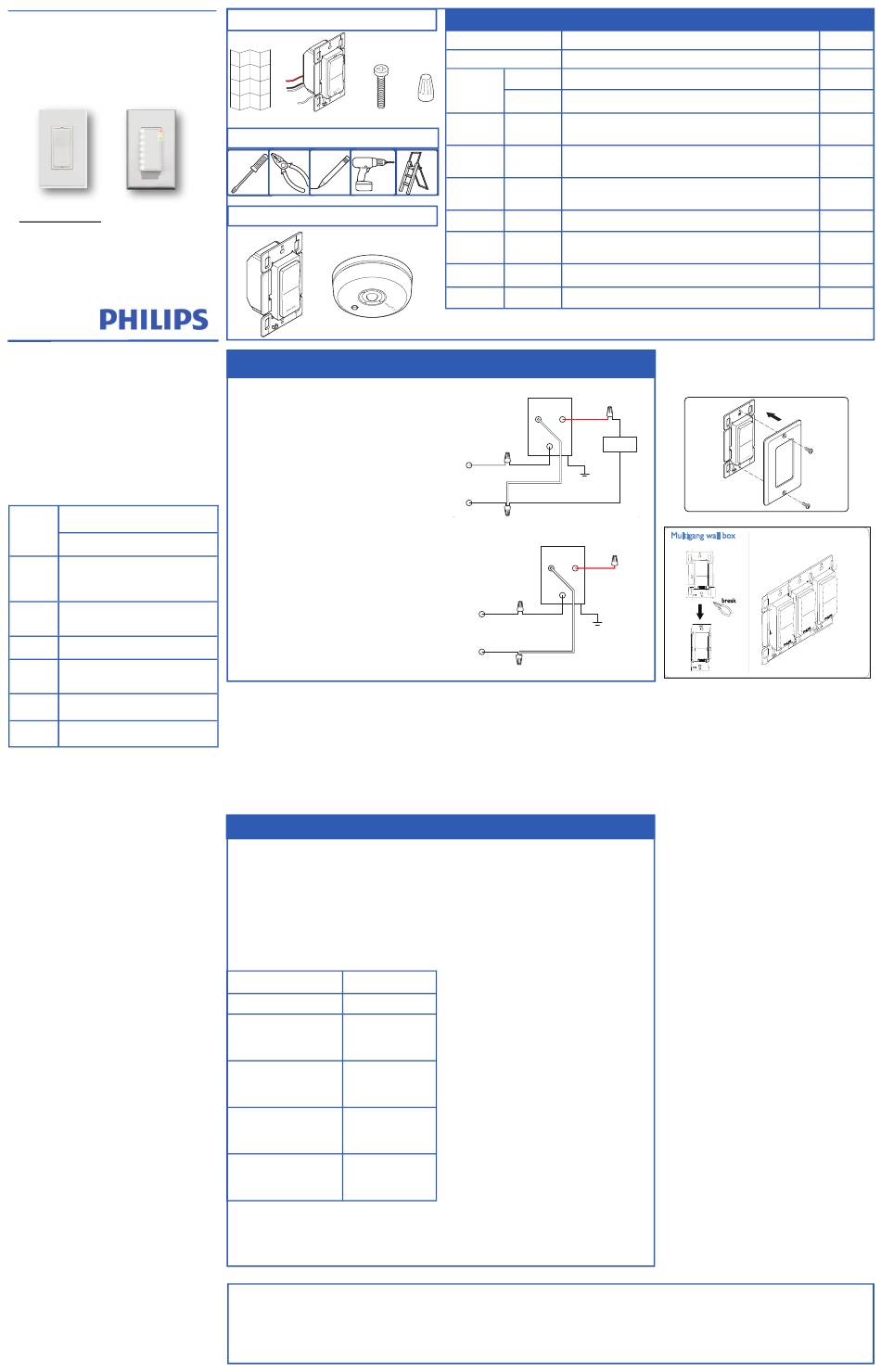

Philips OccuSwitch LRM172100 Installation Manual

Installation Guide
OccuSwitch Wireless System
LRM172100 Switch
LRM173000 Dimmer
Installation Steps
1. Install wall device
2. Install sensor (separate instructions)
3. Link devices
4. Configure, test and finish
Product Description
OccuSwitch™ Wireless automatically controls the lights
based on occupancy and daylight. The system has two
parts: ceiling‐mounted sensor and wall mount power
handling device (switch or dimmer). The switch will turn
the lights On and Off based on the information received
from the wireless occupancy sensor. The dimmer will
dim lights Up and Down to the appropriate intensity
base on the available daylight in the space. The dimmer
can also manually dim the lights.
Key figures
800VA @ 120VAC (Mark10 or equal)
Dimmer
1600VA @ 277VAC (Mark10 or equal)
Load
800W @120VAC (Incandescent)
Ratings
Not recommended but it works
Dimmer
Electro Magnetic Fluorescent
NOT
Motor Loads
rated for:
Switch 1300VA @120 or 277VAC
Load 0.25 HP @ 120Vac
Rating Switch output only
Network
16 Sensors, Switches & Dimmers.
Size
Wall device to sensor: 50ft (17m)
Wireless
Wall devices (same plane) 18ft (6 m)
Range
Wall devices (line of sight) 50ft (17m)
Dimen‐ 4.13" x 2.56"in x 1.79" (105 x 65x
sions ‐ 45mm) Single gang wall mount.2.5" d
Environ‐ Temp: 40°F to 104°F (5°C to 40°C)
mental Humidity: 20% to 85%, non condensing
SAFETY
Parts of the switch & dimmer carry line power, which is a poten‐
tial lethal voltage. This product was designed and manufactured
to ensure maximum safety during operation and service. Always
read these safety instructions before installing, maintaining or
servicing the product, and strictly comply with these instruc‐
tions.
General
‐
If you are unsure about any part of these installation instruc‐
tions, consult a qualified electrician.
‐ The devices are designed for indoor use only.
‐ To avoid short circuits, do not expose this product to rain or
condensing moisture. Short circuit may cause fire or electric
shock hazard. Operate the devices between 41°F and 104°F
(5°C and 40°C) ambient temperature. .
‐ Use only a soft damp cloth to clean, never use any abrasive or
chemical cleaner.
‐ Whenever it is suspected that an unsafe condition exists,
switch off power at the circuit breaker and replace the device.
Safety is likely to be impaired if, for example, the equipment
fails to perform the intended functions or if the equipment
shows visible damage. Do not paint the devices.
Wall Device (Switch & Dimmer) only
‐ Disconnect power at circuit breaker or fuse when servicing,
installing or removing the fixture of the switch.
‐ Only use with copper or copper clad wire.
‐ Wire switch to the line power according to the wiring scheme
in this manual.
Sensor only
‐ The sensor cannot control loads directly use compatible switch
or dimmer.
‐ Use only high‐quality, AA size, 3.6V lithium‐thionyl chloride
batteries with the sensor. Using improperly rated batteries
may damage the sensor or fail to operate properly.
‐ Dispose of used batteries promptly. Keep batteries away from
children, do not disassemble and do not dispose of in fire.
WARNING:
The product is intended to control lighting
loads only. Do NOT use to control equipment that could create
hazardous situations, like entrapment. For examples, do NOT
install this product to control motorized gates, garage doors,
industrial doors, microwave ovens, heating devices, etc.
WARNING:
It is the installer's responsibility to ensure that
the equipment being controlled is visible from every control
location and that only suitable equipment is connected to these
controls. Failure to do so could result in serious injury or death.
CAUTION:
The battery used with the sensor device may
present a risk of fire or chemical burn if mistreated. Do not
recharge, disassemble, heat above 100°C, or incinerate. Replace
battery with Lithium‐thionyl chloride (AA 3.6V) only.
Use of another battery may present a risk of fire or explosion.
Wall Device box contents
(1x) (1x) (2x)
Tools required (for entire install)
Wall Devices & Ceiling Sensor
1 INSTALL WALL DEVICE
WARNING: Wiring the wall device with power ON is
unsafe and could result in serious injury or death. Turn
Off power at the circuit breaker before installing the
Switches and Dimmers.
1 Switch Off line voltage at circuit breaker. Wiring
HOT may damage the electronic and void the war‐
ranty.
2 Remove the old Switch and install new OccuSwitch
Dimmer or Switch following the wiring diagram.
Note: do NOT swap Hot/live and neutral.
3 Wireless remote (3‐way) devices wire as follows:
The master dimmer (that controls the load) accord‐
ing to the regular wiring diagram.
Wire the remote switch/dimmer (no load) accord‐
ing to the wiring diagram.
Remote (3‐way grouping) configuration is a menu
option, see Configuration instruction (Yellow #2) on
back page.
4 To install in multi‐gang wall back‐box, break the
tabs of joining sides. Do not break the outside tabs
on devices at the end of the gang. Up to 3 devices
can be ganged in one three‐gang box.
5 Place the dimmer into the wall back‐box, and se‐
cure with the mounting screws.
6 Power the circuit at fuse or circuit breaker.
7 Check operation ON/OFF or Fade Up/ Dim Down.
Neutral Required
Both wall device (switch & Dimmer) require a neutral.
The neutral circuit design provides a more stable and
predictable electrical source. The most common no‐
neutral design trickles the return power that operates
communication circuits in the wall device back through
the lighting load (ballast). This method has too many
uncertainties to be 100% reliable. As we move for‐
ward with this product new technologies may allow us
to change the neutral requirement.
3 LINK DEVICES
Note:
After wall device is installed and power is re‐
turned, test all wall devices by pressing the rocker
switch ON/OFF. All switches/dimmers should control
connected loads. If they do not control the lights
check wiring.
Create a network:
To create a wireless net‐
work by combination of up to 16 switches, dimmers
and sensors take the following steps.
HINT: to prevent cross‐linking rooms only one person
should do the links.
ACTION RESULTS
Test On/Off and set to Off Lights turn off.
1. Briefly press the LINK Green LED on the
button (Top of switch/ switch/dimmer starts
dimmer) for linking mode. blinking.
2. Briefly press the LINK Lights turn On and
button on the sensor to add sensor's green LED
it to the network. turns on.
3. Briefly press the LINK Green LED on each
button on additional devices device turns On to
to add to network. confirm link.
4. Briefly press the LINK Green LED on the
button on first switch/ switch/dimmer stops
dimmer again to exit. blinking.
FCC COMPLIANCE STATEMENT
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Any changes
or modifications not expressly approved by Philips could void the user's
authority to operate this equipment. This product is intended for com‐
mercial use only.
Indication
Red, Yellow, Green Device starts up or reset to factory defaults
10 sec. A device asked to show all linked devices
Green
1 Min. Device is in linking mode
(4x)
Yellow
Irregular Sensor is showing coverage
Blink
Yellow Every 2
Device is in the configuration menu
Blink Sec.
A linked device is missing
Red Blink Regular
(see Troubleshooting)
Red Blink 2 Sec. rate Device is in the Action menu
Steady Lights are switched manually. Automatic mode returns after
Always ON
Yellow vacancy timeout.
Red Blink 5 Sec Rate Sensor Battery Low
Red Blink 2 Sec. Rate During link test = low battery
Switch & Dimmer Wiring Diagram
red
brass
hot/live black
white
120-277 V~
ground
50 / 60 Hz
neutral
Remote Device Wiring Diagram
y
hot/live brass
black
120-277 V~
50 / 60 Hz
white
neutral
Troubleshooting
See LEDs and buttons description.
When linking, if Red LED on the sensor turns On,
then linking failed. Try again and move the sensor
closer to the switch, (within 50ft.)
When linking, if Red LED on the sensor starts to
blink, you pressed and held the LINK button too
long. The sensor entered the ACTION menu. Press
and hold the link button to exit.
Warning: If the green LED starts blinking on another
switch/dimmer, that switch/dimmer is now also in
linking mode, starting its own network. Press the
LINK button on that switch/dimmer and try the
whole procedure again. If the problem persists, the
distance between the new switch/dimmer and the
existing switch may be too large (see Key figures).
Note: If the yellow LED is turned ON after linking, the
switch/dimmer is in manual override. After the sensor
timer has expired, it will return to automatic mode and
the LED will go off. Or, hold down the ON rocker until
the yellow LED goes out, returning to auto mode.
RESET to factory default settings ‐ If the links or set‐up
is not correct they can be cleared in each device by
holding down the LINK/ACTION Button for about 10
seconds. Release when LED's briefly blink all together.
After releasing they step RED ‐ YELLOW ‐ GREEN.
Copyright NOTICE
All referenced brands, product names, service
names and trademarks are the property of their
respective owners.
Copyright 2011 Koninklijke Philips Electronics N.V.
LED and Buttons
Meaning
Mounting details
load
red
ground
TECHNICAL SUPPORT
For technical support on this product contact:
Philips Lighting Electronics N.A.
10275 W. Higgins Road
Rosemont IL 60018
Customer Care: 1‐800‐372‐3331
tech.service.rosemont@philips.com
Device
All
All
Switch
Dimmer
Sensor
Switch
Dimmer
Switch
Dimmer
All
Switch
Dimmer
Switch
Dimmer
Sensor
