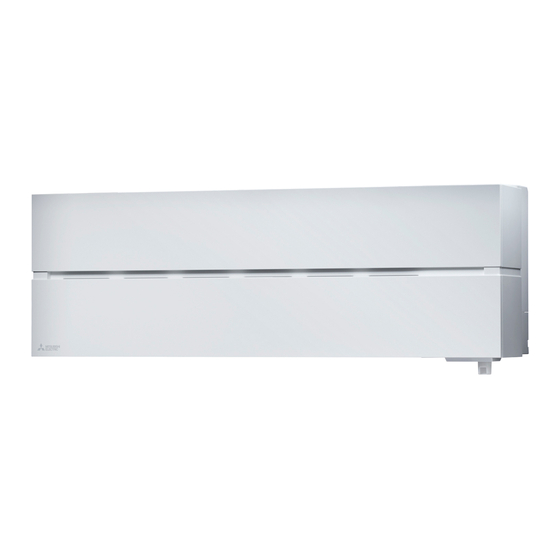

Mitsubishi Electric MSZ-LN18VG2W Operating Instructions Manual
Split-type air conditioners
Hide thumbs
Also See for MSZ-LN18VG2W:
- Operating instructions manual (173 pages) ,
- Service manual (53 pages) ,
- Operating instructions manual (11 pages)
Advertisement
Quick Links
SPLIT-TYPE AIR CONDITIONERS
MSZ-LN18VG2W MSZ-LN25VG2W MSZ-LN35VG2W MSZ-LN50VG2W
MSZ-LN18VG2V MSZ-LN25VG2V MSZ-LN35VG2V MSZ-LN50VG2V
MSZ-LN18VG2R MSZ-LN25VG2R MSZ-LN35VG2R MSZ-LN50VG2R
MSZ-LN18VG2B MSZ-LN25VG2B MSZ-LN35VG2B MSZ-LN50VG2B
INDOOR UNIT
OPERATING INSTRUCTIONS
BETJENINGSVEJLEDNING
BRUKSANVISNING
BRUKSANVISNING
KÄYTTÖOHJEET
KASUTUSJUHEND
LIETOŠANAS INSTRUKCIJAS
NAUDOJIMO INSTRUKCIJA
English
Dansk
Svenska
Norsk
Suomi
Eesti
Latviski
Lietuviškai
Advertisement
Related Manuals for Mitsubishi Electric MSZ-LN18VG2W
Summary of Contents for Mitsubishi Electric MSZ-LN18VG2W
- Page 1 SPLIT-TYPE AIR CONDITIONERS INDOOR UNIT MSZ-LN18VG2W MSZ-LN25VG2W MSZ-LN35VG2W MSZ-LN50VG2W MSZ-LN18VG2V MSZ-LN25VG2V MSZ-LN35VG2V MSZ-LN50VG2V MSZ-LN18VG2R MSZ-LN25VG2R MSZ-LN35VG2R MSZ-LN50VG2R MSZ-LN18VG2B MSZ-LN25VG2B MSZ-LN35VG2B MSZ-LN50VG2B English OPERATING INSTRUCTIONS Dansk BETJENINGSVEJLEDNING Svenska BRUKSANVISNING Norsk BRUKSANVISNING Suomi KÄYTTÖOHJEET Eesti KASUTUSJUHEND Latviski LIETOŠANAS INSTRUKCIJAS Lietuviškai NAUDOJIMO INSTRUKCIJA...
- Page 2 ENGLISH IS ORIGINAL ONTENTS SAFETY PRECAUTIONS DISPOSAL PREPARATION BEFORE OPERATION I-SEE OPERATION I-SAVE OPERATION CIRCULATOR OPERATION AIR PURIFYING OPERATION POWERFUL OPERATION Wi-Fi INTERFACE SETTING UP WHEN YOU THINK THAT TROUBLE HAS OCCURRED AFETY PRECAUTIONS Meanings of symbols displayed on indoor unit and/or outdoor unit WARNING Meanings of symbols used in this manual Marks and their meanings...
- Page 3 AFETY PRECAUTIONS The unit should not be installed, relocated, disassembled, altered, Do not pull the power cord. or repaired by the user. Do not charge or disassemble the batteries, and do not throw them • When installing, relocating, or servicing the unit, make sure that refrigerant circuit.
- Page 4 AFETY PRECAUTIONS For installation For Wi-Fi interface WARNING WARNING Consult your dealer for installing the air conditioner. and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervi- sion or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 5 AME OF EACH PART Indoor unit Remote controller Air purifying device Page 5 section Operation Wi-Fi interface About 6 m Page 15 the indoor unit when the Temperature buttons button Operation button i-see sensor Page 6 vane WIDE VANE button CIRCULATOR Emergency operation button...
- Page 6 REPARATION BEFORE OPERATION Setting the installation position Before operation: Installing the remote controller batteries Insert the negative Note: Installation position: and right Setting current time Press the DAY button Area Left Center Right (10 minutes when pressed Note: (Each press of the Note: How to set remote controller exclusively for a particular indoor unit Press...
- Page 7 -SEE OPERATION Press during COOL, DRY, HEAT and AUTO mode • Press Note: How to detect human presence • Then, it detects human presence by their motion based on their heat signa- Detection range • The spot beneath the air conditioner conditioner •...
- Page 8 ELECTING OPERATION MODES AUTO mode (Auto change over) Note: COOL mode Note: DRY mode Press Press HEAT mode FAN mode Press Note: After COOL/DRY mode operation, it is recommended to operate in the Press Note: Multi system operation standby mode Operation indicator lamp Indication Operation state...
- Page 9 AN SPEED AND AIRFLOW DIRECTION ADJUSTMENT Up-down Airflow direction Press Fan speed page 16 Press Left-right Airflow direction Press Note: Multi system operation (SWING EN-8...
- Page 10 IRFLOW CONTROL MODE BSENCE DETECTION energy-saving mode or No occupancy Auto-OFF mode when nobody Press during COOL, DRY, HEAT or AUTO To activate this No occupancy energy-saving mode, press To activate this No occupancy Auto-OFF mode, press Each press of changes AIRFLOW CONTROL Press occupancy...
- Page 11 -SAVE OPERATION IRCULATOR OPERATION In case the indoor temperature reaches the setting temperature, the Press during COOL, CIRCULATOR, HEAT Press during HEAT mode The unit performs FAN operation in case the indoor temperature reaches Press Press Note: Note: when is pushed, CIRCULATOR Save your preferred setting for COOL, CIRCULATOR, HEAT mode and EN-10...
- Page 12 IGHT MODE OPERATION IR PURIFYING OPERATION Press Press Press Note: Press Note: • • • EN-11...
- Page 13 OWERFUL OPERATION IMER OPERATION (ON/OFF TIMER) Press during COOL or HEAT mode Press AUTO setting blinks. * Make sure that the current time and day are set correctly. Page 5 Press Press • Press Note: “Auto restart EN-12...
- Page 14 EEKLY TIMER OPERATION Press , and to set ON/OFF, time, and getting home to going to bed on weekdays. Setting1 Setting2 Pressing Pressing Pressing Note: adjusts the tem- Pressing Press to continue setting the timer for Press ing goes out, and the Note: •...
- Page 15 LEANING Instructions: Air purifying device Every 3 months: • Every 3 months: Clean every 2 weeks • • Parts Number Front panel Every 3 months: • Remove dirt by a vacu- stopper • • Every year: unit • Parts Number Important Important •...
- Page 16 When the Wi-Fi interface is reset to the factory default, ALL the con- operation. which is caused by or arises from connection to and/or use of any third For the latest information regarding MELCloud from Mitsubishi Electric Corporation, please visit www.melcloud.com. EN-15...
- Page 17 HEN YOU THINK THAT TROUBLE HAS OCCURRED Symptom Explanation & Check points Even if these items are checked, when the unit does not recover from the Remote controller trouble, stop using the air conditioner and consult your dealer. Page 5 Symptom Explanation &...
- Page 18 HEN YOU THINK THAT TROUBLE HAS OCCURRED In the following cases, stop using the air conditioner and consult your dealer. EN-17...
- Page 19 MERGENCY OPERATION UTO RESTART FUNCTION When the remote controller cannot be used... Emergency operation can be activated by pressing the emergency operation If you do not want to use this function, please consult the service repre- sentative because the setting of the unit needs to be changed. Operation indicator lamp NSTALLATION PLACE AND Emergency COOL...
- Page 20 PECIFICATIONS Indoor Model Outdoor Function Heating Heating Heating Heating Heating Heating Capacity Input Indoor Weight Outdoor Indoor IP 20 IP code Outdoor LP ps operating pressure HP ps Indoor (Super High/ Outdoor Model Indoor Capacity Latent Heating Input Guaranteed operating range Note: Outdoor Indoor...
- Page 21 Wi-Fi interface installation date Installer contact details Name Telephone number Name of Importer: Mitsubishi Electric Europe B.V. Capronilaan 46, 1119 NS, Schiphol Rijk, The Netherlands French Branch 25, Boulevard des Bouvets, 92741 Nanterre Cedex, France German Branch Mitsubishi-Electric-Platz 1, 40882 Ratingen, Germany...
- Page 22 äri- ja kergtööstuskeskkondades: lakom industrijom: MITSUBISHI ELECTRIC, MSZ-LN18VG2W / –, MSZ-LN18VG2V / –, MSZ-LN18VG2R/ –, MSZ-LN18VG2B/ – MSZ-LN25VG2W/MUZ-LN25VG2, MSZ-LN25VG2W/MUZ-LN25VGHZ2, MSZ-LN25VG2V/MUZ-LN25VG2, MSZ-LN25VG2V/MUZ-LN25VGHZ2 MSZ-LN25VG2R/MUZ-LN25VG2, MSZ-LN25VG2R/MUZ-LN25VGHZ2, MSZ-LN25VG2B/MUZ-LN25VG2, MSZ-LN25VG2B/MUZ-LN25VGHZ2...
