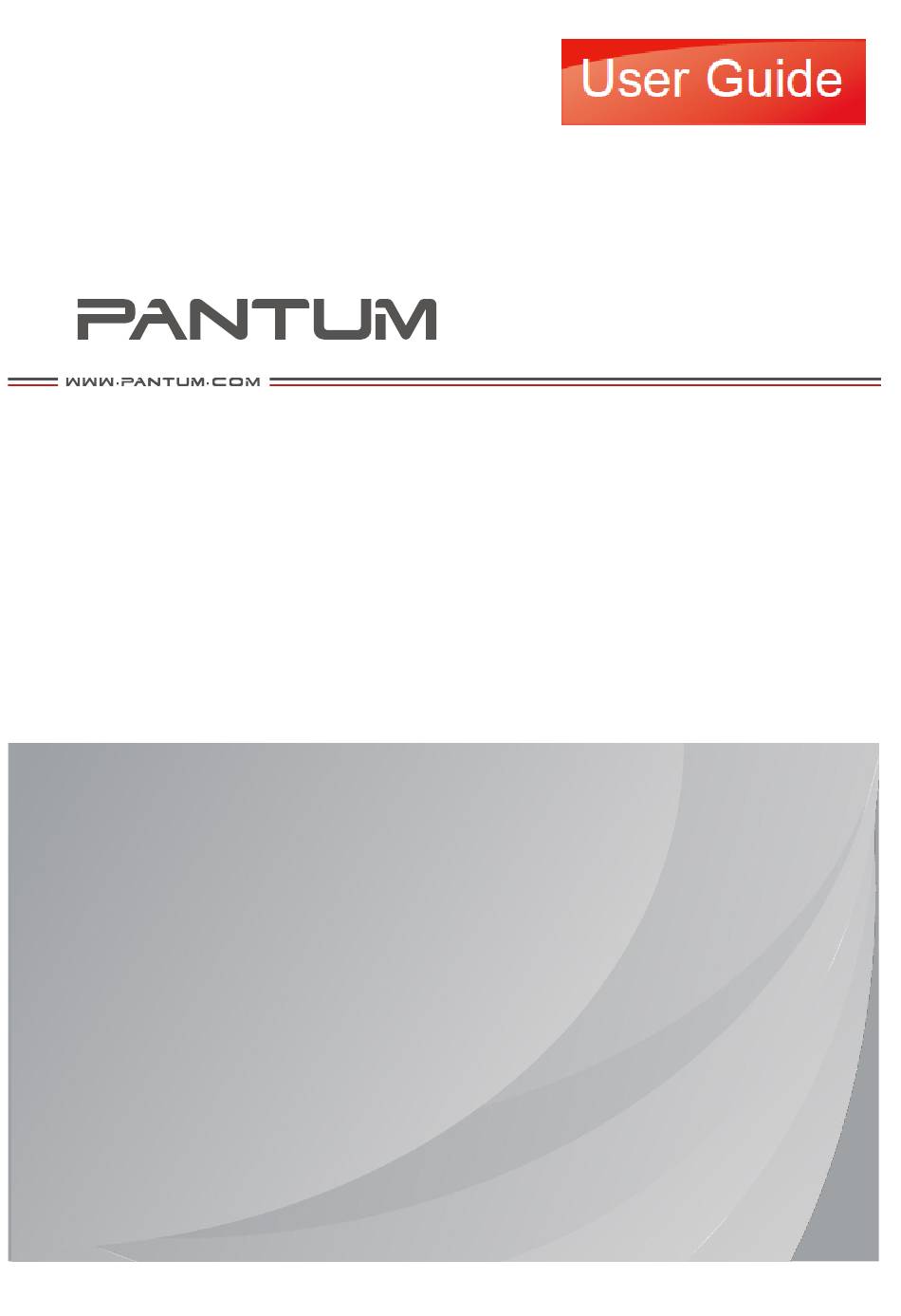

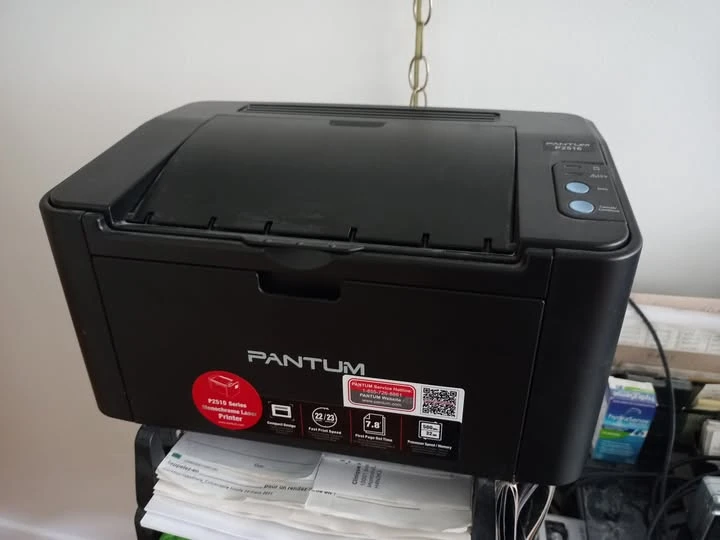

- Page 1 Pantum P2210-P2510 Series Monochrome Laser Printer It is recommended to carefully read this Guide before using the printer...
- Page 2 Users are responsible for any damages arising from failing to follow this User Guide. Meanwhile, except the express warranty made in the product maintenance manual or service commitment, Zhuhai Pantum Electronics Co.,Ltd. does not make any express or implied warranty or guarantee to this User Guide (including composing or words).
- Page 3 Safety Precautions Disconnect the power supply The product should be placed close to or easily accessible to power sockets, so as to allow easy disconnection of power supply! Laser Safety The laser radiation is harmful to the human body. Since laser components are completely sealed in the printer, laser radiation will not leak.
- Page 4 Safety Warning Please note the following safety warnings before using the printer: Warning There is a high-voltage electrode inside the printer. Before cleaning the printer, make sure the power is turned off! Plugging and unplugging the power cord plug with a wet hand may result in an electric shock.
- Page 5 Precautions Precautions before Using the Printer: 1. Read and understand all instructions; 2. Familiarize yourself with the basic principles associated with operating electrical appliances; 3. Comply with all warnings and instructions marked on the equipment or specified in the manual supplied with the equipment;...
- Page 6 23. This product is sold as a complete machine. The consumers can go to Pantum Aftersales Service Centre to purchase parts they need. If the product sold is inconsistent with the package list, please go to the specified Aftersales Service Centre to solve the problem;...
- Page 7 Radio Equipment directive 2014/53/EU only for models ending with suffix “W”. The manufacturer of this product is: Zhuhai Pantum Electronics Co.,Ltd., No.3883,Zhuhai Avenue,Zhuhai,Guangdong,China 519060. A declaration of conformity to the requirements of the Directives is available upon request from the Authorized Representative.
-
Page 8: Table Of Contents
Table of Contents 1. Before Using the Printer ......................1 1.1. Product series introduction ....................1 1.2. Supplied Accessories ......................2 1.3. Product View ........................3 1.4. Laser Toner Cartridge ....................... 4 1.5. Easily-Refilled Laser Toner Cartridge ................4 1.5.1. Structure of Easily-Refilled Laser Cartridge ............. 4 1.5.2. - Page 9 8. Mobile Print ..........................56 8.1. "Pantum" APP ......................... 56 8.1.1. Operating systems supported ................56 8.1.3. How to use this "Pantum" APP ................56 9. General Settings ........................58 9.1. Control Panel Overview ....................58 9.1.1. Functions of Buttons on the Control Panel ............59 9.1.2.
- Page 10 11.1.1. Paper Jam in the Feed Port ................70 11.1.2. Paper Jam inside the Printer ................70 11.2. Common Troubleshooting ..................... 73 11.2.1. Common Trouble ....................73 11.2.2. Image Defects ..................... 74 12. Product Specification ......................77 12.1. Specification Overview ....................77 12.2.
-
Page 11: Before Using The Printer
1. Before Using the Printer 1.1. Product series introduction P2210W P2510W Product series parameters P2210 Series P2510 Series Series Series ● ● ● ● ● ● Interface type WiFi ● ● ● ● ● ● ● ● ● ● 20ppm Print Speed(A4) ●... -
Page 12: Supplied Accessories
When you open the package, make sure that the following parts are included in the carton: Name Parts Printer Laser Toner Cartridge USB Interface Cable Power Cord CD-ROM Installation Manual Pantum Warranty • The Pantum Warranty may not be attached in some regions. Note:... -
Page 13: Product View
1.3. Product View | Front View Output Bin Control Panel Output Tray Automatic Feed Guide Paper Stop Feeder Tray Automatic Feeder Tray | Rear View • The rear view of the printer may vary depending on the models and functions. Note: Network Interface USB Interface... -
Page 14: Laser Toner Cartridge
1.4. Laser Toner Cartridge | Service Life of the Laser Toner Cartridge Type Average Print Volume Laser Toner Cartridge with About 700 Pages (The above data is based on ISO/IEC 19752 standard) Standard Capacity Laser Toner Cartridge with About 1600 Pages (The above data is based on ISO/IEC 19752 standard) High Capacity •... -
Page 15: Steps Of Filling The Easily-Refilled Laser Cartridge
1.5.2. Steps of Filling the Easily-Refilled Laser Cartridge Steps Diagram Description Hold the laser toner cartridge with the toner port side down and shake it vertically around 5-6 times. Open the cover of the waste toner port. Pour out the waste toner from the waste toner box. Close the cover of the waste toner port. - Page 16 Pour the toner into the toner box. Close the cover of the toner refilling port. The toner refilling is completed. • Do NOT incinerate new or waste toner or toner cartridge. Toner will combust when Note: exposed to flame and operator may get burnt. •...
-
Page 17: Paper And Print Media
3. Some print media may meet all the use guidelines contained herein, but they still can not bring satisfactory effect. This may be due to incorrect operation, inappropriate temperature and humidity, or other factors beyond the control of Pantum. Before purchasing large quantities of print media, make sure that the print media meets the specifications specified in this User Guide. -
Page 18: Special Paper
2.2. Special Paper This printer supports using the special paper for printing. Special paper includes: label, envelope, transparency, thick, cardstock, etc. • When using special paper or print media, be sure to select matched print type and size in Note: the print settings so as to get the best print effect. -
Page 19: Loading Paper
2.3. Loading Paper 2.3.1. Loading into the Automatic Feeder Tray 1. Open the feeder tray. 2. Slide the automatic feed guides to match both sides of the paper. 3. Raise the output tray to avoid the paper from slipping and falling. - Page 20 4. Load the paper into the automatic tray with the print-side up. • Before loading paper, please unfold the stacked paper to avoid a paper jam or feed Note: error,and then load the paper into the tray print-side up. 5. Adjust the paper stop to keep the paper in position. To ensure normal paper feeding, adjust the bottom paper stop ①...
-
Page 21: Nonprinting Area
2.4. Nonprinting Area The shaded section indicates the nonprinting area. Usage Paper Size Top and Bottom Margins (A) Left and Right Margins (B) 5 mm (0.197 inch) 5 mm (0.197 inch) Printing Letter 5 mm (0.197 inch) 5 mm (0.197 inch) 2.5. -
Page 22: Driver Installation And Uninstallation
3. Driver installation and uninstallation 3.1. How to install Windows printer driver Windows driver installation software provides two installing methods: one-click installation and manual installation.We recommend one-click installation, which can help to install driver automatically in a faster and more convenient way.If you have any difficulty in using one-click installation, please try manual installation. - Page 23 4. Click on the "One-click installation" button in Method I and enter into the installation process. The process may need some time, and the duration is related to your computer configuration, please wait patiently. 5. After the installation, click "Print &Test Page" button. If your printer prints the test page successfully, it means that you have installed the driver correctly.
- Page 24 • Windows 7/Vista/Server 2008 system: Pop up "Autoplay" interface, click “Autorun.exe” to run the installation procedure. • Windows 8 system: When the " DVD RW driver" window pops up from the right top corner of computer desktop, click anywhere in the pop-up window, then click "Autorun.exe" to run the installation procedure.
- Page 25 • Click on the "One-click installation" button to enter installation process if your software has searched only one printer. The process may need some time, and the duration is related to your computer configuration. Please wait patiently.
- Page 26 • If your software has searched several printers, click on the"One-click intallation" button, and the printer list interface will pop up. Please select the printer that you need according to your printer wired network IP address or host ID.
- Page 27 • If the printer you need is not shown in the list, please click "Refresh" button to search Note: again. If it is not found, please check if the printer and computer are in the same network. • When the printer IP address changes under printer driver installed with host ID , you can also directly print without re-installing the driver.
- Page 28 • Some computers may be unable to auto play the CD beacase of system configuration. Note: Please double click "Computer" icon, find "DVD RW driver", then double click "DVD RW driver" to run the installation procedure. 4. Read and agree to the terms contained in the End User License Agreement and the Privacy Policy, click the “Next”...
- Page 29 • If your software has searched several printers, click "One-click intallation" button, and the printer list interface will pop up. Please select "Configure printer with WiFi via USB and install" and select USB printer, click "Confirm" button and enter into installation process to complete automatic network configuration and driver installation.
- Page 30 • When the printer IP address changes under printer driver installed with host ID , you can Note: also directly print without re-installing the driver. If you need to install the printer driver with the host ID, please check the option "Install the printer in the list with host ID". 6.
- Page 31 • Click on the "One-click installation" button if your software has only searched only one printe, and the wireless network configuration interface will pop up, input the SSID and password that you need, then click "Confirm" button, and enter into installation process. The process may need some time, and the duration is related to your computer configuration, please wait patiently.
- Page 32 • If your software has searched more than one printers, the printer list interface will pop up.You need to configure the current printer which is connected via USB cable to wireless network and install driver. Please select "Configure the print via USB and install" on the printer list interface and check the USB printer option.
- Page 33 • When the printer IP address changes under printer driver installed with host ID , you can Note: also directly print without re-installing the driver. If you need to install the printer driver with the host ID, please check the option "Install the printer in the list with host ID". 6.
- Page 34 • Some computers may be unable to auto play the CD beacase of system configuration. Note: Please double click "Computer" icon, find "DVD RW driver", then double click "DVD RW driver" to run the installation procedure. 4. Read and agree to the terms contained in the End User License Agreement and the Privacy Policy, click the “Next”...
- Page 35 3.1.1.3.2. The printer is already connected to wireless network 1. The printer is already connected to wireless network, you can print the "Network configuration page" to check.(See Chapter 9.1.1.3 to for how to print). 2. Connect the computer to printer network. 3.
- Page 36 • Click on the "One-click installation" button to enter installation process if your software has searched only one printer. The process may need some time, and the duration is related to your computer configuration. Please wait patiently. • If the software has searched several printers, the printer list interface will pop up. Please select the printer you need according to your printer wired network IP address or host ID .
-
Page 37: Manual Installation
• If the printer you need is not shown in the list, please click "Refresh" button to search Note: again. If it is not found, please check if the printer and computer are in the same network. (Please see Chapter 5.3 for how to check). - Page 38 • Some computers may be unable to auto play the CD beacase of system configuration. Note: Please double click "Computer" icon, find "DVD RW driver", then double click "DVD RW driver" to run the installation procedure. 3. Read and agree to the terms contained in the End User License Agreement and the Privacy Policy, click the “Next”...
- Page 39 • Windows 7/Vista/Server 2008 system: Pop up "Autoplay" interface, click “Autorun.exe” to run the installation procedure. • Windows 8 system: When the " DVD RW driver" window pops up from the right top corner of computer desktop, click anywhere in the pop-up window, then click "Autorun.exe" to run the installation procedure.
- Page 40 10. After finishing searching, select the printer that needs to be connected and click “Next”. • If the printer you need to connect is not in the list of printers searched, please click Note: “Refresh” to search again. • When the printer IP address changes under printer driver installed with host ID , you can also directly print without re-installing the driver.
- Page 41 • Windows 7/Vista/Server 2008 system: Pop up "Autoplay" interface, click “Autorun.exe” to run the installation procedure. • Windows 8 system: When the " DVD RW driver" window pops up from the right top corner of computer desktop, click anywhere in the pop-up window, then click "Autorun.exe" to run the installation procedure.
- Page 42 8. Select “Yes, I want to configurate the printer's wireless network” on the wireless setup window popped out, and operate according to the prompts to set up the printer to wireless network (please refer to Chapter 5.1.1 for setup method). 9.
- Page 43 11. The software installs the driver automatically and the installation process may need some time. The duration is related to your computer configuration, please wait patiently. 12. After the installation, click "Print &Test Page" button. If your printer prints the test page successfully, it means that you have installed the driver correctly.
- Page 44 7. Select "Wireless network connection" and click on "Install". 8. Select “No, the printer has been connected to wireless network” on the wireless setup window popping out, and then click “Next”. 9. The installation software will search the printer automatically and the searching process may need some time.
-
Page 45: Method Of Driver Unistallation
1. Click the Start menu of computer and then click All programs. 2. Click Pantum, and then Click Pantum XXX Series. Pantum XXX Series where XXX represents product model. 3. Click uninstall to delete the driver according to instructions on uninstall window. -
Page 46: Macos System Driver Installation
1. Turn the power of printer and computer on. 2. Insert the CD companying with printer in the CD driver of your computer, and double click Pantum XXX Series installation package. (XXX in Pantum XXX Series represents product model.) 3. Click “Continue”. - Page 47 4. Читайте лицензионное соглашение, и кликните “Продолжить”. 5. Кликните “Принимаю” в выталкивающем окне советования, принимай лицензионное соглашение. 6. Ознакомьтесь с Политикой конфиденциальности и нажмите «Продолжить». 7. Чтобы принять Политику конфиденциальности, нажмите «Согласен» во всплывающем окне с подсказкой. 8. Кликните “Установить”.
- Page 48 9. Ввози шифр компьютера, кликните “ Установить ПО ”. 10. Кликните на “продоолжение установки” в всплывающем окне. 11. Система совершит подключение программы автоматически. • Используйте кабель USB для подключения компьютера к модулю WiFi, в процессе установке драйвера появится окно подсказки по конфигурации беспроводной сети, как показано...
-
Page 49: Add Printer To Mac System
If using a USB cable to connect a computer with a non-WiFi model printer, a “Add Printer” interface will pop up during the driver installation and you can add a printer here (refer to Chapter 3.3 for how to add printer). 3.3. -
Page 50: Wired Network Setup (Applicable To Wired Network Models)
4. Wired network setup (applicable to wired network models) In case printers support wired network printing, they can be connected to network to control printer to print in wired network mode. 4.1. Set IP Address The IP address of the printer may be automatically obtained through DHCP function or set manually. -
Page 51: Wireless Network Setup (Applicable To Wifi Models)
5. Wireless network setup (applicable to WiFi models) Based on models, printer models with WiFi printing function can support basic structure mode and WiFi Direct mode. If you have problems with wireless network setup, please refer to Chapter 5.3 Wireless Network Setup FAQs. Basic structure mode: connecting to a wireless device via router 1. - Page 52 5.1.1.2. Setup methods of wireless network setup tools 1. Take the wireless network setup tool in computer. 1) Windows system: Click the “Start menu” – “All programs” - “Pantum”－ Product name – “Wireless network setup tool”. 2) macOS system: click "Go" - "Applications" - "Pantum" - "Utilities" - "Wireless Network Configuration Tool"...
- Page 53 2) Please tick “No” to configure other wireless network needed to connect to. Complete configuration according to interface prompt. • At present, the printer supports 3 types of safe modes: none, WEP and WPA/WPA2. Note: 1) None: There is no encryption method used. 2) WEP: Send and receive data via security key by using WEP (Wired Equivalent Privacy).
-
Page 54: How To Disable The Wifi Network Connected
2.2 The computer is not connected to wireless network Input the SSID (case sensitive) and password of access point (wireless router) in the interface below. Complete configuration according to interface prompt. • If you do not know the SSID of access point (wireless router), please click “Print Note：... -
Page 55: How To Disable The Wifi Direct
2. Enable the printer's "WiFi Direct" mode. Enabling method: short press the "WiFi" button on the printer panel and enable it. • Short press "WiFi" button on the printer panel to automatically print out "Mobile Device Note: WiFi Connection Wizard" page for WiFi connection by mobile devices. •... - Page 56 software. Please refer to the user guide of firewall software to turn firewall off and then try to search the printer again. • Inspect if the IP address assignment of printer is correct. You can inspect IP address by printing the network setup information page of printer out.
-
Page 57: Web Server (Applicable To Network Printers)
6. Web server (Applicable to network printers) You can manage printer setup via the embedded Web server. 6.1. Visit the embedded Web server 1. Turn on the power of printer and computer. 2. Connect the printer to network to ensure that the printer is connected to the network where the computer is connected to (please refer to Chapter 4 Chapter 5... -
Page 58: Wireless Setup
6.2.1. Wireless setup You can set the printer's wireless network, wireless IP configuration and WiFi Direct through the Wireless Settings page. Before setting, please log in the embedded Web Server (Please see Chapter 6.1 for login method). 6.2.1.1. Wireless network 1) If you need to set up wireless network, please click the SSID of access point (wireless router) in search list, input secret key and click “Apply”. -
Page 59: Sleep Time Setup
6.2.2. Sleep time setup If you want to change the sleep time of the printer, you can set it via the embedded Web server (the printer installed via network connection). 1. Log in the embedded Web server (please refer to Chapter 6.1 for login method). -
Page 60: Print
7. Print 7.1. Print Function The print function can be achieved through the settings of various properties in the Printing Preferences, and some of the functions are as follows. Functions Diagram Manual duplex print Collate Reverse Print N-in-1 Poster Print (for Windows system only) Zoom Print Custom Size... -
Page 61: Print Settings
• You can select the 2 x 2 Poster Print in N-in-1 to enable the poster printing function. Note: • You can enable printing preference and click the help button to view detailed function description. Please refer to Chapter 7.2.3 for the method to open help document. - Page 62 Manual Duplex will not be supported. 3. Printing steps are as follows (for Windows system only) : a) Open the document to be printed from the application (such as Notepad), and select Print from the File menu. b) Select Pantum printer.
- Page 63 Click Preferences to set up for printing. c) Check Manual Duplex in the Basic tab and click OK after completing the settings d) Click Print. • It is recommended to raise the output tray to prevent the paper from sliding out of it. If you Note: choose not to raise the output tray, we recommend that you immediately remove the printed paper output from the printer.
- Page 64 f) After turning over the paper according to the prompt, press Continue button of the printer to go on printing the other side. g) You can click Close button to close this prompt window, and it will not appear until the next Manual Duplex job comes in.
-
Page 65: Opening Help Document
7.2.3. Opening Help Document You can open the Printing Preferences and click Help button (for Windows system only). The help document contains the user guide where you can find the information on print settings. 7.3. Cancel Print Job Press and hold the Cancel/Continue button on the control panel to cancel the job you want to cancel during the printing process. -
Page 66: Mobile Print
APP. Download method for iOS mobile device: Click the App Store icon > Search interface > input “PANTUM” or “Pantum print” in the search bar > Download and install on the interface of iOS device to download. - Page 67 8.1.3.2.2. Operation steps 1. Turn on printer power. 2. For an iOS mobile device, tap the “PANTUM” icon on the main screen to enter the first interface of “PANTUM”. 3. Select adding method based on your usage habits to finish the adding in printer.
-
Page 68: General Settings
9. General Settings This Chapter mainly introduces some general settings. • The setting appearances may vary by model functions. The schematic diagram is only Note: for reference. 9.1. Control Panel Overview The printer control panel layout includes 2 buttons and 2 multi-colored LEDs, as shown below. The left figure is the control panel for printers with USB+ WiFi interface, and the right figure is the control panel for printers with USB interface: Serial No. -
Page 69: Functions Of Buttons On The Control Panel
9.1.1. Functions of Buttons on the Control Panel 9.1.1.1. Operation Function of WiFi Search Button If there is no WiFi connection, short-press this button to launch WiFi connection and search WiFi Hotspot AP; stop searching if it fails to find any Access Point (AP) within 2 minutes. If there is WiFi connection while no WiFi print job, press and hold this button to disconnect WiFi connection. - Page 70 Paper Jam Error Paper Jam Error LED1 with red light staying on LED1 with red light staying on Paper shortage in printing, or Paper shortage in printing, or failed in feeding failed in feeding LED1 with red light flashing LED1 with red light flashing quickly quickly 9.1.2.2.
- Page 71 9.1.2.3. Indication of LED1 and LED2 Combination Status You can refer to the indicator combination list for information on the working status of the printer. Some of the LED1 and LED2 combined indications are as follows: Status Serial Paper/WiFi Data/Cartridge Status Description (Multi-colored (Multi-colored...
-
Page 72: System Setting
A job is being cancelled via the panel because of paper shortage in printing or failure in feeding LED1 with green light off, LED2 with green light flashing quickly 9.2. System Setting Windows 7 is taken as the example in the following operation. The information on your computer screen may differ because of multiple operating systems. -
Page 73: Restore Factory Settings
9.3. Restore Factory Settings To reset all parameter settings of products, you can conduct Restore Factory Settings. Specific steps: when the product power supply is turned off, press and hold "Cancel/Continue" button. Power on the product until two LEDs flash orange simultaneously. Release the button until the printer is back to Ready status to finish resetting. -
Page 74: Routine Maintenance
10. Routine Maintenance 10.1. Cleaning the Printer • Please use mild detergents. Note: Please clean the printer in accordance with the following steps: 1. Turn off the main power switch and unplug the power cord and USB cable. 2. Use a soft cloth to wipe the outside of the printer clean. - Page 75 3. Open the upper cover and take out the laser toner cartridge. • When removing the laser toner cartridge, put the cartridge in a protective bag or wrap it Note: with thick paper to avoid direct light damaging the photosensitive drum. 4.
-
Page 76: Maintenance Of Laser Toner Cartridge
10.2. Maintenance of Laser Toner Cartridge 10.2.1. Use and Maintenance of Laser Toner Cartridge For better print quality, please use the original Pantum laser toner cartridge. Note: when using the laser toner cartridge, please pay attention to the following: • Unless used immediately, otherwise, do not remove the laser toner cartridge from the package. -
Page 77: Replace Laser Toner Cartridge
10.2.3. Replace Laser Toner Cartridge Note: before replacing the laser toner cartridge, please pay attention to the following: • The laser toner cartridge surface may contain toner. Please remove it carefully to avoid spilling. • Put the removed laser toner cartridge on a piece of paper to avoid the toner from accidently spilling. - Page 78 3. Remove the protective cover, and put the laser toner cartridge into the printer along the guides. • Check whether there is any seal on it before installing the laser toner cartridge into the Note: printer; if there is any, please tear off the seal and then install the cartridge. 4.
-
Page 79: Troubleshooting
• If the printer still does not start printing, please check whether all the jammed paper inside the printer are cleared. • If you cannot remove the jammed paper yourself, please contact your local Pantum authorized repair center or send the printer to the nearest Pantum authorized service... -
Page 80: Paper Jam In The Feed Port
11.1.1. Paper Jam in the Feed Port If the output tray is open, please close it at first. Gently pull the jammed paper straight out. If the paper does not move while being pulled, or there is no paper in this area, please check the inside of the printer. - Page 81 2. Open the upper fuser guide to decrease the pressure of compression spring. 3. Pull the jammed paper out of the fuser unit. If no jammed paper is found, please go to the next step. 4. Remove the laser toner cartridge along the guides.
- Page 82 5. Slowly pull the jammed paper out along the paper output orientation. 6. After removing the jammed paper, insert the laser toner cartridge into the printer along the guides until you hear a click assuring you that the cartridge is fully inserted. 7.
-
Page 83: Common Troubleshooting
11.2. Common Troubleshooting 11.2.1. Common Trouble Trouble Cause Solution Printer Problems The cable between the computer and the printer is not Disconnect and then reconnect the printer cable. connected properly. Check the printer settings to ensure that the print job Error in specifying the print is sent to the correct port. -
Page 84: Image Defects
dry print media.. Vapor is not an abnormality in this case, but still you can use newly unpacked paper to avoid generation The heat generated during the of vapor. Also, keep your paper from the damp. The vapor toner fusing causes the paper Although vapor is not an abnormality, using comes out to vapor (This happens even... - Page 85 • The laser toner cartridge is dirty. replace it with a new one. • The internal part of the laser toner • Please contact Pantum Customer cartridge is damaged. Service to repair and replace the • The fuser component is damaged.
- Page 86 • The laser toner cartridge is dirty. • Clean the laser toner cartridge or • The transfer roller inside the printer is replace it with a new one. dirty. • Clean the internal transfer • The transfer voltage inside the printer is components of the printer.
-
Page 87: Product Specification
• Specification values vary slightly from printers with different models with different Note: functions ,and product specifications vary from different countries and regions. • These values are based on the initial data. For more information about the latest specifications, please visit: www.pantum.com. 12.1. Specification Overview Product Size (W*D*H) 337mm*220mm*178mm... - Page 88 Unique Identifier Trade Name: PANTUM Model No.: P221**/P251**(* could be A-Z, a-z, 0-9 or blank) Responsible Party – U.S. Contact Information Company Name: PANTUM (USA) CO.,LTD Office address:13875 Ramona Ave.,Chino, CA 91710 TEL: 626-965-6662 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
