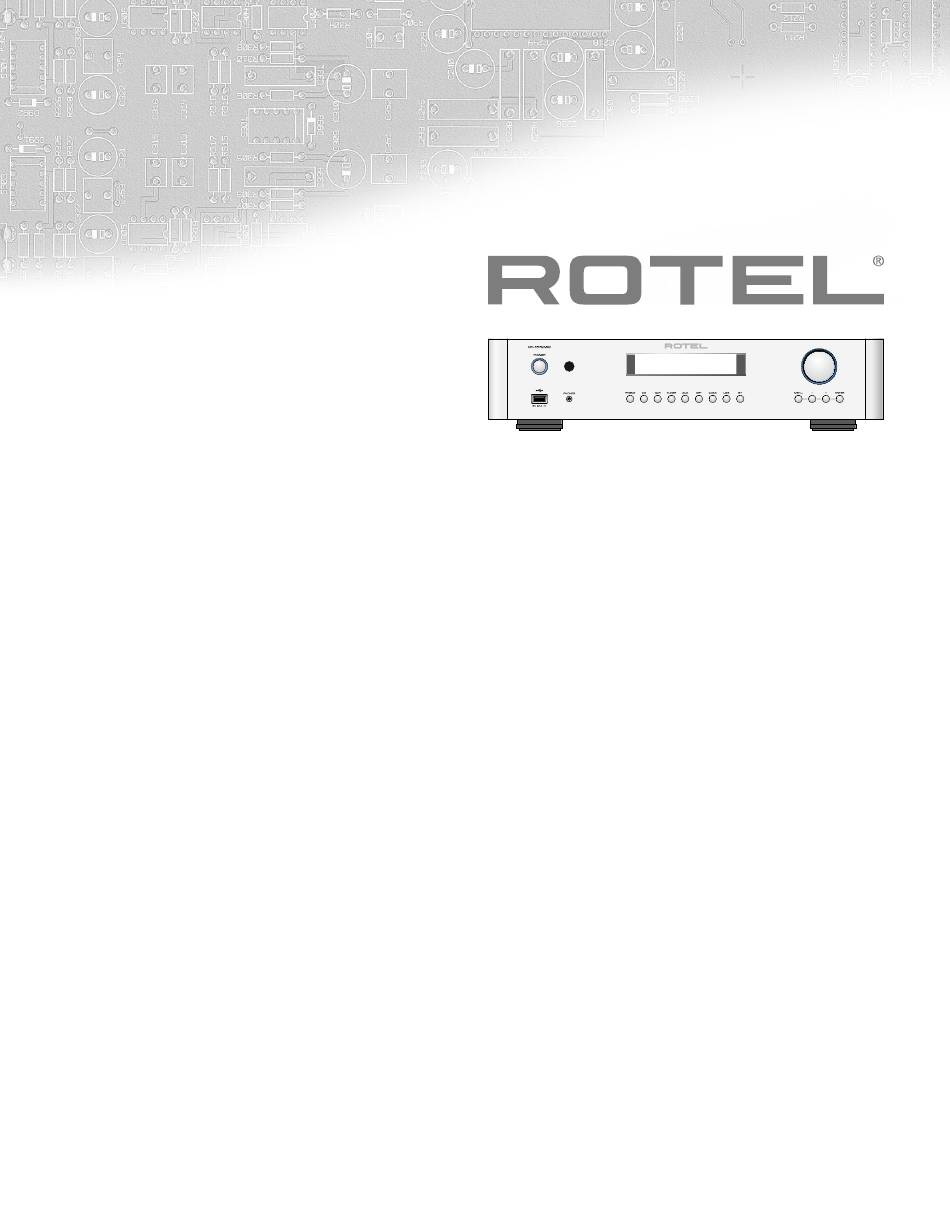

  • Page 1 RC‑1572MKII Stereo Control Amplifier Amplificateur de Contrôle Stéréo Stereo‑Vorverstärker Preamplificador Estereofónico Stereo‑regelversterker Preamplificatore Stereo Stereokontrollförstärkare Предварительный стерео усилитель Owner’s Manual Manuel de l’utilisateur Bedienungsanleitung Manual de Instrucciones Gebruikershandleiding Manuale di istruzioni Instruktionsbok Инструкция пользователя...

  • Page 2: Important Safety Instructions

    Clean only with dry cloth. Connect the component to the power outlet only with the supplied power Rotel products are designed to comply with international Do not block any ventilation openings. Install in accordance with the supply cable or an exact equivalent. Do not modify the supplied cable.
  • Page 3 Figure 1: Controls and Connections Bedieningselementen en aansluitingen Commandes et Branchements Controlli e connessioni Bedienelemente und Anschlüsse Kontroller och anslutningar Controles y Conexiones Органы управления и разъемы...
  • Page 4 RC‑1572MKII Stereo Control Amplifier Figure 2 : RR‑AX93 Remote Control Afstandsbediening RR‑AX93 Télécommande infrarouge RR‑AX93 Telecomando RR‑AX93 Fernbedienung RR‑AX93 RR‑AX93 fjärrkontroll Mando a Distancia RR‑AX93 Пульт ДУ RR-AX93...
  • Page 5 Branchements des entrées et sorties analogiques Collegamenti ingressi ed uscite analogici Analoge Ein‑ und Ausgangsanschlüsse Anslutningar för analoga in‑ och utgångar Entradas y Salidas Analógicas Аналоговые входные и выходные разъемы PHONO Rotel RC-1572MKII Rotel RCD-1572 CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 RP-565E...
  • Page 6 Branchements des entrées et sorties symétriques (XLR) Ingressi ed uscite analogici bilanciati (XLR) Symmetrische (XLR‑)Ein‑ und Ausgangsanschlüsse Balanserade in‑ och utgångar (XLR) Entradas y Salidas Balanceadas (XLR) Балансные (XLR) входные и выходные разъемы Rotel RC-1572MKII Rotel RCD-1572 CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1...
  • Page 7 Digitale ingangen en 12V‑triggeruitgangen Collegamenti ingressi digitali e segnali Trigger 12 V Anslutningar för digitala ingångar och 12‑volts styrsignaler Цифровой вход и выход 12-В триггерного сигнала Computer (Supplied) Rotel RC-1572MKII Rotel RCD-1572 CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1...
  • Page 8 RC‑1572MKII Stereo Control Amplifier Important Notes When making connections be sure to: Turn off all the components in the system before hooking up any components, including loudspeakers. Turn off all components in the system before changing any of the connections to the system. It is also recommended that you: Turn the volume control of the amplifier all the way down before the amplifier is turned on or off.

  • Page 9: About Rotel

    Rotel Link 0 ........

  • Page 10: Ac Power And Control

    Please contact your authorized Rotel dealer is noted on a decal on the back panel. for answers to any questions you might have. In addition, all of us at Rotel NOTE: Should you move your unit to another country, it may be possible welcome your questions and comments.

  • Page 11: Remote Sensor

    Output Connections streaming via Bluetooth from your device (i.e. mobile phones, tablets or computers). From your device, look for “Rotel Bluetooth” and connect to it. MONO SUB Output r Connection is normally automatic, but if prompted for a password, please There are 2 connectors for mono subwoofer output to connect to a subwoofer.

  • Page 12: Dimmer Control

    Consult off the RC-1572MKII. your authorized Rotel dealer for information on these external repeaters and the proper wiring of a jack to fit the mini-jack receptacle. To temporarily change the Bass and Treble settings from the remote control,...

  • Page 13: Settings Menu

    • DIMMER: Dims the display. Being Roon Tested means that Rotel and Roon have collaborated to ensure NOTE: This setting is stored permanently even after the RC-1572MKII you have the best experience using Roon software and the RC-1572MKII is powered off.
  • Page 14 NOTE: For more information regarding network connection please Bluetooth. When enabled and the input with a Fixed Volume is selected, contact your authorized Rotel dealer. the Volume level will immediately be set to the specified level. NOTE: A network connection is not required for the RC-1572MKII to Valid settings include: VARIABLE, FIXED 01-95, FIXED MAX.

  • Page 15: Troubleshooting

    • PC-USB: This shows current loaded software version for PC-USB processor. plugged into the wall outlet, it indicates that the internal power fuse may have blown. If you believe this has happened, contact your authorized Rotel • SIGNAL SENSE: Check if an audio signal is present on the configured dealer to get the fuse replaced.

  • Page 16: Specifications

    Weight (net) 8.4 kg, 18.5 lbs. All specifications are accurate at the time of printing. Rotel reserves the right to make improvements without notice. Rotel and the Rotel Hi-Fi logo are registered trademarks of The Rotel Co., Ltd, Tokyo, Japan.
