Summary of Contents for Tiger TANDEM Series

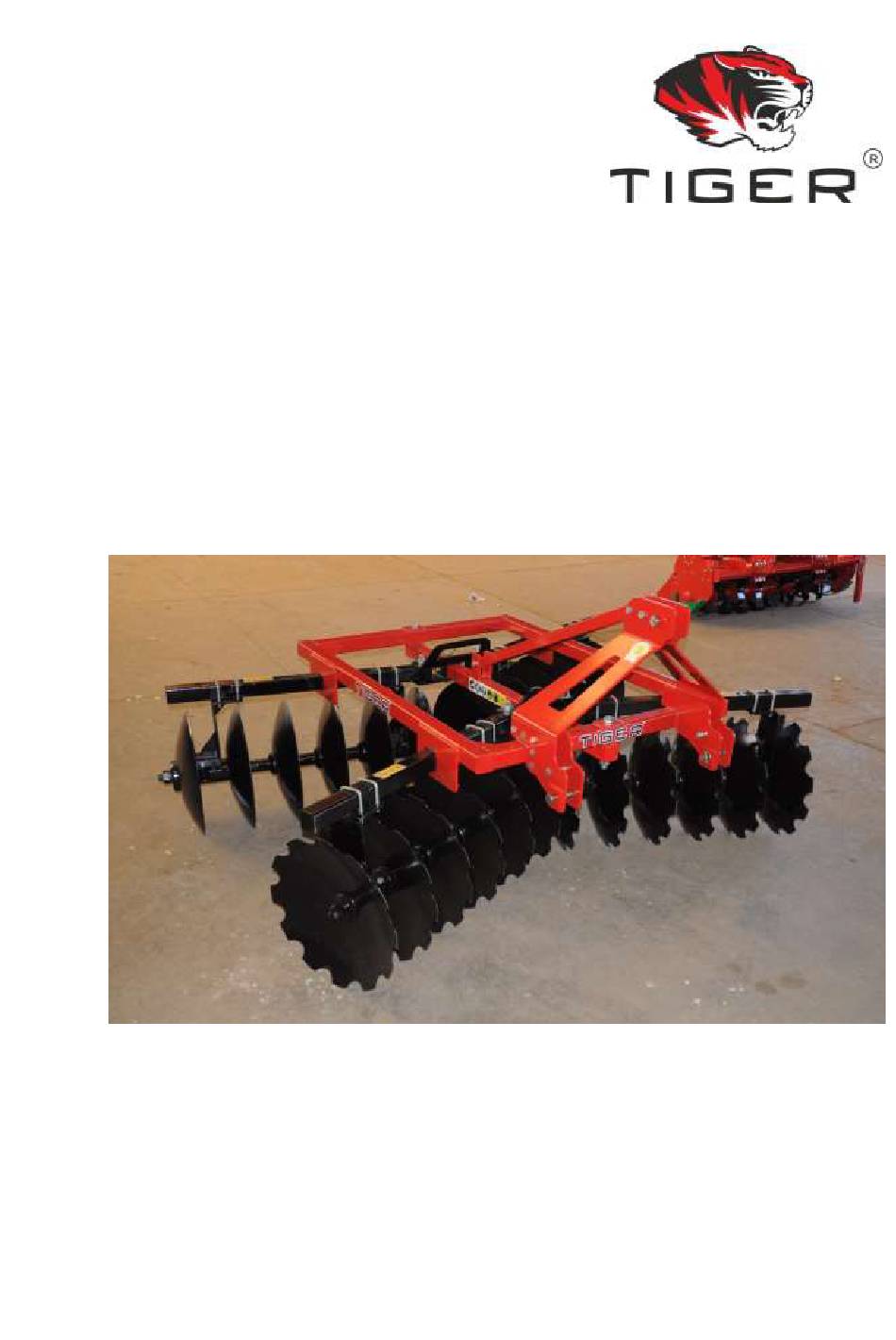

- Page 1 Operator’s Manual and Spare Parts Tandem Disc Harrow MODEL –DHT TANDEM SERIES...
- Page 2 CONGRATULATION Dear Customer, With the decision to buy TIGER agriculture machinery, you have made a wise choice. You will immediately note the ruggedness and dependability of this machine. This manual contains information on operation and maintenance of the machine. Observing all advice will guarantee a regular working order a longer machine life and savings on machine maintenance.
-
Page 3: Table Of Contents
INDEX Introduction Description of the Machine Areas of Usage Guarantee Expiry of Guarantee Technical Specifications Dimensions of Machine Main Parts of Machine Safety Measures Safety symbols Follow General Safety Instructions Follow Equipment Safety Instructions Follow Operating Safety Instructions Follow Transporting Safety Instructions Follow Maintenance Safety Instructions Follow Storage Safety Instructions Follow Stickers on the Machine... -
Page 4: Introduction
INTRODUCTION This manual describes the regulations for usage and maintenance of the machine. This manual is integrating part of product and must be kept in safe place consultation during the whole life span of the machine. It is user’s responsibility to check that the machine is operated only in optimum conditions of safety for people, animals and properly. -
Page 5: Expiry Of Guarantee
- The purchaser will enforce his rights on the guarantee only when he has respected conditions concerning the benefit of guarantee. - The guarantee is valid for one year, against all defects of material from the date of delivery of the equipment. - The guarantee does not include working and shipping costs. -
Page 6: Technical Specifications
TECHNICAL SPECIFICATION SPECIFICATION DH20T DH24T DH28T DH32T Three Point Linkage – CAT II Linkage Disc Number Disc Diameter(inch) Disc Spacing 200 - 250 (mm) Working Width 2405 2855 2305 3755 (mm) Total Width (mm) 2910 3360 3810 4260 Weight (kg) 44 –... -
Page 7: Main Parts Of Machine
4.1 DIMENTIONS OF THE MACHINE Unit DH20T DH24T DH28T DH32T Length 1530 1600 1670 1820 Width 1900 2200 2400 2500 Total 1020 1020 1020 1020 Height 4.2 MAIN PARTS OF MACHINE... -
Page 8: Safety Measures
SAFETY MEASURES 5.1 SAFETY SYMBOLS Safety alert symbol is used in conjunction with following Signal words, according to the degree of possible injuries that may result operating the implement; DANGER identifies the most serious hazards, if not avoided, will result in death or serious injury. -
Page 9: Follow Equipment Safety Instructions
placed in the position indicated by this manual. Before using the machine, make sure that all safety devices are installed and in good working conditions. In case of damages of shields of shields, replace them immediately. Is forbidden to remove or alter safety devices. Before starting and during operation of the implement make sure there are no people or animals in the area of operation: the machine can project material from the back, with risks of serious injury or death. -
Page 10: Follow Operating Safety Instructions
Do not operate implement on unstable (muddy or sandy) or rocky ground. Keep the machine clean from debris and foreign objects which may damage functioning or cause injury. Do not use the machine if the category of the connecting pins of the Rotary Hoe does not match that of the tractor hitch system. -
Page 11: Follow Transporting Safety Instructions
Stop operating immediately if blades strike a foreign object. Repair all damage and make certain rotor and blades are in good condition before resuming operation. Avoid clutch’s overheating caused by too long or frequent slipping of the clutch, since it can damage the clutch components. Before checking slip clutch, make sure it has cooled. -
Page 12: Follow Storage Safety Instructions
parts provided by the manufacturer, importer or your dealer. Perform maintenance operations using appropriate Personal Protective Equipment (protective eyeglasses, har hat, hearing protection, safety shoes, overall and work gloves, filter mask). Before any maintenance operation, make sure that the parts which become hot during use (friction clutch, gearbox etc) have cooled. - Page 13 Disengage the PTO, turn OFF the tractor engine, remove the key and ensure that all rotating parts have stopped before approaching the implement. Read the operator’s manual before performing any maintenance operation. Thrown or flying objects hazard. Safety Equipment Crushing hazards & Thrown or Flying objects hazards.
-
Page 14: Attaching Of The Machine To The Tractor
ATTACHING OF THE MACHINE TO THE TRACTOR The power of the tractor should be convenient to the machine which mentioned in technical specification. Air pressure in the tractor’s tires must be sufficient. It is inconvenience within motion area of lifting levers. It is absolutely forbidden to stand between the tractor and the equipment while adjusting the middle lever. -
Page 15: Usage Of Machine
When machine is attached to tractor, front weights should put through above mentioned formula. These weights should be calculated according to capacity of tractor’s lifting weight and packing. USAGE OF MACHINE 7.1 ADJUSTING OF SCRAPER Scrapers are used for scraping of soils inside of discs during working. Scrapers mounted to chassis as adjustable. - Page 16 Here follows a list of various maintenance operations to be carrying out periodically. Lowered operating costs and a longer lasting machine depend, among others, on the methodical constant observation of these rules. The maintenance periods listed in this manual are only indicative and are for on normal conditions on use therefore be varied depending the kind of service, the more or less dusty surroundings, seasonal facfors, etc.
-
Page 17: Trouble Shooting
10. Trouble Shooting PROBLEM CAUSE SOLUTIONS There are cracking’s and It is turned right at the While using the it should be breaking on the front end of field turned to the left. battery bearing leg. Angle can’t be adjusted or Angle adjusting profile Profiles should be cleaned machine can’t get transport... -
Page 18: Torque Table
11. Torque Table Check frequently Rotary Hoe hardware to make sure that screws and bolts are tightened according to torque values listed in the following table:...
