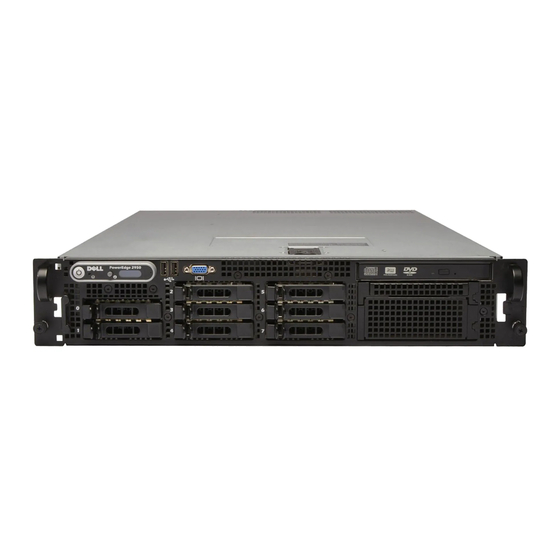

Dell™ PowerEdge™ 2970 Systems
Information Update
This document provides updated information for your system on the following topics:
•
Regional Hardware Owner's Manual available on the Web
•

Using the online diagnostics

•
Demand-Based Power Management feature
•
System start-up behavior
•
Overcurrent events on USB ports
•
LCD status message update
•
System board jumpers
•
Creating a BMC user password
Regional Hardware Owner's Manuals Available on the Web
At production time, the translated regional versions of the Hardware Owner's Manual were unavailable
for inclusion on the Dell OpenManage™ Documentation CD, version 5.2. All versions of the Hardware
Owner's Manuals that are normally delivered on the CD are available for download on the Web at
support.dell.com.
Using the Online Diagnostics
The online Server Administrator Diagnostics tool mentioned in the section "Using Server Administration
Diagnostics" in the Hardware Owner's Manual has been replaced by the online Dell PowerEdge™
Diagnostics suite of diagnostic programs. Dell PowerEdge Diagnostics includes online diagnostic tests for
chassis and storage components such as hard drives, physical memory, communications ports, NICs, CMOS,
and more.
To assess a system problem, first use the online Dell PowerEdge Diagnostics. If you are unable to identify
the problem using the PowerEdge Diagnostics, then use the system diagnostics.
The files required to run PowerEdge Diagnostics for systems running supported Microsoft
and Linux operating systems are available at support.dell.com and on the CDs that came with your system.
For information about using diagnostics, see the Dell PowerEdge Diagnostics User's Guide.
March 2007
®
®
