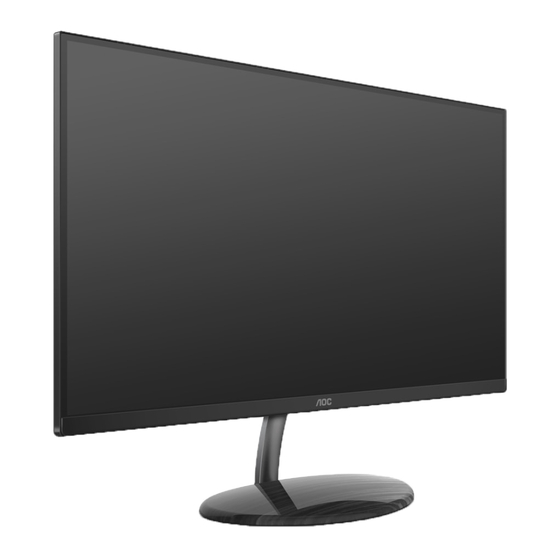

- Page 1 LCD Monitor User Manual U27V3/27V3H/Q27V3 LED backlight www.aoc.com ©2020 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting Viewing Angle ............................8 Connecting the Monitor ............................. 9 Adjusting ..................................... -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Contents in Box Monitor CD Manual Warranty Card Base Power Cord Adapter HDMI Cable DP Cable Audio Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 10: Adjusting Viewing Angle
Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: NOTE: Do not touch the LCD screen when you change the angle. -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: U27V3 27V3H Q27V3 1. Power 2. HDMI-1 3. HDMI-2 4. DisplayPort 5. Earphone 6. D-SUB 7. HDMI Connect to PC 1. Connect the power cord to the back of the display firmly. -
Page 12: Adjusting
Adjusting Hotkeys Source/Exit/Up Eco/DCR/Down Clear Vision/Left Volume/Right Power/ Menu/Enter Menu/Enter When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 second to turn off the monitor. Power Press the Power button to turn on the monitor. Volume/Right When there is no OSD, Press Volume button to active volume adjustment bar, Press Left or Right to adjust volume. - Page 13 Clear Vision 1. When there is no OSD, Press the “Left” button to activate Clear Vision. 2. Use the “Left” or “Right” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. 3. Press and hold “Left” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on”...
-
Page 14: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Image Setup Luminance Color Setup Picture Boost OSD Setup Extra Exit Contrast Gamma Gamma 1 Brightness Eco mode Standard Overdrive 1). Press the MENU-button to activate the OSD window. 2). Press Left or Right to navigate through the functions. Once the desired function is highlighted, press the MENU- button to activate it, press Left or Right to navigate through the sub-menu functions. -
Page 15: Luminance
Game Mode Eco mode Movie Movie Mode Sports Sports Mode Reading Reading Mode Uniformity Uniformity Mode (U27V3) Gamma1 Adjust to Gamma 1 Gamma Gamma2 Adjust to Gamma 2 Gamma3 Adjust to Gamma 3 Disable dynamic contrast ratio Enable dynamic contrast ratio... -
Page 16: Color Setup
Color Setup Color Setup Picture Boost OSD Setup Extra Exit Luminance Image Setup Color Temp. Warm LowBlue Mode DCB Mode Green DCB Demo Blue Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Color Temp. Cool Recall Cool Color Temperature from EEPROM. -
Page 17: Picture Boost
Picture Boost Picture Boost OSD Setup Extra Exit Luminance Image Setup Color Setup Bright Frame Brightness H. Position Frame Size Contrast V. Position Bright Frame on or off Disable or Enable Bright Frame Frame Size 14-100 Adjust Frame Size Brightness 0-100 Adjust Frame Brightness Contrast... -
Page 18: Osd Setup
Select the OSD language Timeout 5-120 Adjust the OSD Timeout DP Capability If the DP video content supports DP1.2, please select 1.1/1.2 (U27V3) DP1.2 for DP Capability; otherwise, please select DP1.1 H. Position 0-100 Adjust the horizontal position of OSD V. Position 0-100... -
Page 19: Extra
Auto adjust the picture to default (27V3H) Off timer 0-24hrs Select DC off time Wide Select wide format for display. Image Ratio (U27V3) Native resolution Movie 1 (U27V3) over scan: Top 9% ; Down 9% Movie 2 (U27V3) over scan: Top 9% ; Down 17%. -
Page 20: Exit
Exit Exit Luminance Image Setup Color Setup Picture Boost OSD Setup Extra Exit Exit the main OSD... -
Page 21: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange... -
Page 22: Driver
(Screen+) Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide. The software Supported operating systems: Windows 10, Windows 8, Windows 7. -
Page 23: E-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). -
Page 24: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust. Picture Is Fuzzy & Has Make sure you are not using an extension cable or switch box. -
Page 25: Specification
Specification General Specification Model name U27V3 Driving system TFT Color LCD Panel Viewable Image Size 68.5 cm diagonal Pixel pitch 0.1554mm(H) x 0.1554mm(V) Horizontal scan range 30k-160kHz Horizontal scan Size(Maximum) 596.736mm Vertical scan range 23-75Hz Vertical Scan Size(Maximum) 335.664mm Others... - Page 26 Model name Q27V3 Driving system TFT Color LCD Panel Viewable Image Size 68.5 cm diagonal Pixel pitch 0.2331mm(H) x 0.2331mm(V) Horizontal scan range 30k-114kHz Horizontal scan Size(Maximum) 596.736mm Vertical scan range 48-75Hz Vertical Scan Size(Maximum) 335.664mm Others Optimal preset resolution 2560x1440@60Hz Plug &...
-
Page 27: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@67Hz 66.667 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 DOS MODE 720x400@70Hz 31.469 70.087 SVGA 800x600@56Hz 35.156 56.25 SVGA 800x600@60Hz 37.879 60.317 SVGA 800x600@72Hz 48.077 72.188 SVGA 800x600@75Hz 46.875 SVGA 832x624@75Hz 49.725 74.551... -
Page 28: Pin Assignments
Pin Assignments Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock- TMDS Data 1Shield... -
Page 29: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
