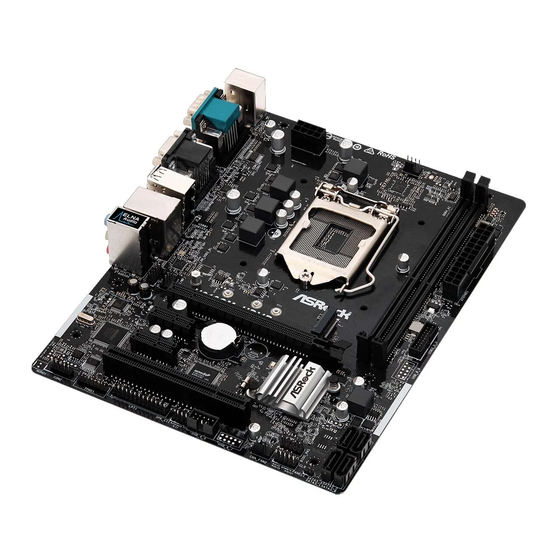

ASROCK H310CM-HDVP/DASH User Manual
  1. Manuals
  2. Brands
  3. ASROCK Manuals
  4. Motherboard
  5. H310CM-HDVP/DASH
  6. User manual

ASROCK H310CM-HDVP/DASH User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ASROCK H310CM-HDVP/DASH

Summary of Contents for ASROCK H310CM-HDVP/DASH

  • Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) The terms HDMI®...

  • Page 4: Table Of Contents

    Expansion Slots (PCI and PCI Express Slots) Jumpers Setup Onboard Headers and Connectors M.2_SSD (NGFF) Module Installation Guide Chapter 3 Software and Utilities Operation Installing Drivers A-Tuning ASRock Live Update & APP Shop 3.3.1 UI Overview 3.3.2 Apps 3.3.3 BIOS & Drivers 3.3.4 Setting...
  • Page 5 Chapter 4 UEFI SETUP UTILITY Introduction 4.1.1 UEFI Menu Bar 4.1.2 Navigation Keys Main Screen Advanced Screen 4.3.1 CPU Configuration 4.3.2 DRAM Configuration 4.3.3 Voltage Configuration 4.3.4 Chipset Configuration 4.3.5 Storage Configuration 4.3.6 Serial Port Console Redirection 4.3.7 NVMe Configuration 4.3.8 Super IO Configuration 4.3.9 ACPI Configuration 4.3.10 USB Configuration...

  • Page 6: Chapter 1 Introduction

    If you require technical support related to this mother- board, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 7: Specifications

    1.2 Specifications Platform • Micro ATX Form Factor • Solid Capacitor design • Supports 9 and 8 Gen Intel® Core Processors (Socket 1151) • 4 Power Phase design • Supports Intel® Turbo Boost 2.0 Technology Chipset • Intel® H310 Memory • Dual Channel DDR4 Memory Technology • 2 x DDR4 DIMM Slots • Supports DDR4 2666/2400/2133 non-ECC, un-buffered...
  • Page 8 H310CM-HDVP/DASH • Three graphics output options: D-Sub, DVI-D and HDMI * Supports up to 2 displays simultaneously • Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz • Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz • Supports D-Sub with max.
  • Page 9 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)** ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit Connector • 1 x Print Port Header • 1 x COM Port Header • 1 x TPM Header...
  • Page 10 • ErP/EuP ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.

  • Page 11: Motherboard Layout

    ATX12V1 USB 2.0 USB 2.0 T: USB0 T: USB2 B: USB1 B: USB3 USB 3.1 Gen1 Top: T: USB0 RJ-45 B: USB1 HD_AUDIO1 CHA_FAN1/WP H310CM-HDVP/DASH PCIE1 CMOS PCIE2 Battery Intel H310 PCIE3 BIOS PCI1 PANEL1 PLED PWRBTN COM2 LPT1 CHA_FAN2...
  • Page 12 H310CM-HDVP/DASH No. Description ATX 12V Power Connector (ATX12V1) CPU Fan Connector (CPU_FAN1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) ATX Power Connector (ATXPWR1) USB 2.0 Header (USB_8_9) (shared with USB3_2_3) SATA3 Connector (SATA3_3) SATA3 Connector (SATA3_2) SATA3 Connector (SATA3_1)

  • Page 13: I/O Panel

    1.4 I/O Panel No. Description No. Description PS/2 Mouse Port Microphone (Pink)** COM Port USB 3.1 Gen1 Ports (USB01) D-Sub Port USB 2.0 Ports (USB0123) LAN RJ-45 Port* HDMI Port Line In (Light Blue)** DVI-D Port Front Speaker (Lime)** PS/2 Keyboard Port * There are two LEDs on each LAN port.
  • Page 14 H310CM-HDVP/DASH ** To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi- channel audio feature through the audio driver. Please set Speaker Configuration to “7.1 Speaker”in the Realtek HD Audio Manager.

  • Page 15: Chapter 2 Installation

    Chapter 2 Installation This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 16: Installing The Cpu

    H310CM-HDVP/DASH 2.1 Installing the CPU 1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 18 H310CM-HDVP/DASH Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

  • Page 19: Installing The Cpu Fan And Heatsink

    2.2 Installing the CPU Fan and Heatsink...

  • Page 20: Installing Memory Modules (Dimm)

    H310CM-HDVP/DASH 2.3 Installing Memory Modules (DIMM) This motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.

  • Page 22: Expansion Slots (Pci And Pci Express Slots)

    H310CM-HDVP/DASH 2.4 Expansion Slots (PCI and PCI Express Slots) There are 1 PCI slot and 3 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 23: Jumpers Setup

    2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper Short: Clear CMOS (CLRCMOS1) Open: Default 2-pin Jumper...

  • Page 24: Onboard Headers And Connectors

    H310CM-HDVP/DASH 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header...
  • Page 25 Chassis Intrusion and Please connect the SPEAKER DUMMY Speaker Header chassis power LED and DUMMY (7-pin SPK_CI1) the chassis speaker to this (see p.6, No. 14) header. SIGNAL DUMMY Serial ATA3 Connectors These four SATA3 (SATA3_0: connectors support SATA see p.6, No. 9) data cables for internal (SATA3_1: storage devices with up to...
  • Page 26 H310CM-HDVP/DASH Front Panel Audio Header This header is for OUT_RET OUT2_L J_SENSE (9-pin HD_AUDIO1) connecting audio devices MIC_RED OUT2_R PRESENCE# (see p.6, No. 19) to the front audio panel. MIC2_R MIC2_L 1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly.
  • Page 27 ATX Power Connector This motherboard (24-pin ATXPWR1) provides a 24-pin ATX (see p.6, No. 4) power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13. ATX 12V Power This motherboard Connector provides an 8-pin ATX (8-pin ATX12V1) 12V power connector.

  • Page 28: M.2_Ssd (Ngff) Module Installation Guide

    H310CM-HDVP/DASH 2.7 M.2_SSD (NGFF) Module Installation Guide The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (M2_1) supports SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s).
  • Page 29 Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
  • Page 30 H310CM-HDVP/DASH M.2_SSD (NGFF) Module Support List Vendor Interface ADATA SATA3 AXNS381E-128GM-B ADATA SATA3 AXNS381E-256GM-B ADATA SATA3 ASU800NS38-256GT-C ADATA SATA3 ASU800NS38-512GT-C ADATA PCIe3 x4 ASX7000NP-128GT-C ADATA PCIe3 x4 ASX8000NP-256GM-C ADATA PCIe3 x4 ASX7000NP-256GT-C ADATA PCIe3 x4 ASX8000NP-512GM-C ADATA PCIe3 x4 ASX7000NP-512GT-C...
  • Page 31 SATA3 VLM100-120G-2280B-RD V-Color SATA3 VLM100-240G-2280RGB V-Color SATA3 VSM100-240G-2280 V-Color SATA3 VLM100-240G-2280B-RD SATA3 WDS100T1B0B-00AS40 SATA3 WDS240G1G0B-00RC30 PCIe3 x4 WDS256G1X0C-00ENX0 (NVME) PCIe3 x4 WDS512G1X0C-00ENX0 (NVME) For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com...

  • Page 32: Chapter 3 Software And Utilities Operation

    H310CM-HDVP/DASH Chapter 3 Software and Utilities Operation 3.1 Installing Drivers The Support CD that comes with the motherboard contains necessary drivers and useful utilities that enhance the motherboard’s features. Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN”...

  • Page 33: A-Tuning

    3.2 A-Tuning A-Tuning is ASRock’s multi purpose software suite with a new interface, more new features and improved utilities. 3.2.1 Installing A-Tuning A-Tuning can be downloaded from ASRock Live Update & APP Shop. After the installation, you will find the icon “A-Tuning“ on your desktop. Double-click the “A-Tuning“...
  • Page 34 H310CM-HDVP/DASH System Info View information about the system. *The System Browser tab may not appear for certain models. FAN-Tastic Tuning Configure up to five different fan speeds using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.
  • Page 35 Settings Configure ASRock A-Tuning. Click to select "Auto run at Windows Startup" if you want A-Tuning to be launched when you start up the Windows operating system.

  • Page 36: Asrock Live Update & App Shop

    Double-click on your desktop to access ASRock Live Update & APP Shop utility. *You need to be connected to the Internet to download apps from the ASRock Live Update & APP Shop. 3.3.1 UI Overview Category Panel Hot News...

  • Page 37: Apps

    3.3.2 Apps When the "Apps" tab is selected, you will see all the available apps on screen for you to download. Installing an App Step 1 Find the app you want to install. The most recommended app appears on the left side of the screen. The other various apps are shown on the right.
  • Page 38 H310CM-HDVP/DASH Step 3 If you want to install the app, click on the red icon to start downloading. Step 4 When installation completes, you can find the green "Installed" icon appears on the upper right corner. To uninstall it, simply click on the trash can icon...
  • Page 39 Upgrading an App You can only upgrade the apps you have already installed. When there is an available new version for your app, you will find the mark of "New Version" appears below the installed app icon. Step 1 Click on the app icon to see more details. Step 2 Click on the yellow icon to start upgrading.

  • Page 40: Bios & Drivers

    H310CM-HDVP/DASH 3.3.3 BIOS & Drivers Installing BIOS or Drivers When the "BIOS & Drivers" tab is selected, you will see a list of recommended or critical updates for the BIOS or drivers. Please update them all soon. Step 1 Please check the item information before update. Click on to see more details.

  • Page 41: Setting

    3.3.4 Setting In the "Setting" page, you can change the language, select the server location, and determine if you want to automatically run the ASRock Live Update & APP Shop on Windows startup.

  • Page 42: Chapter 4 Uefi Setup Utility

    H310CM-HDVP/DASH Chapter 4 UEFI SETUP UTILITY 4.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right after you power on the computer, otherwise, the Power-On-Self-Test (POST) will continue with its test routines.

  • Page 43: Navigation Keys

    4.1.2 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>...

  • Page 44: Main Screen

    H310CM-HDVP/DASH 4.2 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview.

  • Page 45: Advanced Screen

    4.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, DRAM Configuration, Voltage Configuration, Chipset Configura- tion, Storage Configuration, Serial Port Console Redirection, NVMe Configuration, Super IO Configuration, ACPI Configuration, USB Configuration and Trusted Computing.

  • Page 46: Cpu Configuration

    H310CM-HDVP/DASH 4.3.1 CPU Configuration Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved. Active Processor Cores Select the number of cores to enable in each processor package.
  • Page 47 Package C State Support Enable CPU, PCIe, Memory, Graphics C State Support for power saving. CFG Lock This item allows you to disable or enable the CFG Lock. CPU Thermal Throttling Enable CPU internal thermal control mechanisms to keep the CPU from overheat- ing.
  • Page 48 H310CM-HDVP/DASH AVX is a more stressful workload that lowers the AVX ratio to ensure maximum possible ratio for SSE workloads. BCLK Aware Adaptive Voltage BCLK Aware Adaptive Voltage enable/disable. When enabled, pcode will be aware of the BCLK frequency when calculating the CPU V/F curves. This is ideal for BCLK OC to avoid high voltage overrides.

  • Page 49: Dram Configuration

    4.3.2 DRAM Configuration DRAM Timing Configuration Load XMP Setting Load XMP settings to overclock the memory and perform beyond standard specifications. BCLK Frequency The CPU speed is determined by the CPU Ratio multiplied with the BCLK. Increasing the BCLK will increase the internal CPU clock speed but also affect the clock speed of other components.
  • Page 50 H310CM-HDVP/DASH tRCD / tRP RAS# to CAS# Delay : The number of clock cycles required between the opening of a row of memory and accessing columns within it. Row Precharge: The number of clock cycles required between the issuing of the precharge command and opening the next row.

  • Page 51: Voltage Configuration

    4.3.3 Voltage Configuration Vcore Offset Voltage (mV) Use this to select Vcore Offset Voltage. GT Offset Voltage (mV) Use this to select GT Offset Voltage. DRAM Voltage Use this to configure DRAM Voltage. The default value is [Auto]. PCH +1.0 Volt Use this to configure chipset 1.00V Voltage.

  • Page 52: Chipset Configuration

    H310CM-HDVP/DASH 4.3.4 Chipset Configuration Primary Graphics Adapter Select a primary VGA. Above 4G Decoding Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if the system supports 64 bit PCI decoding). VT-d Intel® Virtualization Technology for Directed I/O helps your virtual machine...
  • Page 53 PCI Express Native Control Select Enable for enhanced PCI Express power saving in OS. PCIE ASPM Support This option enables/disables the ASPM support for all CPU downstream devices. PCH PCIE ASPM Support This option enables/disables the ASPM support for all PCH PCIE devices. DMI ASPM Support This option enables/disables the control of ASPM on CPU side of the DMI Link.
  • Page 54 H310CM-HDVP/DASH Restore on AC/Power Loss Select the power state after a power failure. If [Power Off] is selected, the power will remain off when the power recovers. If [Power On] is selected, the system will start to boot up when the power recovers.

  • Page 55: Storage Configuration

    4.3.5 Storage Configuration SATA Controller(s) Enable/disable the SATA controllers. SATA Controller Speed Indicates the maximum speed the SATA controller can support. SATA Aggressive Link Power Management SATA Aggressive Link Power Management allows SATA devices to enter a low power state during periods of inactivity to save power.

  • Page 56: Serial Port Console Redirection

    H310CM-HDVP/DASH 4.3.6 Serial Port Console Redirection Console Redirection Use this option to enable or disable Console Redirection. If this item is set to En- abled, you can select a COM Port to be used for Console Redirection. Console Redirection Settings Use this option to configure Console Redirection Settings, and specify how your computer and the host computer to which you are connected exchange information.

  • Page 57: Nvme Configuration

    4.3.7 NVMe Configuration The NVMe Configuration displays the NVMe controller and Drive information.

  • Page 58: Super Io Configuration

    H310CM-HDVP/DASH 4.3.8 Super IO Configuration Serial Port Enable or disable the Serial port. Serial Port Address Select the address of the Serial port. Serial Port 2 Enable or disable the Serial port. Serial Port Address Select the address of the Serial port.

  • Page 59: Acpi Configuration

    4.3.9 ACPI Configuration Suspend to RAM Select disable for ACPI suspend type S1. It is recommended to select auto for ACPI S3 power saving. PS/2 Keyboard S4/S5 Wakeup Support Allow the system to be waked up by a PS/2 Keyboard. PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN.

  • Page 60: Usb Configuration

    H310CM-HDVP/DASH 4.3.10 USB Configuration Legacy USB Support Enable or disable Legacy OS Support for USB 2.0 devices. If you encounter USB compatibility issues it is recommended to disable legacy USB support. Select UEFI Setup Only to support USB devices under the UEFI setup and Windows/Linux operating systems only.

  • Page 61: Trusted Computing

    4.3.11 Trusted Computing Security Device Support Enable or disable BIOS support for security device.

  • Page 62: Tools

    H310CM-HDVP/DASH 4.4 Tools UEFI Update Utility Instant Flash Save UEFI files in your USB storage device and run Instant Flash to update your UEFI.

  • Page 63: Hardware Health Event Monitoring Screen

    4.5 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed and voltage. Fan Tuning Measure Fan Min Duty Cycle. CPU Fan 1 Setting Select a fan mode for CPU Fans 1, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature.
  • Page 64 H310CM-HDVP/DASH Chassis Fan 1 Temp Source Select a fan temperature source for Chassis Fan 1. Chassis Fan 2 Setting Select a fan mode for Chassis Fan 2, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature.

  • Page 65: Security Screen

    4.6 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.

  • Page 66: Boot Screen

    H310CM-HDVP/DASH 4.7 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer's boot time. In fast mode you may not boot from an USB storage device.
  • Page 67 Full Screen Logo Enable to display the boot logo or disable to show normal POST messages. AddOn ROM Display Enable AddOn ROM Display to see the AddOn ROM messages or configure the AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed. Boot Failure Guard Message If the computer fails to boot for a number of times the system automatically restores the default settings.
  • Page 68 H310CM-HDVP/DASH Launch Storage OpROM Policy Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to run those that support legacy option ROM only. Select Do not launch to not execute both legacy and UEFI option ROM.

  • Page 69: Exit Screen

    4.8 Exit Screen Save Changes and Exit When you select this option the following message, “Save configuration changes and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option the following message, “Discard changes and exit setup?”...
