Directed Electronics Automate 435 Owner's Manual

Remote start keyless entry system
Hide thumbs Also See for Automate 435:
Table of Contents

Advertisement

Quick Links

Download this manual
Model 435
Owner's Guide
G435A

Advertisement

Table of Contents
loading

Related Manuals for Directed Electronics Automate 435

Summary of Contents for Directed Electronics Automate 435

  • Page 1 Model 435 Owner’s Guide G435A...

  • Page 3: Limited Lifetime Consumer Warranty

    DEI dealer; and the unit is returned to DEI, shipping prepaid with a legi- ble copy of the bill of sale or other dated proof of purchase bearing the following information: consumer's name, telephone number and address;...
  • Page 4 REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DEI OR ITS SUBSIDIARY, THE PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN THE DIS- PUTE.

  • Page 5: Table Of Contents

    Table of Contents Limited Lifetime Consumer Warranty What Is Included ......... . . 3 Important Information .

  • Page 6: Standard Configuration

    Standard Configuration 1999 Directed Electronics, Inc. ©...

  • Page 7: What Is Included

    What is Included A control module Two four-button remote transmitters A Stinger ® dual-stage shock sensor (on-board the control module) A Revenger ® Soft Chirp ® six-tone programmable siren A red status LED indicator light A push-button Valet switch A Failsafe ®...

  • Page 8: System Maintenance

    System Maintenance This system requires no specific maintenance. Your remote is pow- ered by a miniature 3-volt battery, type 2032, that lasts approximately one year under normal use. When the battery weakens, the LED on the remote will dim and operating range will be reduced. Your Warranty Your warranty card must be returned and the barcode serial number must not be removed.

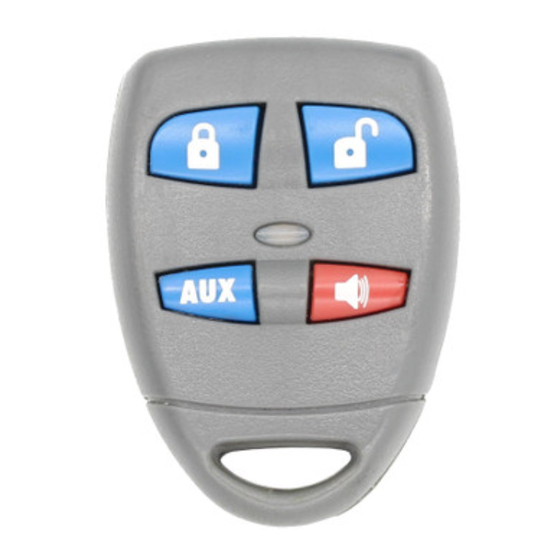

  • Page 9: Transmitter Functions

    Transmitter Functions Your vehicle security system is programmable, making it possible to assign any button on the remote to any specific receiver func- tion. The transmitter initially comes programmed with the Standard Configuration, but may also be customized by an authorized dealer. Unless otherwise specified, all instructions in this manual assume operation using the Standard Configuration.
  • Page 10 Button Panic Mode is activated by pressing and holding ond. Buttons An optional auxiliary convenience or expansion function that you have added to your system can be activated by pressing these but- tons simultaneously. The auxiliary output controls _____________________________. Buttons Another optional auxiliary convenience or expansion function that you have added to your system can be activated by pressing these buttons simultaneously.

  • Page 11: Using Your System

    Using Your System The buttons described in all instructions in this manual correspond to the standard configuration, unless otherwise specified. Arming You can arm the security system and lock your vehicle’s doors (if connected) by pressing for one second. When the system arms, you will hear a short siren sound (chirp) and the parking lights will flash once.

  • Page 12: Disarming

    NOTE: If any protected entry point (such as a door or switch-protected trunk or hood) is open, Passive Arming will not engage. Additionally, each time a sensor is triggered during the 30-second arming countdown, the count- down starts over. Arming your security system protects your vehicle in the following ways: Light impacts will trigger a Warn Away siren to chirp and the parking lights to flash for a few seconds.

  • Page 13: Disarming Without A Transmitter

    Disarming Without a Transmitter This feature allows you to disarm the security system without the remote transmitter, in case that the transmitter is lost, damaged or disabled. To disarm the system without a transmitter, you must have the vehicle’s ignition key and know where the Valet switch is located. Be sure to check with your installer at the time of installation for both the location and the preset response (1-5 presses) of the Valet switch.

  • Page 14: Panic Mode

    NOTE: The Warn Away ® Response to lighter impacts is bypassed if the sys- tem is armed using the Silent Mode. This ensures that the siren does not chirp in an environment where you don’t want chirps to be emitted. The system is still capable of being triggered by heavier impacts;...

  • Page 15: Remote Valet

    Remote Valet ® You can also enter or exit Valet Mode using your remote transmitter: 1. Open any vehicle door. 2. Press 3. Press 4. Press again. The status LED will light solid if you are entering Valet Mode and will turn off if you are exiting Valet Mode.

  • Page 16: Diagnostics

    testing your system, it is important to remember that this circuitry can cause zones to be bypassed and appear to not work. If five chirps are heard when disarming the system, the NPC was engaged. To clear the memory, turn the ignition key on. Diagnostics The microprocessor at the heart of your system has the ability to constantly monitor all of the switches and sensors connected to it.

  • Page 17: Disarming Diagnostics

    Disarming Diagnostics Your system has a Tamper Alert feature that notifies you of triggers that occur while you are away from your vehicle. If you hear four chirps when you disarm, this indicates that the system was triggered in your absence.

  • Page 18: Code Hopping

    Code Hopping The receiver and transmitter use mathematical formulas called algo- rithms to change their codes each time the transmitter is used. This Code Hopping technology has been developed to increase the secu- rity of the unit. By following this set code sequence, the receiver and transmitter stay synchronized, even if the remote transmitter is used out of range of the vehicle.

  • Page 19: Multi-Vehicle Operation

    Multi-Vehicle Operation Your DEI security system has the ability to interface with other DEI vehicle security systems to control multiple vehicles using the same remote transmitter. Contact your local DEI dealer for more details. Rapid Resume Logic Your security system stores its current operational state in non-volatile memory, so that if power is lost and then reconnected, the system will recall the stored state from memory.

  • Page 20: Programming Options

    Programming Options Programming options control your system’s normal, operational set- up. Most options do not require additional parts, but some may require installation labor. The system’s programming options are listed below. The factory de- fault settings are in bold: Active Arming (only with the transmitter) or Passive Arming (au- tomatic arming 30 seconds after the last door is closed).

  • Page 21: Security & Convenience Expansions

    Security & Convenience Expansions Many options can be added to your system for increased security, protection and convenience. A few of these options are listed below. Contact your dealer for a complete list of options compatible with your system. Digital Failsafe ®...

  • Page 22: Glossary Of Terms

    Glossary of Terms Control Module: The “brain” of your system. Usually hidden underneath the dash area of the vehicle. It houses the microprocessor that mon- itors your vehicle and controls all of the alarm’s functions. Failsafe ® Starter Kill Relay: An automatic switch controlled by the security system that prevents the vehicle’s starter from cranking when- ever the system is armed.
  • Page 23 Transmitter: A hand-held, remote control that operates the vari- ous functions of the security system. Trigger or Triggered Sequence: The “setting off” or “tripping” of the alarm. A Triggered Response consists of the siren sounding and the parking lights flashing for 30 seconds. Valet Switch: A small, push-button switch mounted inside the ve- hicle, at a location determined by the installer.
  • Page 24 Notes 1999 Directed Electronics, Inc. ©...

  • Page 25: Quick Reference Guide (Removable)

    Quick Reference Operating Card To arm the system using your transmitter Press for one second to arm the system and lock the doors (if the door locks are connected to the system). When the system arms, you will hear one chirp and the parking lights will flash once. To disarm the system using your transmitter Press to disarm the system and unlock the doors (if the door locks...
  • Page 28 Call (800) 477-1372 for more information about our products and services. DEI is committed to delivering on time, the best products we know how to provide, and to constantly work with our customers and vendors to improve our products, quality, delivery and customer friendly features.
