Airless – Hochdruck Spritzgerät
Airless high-pressure spraying unit
Appareil de pulvérisation à haute
pression Airless
Apparecchio di verniciatura a spruzzo
Airless ad alta pressione

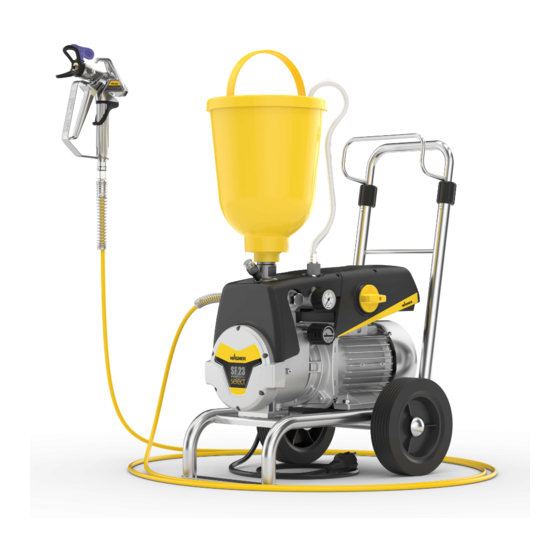

Super Finish 23 Select
2368208
04 / 2016
Originalbetriebsanleitung
Betriebsanleitung
Operating manual
Mode d'emploi
Istruzioni per l'uso
2
34
65
97
Advertisement
Table of Contents
Related Manuals for WAGNER Super Finish 23 Select
Summary of Contents for WAGNER Super Finish 23 Select
- Page 1 Airless – Hochdruck Spritzgerät Betriebsanleitung Airless high-pressure spraying unit Operating manual Appareil de pulvérisation à haute Mode d'emploi pression Airless Apparecchio di verniciatura a spruzzo Istruzioni per l‘uso Airless ad alta pressione Super Finish 23 Select 2368208 04 / 2016...
- Page 2 1. Faulty units may not be used. 2. Secure a Wagner spray gun with the securing lever at the trigger guard. 3. Ensure earthing. 4. Check the permissible operating pressure of the high-pressure hose and spray gun.
-
Page 3: Table Of Contents
Application ________________________________ 38 11.1 Super Finish 23 Select accessories ______________ 53 Coating material ____________________________ 38 11.2 Spare parts list Super Finish 23 Select ___________ 58 2.2.1 Coating materials with sharp-edged additional 11.3 Spare parts list high-pressure filter _____________ 60 materials __________________________________ 38 11.4... -
Page 4: Safety Regulations For Airless Spraying
Super Finish 23 Select SAFETY REGULATIONS DANGER OF INJURY FROM THE SPRAY JET SAFETY REGULATIONS FOR AIRLESS SPRAYING Attention, danger of injury by injection! Never point the spray gun at yourself, other persons or animals. All local safety regulations in force must be observed. -
Page 5: Max. Operating Pressure
Super Finish 23 Select SAFETY REGULATIONS 1.12 MAX. OPERATING PRESSURE USE OF UNITS ON BUILDING SITES AND WORKSHOPS The permissible operating pressure for the spray gun, spray gun accessories, unit accessories and high-pressure hose The unit may only be connected to the mains network via a... -
Page 6: Work At Electrical Components
The front end must always point downwards in order to avoid cessory. sliding away. Super Finish 23 Select is made for jobs in the workshop and on If possible do not use the unit on an inclined surface since the the building site. -
Page 7: Filtering
The main area of application are thick layers of highly viscous coating material. At the Super Finish 23 Select unit a diaphragm pump takes in the coating materials and transports it via a high-pressure hose to the spray gun with the airless tip. Here the coating material atomizes since it is pressed through the tip core at a maximum pressure of 25 MPa (250 bar, 3625 psi). -
Page 8: Explanatory Diagram
Super Finish 23 Select DESCRIPTION OF UNIT EXPLANATORY DIAGRAM Tip guard with airless tip Spray gun High-pressure hose Connection for high-pressure hose Pressure gauge Pressure control valve Multifunction switch Symbols (shown in the recess of the switch): ON / Circulation... -
Page 9: Technical Data
Super Finish 23 Select DESCRIPTION OF UNIT TECHNICAL DATA Voltage : 230 V AC, 50 Hz Fuses : 16 A time-lag Unit connecting line : 6 m long, 3 x 1.5 mm² Max. current consumption: 7.4 A Degree of protection :... -
Page 10: Startup
Super Finish 23 Select STARTUP HIGH PRESSURE HOSE AND SPRAY GUN STARTUP 1. Screw the high pressure hose (9) onto the hose connec- UNIT WITH SUCTION SYSTEM tion 2. Screw the spray gun (10) onto the high pressure hose 1. Ensure that the sealing surfaces of the connections are 3. -
Page 11: Socket On Unit (Not Included In All Models)
It is possible, for example, to connect an agitator, a working lamp etc with a maximum of 1500 Watt. Always switch on the Super Finish 23 Select unit first and then the connected unit. Oth- erwise the fuse protection of 16 A inside the unit will react. -
Page 12: Spraying Technology
Never pull on the high-pressure hose to move the device. Make sure that the high-pressure hose cannot twist. This can be avoided by using a Wagner spray gun with a swivel joint and a hose system. When using the high-pressure hose while... -
Page 13: Cleaning The Unit
Super Finish 23 Select DISPLAYS AT THE UNIT / CLEANING THE UNIT CLEANING THE UNIT Warm water improves the cleaning effect in the case of water-dilutable coating materials. A clean state is the best method of ensuring operation with- out problems. After you have finished spraying, clean the unit. -
Page 14: Cleaning The Unit From The Outside
Super Finish 23 Select CLEANING THE UNIT CLEANING THE UNIT FROM THE OUTSIDE HIGH-PRESSURE FILTER 1. Switch off unit – set multifunction switch to (OFF). First unplug the power plug from the outlet. 2. Open the high-pressure filter and clean the filter insert. To... -
Page 15: Cleaning The Airless Spray Gun
Super Finish 23 Select CLEANING THE UNIT / SERVICING CLEANING THE AIRLESS SPRAY GUN SERVICING 1. Rinse the Airless spray gun with a suitable cleaning agent under lower operating pressure. GENERAL SERVICING 2. Clean the tip thoroughly with a suitable cleaning agent so that no suitable coating material rests remain. -
Page 16: Repairs At The Unit
Super Finish 23 Select REPAIRS AT THE UNIT Installation REPAIRS AT THE UNIT 1. Insert the inlet valve (2) into the trigger housing (1) and secure with the clasp (3). Ensure that the (black) seal (5) is Switch the unit off. -
Page 17: Outlet Valve
Super Finish 23 Select REPAIRS AT THE UNIT 10.3 10.4 OUTLET VALVE PRESSURE CONTROL VALVE 1. Use a 22 mm wrench to screw the outlet valve from the Only have the pressure control valve (1) re- paint section. placed by the customer service. -
Page 18: Replacing The Power Cable
Super Finish 23 Select REPAIRS AT THE UNIT 10.5 REPLACING THE POWER CABLE This may only be carried out by a skilled elec- trician. No liability is assumed for incorrect installation. Switch the unit off. Before all repair work: Unplug the power plug from the outlet. -
Page 19: Connection Diagram
Super Finish 23 Select REPAIRS AT THE UNIT 10.7 CONNECTION DIAGRAM... -
Page 20: Remedy In Case Of Faults
Super Finish 23 Select REPAIRS AT THE UNIT 10.8 REMEDY IN CASE OF FAULTS TYPE OF MALFUNCTION WHAT ELSE? POSSIBLE CAUSE MEASURES FOR ELIMINATING THE MALFUNCTION Unit does not start Multifunction switch No voltage applied Check voltage supply can not switched on... -
Page 21: Spare Parts And Accessories
Super Finish 23 Select SPARE PARTS AND ACCESSORIES SPARE PARTS AND ACCESSORIES 11.1 SUPER FINISH 23 SELECT ACCESSORIES Accessories: ITEM DESIGNATION ORDER NO. ITEM DESIGNATION ORDER NO. Spray gun Vector Pro (2-finger) 0538 041 Hopper cleaning ring (TopClean) 0340 930... - Page 22 Super Finish 23 Select SPARE PARTS AND ACCESSORIES Airless tip table Wagner without tip without tip TradeTip 3 tip F thread (11/16 - 16 UN) G thread (7/8 - 14 UN) up to 270 bar for Wagner spray guns for Graco/Titan spray guns (27 MPa) Order no.
- Page 23 Super Finish 23 Select SPARE PARTS AND ACCESSORIES All of the tips in the table below are supplied together with the appropriate gun fi lter. Application Tip marking Spray Bore Spraying Gun fi lter Order no. angle inch / mm...
- Page 24 Super Finish 23 Select SPARE PARTS AND ACCESSORIES 2SpeedTip The innovative changeover nozzle from WAGNER combines two nozzle cores into one nozzle. 2 Speed Tip holder Order no. 0271065 Tip table Object size Painting material Lacquer (L) Emulsion (D) Filler (S)
- Page 25 Super Finish 23 Select...
-
Page 26: Spare Parts List Super Finish 23 Select
Super Finish 23 Select SPARE PARTS AND ACCESSORIES 11.2 SPARE PARTS LIST SF 23 SELECT ITEM ORDER-NO DESIGNATION 2343 666 Pressure gauge 9970 218 Sealing ring 0340 339 Inlet 2341 465 Label (right) 2334 383 Inlet valve trigger housing 0341 336... - Page 27 Super Finish 23 Select SPARE PARTS AND ACCESSORIES Spare parts diagram SF 23 Select...
-
Page 28: Spare Parts List High-Pressure Filter
Super Finish 23 Select SPARE PARTS AND ACCESSORIES 11.3 11.4 SPARE PARTS LIST HIGH-PRESSURE FILTER SPARE PARTS LIST TROLLEY ITEM ORDER NO. DESIGNATION ITEM ORDER NO. DESIGNATION 2355 034 Trolley assy. 0097 121 High-pressure filter HF- 01 compl. 9910 208... -
Page 29: Spare Parts List Suction System
Super Finish 23 Select SPARE PARTS AND ACCESSORIES 11.5 SPARE PARTS LIST SUCTION SYSTEM ITEM ORDER NO. DESIGNATION 2368 361 Suction system assy. (incl. pos. 2-3) 2323 325 Filter, mesh width 1 mm 0055 745 Elbow fitting (return tube) Spare parts diagram suction system... -
Page 30: Spare Parts List Hopper 5L
Super Finish 23 Select SPARE PARTS AND ACCESSORIES 11.6 11.7 SPARE PARTS LIST HOPPER 5L SPARE PARTS LIST HOPPER WITH TOPCLEAN ITEM ORDER-NO DESIGNATION ITEM ORDER-NO DESIGNATION 0341 265 Hopper 5l, assy. 0341 268 Hopper 5l with TopClean, assy. 0340 901... -
Page 31: Testing Of The Unit
The guarantee certificate is valid as confirmation, as is the Wagner or one of our dealers will take back your used Wagner original purchase document that carries the date of the pur- waste electrical or electronic equipment and will dispose of it for you in an environmentally friendly way. - Page 32 Super Finish 23 Select NOTES claims must be made immediately, or at the latest within a The above regulations manage the legal relationship to us period of 2 weeks. concludingly. Additional claims, in particular for damages and The authorised specialist shop that delivered the device is enti- losses of any type, which occur as a result of the product or tled to accept guarantee claims.
- Page 33 Super Finish 23 Select...
- Page 34 Super Finish 23 Select...
- Page 35 Super Finish 23 Select...
- Page 36 Super Finish 23 Select SERVICE EUROPA EUROPA-SERVICENETZ / EUROPEAN SERVICE NETWORK / RÉSEAU DE SERVICE APRÈS-VENTE EN EUROPE RETE DI ASSISTENZA EUROPEA / EUROPA – SERVICENETWERK J. Wagner Ges.m.b.H. Wagner Spraytech Wagner Spraytech (UK) Limited Ottogasse 2/20 Scandinavia A/S The Coach House 2333 Leopoldsdorf Helgeshøj Allé...
