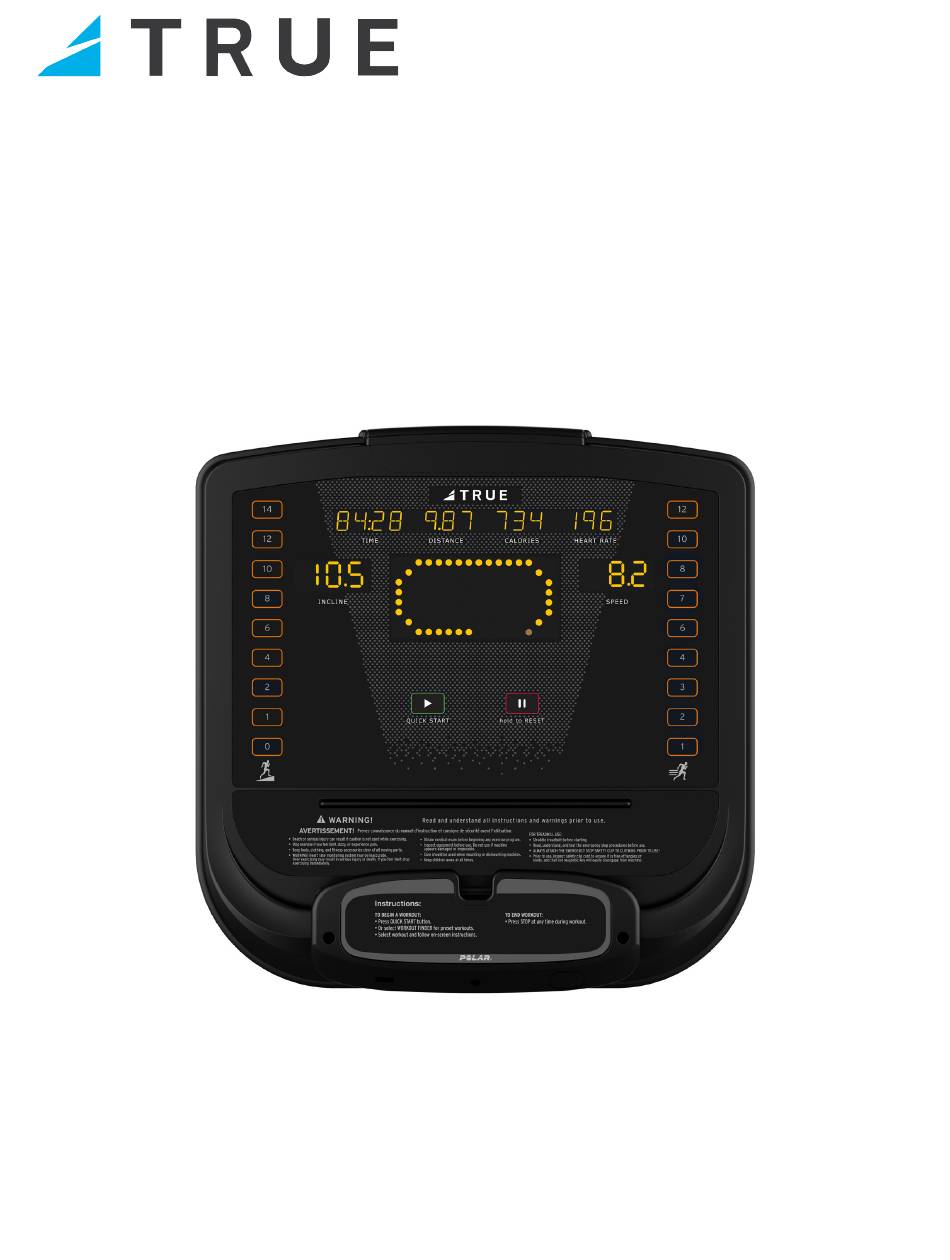

- Page 1 IGNITE CONSOLE OWNER’S MANUAL Console Manual SKU #: MAN-CLED-HIT Model #: Ignite Revision 091418...
- Page 2 IGNITE CONSOLE OWNER’S MANUAL IMPORTANT: All products shown are prototype. Actual product delivered may vary. Product specifications, features & software are subject to change without notice. For the most up-to-date owner’s manual please visit www.truefitness.com. For documents in additional languages please visit www.truefitness.com/resources/document-library/ IMPORTANTE: Todos los productos mostrados son prototipos.
- Page 3 The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of extraordinary cardio and strength equipment. As a result, people all over the world are benefiting from the TRUE experience.
-
Page 4: Table Of Contents
IGNITE CONSOLE OWNER’S MANUAL TABLE OF CONTENTS: Chapter 1: Safety Instructions Safety Instructions ..................................5 Chapter 2: Product Overview Ignite Overview ..................................9 Chapter 3: Programming & Operation Workout Program Descriptions ............................11 Heart Rate Monitoring ................................11 Chapter 4: Ignite Console Console Navigation ................................12 Advanced Console Functions .............................13... -
Page 5: Chapter 1: Safety Instructions
45, smokes, has high cholesterol, is obese or has not exercised regularly in the past year. Additionally, TRUE recommends consulting a fitness professional on the correct use of this product. - Page 6 To disconnect, turn power OFF at the ON/OFF switch if applicable, then remove plug from electrical outlet. • Never operate a TRUE product if it has a damaged power cord or electrical plug, or if it has been dropped, damaged, or even partially immersed in water. Contact TRUE Customer Service for a replacement.
- Page 7 Never insert objects into any openings in this product. If an object should drop inside, turn off the power, unplug the power cord from the outlet and carefully retrieve it. If the item cannot be reached, contact TRUE Customer Service.
- Page 8 Important Electrical Requirements – 120V: Your TRUE equipment requires a dedicated 120 volt, alternating current (AC), 20 amp grounded outlet circuit. This means nothing else can be plugged into the same circuit. Most power circuits are rated for this 120V AC 20 amp requirement, but you must ensure the equipment does not share the circuit with anything else.
-
Page 9: Chapter 2: Product Overview Ignite Overview
CHAPTER 2: PRODUCT OVERVIEW IGNITE OVERVIEW: Note: The Alpine Runner version of the Ignite HIIT console has Quick Touch Incline Key increments of 0, 1, 3, 5, 10, 15, 20, 25, and 30 percent. Upper LED Display Incline LED Lower LED... - Page 10 CHAPTER 2: PRODUCT OVERVIEW IGNITE OVERVIEW: Upper LED Display: Shows the current workout data; Time, Distance, Calories and Heart Rate. Lower LED Display: Displays the workout profile of the current program. Speed and Incline LED Displays: These displays show the current incline and speed of the unit.
-
Page 11: Chapter 3: Programming & Operation Workout Program Descriptions
A workout in which the user controls all settings. The workout continues until it is ended by the user. *Note: The user can adjust Speed and Incline manually via the Quick Access Keys on the Contact Heart Rate Pads or incrementally via the Quick Touch Speed and Incline keys on the Ignite console. caution: The safety key must be in place on the machine, and should be attached to the user’s clothing. -
Page 12: Console Navigation
Exporting Workout Data to a USB Drive: The Ignite console gives users the ability to export their workout data to a USB drive. When this option is enabled, the screen below will appear before the Workout Summary screen. To export the data, insert a USB drive into the console’s USB port and press the Up Incline Key on left contact heart rate grip. -
Page 13: Advanced Console Functions
CHAPTER 4: IGNITE OPERATION ADVANCED CONSOLE FUNCTIONS: Entering Maintenance Mode: Hold the Two Percent Incline Button (A) for approximately three seconds until the unit beeps. Next, hold the Quick Start button (B) for approximately three seconds until the unit beeps. When the Upper LED Display (C) reads “Maintenance Mode”, press the Quick Start button (B) to enter Maintenance Mode. - Page 14 CHAPTER 4: IGNITE OPERATION ADVANCED CONSOLE FUNCTIONS: Maintenance Mode Navigation: Naviagte through the Diagnostics, Calibration, and Configuration submenus using the Up and Down Incline Keys on the left contact heart rate grip. Select a category shown in the Upper LED Display (A) using the Quick Start button (B). Update any category setting using the + and - Speed Keys on the right contact heart rate grip.
- Page 15 CHAPTER 4: IGNITE OPERATION ADVANCED CONSOLE FUNCTIONS: Diagnostics Menu: The diagnostics menu contains various settings as well as tools used to help diagnose errors and performance issues. Title Description Displays an accumulative count of the total number of hours the unit Belt Hours: has been used.
- Page 16 ADVANCED CONSOLE FUNCTIONS: Configuration Menu: WARNING: Misconfiguration of the console may cause damage to the unit and void the manufacturer warranty. If necessary, please contact TRUE Fitness Technical Support at 800-883-8783 for assistance. Title Description Model: Displays the model on which the console is installed.
-
Page 17: Console Assembly
CHAPTER 4: IGNITE OPERATION CONSOLE ASSEMBLY: Console Wire Connections: Connect the Auxillary Power Supply (A), USB Data Cable (B), and Ground Wire Ring Terminal (C) as shown below. Tuck the Coaxial, COMM, Fan, and CSAFE cables and any excess cord length inside the pedestal. -
Page 18: Chapter 5: Customer Service Contacting Service
HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST E-MAIL: service@truefitness.com CONTACTING SALES: Interested in TRUE Products? Please contact us with any sales or product inquires so that we may direct you to the appropriate sales representative to answer your questions. TRUE FITNESS HOME OFFICE 865 HOFF ROAD ST. -
Page 19: Reporting Freight Or Parts Damage
Please make sure the photos include the damaged product as well as the damaged box the product arrived in. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal business hours.
