Refillable ORP/Redox electrode: MTC30101 or MTC30103
Safety Information
Precautionary Labels
Read all labels and tags attached to the instrument. Personal injury or damage to the
instrument could occur if not observed. A symbol, if noted on the instrument, will be included
with a danger or caution statement in the manual.
Electrical equipment marked with this symbol may not be disposed of in European public disposal systems after
12 August of 2005. In conformity with European local and national regulations (EU Directive 2002/96/EC),
European electrical equipment users must now return old or end-of life equipment to the Producer for disposal at no
charge to the user.
Note: For return for recycling, please contact the equipment producer or supplier for instructions on how to return
end-of-life equipment, producer-supplied electrical accessories, and all auxiliary items for proper disposal.
This is the safety alert symbol. Obey all safety messages that follow this symbol to avoid potential injury. If on the
instrument, refer to the instruction manual for operation or safety information.
Overview

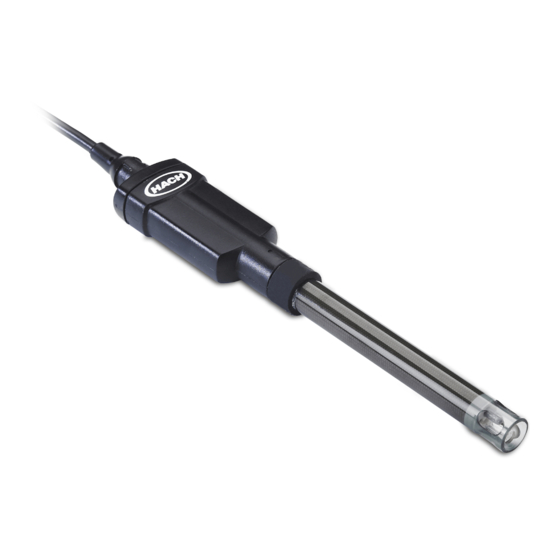

The MTC30101 or MTC30103 is a refillable, combination oxidation reduction potential
(ORP/Redox) electrode with a built-in temperature sensor. The MTC30101 or MTC30103 is
available with a 1 or 3 meter cable and is intended for laboratory use. The electrode provides
ORP/Redox measurements in wastewater, drinking water and general applications. A 59 mL
bottle of reference electrolyte filling solution (3M KCl solution saturated with AgCl) is included
with the electrode.
Specifications
Specifications are subject to change without notice.
Specification
Electrode type
Range
Resolution
Temperature accuracy
Operating temperature range
Storage temperature range
Junction
Reference potential versus
Standard Hydrogen Electrode
Reference electrolyte
Fill solution
Reference type
Minimum sample depth
Dimensions
Cable connection
Warranty
User instructions
Details
Digital combination electrode with a refillable Ag/AgCl reference and a built-in
temperature sensor
± 1200 mV
0.1 mV
± 0.3 ºC (± 0.54 ºF)
0 to 80 °C
5 to 40 °C
Porous pin
207 mV at 25 ºC
Electrode filling solution, 3M KCl
3M KCl with saturated AgCl
Ag/AgCl (3M KCl)
20 mm
Diameter: 12 mm, Length: 103 mm, Total length: 200 mm, Cable length: 1 or 3 meter
Digital output and connector compatible with HQd meters
Sensor is covered by a 1 year warranty.
DOC272.53.80026
1
