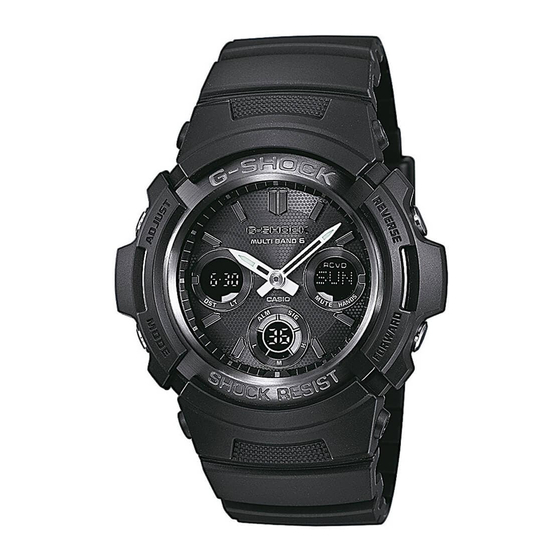

Casio 5230 User Manual

MA1804-EA © 2018 CASIO COMPUTER CO., LTD.
For a full Operation Guide and Q&A
information about this product, go to the
website below.
http://world.casio.com/manual/wat/
E-2
Power Saving
Leaving the watch in a dark location for about 60 to 70 minutes between the hours
of 10 p.m. and 6 a.m. will cause the display to go blank.
Leaving the watch in a dark location for about six or seven days will cause the hour
and minute hands to stop at 12 o'clock. All functions are disabled, but timekeeping
is maintained.
E-4
Auto Receive
1. Enter the Timekeeping Mode.
2. Leave the watch near a window between midnight and 5:00 a.m.
When the receive operation is successful, the time and date settings will be
adjusted automatically.
If you are unable to receive a signal, check the Operation Guide available at the
CASIO website to ensure the watch is in a suitable location.
E-6
2. Press C to move the flashing in the sequence shown below to select a setting.
Home City and Summer Time
C
City Code
C
Power Saving
C
Illumination Duration
C
Button Operation Tone On/Off
E-8

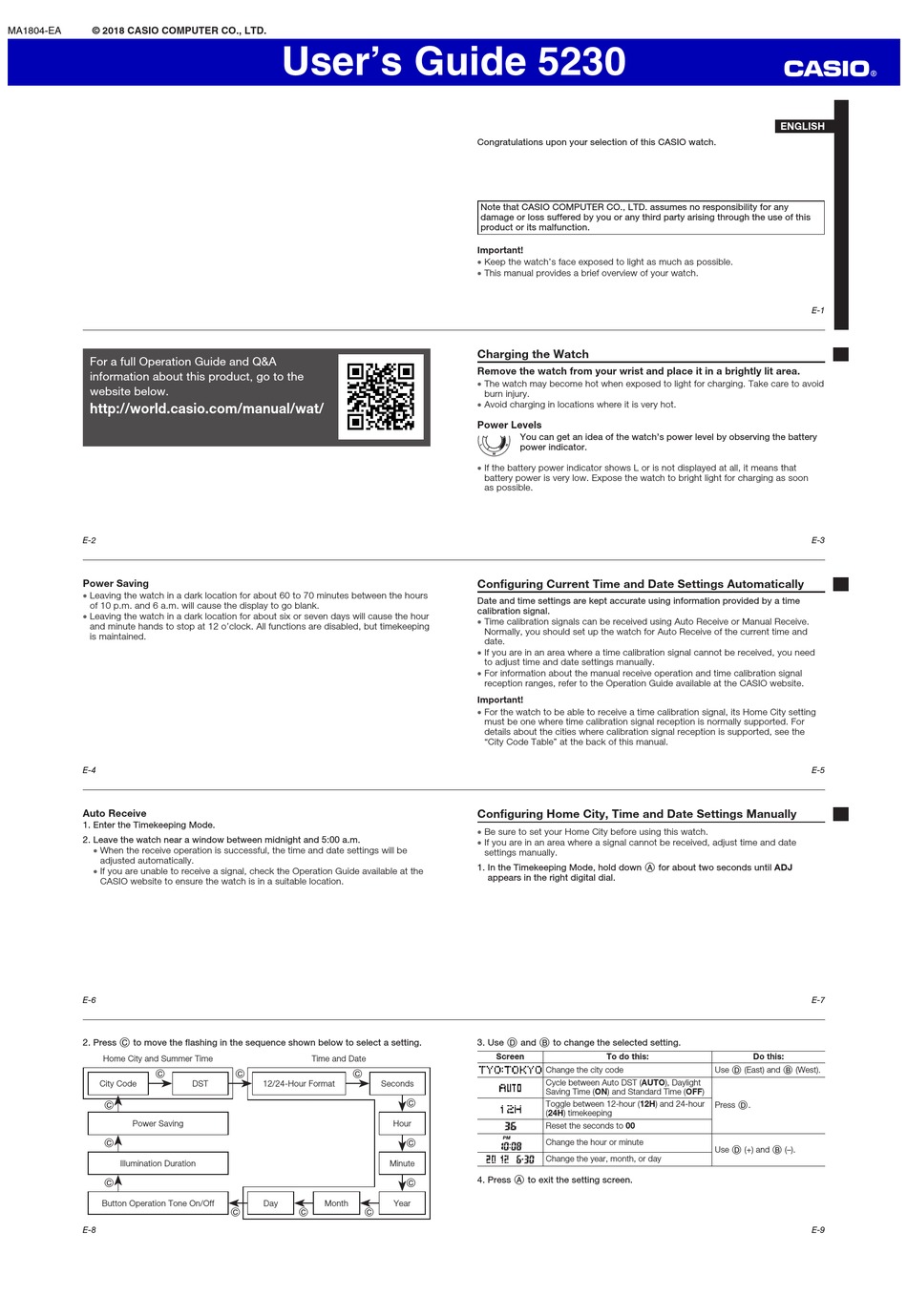

User's Guide 5230
Time and Date
C C
DST 12/24-Hour Format
Day Month
C C
Congratulations upon your selection of this CASIO watch.
To ensure that this watch provides you with the years of service for which it is
designed, carefully read and follow the instructions in this manual, especially the
information under "Operating Precautions" and "User Maintenance".
Be sure to keep all user documentation handy for future reference.
Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any
damage or loss suffered by you or any third party arising through the use of this
product or its malfunction.
Important!
Keep the watch's face exposed to light as much as possible.
This manual provides a brief overview of your watch.
Charging the Watch
Remove the watch from your wrist and place it in a brightly lit area.
The watch may become hot when exposed to light for charging. Take care to avoid
burn injury.
Avoid charging in locations where it is very hot.
Power Levels
You can get an idea of the watch's power level by observing the battery
power indicator.
If the battery power indicator shows L or is not displayed at all, it means that
battery power is very low. Expose the watch to bright light for charging as soon
as possible.
Configuring Current Time and Date Settings Automatically
Date and time settings are kept accurate using information provided by a time
calibration signal.
Time calibration signals can be received using Auto Receive or Manual Receive.
Normally, you should set up the watch for Auto Receive of the current time and
date.
If you are in an area where a time calibration signal cannot be received, you need
to adjust time and date settings manually.
For information about the manual receive operation and time calibration signal
reception ranges, refer to the Operation Guide available at the CASIO website.
Important!
For the watch to be able to receive a time calibration signal, its Home City setting
must be one where time calibration signal reception is normally supported. For
details about the cities where calibration signal reception is supported, see the
"City Code Table" at the back of this manual.
Configuring Home City, Time and Date Settings Manually
Be sure to set your Home City before using this watch.
If you are in an area where a signal cannot be received, adjust time and date
settings manually.
1. In the Timekeeping Mode, hold down A for about two seconds until ADJ
appears in the right digital dial.
3. Use D and B to change the selected setting.
Screen
Seconds
C
Hour
C
Minute
4. Press A to exit the setting screen.
C
Year
C
To do this:
Use D (East) and B (West).
Change the city code
Cycle between Auto DST (AUTO), Daylight
Saving Time (ON) and Standard Time (OFF)
Toggle between 12-hour (12H) and 24-hour Press D.
(24H) timekeeping
Reset the seconds to 00
Change the hour or minute
Use D (+) and B (–).
Change the year, month, or day
ENGLISH
E-1
E-3
E-5
E-7
Do this:
E-9
