DS-60x VPN to DIR-130
Configuration of DIR-130
Step 1: Open your web browser and type in the IP address of the router (192.168.0.1 by
default). Enter the username (admin by default) and password (blank by default), and then
click OK.

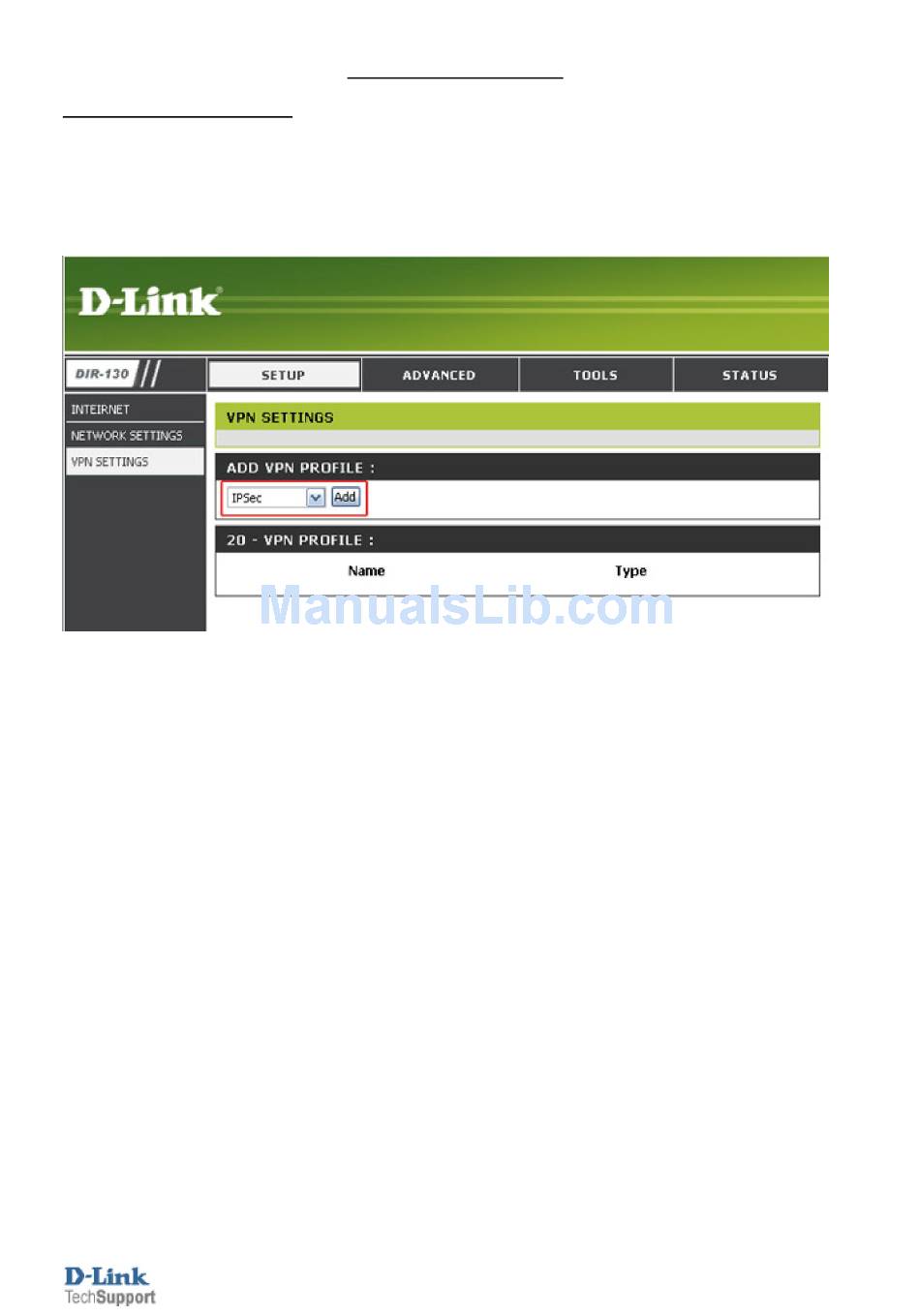

Step 2: Click on SETUP and select VPN SETTINGS. Choose IPSec from the ADD VPN
PROFILE dropdown menu and click Add.
D-Link Technical Support – DS-60x VPN to DIR-130
Page 1 of 13
Advertisement
Related Manuals for D-Link DIR-130
Summary of Contents for D-Link DIR-130
- Page 1 DS-60x VPN to DIR-130 Configuration of DIR-130 Step 1: Open your web browser and type in the IP address of the router (192.168.0.1 by default). Enter the username (admin by default) and password (blank by default), and then click OK.
- Page 2 PFS Enable: tick the box (default) PFS DH Group: select 2-modp 1024-bit IPSec Proposal List: Cipher #1: select 3DES Hash #1: select SHA1 IPSec Lifetime: enter 3600 (default) Click Save Settings then Continue D-Link Technical Support – DS-60x VPN to DIR-130 Page 2 of 13...
- Page 3 D-Link Technical Support – DS-60x VPN to DIR-130 Page 3 of 13...
- Page 4 The IPSec Tunnel should now appear in the VPN PROFILE list below. Configuration of DS-601/605 client VPN software Step 1: Click Configuration and select Profile Settings. Step 2: Click New Entry to create a profile for the DIR-130. D-Link Technical Support – DS-60x VPN to DIR-130 Page 4 of 13...
- Page 5 D-Link Technical Support – DS-60x VPN to DIR-130 Page 5 of 13...
- Page 6 Step 3: Name the profile DIR-130 and click Next. Step 4: Select the type of Communication media for the Local side and click Next. D-Link Technical Support – DS-60x VPN to DIR-130 Page 6 of 13...
- Page 7 Step 5: Enter the Remote Gateway and click Next. The IP can normally be found in the Status page of the DIR-130. Step 6: Enter the Pre-shared Key in both the Shared secret and Confirm secret and click Finish. D-Link Technical Support – DS-60x VPN to DIR-130...
- Page 8 Step 7: Select the DIR-130 profile and click Configure. Step 8: Select IPSec General Settings and select DH-Group 2 (1024 Bit ) from the dropdown menu under Advanced options / PFS group. D-Link Technical Support – DS-60x VPN to DIR-130...
- Page 9 Step 9: Select Policy editor, expand the IKE Policy list and select New Entry. Step 10: Configure the IKE Policy as followed: Name: enter a name for the policy (DIR-130 in this example) Encryption: Triple DES Hash: SHA DH Group: DH-Group 2 (1024 Bit) Click OK.
- Page 10 Step 11: Expand the IPSec Policy and select New Entry. Step 12: Configure the IPSec policy as followed: Name: entry a name for the policy(DIR-130 in this example) Transform: Triple DES Authentication: SHA Click OK and Close. D-Link Technical Support – DS-60x VPN to DIR-130...
- Page 11 Step 13: The IPSec General Settings should be configured as followed: Gateway: WAN IP address of the remote router IKE policy: select DIR-130 from the dropdown menu IPSec policy: select DIR-130 from the dropdown menu Exch. mode: select Main mode...
- Page 12 Step 16: Select Remote Networks and configure as followed: Network addresses: enter the remote network (192.168.0.0 in this example) Subnet masks: enter the remote subnet mask (255.255.255.0 in this example) D-Link Technical Support – DS-60x VPN to DIR-130 Page 12 of 13...
- Page 13 Click OK to save the settings and then click OK again to go back to the connection screen. Step 18: Click Connect to establish the VPN connection to the router. D-Link Technical Support – DS-60x VPN to DIR-130 Page 13 of 13...
