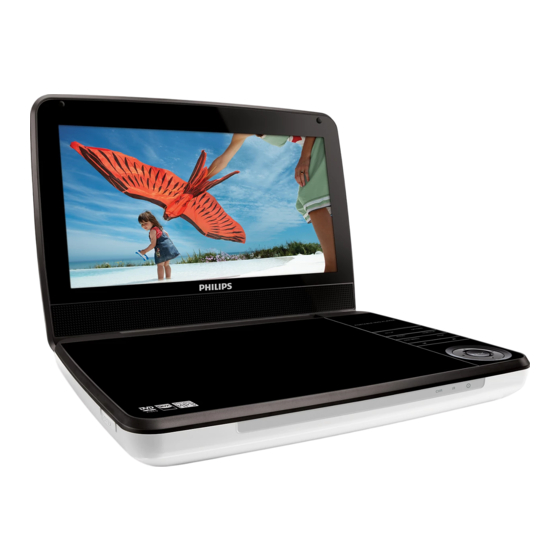

DVD Portable
Service Manual
TABLE OF CONTENTS
Technical Specification, PCBs Location....................... 1
Safety Instruction ...................................................... 2
Instruction for Use...................................................... 3
Mechanical and Dismantling Instructions...................... 4
Service Modes, Troubleshooting.................................. 5
Overall Block Diagram, Wiring Diagram......................... 6
Electrical Diagram...................................................... 7
Exploded View Diagram & Service Part List....................8
Revision List............................................................. 9
©Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may by reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronics, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Published by BL AVM
Version
2.0
Printed in the Netherlands
PD9000/05/12/51/79
Chapter
Subject to modification
3141 785 34840

Advertisement

loading

Summary of Contents for Philips PD9000/05

  • Page 1 Exploded View Diagram & Service Part List………………..8 Revision List……………………………………………………. 9 ©Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands All rights reserved. No part of this publication may by reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronics, mechanical, photocopying, or otherwise without the prior permission of Philips.
  • Page 2 1.0 TECHNICAL SPECIFICATION VIDEO/ AUDIO Characteristic Testing discs Test discs:DOLBY: Dolby Test disc ABEX: TDV-540A VIDEO FORMAT DVD / SVCD / JPEG / MPEG4 / DIVX3, 4,5,6(Home theater) AUDIO FORMAT CD / MP3(32 - 320 kbps) Video (PAL / NTSC) White bar : 714mV +10%/-20% Sync.
  • Page 3 1.1 PCBs Location VERSION VARIATIONS Type/Versions: PD9000 Service policy Board in used: MAIN BOARD KEY BOARD TFT BOARD *TIPS: C -- Component Lever Repair. M -- Module Lever Repair X -- OCX...
  • Page 4 5. Refer below table for your region code setting Procedure for SW upgrade 1. The upgrade will provide a document re-named: PHILIPS.BIN 2. “PHILIPS.BIN” copy to CD-ROM into the data; 3. Reading the CD-ROM,in accordance with prompt,press ”OK” key to upgrade...
  • Page 5 2.0 SAFTETY INSTRUCTIONS WAARSCHUWING WARNING Alle IC’s en vele andere halfgeleiders zijn All ICs and many other semi-conductors are gevoelig voor electrostatische ontladingen susceptible to electrostatic discharges (ESD). (ESD). Careless handling during repair can reduce life Onzorgvuldig behandelen tijdens reparatie kan drastically.
  • Page 6 2.1 ESD PROTECTION When the power supply is being turned on, you may not remove this laser cautions label. If it removes, radiation of laser may be received. PREPARATION OF SERVICING Pickup Head consists of a laser diode that is very susceptible to external static electrocity. Although it operates properly after replacement, if it was subject to electrostatic discharge during replacement, its life might be shortened.
  • Page 7 SAFTY NOTICE SAFTY PRECAUTIONS LEAKAGE CURRENT CHECK Plug the AC line cord directly into a 120V AC outlet (do Measure the AC voltage across the 1500 resistor. not use an isolation transformer for this check). Use an The test must be conducted with the AC switch on and AC voltmeter, having 5000 per volt or more sensitivity.
  • Page 8 2.2 SAFETY INSTRUCTIONS Battery Handling Guideline Since the battery is packed in soft package, to ensure its better performance, it’s very important to carefully handle the battery 2.2.1 Soft Aluminium foil The soft aluminum packing foil is very easily damaged by sharp edge parts such as Ni-tabs, pins and needles. Don’t strike battery with any sharp edge parts Trim your nail or wear glove before taking battery Clean worktable to make sure no any sharp particle...
  • Page 9 3.0 Instruction for Use You can download this information from the following websites: http://www.philips.com/support http://www.p4c.philips.com...
  • Page 10 4.0 MECHANICAL INSTRUCTION Disassembly Procedure on PET941D Remove nine screws on back cabinet to separate top cabinet and back screws 9pcs cabinet. Generally open the front cabinet. Remove 3 screws and disassemble the connecter on the DVD LOADER. Remove four screws and disassemble the connecter on the Main board and screws 4pcs.
  • Page 11 Remove the 2pcs screws and disassemble the connecter on the TFT board.
  • Page 12 5.0 TROUBLESHOOTING SYMPTOM: NO IMAGE / NO SOUND SYMPTOM: NO IMAGE OUTPUT ( THE PANEL SHOW BLUE PICTURE) Start Check DVD Drive work? Replace DVD Drive Check the external AV NOTE: AV Cable TYPE from outside to note Cable TYPE Exchange AV cable Inside L-Audio, R-Audio, Video, Ground connection is OK?
  • Page 13 5.0 TROUBLESHOOTING SYMPTOM: THE DVD DRIVE DOES NOT WORK SYMPTOM: THE DVD DRIVE DOESN'T WORK Start Check DVD-Loader Cable Reinsertion connection OK? Check the DVD-Loader Replace DVD- Loader Replace main board...
  • Page 14 5.0 TROUBLESHOOTING SYMPTOM: ADAPTOR CANNOT POWER ON Adaptor can not Power ON Start Check Adaptor OK? Change adaptor SET OK? Check the Power-ON Return set to Replace Main Board button and cable OK? Customer Replace Button or Cable...
  • Page 15 5.0 TROUBLESHOOTING SYMPTOM: KEY & BOTTON FAILURE SYMPTOM: Key & Botton Fail Start Check CABLE form board to Cable Reinsertion board connection OK? Check KEY board OK? Replace KEY board Replace main board Return to custormer...
  • Page 16 OVERALL BLOCK DIAGRAM DECK SF-HD850(870)PH-S MOTOR DRIVER SW5888 AUDIO_OUT AUDIO_L AUDIO_L DC TO DC AUDIO TO SPEAKER/EARPHONE +3.3V AUDIO_R YD4558 AUDIO_R TDA2822 IC S701 SPHE8202PS-A ASM1117_ADJ +1.25V TIMING CONTROL SIGNALS 9'HSD ANALOG PANEL 640 X 234 X RGB VGH/VGL/VCOM... DC TO DC IC S701 SPI/FLASH SDRAM...
  • Page 17 CIRCUIT DIAGRAM-CHARGE CHARGE_IN CHARGE_IN BAT_OUT BAT_OUT TWR2 TPWM1 TB+1 CHARGE_IN BAT_OUT HT772J 47uH 2A 6x8 BAT_OUT N16854012 $$$1 DC21 4148 $$$25 4148 47uF/25V $$$41 $$$15 220uF/16V 2.2uF/0805 DC20 $$$40 0.1UF DR43 DIC3 DC11 TBM1 0.1UF 3904 C/0603A 1000PF 680R $$$26 $$$10 DR55 1K DC18...
  • Page 18 CIRCUIT DIAGRAM-AUDIO&VIDEO OR/0603 R118 AV/OUT-JACK JACK1 100pF AV-OUT-L FB2K2 R122 A_L_SPEAKER 10pF R120 CVBS FB2K2 CVBS_OUT R119 5.1K EC95 AOUT_L EC52 10uF/16V R121 100R AV-OUT-L 220uF/16V 10uF_16V AV-OUT-R FB2K2 NJM4558-SOP-8 R126 C100 C101 1000pF 100pF 100pF +Vcc R124 100K R125 100pF R103 A_R_SPEAKER...
  • Page 19 CIRCUIT DIAGRAM-SDRAM M_A0 M_D0 M_A1 M_D1 M_A2 M_D2 MX25L16 M_A3 M_D3 M_A4 M_D4 SPI_CE M_A5 M_D5 SPI_VCC3 SPI_HOLD M_A6 M_D6 /HOLD SPI_WP SPI_CLK_1 M_A7 M_D7 M_A8 M_D8 M_A9 M_D9 M_A10 M_D10 A10/AP M_A11 M_D11 M_A[0..11] M_DQM0 M_D12 LDQM M_D[0..15] M_DQM1 M_D13 M_DQM[0..1] UDQM...
  • Page 20 CIRCUIT DIAGRAM-MPEG P+5V DVCC3 A+5V A+5V VDD_33 FB600R 100R R173 DCDC_VCC3 FB600R IR_IN RF3.3V A+5V EC15 C114 FB600R 0.1UF FOC- 100uF_10V 0.1uF C116 FOC+ /LDSW LDSW 33pF TP10 RAD+ TP13 RAD- TP14 RFGND CD_VR CDVR close to connector /LDSW DVD_VR DVDVR 100PF TP15...
  • Page 21 CIRCUIT DIAGRAM-POWER DC_IN DVCC3 Q5 CES2307 FB600R 47uH EC11 BAT_OUT FB600R 0.1UF 0.1uF/50V 470uF/6.3V SS14 BAT_OUT SS14 VDS=30V 1.5K VGS=20V TP66 Current=2A DC_IN PolyFuse/0.75A 47uF/25V Q1 CES2307 PGND +3.3V POWER DC9V_IN SS14 2.7K 1000P INPUT DR14 6~15V L-851 DC/JACK 0.1uF/50V SS34 DVCC3 0.1uF/50V...
  • Page 22 CIRCUIT DIAGRAM-TFT PVB_5V PVB_BIAS VCOM_5V 3.9K 0.1uF BC15 100K R/V_P PANEL_VGL BC18 10uF_16V NJM3414 P_DC_COM P_R/V P_AC_COM 4.7K O/P_A 10uF_16V PANEL_VCOM 2N3904 -I/P_A O/P_B EC26 P_GND +I/P_A -I/P_B 10uF_16V EC27 +I/P_B 10uF_16V VCOM PANEL_VGL P_P+5V VCOM_5V P_GND R104 2.2R 10uF_16V 100nF PVB_5V PVB_BIAS...
  • Page 23 CIRCUIT DIAGRAM-KEY KKEY0 MENU KKEY1 KKEY2 KKEY3 K_OUT1 K_OUT2 DOWN NEXT K_OUT3 KGND KKEY0 PREVIOUS SETUP KKEY1 LEFT KKEY2 KKEY3 K_OUT1 K_OUT2 K_OUT3 RIGHT ENTER PLAY STOP KGND KKEY0 TP16 KKEY1 TP15 KKEY2 TP14 KKEY3 TP13 K_OUT1 TP12 K_OUT2 TP11 KEY_BOARD K_OUT3 TP10...
  • Page 26 7-10...
  • Page 27 7-11...
  • Page 28 7-12...
  • Page 29 7-13...
  • Page 30 8.0 Exploded View Diagram...
  • Page 31 9.0 REVISION LIST Version 1.0 • Initial release Version 2.0 • Add versions...
