- Page 1 HARDWARE MANUAL English version 1.0 DNB6300V DNB6300V Networkable Camera © Copyright 2007 Digimerge Technologies Inc.

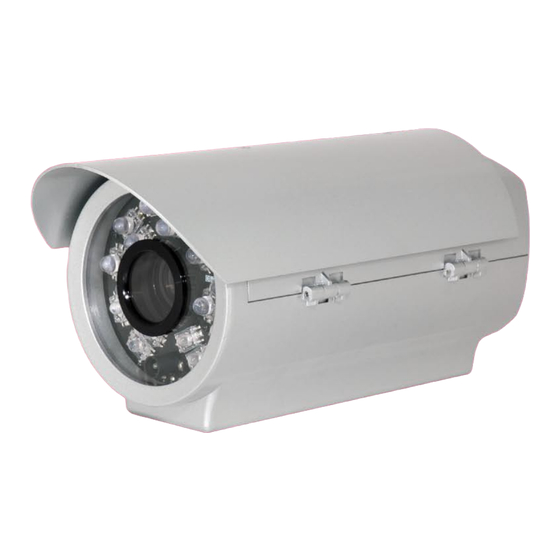

- Page 2 The Digimerge DNB6300V heavy duty day/night Network camera is designed for large high security outdoor applications where vandal resistance, weatherproof construction, 330 ft. (100.6M) IR illumination and the flexibility of Varifocal lens adjustment are required. Visit us on the web for a full range of IP Products at: http://www.digimerge.com...
- Page 3 Important Safeguards Important Safeguards In addition to the careful attention devoted to quality standards in the manufacture process of your video product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to assure your enjoyment and proper use of the video product and accessory equipment.
- Page 4 18. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.
- Page 5 4. Keep enough space around the unit for ventilation. Slots and openings in the storage cabinet should not be blocked 5. During lightning storms, or when the unit is not used for a long time, disconnect the power supply, antenna, and cables to protect the unit from electrical surge DIGIMERGE TECHNOLOGIES INC. http://www.digimerge.com Revision 1.0...
- Page 6 DNB6300V Camera Features SECTION 1 DNB6300V Camera Features Technology • High Resolution (540TV lines) • Sony 1/3” Super HAD CCD Image Sensor • MPEG-4/MJPEG Dual Codec • Up to full D1 resolution at 30 fps • Video out for connecting to monitors, DVRs etc.
-
Page 7: Table Of Contents
Section 1 - GETTING STARTED ............9~10 Package Contents ................. 10 Section 2 - PRODUCT OVERVIEW ..........11~14 DNB6300V - Connector Ports ............12 DNB6300V - Power Ports .............. 13 DNB6300V - Lens Adjustment............14 Section 3 - INSTALLATION ............. 15~20 Installation Overview .............. - Page 8 Menu - Edit Network Parameters .................. 36 Appendix #4 - Hardware Reset ............37 DigiViewer Reset ......................37 Hardware Reset ......................37 Digimerge IP Products ..............38 Digimerge Warranty ............... 39 ~ 40 © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.
-
Page 9: Section 1 - Getting Started
SECTION 1 GETTING STARTED Package Contents......10... -
Page 10: Package Contents
3 ft. Ethernet Cable Software CD, Quick Installation Guide, Hardware Manual & Housing Manual CHECK YOUR PACKAGE TO CONFIRM THAT YOU HAVE RECEIVED THE COMPLETE SYSTEM, INCLUDING ALL COMPONENTS SHOWN ABOVE. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc. -
Page 11: Section 2 - Product Overview
SECTION 2 PRODUCT OVERVIEW DNB6300V - Connector Ports ....12 DNB6300V - Power Ports ....13 DNB6300V - Lens Adjustment....14... -
Page 12: Dnb6300V - Connector Ports
DNB6300V - Connector Ports SECTION 2 DNB6300V - Connector Ports to access the ports on the Camera, the lid must first be lifted (by unscrewing the 2 holding screws using the large Hex tool). 1. CAMERA POWER INPUT PORT - Powers the Camera (do not disconnect this cable). -
Page 13: Dnb6300V - Power Ports
DNB6300V - Power Ports SECTION 2 DNB6300V - Power Ports to access the ports, the lid must first be lifted (by unscrewing the 2 holding screws using the large Hex tool). See page 17 for detailed instructions on power connections. -
Page 14: Dnb6300V - Lens Adjustment
DNB6300V - Lens Adjustment SECTION 2 DNB6300V - Lens Adjustment to access the lens on the Camera, the lid must first be lifted (by unscrewing the 2 holding screws using the large Hex tool). A varifocal 7.5~50mm auto Iris Lens is provided with this camera which has been carefully selected to provide the best possible image quality. -
Page 15: Section 3 - Installation
SECTION 3 INSTALLATION Installation Overview .....16~20 Hardware Installation - Power .....16 Hardware Installation - GPIO ....18 Adjusting the Included Lens ....18 Software Installation Overview ....19... -
Page 16: Installation Overview
• Mount the stand to the wall or Ceiling using the provided screws. • Securely connect the camera housing to the stand. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc. - Page 17 Installation Overview SECTION 3 2. Use the provided HEX tool to loosen the screws on the top of the camera housing. Open the lid to access the ports. NOTE: Make sure the Power and Ethernet Cables have been passed through the stand and into the housing before proceeding.
-
Page 18: Hardware Installation - Optional Gpio Connections
NOTE: Once all internal connections have been made, set the desired angle for the camera and secure the tightening screw on the camera base. Replace the cover and tighten the screws with the HEX tool. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc. -
Page 19: Software Installation Overview
SECTION 3 D. Software Installation Overview This IP device is provided with software applications to make the most of the Device. This includes software for installing, configuring and managing 1 or more Digimerge IP Devices. The following applications are included: •... -
Page 21: Section 4 - Network Connectivity
SECTION 4 NETWORK CONNECTIVITY Network Connectivity Overview ...22 Locating the MAC and IP Address ..23 Router Port Forwarding .......24 Setting Up Your DDNS Account .25~26 DigiViewer DDNS Setup .....27 Remote Access with IE....28~29... -
Page 22: Network Connectivity Overview
DigiViewer to allow DDNS connectivity. See the DigiConsole / DigiViewer Software Guide (provided with this Camera) for installation requirements and details on using the software. CAMERA INTERNET ROUTER (Not Included) (Not Included) © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc. -
Page 23: Locating The Mac And Ip Address
Select the Find Devices button. 2. The DigiConsole automatically locates all available Digimerge IP devices on the network, and displays a snapshot of the results. Click on any available device to display a snapshot image on the right side screen display. -
Page 24: Router Port Forwarding
To locate your external IP address, visit http://www.whatismyip.com NOTE: If using multiple IP Devices on the same network, each device will need to be assigned to a different remote access port. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc. -
Page 25: Setting Up Your Ddns Account
Setting Up Your DDNS Account Digimerge offers a free DDNS server for use with your IP Camera. A DDNS account allows you to set up a web site address that points back to your Local Network. The following outlines how to set up your free DNS account. - Page 26 Domain Name: _______________________________________________ User Name: _________________________________________________ Password: __________________________________________________ NOTE: The information sent to you in E-mail is CASE SENSITIVE. It is important when set- ting up your DDNS information on your device. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.
-
Page 27: Digiviewer Ddns Setup
B. Click on the NETWORK SERVICES link. C. Enter the DDNS information received in the DDNS Confirmation Email: Check ‘Enable Digimerge Dynamic DNS Service Enter the DDNS Domain name you chose during the DDNS Registration process Enter the Account Name you setup during the DDNS Registration Process. -
Page 28: Remote Access With Internet Explorer
Remote Access with Internet Explorer Open Internet Explorer, and enter the Local IP (i.e. http://192.168.0.104 if inside the Local Network), the Remote IP (i.e. http://72.154.89.164) or DDNS Address (http:// myurl.digimerge.net) for the remote IP Device. http://myurl.digimerge.net Internet Explorer Security Warnings Several security warnings may appear (based on your Internet Explorer settings). -
Page 29: Internet Explorer Security Warnings - Program Installation
• Click the Install button to allow the ActiveX controls to be setup on the PC. Internet Explorer Security Warnings - Windows Firewall The Digimerge IP Devices require connectivity across the network, and may be flagged by the Windows Firewall when a connection to your PC is made. -
Page 31: Section 5 - Appendices
APPENDICES Appendix #1 - Camera Specifications Appendix #2 - COM / GPIO Terminal Block Appendix #3 - Changing the Network Appendix #4 - Hardware Reset Other Digimerge IP Products Digimerge Limited Warranty... -
Page 32: Appendix #1 - Camera Specifications
Pictures (GOP) size (Advanced Features). Image Compression 16K~4M bits/sec (CBR/VBR configurable) Day / Night Function • Fixed IR Cut filter • 17 High Intensity 850nm IR LEDs providing up to 330ft. range © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc. -
Page 33: Network
Appendix #1 - Camera Specifications SECTION 5 Network Network Interface: Network • 10/100 Base-T Ethernet Protocols: • TCP (UDP)/IP, IMCP, HTTP, FTP, SMTP, DHCP, NTP, DNS, DDNS, RTSP, RTP/TCP (UDP). Management Event Management Triggers: Motion Detection Manual Recording Installation DigiConsole Utility (PC) Firmware Upgrade Remote upgrade via network Viewers / Supported... -
Page 34: Appendix #2 - Mini Din Gpio Cable
8. RS485 (B) - Connect an external PTZ or Alarm device. For PTZ control both pins 4 & 8 must be used. 9. BNC Type (Video Out) - Use the GPIO cable provided with this camera to directly output the video to a monitor. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc. -
Page 35: Features And Specifications Of The Gpio Solid State Relay
Appendix #2 - COM / GPIO Terminal Block / SECTION 5 Features and Specifications of the GPIO Solid State Relay • Normally Open, Single Pole Single Throw • Control 350VAC or DC Voltage • Switch 130mA Loads • LED control Current (5mA) •... -
Page 36: Appendix #3 - Changing The Camera Network Settings
DDNS Service. 5. Domain Name Server 2 - A backup IP address for the Domain Server. This information is necessary when using the DDNS Service © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc. -
Page 37: Appendix #4 - Hardware Reset
Appendix #4 - Hardware Reset SECTION 5 Appendix #4 - Hardware Reset There are 2 ways to reset the IP Device: DigiViewer Reset To restore Factory Defaults from the DigiViewer Web Browser Interface (Note: This only works if the network browser access to the device is operational): •... -
Page 38: Digimerge Ip Products
Digimerge IP Products SECTION 5 Digimerge IP Products © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc. -
Page 39: Digimerge Warranty
Digimerge, be repaired or replaced with equal or better product in terms of hard- ware features without charge if all the conditions set forth in this document are met. - Page 40 No claims or statements regarding the product, whether written or verbal, by salespeople, retailers, dealers or distribu- tors, that are not contained in this limited warranty or in the owner's manual are authorized by Digimerge and do not modify or expand this warranty. Some countries, states, or provinces do not allow the exclusion or limitation of implied warranties or the limitation of incidental or consequential damages for certain products supplied to consumers or the limitation of liability for personal injury.
- Page 41 It’s all on the web Product Information Specification Sheets User Manuals Software Upgrades Quick Start Guides Firmware Upgrades VISIT www.digimerge.com www.digimerge.com Digimerge Technologies Inc.
