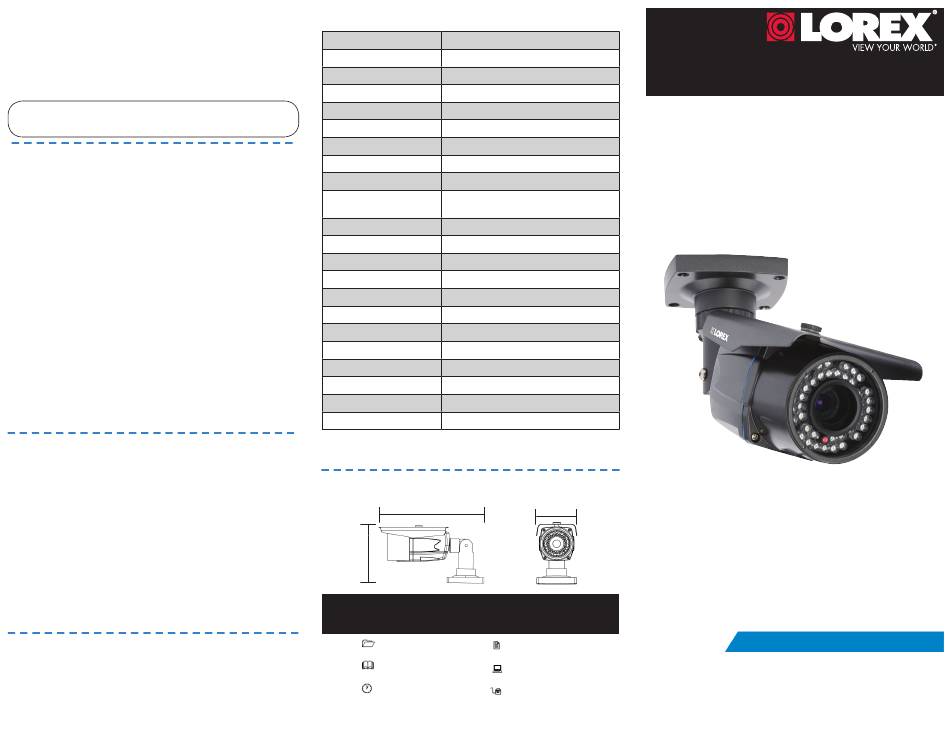

Lorex LBC8183 Quick Start Manual

Contents
• Weatherproof varifocal IR bullet camera
• Mounting screws (4x) / drywall anchors (4x)
• Mounting template
• Allen key
• 60ft BNC / power extension cable
• 12V DC power adapter
• BNC female / RCA male adapter
WARNING
- A REGULATED UL / CSA APPROVED 12V DC power supply is
REQUIRED for use with this camera. Use of a non-regulated, non-conforming
power supply can damage this product and voids the warranty.
Features
• 1.3 Megapixel image sensor (900TVL resolution) supporting 960H.
• 2.8 – 12mm manual zoom lens to customize viewing angle (
diagonal field of view).
• Integrated automatic Infrared Cut Filter (ICR) ensures accurate color
representation in all lighting conditions.
• Day/Night mode: Picture automatically switches to B&W delivering
better clarity in low light conditions
• BrightNight viewing with enhanced low light image sensor
• Close-up recognition at night with auto light compensation prevents
wash-out effect
• Night vision range up to 165ft (50m) in ambient lighting & up to
110ft (34m) away in total darkness*
• Split glass design minimizes IR reflection
• Anti-glare feature ensures clear images under strong lighting
conditions
• Vandal resistant design with cable pass-through bracket
• Ideal for outdoor & indoor applications (IP66 Rated)**
Disclaimers:
* Stated IR illumination range is based on ideal conditions in typical outdoor night time
ambient lighting and total darkness. Actual range and image clarity depends on installation
location, viewing area, and light reflection / absorption level of object.
** Not intended for submersion in water. Installation in a sheltered location recommended.
Warning/Caution
• Read this guide carefully and keep it for future reference
• Follow all instructions for safe use of the product and handle with
care
• Use the camera within given temperature, humidity, and voltage
levels noted in 'Camera Specifications'
• Do not disassemble the camera
• Do not point the camera directly towards the sun or a source of
intense light
• Use only the supplied regulated power supply. Use of a
non-regulated, non-conforming power supply can damage this
product and voids the warranty
• Periodic cleaning may be required. Use a damp cloth only. Do
not use harsh cleaners or aerosol cleaners
• The supplied extension cable is rated for surface mounting only
• Cables for in-wall / floor-to-floor installations are sold separately
Installation Tips
• Point the camera where there is the least amount of obstructions
(i.e. tree branches)
• Install the camera in a location that is difficult for vandals to reach
• Secure cabling so that it is not exposed or easily cut
• Camera rated for outdoor use. Installation in a sheltered location
recommended
Camera Specifications
Image Sensor
Video Format
Effective Pixels
Resolution
Scan System
Sync System
S / N Ratio
Iris
AES Shutter Speed
29–93°
Min. Illumination
Video Output
Lens / Lens Type
FOV (Diagonal)
Termination
IR LED Qty. / Type
Night Vision Range*
Power Requirement
Power Consumption
Operating Temp. Range
Operating Humidity Range
Indoor / Outdoor**
Weight (including stand)
* Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient
lighting and total darkness. Actual range and image clarity depends on installation location, viewing
area, and light reflection / absorption level of object.
** Not intended for submersion in water. Installation in a sheltered location recommended.
Dimensions
235mm / 9.3"
130mm
5.1"
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Product Information
User Manuals
Quick Start Guides
Copyright © 2014 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE
1/3" Sony Exmor™ Megapixel CMOS
NTSC
H: 1305 V: 1049
900 TV Lines
2:1 Interlace
Internal
48dB
AES
1/60 ~ 1/100,000 sec.
0.05 Lux without IR LED
0 Lux with IR LED
Composite 1.0Vpp @ 75ohm
2.8–12mm F1.4 / Varifocal
29–93°
BNC Type
36 pieces / 850nm
165ft (50m) / 110ft (34m)
12V DC ±10%
Max. 430mA (w/IR)
–4° ~ 122°F / –20° ~ 50°C
< 80% RH
Both (IP66)
1.7lbs / 0.8kg
95mm / 3.7"
Specification Sheets
Software Upgrades
Firmware Upgrades
900TVL 960H WEATHERPROOF
IR NIGHT VISION CAMERA
Quick Start Guide
English Version 1.0
LBC8183
