NETGEAR JNR1010v2 Installation Manual

Installation Guide

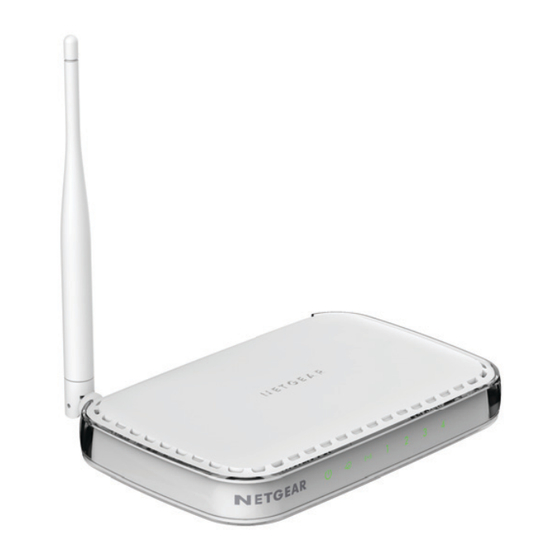

JNR1010v2 N150 Wireless Router
Package Contents
Router Power adapter
Front and Back Views
Ethernet LAN port
Power LED WiFi LED
Internet LED Ethernet LAN port LEDs
Step 1. Prepare the modem.
Unplug the modem's power. If it has
a battery backup, remove the
battery.
DSL or cable
Internet
WPS/Reset button
Power input
Internet port
Step 2. Power on the
modem.
Plug in your modem. Put the
battery back in and turn on your
modem.
Wait approximately two minutes
until your modem turns on.
(Not included)
Router
Modem
(Not included)
Step 3. Cable the modem.
Cable the modem to the Internet port of
the router with an Ethernet cable.
Step 4. Power on the router.
Connect the power adapter to the
router, then plug it into an outlet.
Wait for the WiFi LED
Step 5. Connect a computer.
You can use an Ethernet cable or
connect with WiFi.
To connect with WiFi, use the WiFi
network name and password on the
router label.
Step 6. Launch a browser.
NETGEAR genie displays.
Follow the genie steps to connect to
the Internet.
If you do not see genie, type
www.routerlogin.net. Then type
admin for the user name and
password for the password.
to light.
