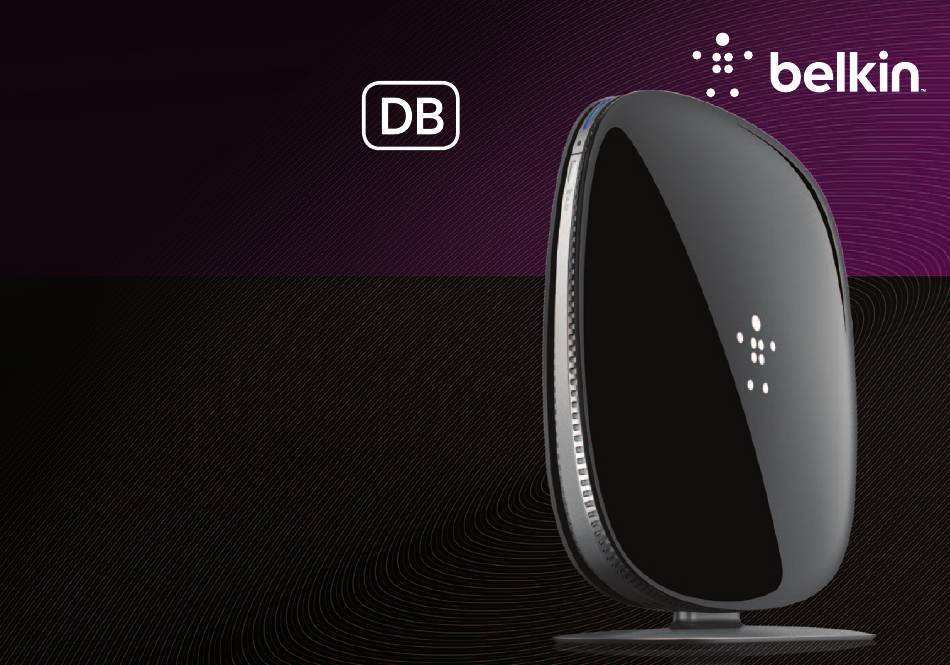

WIRELESS AC+ GIGAbIt modEm RoutER
AC 1750
User Manual
F9J1108v1 8820ed01865uk_RevA00

Advertisement

Table of Contents
loading

Related Manuals for Belkin AC 1750 DB

Summary of Contents for Belkin AC 1750 DB

  • Page 1 WIRELESS AC+ GIGAbIt modEm RoutER AC 1750 User Manual F9J1108v1 8820ed01865uk_RevA00...

  • Page 2: Table Of Contents

    Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Belkin International, Inc ., Limited 2-Year Product Warranty . . . . . . . . . 57 Technical Details .

  • Page 3: Getting Started

    GeTTInG sTaRTeD What’s in the box Initial setup AC1750 DB Wireless AC+ Gigabit Router Where to Place Your Router Ethernet cable (attached to router) For the best results, place the Router next to your modem in Power supply (attached to router) an open location away from large metal objects and magnets such as those found in speakers .
  • Page 4 GeTTInG sTaRTeD Connect Power modem to ADSL jack using Connect to Wi-Fi® network suppliedtelephone/RJ11 cable (note: filter may be required), then plug power modem into mains socket http://router...
  • Page 5 GeTTInG sTaRTeD Type http://router to finish setup or try http://192.168.2.1...
  • Page 6 For information on how to connect your wireless devices, please see the “Connect Your Wireless Devices” section on page 21 . Retrieve the network ID card from the foot of your new Belkin Modem Router . When requested, please enter the password (security key) provided on the card .
  • Page 7 GeTTInG sTaRTeD If the page does not load, then try visiting http://192 . 1 68 .2 . 1 to see the After several moments, your Modem Router should automatically de- Modem Router homepage . tect your Internet connection and restart . This can take anywhere from 30 seconds to 3 minutes depending on your connection type .
  • Page 8 GeTTInG sTaRTeD Once your Modem Router is online, it will determine if there is a At the next screen you will be invited to change your network name firmware update available and offer to install it . Please allow up to 5 and password .
  • Page 9 GeTTInG sTaRTeD Please take this opportunity to register your Modem Router . This will If you decide to change these settings, then enter the new values and help technical support if there is a problem with your Modem Router . click “Save and Continue .”...
  • Page 10 GeTTInG sTaRTeD At the next screen you can download optional software that was bundled with your Modem Router . This screen shows you optional software that is available for your Modem Router, such as the USB software to allow you to print through the Modem Router’s USB port .
  • Page 11 GeTTInG sTaRTeD When finished installing optional software, click “Thanks, take me to the dashboard .” Congratulations! You are now at your Modem Router’s dashboard . Your Modem Router is set up and ready to use .
  • Page 12 GeTTInG sTaRTeD Using the WPs button 1 . Start WPS Push Button Connection (WPS PBC) on your computer or other Wi-Fi device that you would like to connect wirelessly to your Modem Router . Often there will be a button for this purpose in software that came with the device, or a physical “WPS,”...
  • Page 13 GeTTInG sTaRTeD If the selected connection type requires additional information (such Manually set Up Your Internet Connection as an ISP username and password), the system will ask you for it . Use a browser to visit http://Modem Router/ . You can also try visiting http://192 .
  • Page 14 GeTTInG sTaRTeD At the next screen you will be invited to change your network If you decide to change these settings, then enter the name and password . Reusing your previous network name new values and click “Save and Continue .” (Note: The (SSID) and password makes connecting your existing password must be at least 8 characters long .) devices to the new Modem Router much easier .
  • Page 15 GeTTInG sTaRTeD Click “Great, what’s next?” Please take this opportunity to register your Modem Router . This will help technical support if there is a problem with your Modem Router .
  • Page 16 GeTTInG sTaRTeD Simply complete each of the required fields and click “Complete Registration .” If you don’t want to register right now, click “Register Later” to proceed . At the next screen you can download optional software that was bundled with your Modem Router .
  • Page 17 GeTTInG sTaRTeD This screen shows you optional software that is available for your Modem Router, such as the USB software to allow you to print through the Modem Router’s USB port . If you wish to download and install any of these software programs, simply click on the button appropriate for your device .
  • Page 18 GeTTInG sTaRTeD The status of your Internet connection is shown in the upper left corner of the Router’s homepage . If it does not say “Online,” troubleshooting information will be displayed .
  • Page 19 GeTTInG sTaRTeD Dynamic/fixed IP (1483 bridge) In most cases the IP address is dynamic, in which case all you need to do is enter the correct VPI and VCI values and select the correct encapsulation Select “Dynamic/Fixed IP (1483 Bridge)” from the mode (check with your ISP if you are unsure), then click “Apply Changes.”...
  • Page 20 GeTTInG sTaRTeD PPPoe/PPPoa Connection If after a few minutes your Internet Status says “Connected,” Some ADSL providers require a PPPoE or PPPoA connection. you’re done! You can surf the Internet. Select either PPPoE or PPPoA (check with your ISP if you are unsure of which you need) and press “Next.”...
  • Page 21 GeTTInG sTaRTeD Enter the username and password supplied by your Internet provider, enter the correct VPI and VCI values, and select the correct encapsulation mode (check with your ISP if you are unsure of what VPI/VCI and encapsulation values to use). Then click “Apply Changes.”...
  • Page 22 GeTTInG sTaRTeD If after a few minutes your Internet Status says If these steps do not work, try restarting your “Connected,” you’re done! You can surf the Internet . modem and repeating the process .

  • Page 23: Connect Your Wireless Devices

    GeTTInG sTaRTeD Connect Your Wireless Devices Android (phones and tablets) 1. open the Settings app and select Wireless and Network. (iPhone, iPad, and iPod touch) 2. From there, select Wi-Fi to see the list of available networks. 1. open the Settings app and select the Wi-Fi menu item. 3.
  • Page 24 GeTTInG sTaRTeD Windows ® Your computer provides a menu of available wireless networks at the right end of the task bar. 1. Left-click on the icon that looks like signal strength bars. 2. Select your wireless network from the list. If asked, enter your network password (network key).

  • Page 25: Adding Usb Devices

    aDDITIOnal CaPabIlITIes adding Usb Devices...
  • Page 26 Router . You can manually check the status of your shared drive by visiting the USB Print and Storage Manager, found under the Belkin Router You can manually check the status of your printer by visiting the...
  • Page 27 Other USB devices may also be shared via your Router . Plug your device into the USB port located on the back of your Router . Computers running the Belkin USB Print and Storage Manager will be able to make use of the shared device .

  • Page 28: Optional Software

    aDDITIOnal CaPabIlITIes Optional software Usb Print and storage Center The USB Print and Storage Manager helps to manage and monitor the use of your USB printers, scanners, hard drives, and other devices that are connected to your Router’s USB port and shared across your network .
  • Page 29 aDDITIOnal CaPabIlITIes additional Capabilities Guest access You can allow guests to use your Internet connection without joining your personal network . The network name and password for the guest network is located on the network information card found under the foot of your Router . A person using your guest network will be able to join without a password, but will be shown a login page when they attempt to surf the Web .
  • Page 30 aDDITIOnal CaPabIlITIes Media server by myTwonky Media Server by myTwonky lets your Router stream music, movies, and photos to different DLNA/UPnP devices on your network . In order to use Media Server by myTwonky, you will need to insert a USB storage device with media content into a free USB port on the back of your Router .
  • Page 31 aDDITIOnal CaPabIlITIes There are four different filtering options: 1 . Block malicious, adult, and other non-family-friendly sites 2 . Block malicious and adult sites 3 . Block malicious sites 4 . No filters If you think a site should be added to the filtering list, submit a request at safeweb .norton .com .
  • Page 32 aDDITIOnal CaPabIlITIes There are two ways to enable Intellistream: Intellistream Qos Run a speed Test: Intellistream prioritizes video and gaming traffic for a better online entertainment experience . In order for IntelliStream to provide you the best media experience, your Router needs to know what your approximate Internet speeds are . Click “Run a Speed Test”...
  • Page 33 aDDITIOnal CaPabIlITIes Once complete you will see the results . If your Internet speed is greater than 70Mbps when downloading, IntelliStream QoS will only improve your uploading experience .
  • Page 34 aDDITIOnal CaPabIlITIes Manual set – This will let you set your approximate Internet Refresh – This will retest your Internet speed . speeds . If you do not know your Internet speeds, call your ISP . When you click “Save,” your Router will save your changes . When you click “Save,”...
  • Page 35 aDDITIOnal CaPabIlITIes IPv6 Configuration Pass-Through Devices connected to your Router can talk to each other using A new version of Internet Protocol (IP) uses a native IPv6 packets, but information will be sent to all connected 128-bit address to implement additional features devices .

  • Page 36: Getting To Know Your Router

    GeTTInG TO KnOW YOUR ROUTeR Modem Router Front Panel b) Wi-fi Protected setup (WPs) light and button The WPS button on the front of your Router can be used to help establish a secure connection between your Router and other WPS-enabled Wi-Fi devices such as computers . To use the WPS feature on your Router, see “Getting Started >...

  • Page 37: Back Panel

    GeTTInG TO KnOW YOUR ROUTeR Back Panel a) Modem (Wan) Connector C) Usb 2 .0 Ports D) Reset button Connect the Ethernet cable USB printers, disks, and other This button is used to restart from the supplied Power USB devices plugged into these your Router in rare cases when it Modem to this port.

  • Page 38: Technical Details

    To save you the cost of adding IP addresses per Your Router has a built-in, 4-port network switch to computer in your house, your Belkin Router uses Network allow your wired computers to share: printers, data, Address Translation (NAT) technology, allowing you to MP3 files, digital photos, and much more .

  • Page 39: System Requirements

    TeChnICal DeTaIls system Requirements setup software A computer running Windows XP SP3 or higher, Windows ® Vista , or Windows 7; or Mac OS X v10 .5 or above ® ® Router Minimum 1GHz processor and 512MB RAM ADSL/ADSL2/ADSL2+ broadband connection 600MB of free hard-drive space for installation At least one computer with: Installed network interface card and TCP/IP networking protocol...

  • Page 40: Using Your Router

    UsInG YOUR ROUTeR auto Update on Your belkin Router The Router will automatically check for a newer version of firmware every time you log into the dashboard and alert you with a message at the top of the screen if there is an update available .

  • Page 41: Updating The Router's Firmware Via The Web Interface

    Internet as this interface is built into the Router itself . setup steps: 1 . Locate and download the firmware file from the Belkin support site . (Type your part number into the search box in the top right corner and look for “Firmware” in the title .) 2 .
  • Page 42 UsInG YOUR ROUTeR 4 . Open a web browser on the computer . 7 . Click the “Choose File” button toward the middle of the screen to search for the file you saved previously . 5 . In the address bar of the web browser, type “http://router” or “http://192 .
  • Page 43 UsInG YOUR ROUTeR 8 . Select the firmware file by left-clicking on it and then click the “Open” button in the lower-right corner of the window . This will take you back into the Router’s interface . 9 . Click the “Update” button .
  • Page 44 UsInG YOUR ROUTeR 10 . A prompt asking, “Are you sure you want to continue with upgrading?” will appear . Click “OK” . 11 . A second prompt will open telling you the Router will not respond during the upgrade and warning you not to remove the power supply from the Router .

  • Page 45: Resetting The Router

    UsInG YOUR ROUTeR Resetting the Router Restoring Your Router to factory Defaults Press and hold the “Reset” button for at least 5 seconds, and then release it . The lights on the Router will momentarily Reset button – Red flash . The “Router” light will begin to blink . When the “Router” The “Reset”...

  • Page 46: Restoring The Router To Default Settings Using The Web Interface

    UsInG YOUR ROUTeR Restoring the Router to Default settings Using the Web Interface symptoms You need to restore the factory defaults using the web interface . This may be because the Router is not performing as expected or you wish to remove all previously configured settings . setup steps 1 .
  • Page 47 UsInG YOUR ROUTeR 4 . Click on the “Restore Defaults” button . 5 . A warning box will open that says, “Warning: All your settings will be lost . Are you sure you want to do this?” Click “OK” .
  • Page 48 UsInG YOUR ROUTeR 6 . The Router will begin the restoring process . Once the restore is complete, the Router will reboot . note: This may take several minutes . Your Router has successfully been restored to its factory settings .

  • Page 49: Troubleshooting, Support, And Warranty

    TROUbleshOOTInG, sUPPORT, anD WaRRanTY Troubleshooting I can’t connect to the Internet wirelessly . If the light on the front of the Router is solid blue, then your Router is connected to the Internet . You may not be connected to the Router’s wireless network . Please refer to “Connect Your Wireless Devices”...
  • Page 50 TROUbleshOOTInG, sUPPORT, anD WaRRanTY I can’t connect to the Internet wirelessly and my My wireless network per formance is slow, inconsistent, network name is not listed in available networks . suffers from weak signal, or I’m having difficulty maintaining a VPn connection .
  • Page 51 TROUbleshOOTInG, sUPPORT, anD WaRRanTY limiting the wireless transmit rate—Limiting the wireless transmit I’ve installed this new Router and some of my network clients rate can help improve range and connection stability . Most wireless (computers, game consoles, etc .) are now unable to connect . cards have the ability to limit the transmission rate .
  • Page 52 TROUbleshOOTInG, sUPPORT, anD WaRRanTY Does the Router support Wireless 5 . Click “Save” to finish . Your wireless connection is Protected access (WPa) security? now encrypted . Each computer using your wireless network will need to use the new key . The Router ships with WPA/WPA2 security turned on .
  • Page 53 TROUbleshOOTInG, sUPPORT, anD WaRRanTY I am having difficulty setting up Wired equivalent 4 . Click “Save” to finish . Your wireless activity is now encrypted . Each Privacy (WeP) security on my Router . computer using your wireless network will need to use the new key . 1 .
  • Page 54 3 . The Router supports FAT16, FAT32-, or NTFS-formatted disks . Disks in other formats will not appear in the 3 . The printer may not be set to auto-connect . Via the Belkin Router Finder (Mac OS X) or Windows Internet Explorer Manager, open the USB Print and Storage Center .
  • Page 55 TROUbleshOOTInG, sUPPORT, anD WaRRanTY a different sort of Usb device that I plugged into the Usb port is not showing up on my computer . Most USB devices other than disks and printers must be accessed via the USB Print and Storage Center . 1 .
  • Page 56 I cannot browse the Web . The light on the front of my Router is blinking amber . If Belkin Setup is not able to connect the Router to the Internet, please check the following items: 1 .
  • Page 57 Web . The light on the front of my Router is solid amber . If the light on the front of the Router is solid blue, then your 1 . Use the troubleshooting suggestions within Belkin Setup . Router is connected to the Internet . You may not be connected to the Router’s wireless network .

  • Page 58: Technical Support

    TROUbleshOOTInG, sUPPORT, anD WaRRanTY Technical support http://www .belkin .com/support http://www .belkin .com/uk/support australia http://www .belkin .com/au/support new Zealand http://www .belkin .com/au/support singapore 1800 622 1130 europe http://www .belkin .com/uk/support NORWAY 81 50 0287 www .belkin .com/uk/networking/ AUSTRIA 0820 200 766 www .belkin .com/de/networking/...

  • Page 59: Belkin International, Inc ., Limited 2-Year Product Warranty

    What is not covered by this warranty? 2-Year Product Warranty All above warranties are null and void if the Belkin product is not provided to Belkin for inspection upon Belkin’s request at the sole expense of the purchaser, or if Belkin determines that the Belkin product has been improperly installed, altered What this warranty covers .
  • Page 60 . must take the following steps: Belkin reserves the right to review the damaged Belkin product . 1 . Contact Belkin International, Inc ., on the telephone number All costs of shipping the Belkin product to Belkin for inspection listed on page 56, within 15 days of the Occurrence .
  • Page 61 Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you . IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO,...

  • Page 62: Regulatory Information

    Class B digital device, pursuant to the requirements of EN 55022 and EN 55024 . These limits are designed to provide reasonable We, Belkin International, Inc ., of Schiphol-Rijk, Netherlands, protection against harmful interference in a residential installation .

  • Page 63: Europe - Eu Declaration Of Conformity

    This device complies with the essential requirements of the R&TTE Directive 1999/5/EC, the EMC Directive 2004/108/EC, and the low-voltage Directive 2006/95/EC . A copy of the European Union CE marking “Declaration of Conformity” may be obtained at the website: www .belkin .com/doc For information on product disposal please refer to http://environmental .belkin .com...
  • Page 64 © 2014 Belkin International, Inc . All rights reserved . All trade names are registered trademarks of respective manufacturers listed . iPad, iPhone, iPod touch, Mac, Mac OS, and Safari are trademarks of Apple Inc ., registered in the U .S . and other countries .
