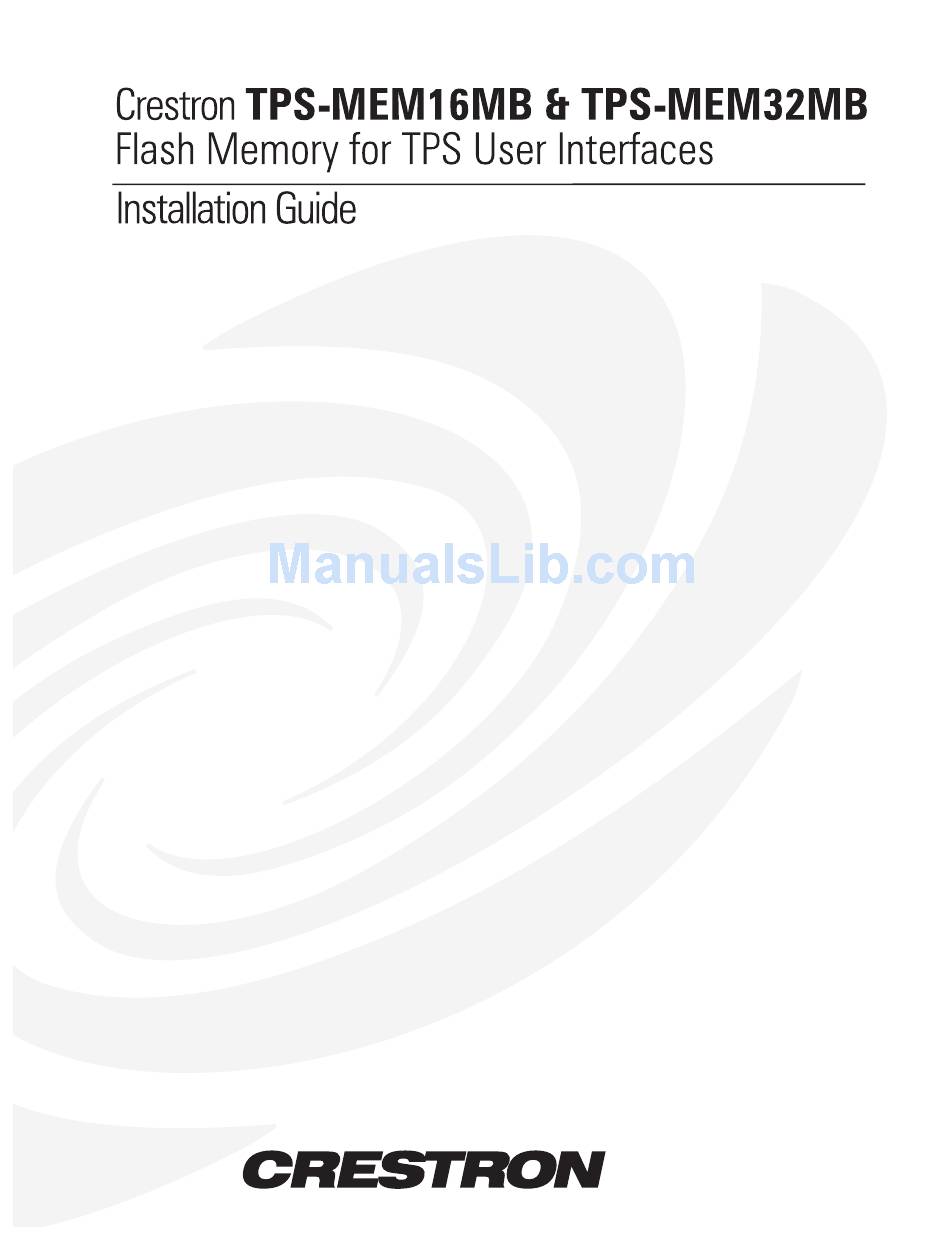

Crestron TPS-MEM16MB Installation Manual

Flash memory for tps user interfaces

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Summary of Contents for Crestron TPS-MEM16MB

  • Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON...
  • Page 3: Table Of Contents

    Crestron TPS-MEM16MB & TPS-MEM32MB Contents Flash Memory for TPS User Interfaces: TPS-MEM16MB & TPS-MEM32MB Description Functional Description Physical Description Memory Module Verification Local Verification Remote Verification Installation Tilt Model Installation Procedure Lectern Model Installation Procedure Problem Solving Troubleshooting Further Inquiries...
  • Page 5: Flash Memory For Tps User Interfaces: Tps-Mem16Mb & Tps-Mem32Mb

    Physical Description The memory modules are a printed circuit board (PCB) designed for installation into a specific memory socket on the TPS user interface motherboard. Installation Guide - DOC. 5927 Flash Memory for TPS User Interfaces: TPS-MEM16MB & TPS-MEM32MB Flash Memory...
  • Page 6: Memory Module Verification

    Remote Verification A PC running SIMPL™ Windows or VisionTools™ Pro-e and connected to the Crestron control system (with the user interface connected via Cresnet) is required for remote verification. From the Viewport enter Remote | Remote Console | Connect to open the "Select Network ID"...
  • Page 7: Installation

    24VDC 2A. To prevent errors when re-connecting, label and disconnect all cables attached to the touchpanel rear panel ports. Installation Guide - DOC. 5927 Flash Memory for TPS User Interfaces: TPS-MEM16MB & TPS-MEM32MB Flash Memory...
  • Page 8 Place the touchpanel upright on the work surface. As shown on the next page, remove the touchpanel base cover by raising it upwards and rearward. Flash Memory for TPS User Interfaces: TPS-MEM16MB & TPS-MEM32MB Crestron TPS-MEM16MB & TPS-MEM32MB Installation Guide - DOC. 5927...
  • Page 9 To obtain unobstructed access to the memory socket, remove the TPS-VID expansion card, as shown below, if installed. If there is no TPS-VID, continue with next step. TPS-VID Removal Installation Guide - DOC. 5927 Flash Memory for TPS User Interfaces: TPS-MEM16MB & TPS-MEM32MB Flash Memory...
  • Page 10 16. Position the touchpanel base cover onto the base. 17. Hold the touchpanel base cover in place and position the touchpanel facedown onto a padded surface to prevent scratching of the screen. Flash Memory for TPS User Interfaces: TPS-MEM16MB & TPS-MEM32MB Crestron TPS-MEM16MB & TPS-MEM32MB LOCATION OF MEMORY...
  • Page 11: Lectern Model Installation Procedure

    New users are required to register in order to obtain access to the FTP site. To prevent scratching of the screen (TPS-TPI excluded), place the touchpanel facedown onto a padded surface. Installation Guide - DOC. 5927 Flash Memory for TPS User Interfaces: TPS-MEM16MB & TPS-MEM32MB Flash Memory...
  • Page 12 Align the connectors carefully to prevent damage to the card, cover, or touchpanel. Flash Memory for TPS User Interfaces: TPS-MEM16MB & TPS-MEM32MB Crestron TPS-MEM16MB & TPS-MEM32MB Installation Guide - DOC. 5927...
  • Page 13 Installation Guide - DOC. 5927 on the next page. Using a #1 Phillips screwdriver, loosen and remove the two screws that secure the PCB blank plate and remove the plate. Flash Memory for TPS User Interfaces: TPS-MEM16MB & TPS-MEM32MB Flash Memory...
  • Page 14 Remove PCB Blank Plate 4b. If the TPS-VIDL expansion card is observed, refer to TPS-VIDL Removal Flash Memory for TPS User Interfaces: TPS-MEM16MB & TPS-MEM32MB Crestron TPS-MEM16MB & TPS-MEM32MB the diagram below. Completely loosen the knurled mounting screws and carefully remove the TPS-VIDL...
  • Page 15 Installation Guide - DOC. 5927 CRESTRON ELECTRONICS INC. ROCKLEIGH, NJ 07647 USA AUDIO INPUT MIC OUT 24 Y Z G RS-232 Flash Memory for TPS User Interfaces: TPS-MEM16MB & TPS-MEM32MB Flash Memory LOCATION OF MEMORY SOCKET WITH MEMORY MODULE...
  • Page 16: Problem Solving

    Repeat the procedure and make sure the new module is properly seated. Problem Solving Troubleshooting The table on the next page provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. TPS-MEM16MB & TPS-32MB Troubleshooting TROUBLE Touchpanel...
  • Page 17: Further Inquiries

    Crestron TPS-MEM16MB & TPS-MEM32MB Further Inquiries If after reviewing this Installations Guide, you cannot locate specific information or have questions, please take advantage of Crestron's award winning customer service team by calling: In the US and Canada, call Crestron’s corporate headquarters at 1-888-CRESTRON [1-888-273-7876] or 1-201-767-3400.
  • Page 18: Return And Warranty Policies

    CRESTRON shall not be liable to honor warranty terms if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures.
  • Page 19 Crestron TPS-MEM16MB & TPS-MEM32MB Flash Memory This page intentionally left blank. Installation Guide - DOC. 5927 Flash Memory for TPS User Interfaces: TPS-MEM16MB & TPS-MEM32MB...
  • Page 20 Crestron Electronics, Inc. Installation Guide – DOC. 5927 15 Volvo Drive Rockleigh, NJ 07647 01.01 Tel: 888.CRESTRON Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.

This manual is also suitable for:

Tps-mem32mb
