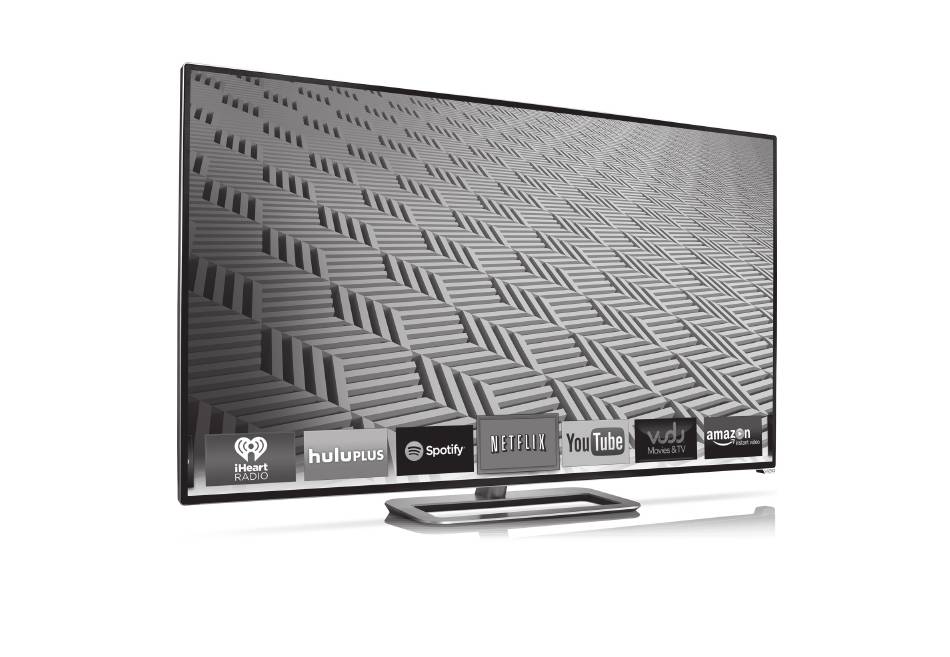

- Page 1 VIZIO QUICK START GUIDE Model: M602i-B3 & M702i-B3...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your TV is designed and manufactured to operate within defined design limits. Misuse may result in electric may cause fire or electric shock. shock or fire. To prevent your TV from being damaged, the following instructions should be observed for the •... -
Page 3: Television Antenna Connection Protection
TELEVISION ANTENNA CONNECTION PROTECTION Ground Clamp Antenna Lead In Wire Antenna Discharge Unit (NEC Section 810-20) Grounding Conductors (NEC Section 810-21) Ground Clamps Power Service Grounding Electrode System (NEC ART 250, part H) Electric Service Equipment • If an outside antenna/satellite dish or cable system is to be connected to •... - Page 4 Do You Have Questions? Find Answers At SUPPORT.VIZIO.COM Find help with: • New Product Setup • Connecting Your Devices • Technical Problems • Product Updates • And More Live Chat Support Available You can also contact our award-winning support team at:...
-
Page 5: Package Contents
PACKAGE CONTENTS Two-Sided Remote This Quick Start Guide VIZIO LED HDTV with Stand with Keyboard (Batteries Included) Power Cord 4 x M5 20mm 4 x M5 23mm Phillips Screws Phillips Screws... -
Page 6: Installing The Base
INSTALLING THE BASE It is recommended that two people take part in the base installation. Place the TV screen-down on a clean, flat surface. To prevent scratches or damage to the screen, place the TV on a soft surface such as a blanket. - Page 7 Align the neck piece with the bottom of the TV Align the base with the neck. and slide it into place as shown. Insert and tighten four (4) included M5 23mm Insert and tighten four (4) included M5 20mm Phillips screws into the bottom of the base as Phillips screws into the back of the TV as shown.
-
Page 8: Using The Remote
USING THE REMOTE APP LAUNCHER Quickly launch the pictured App. INPUT Change the currently-displayed input. POWER Turn TV on or off. A/V CONTROLS Control playback in Smart TV Apps MENU and the USB media player. Display the on-screen menu. CLOSED CAPTIONS INFO Open the closed caption menu. - Page 9 DO NOT COVER THIS AREA This is the transmitter. SHIFT ARROW Press and hold while pressing another Press and hold while pressing Navigate the on-screen menu. key to enter a blue character. For another key to enter a example, press ALT and W to enter capital letter.
- Page 10 FIRST-TIME SETUP Connect all of your devices first. Match colored connectors Choose ONE connection type for each device. to colored ports. White White Blue Yellow Green...
- Page 11 AV CABLE* • ANALOG GOOD • VIDEO (480i)** Commonly-Connected White • STEREO AUDIO Devices: Yellow COMPONENT CABLE* • ANALOG BETTER • HD VIDEO (1080i)** White Cable or Satellite Boxes • STEREO AUDIO Blue Green Blu-ray or DVD Players ™ COAXIAL CABLE* •...
- Page 12 Ethernet cable from your modem/ outside of the TV. router to the back of the TV as shown. For the best Smart TV experience, VIZIO recommends using an Ethernet cable. Plug the power cord into an electrical outlet.
- Page 13 Press in on the button Remove the battery cover. on the rear of the remote.
- Page 14 Replace the battery cover Insert two batteries into the remote control. Make sure that the (+) and (-) symbols on the batteries match the (+) and (-) symbols inside the battery compartment.
- Page 15 Choose your mode. Select Store Demo for in-store display. Select Home Use for in-home use. Seleccione "Home Use" por Modo de Casa o "Store Demo" por Demostración de Tienda. Choisissez "Home Use" pour Mode Domicile ou "Store Demo" pour Démonstration en Magasin. Store Demo Home Use Turn the TV on by pressing the Power Button on...
-
Page 16: Connecting To The Internet With Wi-Fi
CONNECTING TO THE INTERNET WITH Wi-Fi VIZIO VIZIO If you have already set up a wireless TV Settings GUIDED SETUP connection during the first-time setup, you Wide Zoom Normal Panoramic Wide Picture Tuner Setup can skip this section. Audio Network Setup... - Page 17 If you are having trouble connecting to your network, check your router placement: • Walls and large metal objects can block the signal. • Other devices broadcasting at 2.4 or 5 GHz can interfere with the signal. • Wall blocks signal •...
- Page 18 VIEWING THE ON-SCREEN USER MANUAL VIZIO MENU TV SETTINGS Button Wide Zoom Normal Panoramic Picture Audio Timers Network Exit Tuner Closed Captions Devices System User Guided Setup Input Wide User Manual Manual Sleep Picture Audio Timer Network Settings Help Press the MENU Button on the Remote Control Highlight User Manual and press OK.
- Page 19 USER MANUAL LED HDTV WITH VIZIO INTERNET APPS PLUS® M602i-B3 USE YOUR REMOTE PAGE NUMBER 1 OF 53 Previous Page To skip to page, use Next Page Number Pad, Menu Open TV Menu then press OK. Table of Contents Installing the TV...
-
Page 20: Getting Started With Vizio Internet Apps Plus
GETTING STARTED WITH VIZIO INTERNET APPS PLUS ® VIZIO Internet Apps Plus (V.I.A. Plus) delivers popular ® online content to your TV. The Apps featured in V.I.A. Plus allow you to watch movies and TV shows, listen to music, get weather and news information, and more–all on demand. - Page 21 The fullscreen V.I.A. Plus Apps window allows you to add and store apps. The Apps on the first page are displayed in the Dock and Apps on additional pages can be moved to the Dock. Press the V Button twice to launch the fullscreen V.I.A. Plus Apps window. My Apps Tab Displays the apps installed...
-
Page 22: Vizio Recommends
54” 3.0 HOME THEATER SOUND BAR WITH INTEGRATED DEEP BASS Upgrade your big screen with big audio from VIZIO’s 54” 3.0 Sound Bar with High Performance Bass. Designed for large HDTVs, this three-channel sound bar provides room filling sound and features deep bass technology that adds low end frequency without the need for an external subwoofer. - Page 23 VIZIO RECOMMENDS VIZIO 8 FT. HIGH-SPEED HDMI CABLE – E-SERIES ® This 8 ft. high-speed HDMI® cable is ideal for HDTVs. Supporting 1080p and 4k x 2k Ultra High Definition resolutions, the E-Series HDMI cable provides picture-perfect HD video, 3D, and superior audio, all at up to 18 Gbps. This all-in-one cable also supports advanced 7.1 surround sound and Audio Return Channel, eliminating the need for...
-
Page 24: Help Topics
HELP TOPICS • The on-screen menu has guided setup. Press MENU, then select Guided Setup. Select the type of setup you need and press OK. The Setup App will begin. How do I return to the • To reset the TV to factory defaults, press MENU > System > Reset & Admin > Reset TV to Factory Defaults. If Setup App? you have changed the default Parental Control Passcode, enter it now. -
Page 25: Legal & Compliance
Sunday, Pacific Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show CHECK WWW.VIZIO.COM FOR THE MOST CURRENT VERSION. -
Page 26: Limited Warranty - Canada
To obtain warranty service, contact VIZIO Technical Support via email: TechSupport@VIZIO.com or via phone at 877 product to a VIZIO service center. Proof of purchase in the form of a purchase receipt or copy thereof is required to MY VIZIO (877.698.4946) from 7:00AM to 11:00PM Monday through Friday and 9:00AM to 6:00PM Saturday and show that a Product is within the warranty period. - Page 27 If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO Sales & Marketing México S. de. R.L. de C.V. will either repair or replace the unit at its sole option and (c) When the Product has been altered or repaired by persons not authorized by VIZIO Sales &...
- Page 28 © 2014 VIZIO INC. ALL RIGHTS RESERVED. 140606OC-US-NC...
