Friedrich MW18TC3E Operating Manual

Multi split type (3 rooms)
Hide thumbs Also See for MW18TC3E:
Table of Contents

Advertisement

Quick Links

Download this manual

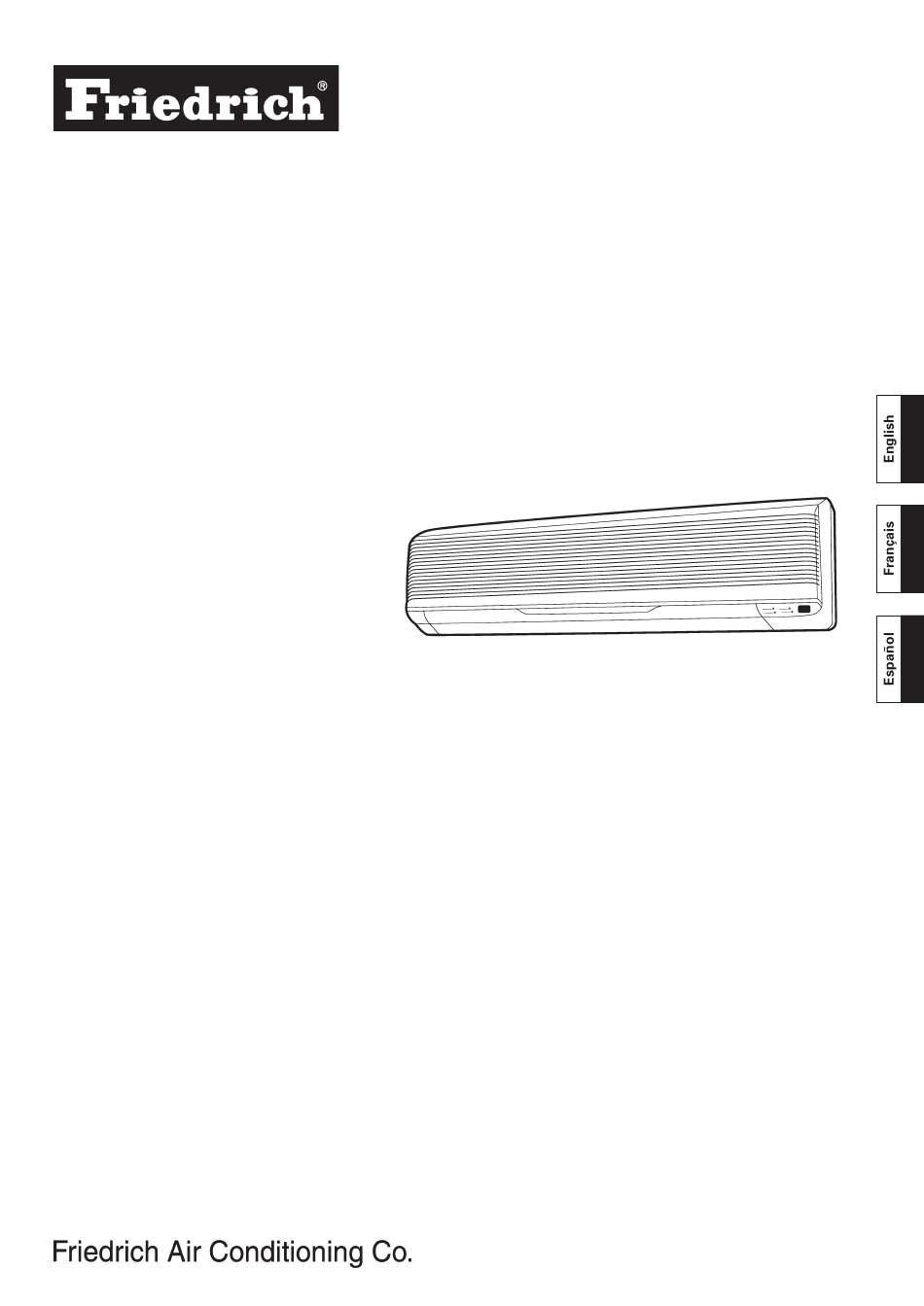

OPERATING MANUAL
MODE D'EMPLOI
MANUAL DE FUNCIONAMIENTO
ROOM AIR CONDITIONER
MULTI SPLIT TYPE
(3 ROOMS)
Indoor Unit
MW18TC3E
Outdoor Unit
MR36TC3E
KEEP THIS OPERATION MANUAL
FOR FUTURE REFERENCE.
CONSERVEZ CE MODE D´EMPLOI AFIN DE
POUVOIR VOUS Y RÉFÉRER ULTÉRIEUREMENT.
GUARDE ESTE MANUAL DE FUNCIONAMIENTO
PARA PODERLO CONSULTAR EN EL FUTURO.
P/N9371415017

Advertisement

Table of Contents
loading

Related Manuals for Friedrich MW18TC3E

Summary of Contents for Friedrich MW18TC3E

  • Page 1 OPERATING MANUAL MODE D’EMPLOI MANUAL DE FUNCIONAMIENTO ROOM AIR CONDITIONER MULTI SPLIT TYPE (3 ROOMS) Indoor Unit MW18TC3E Outdoor Unit MR36TC3E KEEP THIS OPERATION MANUAL FOR FUTURE REFERENCE. CONSERVEZ CE MODE D´EMPLOI AFIN DE POUVOIR VOUS Y RÉFÉRER ULTÉRIEUREMENT. GUARDE ESTE MANUAL DE FUNCIONAMIENTO PARA PODERLO CONSULTAR EN EL FUTURO.

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS .......... 1 SWING OPERATION ..........11 FEATURES AND FUNCTIONS ......... 2 ENERGY SAVE OPERATION ....... 12 NAME OF PARTS ............3 MANUAL AUTO OPERATION ......12 PREPARATION ............5 CLEANING AND CARE ........13 OPERATION .............. 6 TROUBLESHOOTING ..........

  • Page 3: Features And Functions

    FEATURES AND FUNCTIONS AUTOMATIC OPERATION REMOVABLE INTAKE GRILLE G COOLING MODEL The indoor unit’s INTAKE GRILLE can be removed for easy Merely press the START/STOP button, and the unit will cleaning and maintenance. begin automatic operation in the Cooling or Dry mode as appropriate, in accordance with the thermostat setting MILDEW-RESISTANT FILTER and the actual temperature of the room.

  • Page 4: Name Of Parts

    NAME OF PARTS Instructions relating to heating(*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Fig. 1 Fig. 2 Fig. 3 Fig. 5 Fig. 4 Fig. 6 SLEEP TIMER CLOCK AUTO COOL CLOCK TIMER SLEEP MASTER CONTROL TEMP TIME CONTROL ON TIMER RESET...
  • Page 5 Fig. 1 Indoor Unit Fig. 6 Remote Control Unit 1 Operating Control Panel (Fig. 2) G SLEEP Button 2 MANUAL AUTO button H MASTER CONTROL Button I SET TEMP./SET TIME Buttons ( 3 Remote Control Signal Receiver J Signal Transmitter 4 Indicator Lights (Fig.

  • Page 6: Preparation

    PREPARATION CAUTION! Load Batteries (R03/LR03/AAA × 4) G Take care to prevent infants from accidentally swallowing batteries. Open the battery compartment lid. G When not using the remote control unit 1 Slide the battery compartment lid until it stops. for an extended period, remove the 2 While strongly gripping the portion on each side of the battery com- batteries to avoid possible leakage and partment lid that has a rough surface, slide the lid until it comes com-...

  • Page 7: Operation

    OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). To Select Mode Operation SLEEP TIMER Press the START/STOP button. The indoor unit’s OPERATION indicator light (red) will be on. The air conditioner will start operating. COOL Press the MASTER CONTROL button to select the de- sired mode.
  • Page 8 OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). About Mode Operation AUTO: COOLING MODEL G When the room temperature is 4 °F higher than the set temperature, the Cooling Operation mode will switch between Cooling and Drying.

  • Page 9: Timer Operation

    TIMER OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Before using the timer function, be sure that the remote control unit is set to the current time (See page 5). To Use the ON timer or OFF timer SLEEP TIMER Press the START/STOP button...

  • Page 10: Sleep Timer Operation

    TIMER OPERATION About the PROGRAM timer About the ON timer G The PROGRAM timer allows you to integrate OFF timer G The timer function is designed to bring your room to a and ON timer operations in a single sequence. The se- comfortable temperature by the set time;...

  • Page 11: Adjusting The Direction Of Air Circulation

    ADJUSTING THE DIRECTION OF AIR CIRCULATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Vertical (up-down) direction of airflow is adjusted by pressing the remote control unit’s AIR FLOW DIRECTION VERTICAL SET button. Horizontal (right-left) direction of airflow is adjusted by pressing the remote control unit’s AIR FLOW DIRECTION HORIZONTAL SET button.

  • Page 12: Swing Operation

    SWING OPERATION Begin air conditioner operation before performing this procedure. To select Vertical airflow SWING Operation Press the AIR FLOW DIRECTION VERTICAL SWING button . SWING SWING The SWING indicator light (VERTICAL SWING) (orange) will turn on. In this mode, the UP/DOWN air direction flaps will swing automatically to direct the TIME TEST ENERGY...

  • Page 13: Energy Save Operation

    ENERGY SAVE OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). The air conditioner can be operated while keeping energy consumption costs down. How To Use the ENERGY SAVE OPERATION SWING SWING Press the START/STOP button (if the unit is already operating, proceed to step 2).

  • Page 14: Cleaning And Care

    CLEANING AND CARE G Before cleaning the air conditioner, be sure to turn it off and disconnect the power supply. CAUTION! G Be sure the intake grille is installed securely. G When removing and replacing the air filters, be sure not to touch the heat exchanger, as per- sonal injury may result.

  • Page 15: Troubleshooting

    TROUBLESHOOTING Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the cir- WARNING! cuit breaker, and consult authorized service personnel. Merely turning off the unit’s power switch will not completely disconnect the unit from the power source.

  • Page 16: Operating Tips

    TROUBLESHOOTING Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Symptom Items to check See Page G Has there been a power failure? CHECK ONCE Doesn’t operate at all: — MORE G Has a fuse blown out, or a circuit breaker been tripped? G Is the timer operating? 8 to 9 G Is the air filter dirty?
  • Page 17 OPERATING TIPS Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). AUTO Restart In Event of Power Interruption G The air conditioner power has been interrupted by a G Use of other electrical appliances (electric shaver, etc.) or power failure.
