- Page 1 Crestron C2N-SDC-DC Shade & Drape DC Motor Controller Operations & Installation Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. 2005 Crestron Electronics, Inc.
-
Page 3: Table Of Contents
Crestron C2N-SDC-DC Contents Shade & Drape DC Motor Controller: C2N-SDC-DC Introduction...1 Features & Functions...1 Specifications...2 Physical Description ...3 Industry Compliance...5 Setup...6 Network Wiring ...6 Identity Code ...8 Hardware Hookup...10 Installation...11 Two-Gang Box Mounting ...11 4x 4 Inch Box Mounting...12 Programming Software ...13 Earliest Version Software Requirements for the PC ...14... -
Page 5: Shade & Drape Dc Motor Controller: C2N-Sdc-Dc

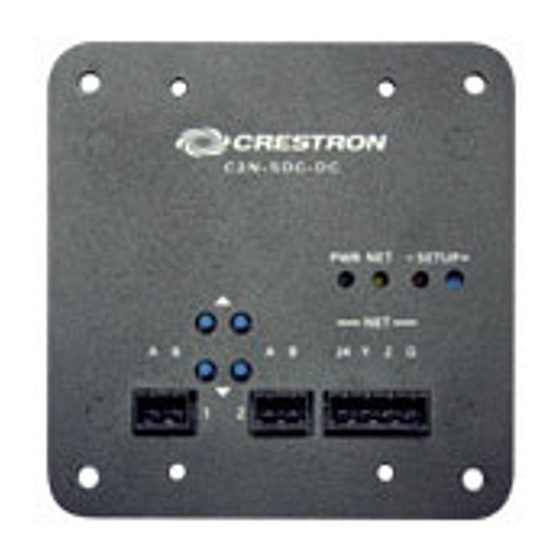

4-inch square electrical box • Four manual pushbutton controls are provided on the faceplate The C2N-SDC-DC is designed to fit inside and mount to a 2-gang wall box or 4 x 4 x 1.5 inch electrical box, where input power for the two shade or drape motors is derived from Cresnet. -
Page 6: Specifications
1. Does not include power for the motors. For example, add 10 Watts for each Somfy LT28B shade motor. Three Watts are consumed by the C2N-SDC-DC when the motors are not operating. Motor loads may be connected to the C2N-SDC-DC up to the available power remaining on the Crestron power supply. -
Page 7: Physical Description
A dedicated power supply for the C2N-SDC-DC and associated motors is recommended. 2. The latest versions can be obtained from the Crestron website. Refer to NOTE after last footnote. 3. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product Catalog for a complete list of 2-Series control systems. - Page 8 Shade & Drape DC Motor Controller Crestron C2N-SDC-DC C2N-SDC-DC, Physical Views, Front and Side C2N-SDC-DC, Physical Views, Rear Shade & Drape DC Motor Controller: C2N-SDC-DC Operations & Installation Guide - DOC. 6373...
-
Page 9: Industry Compliance
Crestron C2N-SDC-DC Controls and Indicators Industry Compliance As of the date of manufacture, the C2N-SDC-DC has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. NOTE: This device complies with part 15 of the FCC rules. Operation is... -
Page 10: Setup
Cresnet power usage of each network unit to be daisy-chained must be added together to determine the Cresnet power usage of the entire chain. If the unit is a home-run from a Crestron system power supply network port, the Cresnet power usage of that unit is the Cresnet power usage of the entire run. - Page 11 Hub/Repeater after only 20 devices. Operations & Installation Guide - DOC. 6373 Shade & Drape DC Motor Controller WIRE GAUGE (AWG) Doubled CAT5 Tripled CAT5 Shade & Drape DC Motor Controller: C2N-SDC-DC 1.50 0.75 0.50 0.34...
-
Page 12: Identity Code
The Net ID of each unit must match an ID code specified in the SIMPL Windows program. The Net ID of the C2N-SDC-DC has been factory set to 23. The Net IDs of multiple C2N-SDC-DCs in the same system must be unique. Net IDs are changed from a personal computer (PC) via Crestron Toolbox. - Page 13 Crestron C2N-SDC-DC 3. Right-click the C2N-SDC-DC Net ID and open the sub-menu. This menu provides a wide range of functions, including; change the Net ID, open text console, upload project, update firmware, etc. Network Device Tree Sub-Menu 4. Select “Change Network ID…”. A box appears around the Net ID, allowing you to make the change.
-
Page 14: Hardware Hookup
Shade & Drape DC Motor Controller Hardware Hookup Refer to the following hookup diagram. The C2N-SDC-DC is equipped with three connector plugs that have screw terminals. Use these connectors to attach the motor wires and Cresnet wires to the C2N-SDC-DC. -
Page 15: Installation
Installation The C2N-SDC-DC may be mounted in a two-gang electrical box or a 4 x 4 inch (1900) electrical box. Ensure that you are using a box with sufficient depth (minimum 1.5 inch) to accommodate the device. -
Page 16: 4X 4 Inch Box Mounting
Installation in a Two-Gang Electrical Box 4 x 4 Inch Box Mounting When mounting the C2N-SDC-DC in a 4 x 4 inch electrical box, use the two 8-32 x 3/8 inch pan head screws as shown in the following illustration. -
Page 17: Programming Software
NOTE: Have a question or comment about Crestron software? Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron website. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at http://support.crestron.com. -
Page 18: Earliest Version Software Requirements For The Pc
Shade & Drape DC Motor Controller Earliest Version Software Requirements for the NOTE: Crestron recommends that you use the latest software and that each device contains the latest firmware to take advantage of the most recently released features. Please check the Crestron website (http://www.crestron.com/updates) for the latest versions of software and... - Page 19 It provides a well-designed graphical environment with a number of workspaces (i.e., windows) in which a programmer can select, configure, program, test, and monitor a Crestron control system. SIMPL Windows offers drag and drop functionality in a familiar ®...
- Page 20 C2N-SDC-DC in Slot 9, with a default Net ID of 23 as shown in the following illustration. NOTE: The first C2N-SDC-DC in a system is preset with a Net ID of 23 when its symbol is dragged into the upper pane of System Views.
-
Page 21: Example Program
Detail View. A description for each signal in the symbol is described in the SIMPL Windows help file (F1). Example Program An example program for the C2N-SDC-DC is available from the "Example Programs" section of the Crestron website (http://www.crestron.com/exampleprograms). Search for C2N-SDC-DC.zip. -
Page 22: Uploading And Upgrading
Shade & Drape DC Motor Controller Uploading and Upgrading NOTE: Crestron recommends that you use the latest software and that each device contains the latest firmware to take advantage of the most recently released features. Please check the Crestron website (http://www.crestron.com/updates) for the latest versions of software and... - Page 23 Crestron C2N-SDC-DC system. These documents are available from the Crestron website. Refer to the following figure for a typical connection diagram when uploading files. NOTE: Use a standard DB9 male to female “straight-through” cable for 2-Series controllers. Typical Connection Diagram when Uploading 1.
- Page 24 Crestron Toolbox main window. 5. Click Tools | Network Device Tree, or click the network device tree icon Shade & Drape DC Motor Controller: C2N-SDC-DC port on the PC. to display the devices in the system. Operations & Installation Guide - DOC. 6373...
- Page 25 NOTE: Toolbox displays a customized list of functions depending on the type of device with which it is communicating. Operations & Installation Guide - DOC. 6373 Shade & Drape DC Motor Controller Shade & Drape DC Motor Controller: C2N-SDC-DC 21...
-
Page 26: Uploading A Simpl Windows Program
18 has been performed. 2. Open Crestron Toolbox. 3. Select Tools | System Info. Crestron Toolbox – Tools | System Info Shade & Drape DC Motor Controller: C2N-SDC-DC Crestron C2N-SDC-DC Operations & Installation Guide - DOC. 6373... - Page 27 “SIMPL Program” Window 6. Click the program. Operations & Installation Guide - DOC. 6373 Shade & Drape DC Motor Controller button to browse for a new compiled (.spz) Shade & Drape DC Motor Controller: C2N-SDC-DC 23...
-
Page 28: Firmware Upgrade
Send. Firmware Upgrade To take advantage of all the C2N-SDC-DC features, it is important that the unit contains the latest firmware available. Please check the Crestron website for the latest version of firmware. Not every product has a... - Page 29 Click Upload New Firmware to browse for the firmware file. “Firmware” Window 6. When the following screen appears, browse to locate the firmware (.csf) file. Operations & Installation Guide - DOC. 6373 Shade & Drape DC Motor Controller Shade & Drape DC Motor Controller: C2N-SDC-DC 25...
-
Page 30: Problem Solving
Click Close. The device reboots with the new firmware. Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. C2N-SDC-DC Troubleshooting TROUBLE Green PWR LED... - Page 31 SETUP LED is flashing CAUTION: Use only Crestron power supplies for Crestron equipment. Failure to do so could cause equipment damage or void the Crestron warranty. Operations & Installation Guide - DOC. 6373 Shade & Drape DC Motor Controller...
-
Page 32: Further Inquiries
Crestron website (www.crestron.com) for a listing of Crestron worldwide offices. You can also log onto the online help section of the Crestron website to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 33: Return And Warranty Policies
(property or economic damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a third party or made by the purchaser for a third party. - Page 34 Shade & Drape DC Motor Controller Crestron C2N-SDC-DC This page intentionally left blank. Shade & Drape DC Motor Controller: C2N-SDC-DC Operations & Installation Guide - DOC. 6373...
- Page 35 Crestron C2N-SDC-DC Shade & Drape DC Motor Controller This page intentionally left blank. Operations & Installation Guide - DOC. 6373 Shade & Drape DC Motor Controller: C2N-SDC-DC 31...
- Page 36 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6373 15 Volvo Drive Rockleigh, NJ 07647 (2012949) Tel: 888.CRESTRON 07.05 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
