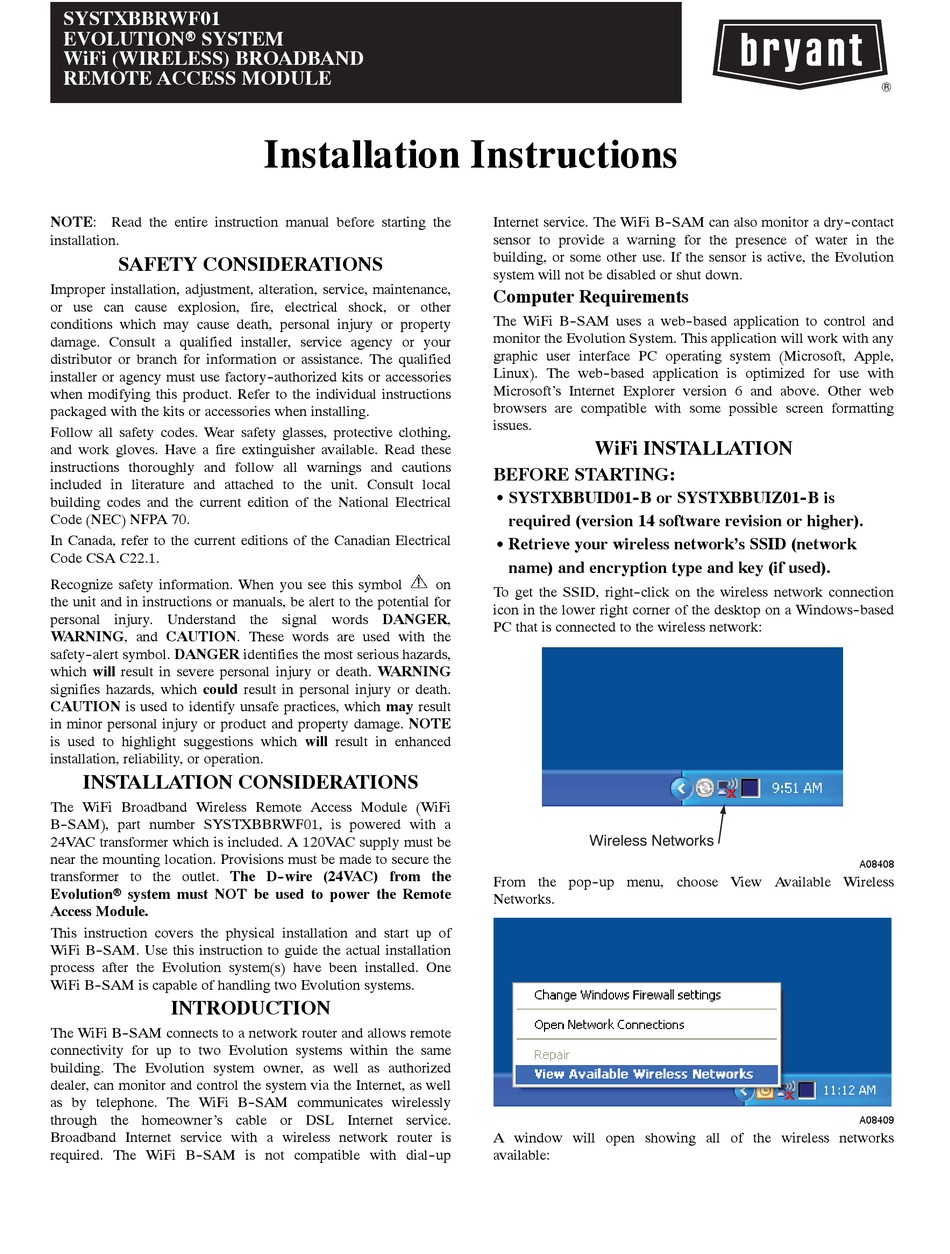

SYSTXBBRWF01
EVOLUTIONr SYSTEM
WiFi (WIRELESS) BROADBAND
REMOTE ACCESS MODULE
NOTE: Read the entire instruction manual before starting the
installation.
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service, maintenance,
or use can cause explosion, fire, electrical shock, or other
conditions which may cause death, personal injury or property
damage. Consult a qualified installer, service agency or your
distributor or branch for information or assistance. The qualified
installer or agency must use factory- -authorized kits or accessories
when modifying this product. Refer to the individual instructions
packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Have a fire extinguisher available. Read these
instructions thoroughly and follow all warnings and cautions
included in literature and attached to the unit. Consult local
building codes and the current edition of the National Electrical
Code (NEC) NFPA 70.
In Canada, refer to the current editions of the Canadian Electrical
Code CSA C22.1.
Recognize safety information. When you see this symbol
the unit and in instructions or manuals, be alert to the potential for
personal injury. Understand the signal words DANGER,
WARNING, and CAUTION. These words are used with the
safety- -alert symbol. DANGER identifies the most serious hazards,
which will result in severe personal injury or death. WARNING
signifies hazards, which could result in personal injury or death.
CAUTION is used to identify unsafe practices, which may result
in minor personal injury or product and property damage. NOTE
is used to highlight suggestions which will result in enhanced
installation, reliability, or operation.
INSTALLATION CONSIDERATIONS
The WiFi Broadband Wireless Remote Access Module (WiFi
B- -SAM), part number SYSTXBBRWF01, is powered with a
24VAC transformer which is included. A 120VAC supply must be
near the mounting location. Provisions must be made to secure the
transformer to the outlet. The D- -wire (24VAC) from the
Evolutionr system must NOT be used to power the Remote
Access Module.
This instruction covers the physical installation and start up of
WiFi B- -SAM. Use this instruction to guide the actual installation
process after the Evolution system(s) have been installed. One
WiFi B- -SAM is capable of handling two Evolution systems.
INTRODUCTION
The WiFi B- -SAM connects to a network router and allows remote
connectivity for up to two Evolution systems within the same
building. The Evolution system owner, as well as authorized
dealer, can monitor and control the system via the Internet, as well
as by telephone. The WiFi B- -SAM communicates wirelessly
through the homeowner's cable or DSL Internet service.
Broadband Internet service with a wireless network router is
required. The WiFi B- -SAM is not compatible with dial- -up
Installation Instructions
on
Internet service. The WiFi B- -SAM can also monitor a dry- -contact
sensor to provide a warning for the presence of water in the
building, or some other use. If the sensor is active, the Evolution
system will not be disabled or shut down.
Computer Requirements
The WiFi B- -SAM uses a web- -based application to control and
monitor the Evolution System. This application will work with any
graphic user interface PC operating system (Microsoft, Apple,
Linux). The web- -based application is optimized for use with
Microsoft's Internet Explorer version 6 and above. Other web
browsers are compatible with some possible screen formatting
issues.
WiFi INSTALLATION
BEFORE STARTING:
S SYSTXBBUID01- - B or SYSTXBBUIZ01- - B is
required (version 14 software revision or higher).
S Retrieve your wireless network's SSID (network
name) and encryption type and key (if used).
To get the SSID, right- -click on the wireless network connection
icon in the lower right corner of the desktop on a Windows- -based
PC that is connected to the wireless network:
Wireless Networks
From the pop- -up menu, choose View Available Wireless
Networks.
A window will open showing all of the wireless networks
available:
A08408
A08409
Advertisement
Related Manuals for Bryant EVOLUTIONR SYSTEM SYSTXBBRWF01
Summary of Contents for Bryant EVOLUTIONR SYSTEM SYSTXBBRWF01
-
Page 1: Installation Instructions
WiFi B- -SAM is capable of handling two Evolution systems. INTRODUCTION The WiFi B- -SAM connects to a network router and allows remote connectivity for up to two Evolution systems within the same building. The Evolution system owner, as well as authorized dealer, can monitor and control the system via the Internet, as well as by telephone. -
Page 2: Wireless Setup
SSID of a network, note the name of your network (including case of letters) Encryption type and key will need to be obtained from your wireless router’s administration web page. Please see the instructions of your router to obtain this. Note your network information here before installing the WiFi B- -SAM. - Page 3 After the Evolution system has learned the WiFi B- -SAM, the homeowner’s network parameters may be entered at the User Interface. If the homeowner’s network router is setup for DHCP, then the WiFi B- -SAM’s network parameters cannot be changed.
-
Page 4: Troubleshooting
Internet service is operating properly. If the Yellow LED is lit solid, then the WiFi B- -SAM sent its message but did not receive a reply. The Bryant server may be down. Retry at a later time. Test aborting - - There is no method to abort a test once it is started, other than to remove power. - Page 5 TEST AUXILIARY SENSOR WLSC STATUS ABC TO COMM1 SYSTEM 1 COMM2 ABC TO SYSTEM 2 Wireless Ethernet Module SERIAL NUMBER WiFi Module Control Board Antenna Connection Home Automation Connection (RS- 232) 24VAC A06513...
-
Page 6: Signal Strength
PORT: This can be changed to use a different port through the homeowner’s network. The default is port 49152. SERVER STATUS: Shows status of the SAM connection to Bryant’s servers. If the screen shows NON CONNECTED, please check network settings or network cable.
