ADTRAN NetVanta 5305 Quick Start Manual

®

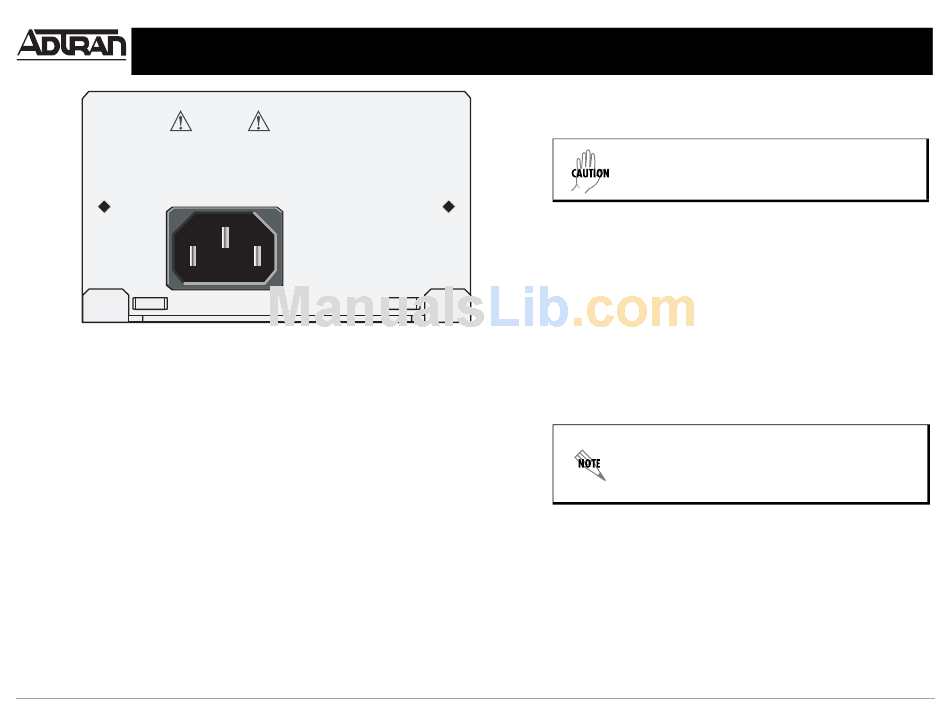

NetVanta 5305 AC Power Supply
Quick Start Guide
CAUTION:
REMOVE POWER CORD PRIOR
TO REMOVAL OF POWER SUPPLY
85-130VAC/190-250VAC
4A/2A 50/60Hz
S
PECIFICATIONS
Power Supply 85 to 130 VAC /190 to 250 VAC input
4A/2A 50/60Hz input current
250 watts of output power
Compliance FCC Part 15 Class A, EN 550022 Class A, EN 55024, EN 61000-3-2,
EN 61000-3-3
UL/CUL 60950, EN 60950, IEC 60950, AS/NZS 60950
Physical Dimensions: 2.5-inch H x 4.2-inch W x 9.1-inch D
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent, noncondensing
Quick Start Guide, 61200840L1-13B, July 2005 Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at www.adtran.com.
I I
NSTALLATION NSTRUCTIONS
1. Disconnect the power cord.
Disconnect both power cords when installing redundant
power supplies.
2. Use a screwdriver to remove the cover plate (or existing power
supply if the part is a replacement) from the appropriate power slot
in the NetVanta 5305 base unit.
3. Slide the power supply into the appropriate slot until it is firmly
positioned against the chassis.
4. Replace the screw in the front panel and tighten with a
screwdriver.
5. Reconnect the power cord(s).
6. Complete the installation of the system as specified in the
NetVanta 5305 Hardware Installation Guide provided on the
ADTRAN OS System Documentation CD.
Important: For additional details on product features,
specifications, installation, and safety, refer to the
appropriate Hardware Installation Guide on the ADTRAN
OS System Documentation CD shipped with the base unit
and available online at www.adtran.com.
Copyright © 2005 ADTRAN, All Rights Reserved
P/N 1200840L1
