Bryant LEGACY 213R Product Data

Legacy-rnc series sizes 018 to 060 1-1/2 to 5 nominal tons
Hide thumbs

Advertisement

Table of Contents

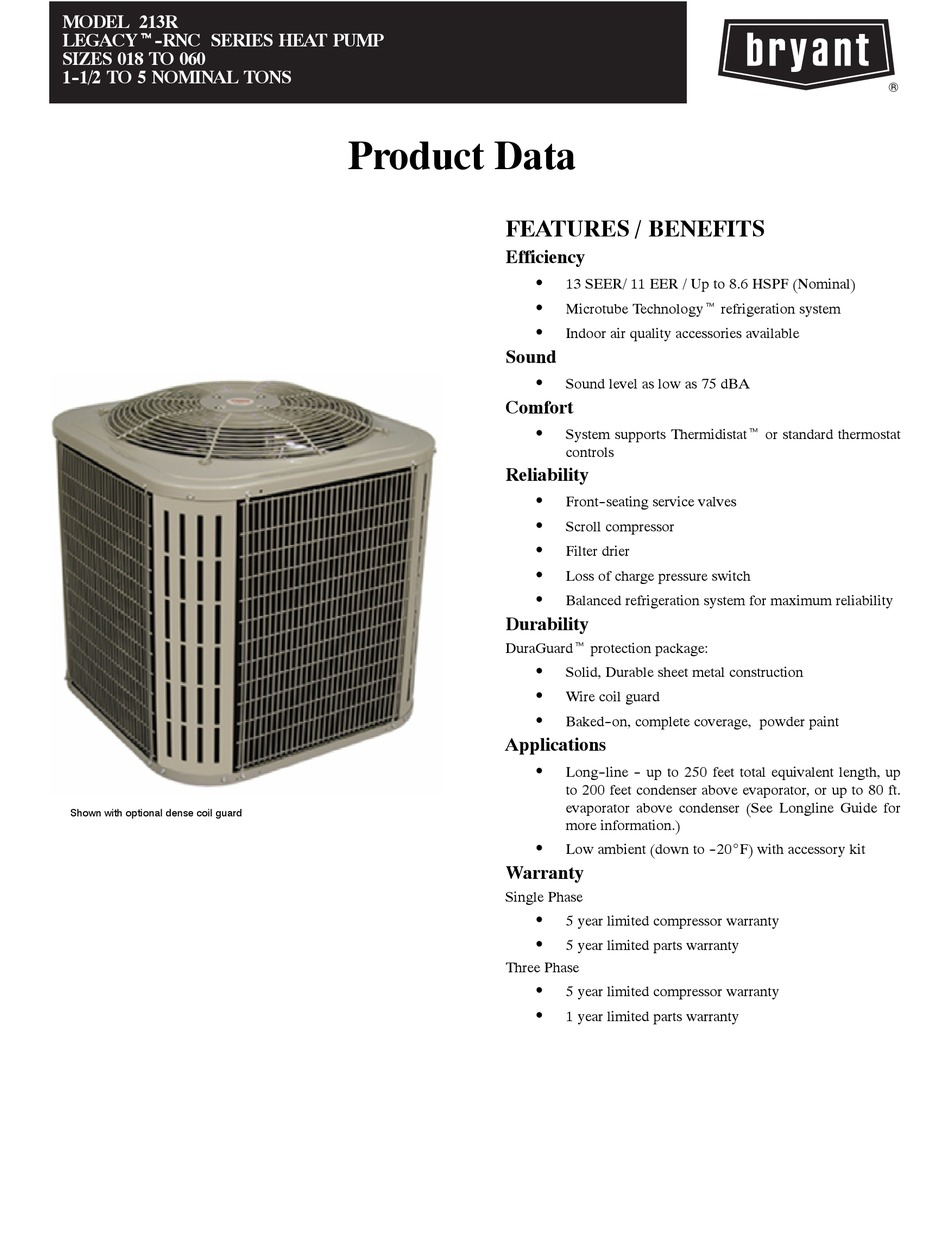

MODEL 213R
LEGACYt- -RNC SERIES HEAT PUMP
SIZES 018 TO 060
1- -1/2 TO 5 NOMINAL TONS
Shown with optional dense coil guard

Product Data

FEATURES / BENEFITS
Efficiency
Sound
Comfort
Reliability
Durability
DuraGuardt protection package:
Applications
Warranty
Single Phase
Three Phase
S
13 SEER/ 11 EER / Up to 8.6 HSPF (Nominal)
S
Microtube Technologyt refrigeration system
S
Indoor air quality accessories available
S
Sound level as low as 75 dBA
S
System supports Thermidistatt or standard thermostat
controls
S
Front- -seating service valves
S
Scroll compressor
S
Filter drier
S
Loss of charge pressure switch
Balanced refrigeration system for maximum reliability
S
S
Solid, Durable sheet metal construction
S
Wire coil guard
S
Baked- -on, complete coverage, powder paint
S
Long- -line - - up to 250 feet total equivalent length, up
to 200 feet condenser above evaporator, or up to 80 ft.
evaporator above condenser (See Longline Guide for
more information.)
S
Low ambient (down to - -20_F) with accessory kit
S
5 year limited compressor warranty
S
5 year limited parts warranty
S
5 year limited compressor warranty
S
1 year limited parts warranty

Advertisement

Table of Contents
loading

Related Manuals for Bryant LEGACY 213R

Summary of Contents for Bryant LEGACY 213R

  • Page 1: Product Data

    MODEL 213R LEGACYt- -RNC SERIES HEAT PUMP SIZES 018 TO 060 1- -1/2 TO 5 NOMINAL TONS Shown with optional dense coil guard Product Data FEATURES / BENEFITS Efficiency 13 SEER/ 11 EER / Up to 8.6 HSPF (Nominal) Microtube Technologyt refrigeration system...

  • Page 2: Model Number Nomenclature

    G=Dense Coil ---3 Guard E=460/3 ISO 9001:2000 REGISTERED As an Energy Star® Partner, Bryant Heating & Cooling Systems has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Refer to the combination ratings in Product Data for system combinations that meet Energy Star guidelines.

  • Page 3: Physical Data

    * For tubing sets between 80 and 200 ft. horizontal or 20 ft. vertical differential, consult the Longline Guideline. Note: See unit Installation Instruction for proper installation. VAPOR LINE SIZING AND COOLING CAPACITY LOSS 1- -STAGE HEAT PUMP APPLICATIONS LONG LINE APPLICATION: An application is considered ”Long line” when the total equivalent tubing length exceeds 80 ft.

  • Page 4: Accessory Thermostats

    * Do not use in zoning heat pump applications. ** Outdoor temperature sensor is an accessory for all Bryant electronic thermostats, except the non ---programmable air conditioner version and builder;s thermostats. It allows the temperature at a remote location (outdoors) to be displayed on the thermostat. The outdoor air temperature sensor must be used with the HybridHeatt (dual fuel) thermostat.

  • Page 5: Accessory Usage Guideline

    Required when low ambient kit has been added. 7. Isolation Relay An SPDT relay which switches the low- -ambient controller out of the outdoor fan motor circuit when the heat pump switches to heating mode. Usage Guideline: Required in all heat pumps where low ambient kit has been added.
  • Page 6 Accessory Description and Usage (Listed Alphabetically) - - CONTINUED 11. Outdoor Air Temperature Sensor Designed for use with Bryant Thermostats listed in this publication. This device enables the thermostat to display the outdoor temperature. This device also is required to enable special thermostat features such as auxiliary heat lock out.

  • Page 7: Electrical Data

    ELECTRICAL DATA (VOLTAGE) OPER VOLTS* V/PH UNIT SIZE --- SERIES (N) 018--- A (N) 024--- A (N) 030--- A (N) 036--- A 208/230/1 (N) 042--- A (N) 048--- A (N) 060--- A (P) 030--- A (P) 036--- A (P) 042--- A 208/230/3 (P) 048--- A (P) 060--- A...
  • Page 9 MBTUH CAPACITY, HEATING INTEGRATED UNIT LOSS, HEAT BUILDING...

  • Page 10: Combination Ratings

    COMBINATION RATINGS Unit Size Cooling Indoor Model --- Series Capacity Factory Enhance *FA4CN(F,C)018 17,100 TDR&TXV FA4CN(F,C)024 17,200 TDR&TXV FC4DNF018 17,500 TDR&TXV FC4DNF024 17,600 TDR&TXV FF1ENE018 17,100 TDR&TXV FF1ENE024 17,300 TDR&TXV FK4DNF001 17,500 TDR&TXV FK4DNF002 17,700 TDR&TXV CAR**1814A** 16,900 CAR**1814A** 16,900 TDR&TXV CAR**2414A** 17,400...
  • Page 11 COMBINATION RATINGS - - CONTINUED Unit Size Cooling Indoor Model --- Series Capacity Factory Enhance CNRV*2414A** 22,800 CNRV*2414A** 22,600 TDR&TXV 024---A CNRV*2417A** 22,800 CNRV*2417A** 22,800 TDR&TXV CNRV*2417A** 22,800 TDR&TXV CNRV*3014A** 22,800 CNRV*3014A** 22,800 TDR&TXV CNRV*3017A** 22,800 CNRV*3017A** 22,800 TDR&TXV CNRV*3017A** 23,000 TDR&TXV CNRH*2417A**...
  • Page 12 COMBINATION RATINGS - - CONTINUED Unit Size --- Cooling Indoor Model Series Capacity Factory Enhance *FA4CN(F,C)030 28,400 TDR&TXV FC4DNF030 28,800 TDR&TXV FC4DN(F,B)036 29,200 TDR&TXV FF1ENE030 28,200 TDR&TXV FF1ENE036 28,800 TDR&TXV FK4DNF001 28,400 TDR&TXV FK4DNF002 28,600 TDR&TXV FK4DNF003 28,800 TDR&TXV FK4DNF005 29,800 TDR&TXV CAR**3014A**...
  • Page 13 COMBINATION RATINGS - - CONTINUED Unit Size --- Cooling Indoor Model Series Capacity Factory Enhance CNRH*3617A** 28,400 TDR&TXV CNRH*3617A** 28,400 TDR&TXV CNRH*3617A** 28,400 TDR&TXV CNRH*3617A** 28,600 TDR&TXV CNRH*3617A** 28,600 TDR&TXV CNRH*3617A** 28,600 TDR&TXV CNRF*3618A** 28,600 CSRH*3012A** 28,800 CSRH*3012A** 28,400 TDR&TXV CSRH*3012A** 28,400 TDR&TXV...
  • Page 14 COMBINATION RATINGS - - CONTINUED Unit Size --- Cooling Indoor Model Series Capacity Factory Enhance CNRV*4221A** 33,600 TDR&TXV CNRV*4221A** 33,800 TDR&TXV CNRV*4221A** 33,800 TDR&TXV CNRV*4221A** 33,800 TDR&TXV CNRH*3617A** 33,200 TDR&TXV CNRH*3617A** 33,200 TDR&TXV CNRH*3617A** 33,200 TDR&TXV CNRH*3617A** 33,200 TDR&TXV CNRH*3617A** 33,400 TDR&TXV CNRH*3617A**...
  • Page 15 COMBINATION RATINGS - - CONTINUED Unit Size --- Cooling Indoor Model Series Capacity Factory Enhance CAR**4224A** 40,500 TDR&TXV CAR**4224A** 41,000 TDR&TXV CAR**4224A** 41,000 TDR&TXV CAR**4224A** 41,000 TDR&TXV CAR**4817A** 42,500 CAR**4817A** 42,000 TDR&TXV CAR**4817A** 42,000 TDR&TXV CAR**4821A** 42,000 CAR**4821A** 41,500 TDR&TXV CAR**4821A** 41,500 TDR&TXV...
  • Page 16 COMBINATION RATINGS - - CONTINUED Unit Size --- Cooling Indoor Model Series Capacity Factory Enhance CSRH*4212A** 41,000 TDR&TXV CSRH*4212A** 40,500 TDR&TXV CSRH*4212A** 41,000 TDR&TXV CSRH*4212A** 41,000 TDR&TXV CSRH*4212A** 41,000 TDR&TXV CSRH*4212A** 41,000 TDR&TXV CSRH*4212A** 41,000 TDR&TXV CSRH*4212A** 41,000 TDR&TXV CSRH*4212A** 41,000 TDR&TXV CSRH*4212A**...
  • Page 17 COMBINATION RATINGS - - CONTINUED Unit Size --- Cooling Indoor Model Series Capacity Factory Enhance CNRH*6024A** 45,500 TDR&TXV CNRH*6024A** 45,500 TDR&TXV CNRH*6024A** 45,500 TDR&TXV CNRH*6024A** 45,500 TDR&TXV CNRH*6024A** 46,000 TDR&TXV CNRH*6024A** 46,000 TDR&TXV CNRH*6024A** 46,000 TDR&TXV CSRH*4812A** 44,500 TDR&TXV CSRH*4812A** 44,500 TDR&TXV CSRH*4812A**...

  • Page 18: Detailed Cooling Capacities

    DETAILED COOLING CAPACITIES EVAPORATOR Total Capacity Capacity Sys- MBtuh† MBtuh† Total Sens‡ Total KW** 20.06 10.33 1.19 19.34 18.25 12.89 1.19 17.57 16.94 12.44 1.19 16.28 16.64 15.38 1.18 16.00 16.16 16.16 1.18 15.64 20.39 10.80 1.22 19.65 18.55 13.67 1.22 17.84 17.22...
  • Page 19 DETAILED COOLING CAPACITIES - - CONTINUED EVAPORATOR Capacity Capacity Total MBtuh† MBtuh† System Sens KW** Total Total ‡ 26.55 13.79 1.69 25.58 24.11 17.20 1.67 23.20 22.37 16.59 1.66 21.51 22.00 20.58 1.66 21.18 21.50 21.50 1.66 20.82 27.00 14.44 1.73 25.99 24.52...
  • Page 20 DETAILED COOLING CAPACITIES - - CONTINUED EVAPORATOR Total Capacity Capacity Sys- MBtuh† MBtuh† Total Sens‡ Total KW** 33.50 17.16 2.08 32.17 30.45 21.24 2.09 29.23 28.25 20.51 2.09 27.10 27.76 25.27 2.09 26.65 26.84 26.84 2.09 25.94 34.09 17.92 2.13 32.70 31.00 22.51...
  • Page 21 DETAILED COOLING CAPACITIES - - CONTINUED EVAPORATOR Total Capacity Capacity Sys- MBtuh† MBtuh† Total Sens‡ Total KW** 40.13 20.97 2.51 38.65 36.44 25.98 2.49 35.06 1050 33.79 25.06 2.47 32.49 33.26 30.90 2.47 32.01 32.40 32.40 2.47 31.38 40.86 21.96 2.55 39.32 37.11...
  • Page 22 DETAILED COOLING CAPACITIES - - CONTINUED EVAPORATOR Capacity Capacity Total MBtuh† MBtuh† System Sens KW** Total Total ‡ 49.23 25.32 3.00 47.42 44.67 31.16 2.96 42.99 1225 41.32 30.04 2.93 39.73 40.55 36.90 2.93 39.01 39.14 39.14 2.92 37.92 50.21 26.50 3.05 48.33...
  • Page 23 DETAILED COOLING CAPACITIES - - CONTINUED EVAPORATOR AIR Capacity Capacity Total MBtuh† System MBtuh† KW** Total Sens‡ Total 54.52 28.06 3.28 52.55 49.39 34.55 3.25 47.56 45.73 33.33 3.23 44.01 1400 44.91 41.01 3.22 43.25 43.46 43.46 3.22 42.11 55.63 29.41 3.34 53.59...
  • Page 24 DETAILED COOLING CAPACITIES - - CONTINUED EVAPORATOR Capacity Capacity Total MBtuh† MBtuh† System Sens KW** Total Total ‡ 69.61 35.82 4.46 67.00 63.45 44.44 4.39 61.04 1750 58.99 42.98 4.34 56.74 57.89 52.98 4.33 55.72 56.07 56.07 4.31 54.33 70.84 37.47 4.56 68.11...

  • Page 25: Heat Pump Heating Performance

    HEAT PUMP HEATING PERFORMANCE INDOOR AIR --- 3 Capacity Total Capacity Total MBtuh Sys- MBtuh Sys- Total Total KW† KW† teg* teg* 9.66 8.89 1.25 12.20 11.21 1.31 9.85 9.06 1.27 12.42 11.41 1.32 10.02 9.22 1.29 12.62 11.60 1.33 9.43...
  • Page 26 HEAT PUMP HEATING PERFORMANCE - - CONTINUED INDOOR AIR --- 3 Capacity Total Capacity Total MBtuh Sys- MBtuh Sys- Total Total KW† KW† teg* teg* 9.96 9.16 1.51 12.42 11.42 1.58 10.14 9.33 1.53 12.62 11.60 1.59 10.31 9.48 1.56 12.80 11.77...
  • Page 27 HEAT PUMP HEATING PERFORMANCE - - CONTINUED INDOOR AIR --- 3 Capacity Total Capacity Total MBtuh Sys- MBtuh Sys- Total Total KW† KW† teg* teg* 12.29 11.31 1.99 15.26 14.02 2.07 1000 12.52 11.51 2.02 15.50 14.24 2.09 1125 12.72 11.70 2.05...
  • Page 28 HEAT PUMP HEATING PERFORMANCE - - CONTINUED INDOOR AIR --- 3 Capacity Total Capacity Total MBtuh Sys- MBtuh Sys- Total Total KW† KW† teg* teg* 1050 14.65 13.48 2.24 18.17 16.70 2.34 1200 14.85 13.66 2.25 18.38 16.89 2.34 1350 15.02 13.82...
  • Page 29 HEAT PUMP HEATING PERFORMANCE - - CONTINUED INDOOR AIR --- 3 Capacity Total Capacity Total MBtuh Sys- MBtuh Sys- Total Total KW† KW† teg* teg* 1225 16.93 15.57 2.59 21.12 19.41 2.71 1400 17.18 15.81 2.62 21.39 19.66 2.72 1575 17.41 16.02...
  • Page 30 HEAT PUMP HEATING PERFORMANCE - - CONTINUED INDOOR AIR --- 3 Capacity Total Capacity Total MBtuh Sys- MBtuh Sys- Total Total KW† KW† teg* teg* 1400 19.49 17.93 3.03 24.20 22.24 3.17 1600 19.80 18.21 3.05 24.54 22.55 3.18 1800 20.07 18.47...
  • Page 31 HEAT PUMP HEATING PERFORMANCE - - CONTINUED INDOOR AIR --- 3 Capacity Total Capacity Total MBtuh Sys- MBtuh Sys- Total Total KW† KW† teg* teg* 1750 25.42 23.39 3.96 30.92 28.42 4.10 2000 25.81 23.75 4.00 31.33 28.79 4.14 2250 26.18 24.08...

  • Page 32: Guide Specifications General

    GUIDE SPECIFICATIONS GENERAL System Description Outdoor- -mounted, air- -cooled, split- -system heat pump unit suitable for ground or rooftop installation. Unit consists of a hermetic compressor, an air- -cooled coil, propeller- -type condenser fan, and a control box. Unit will discharge supply air upward as shown on contract drawings.
