Xtreme XM Series Friction Feeders
Touchscreen Manual
Software version XM-13.3.6
Go to
http://www.superior-phs.com/setup.html
For Touchscreen Setup Videos
Why Would You Go Anywhere Else?

Advertisement

loading

Related Manuals for Superior Xtreme XM Series

Summary of Contents for Superior Xtreme XM Series

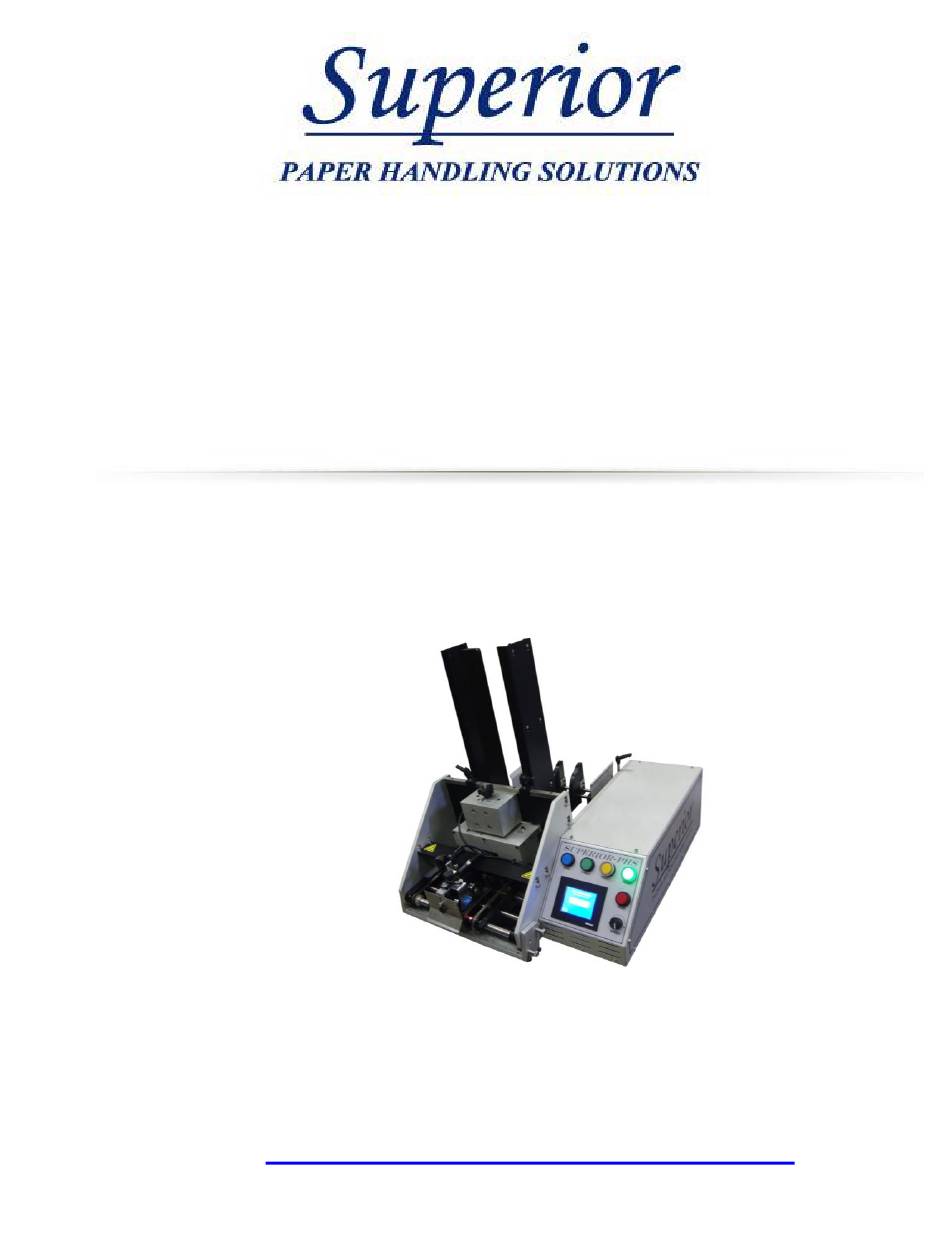

  • Page 1 Xtreme XM Series Friction Feeders Touchscreen Manual Software version XM-13.3.6 Go to http://www.superior-phs.com/setup.html For Touchscreen Setup Videos Why Would You Go Anywhere Else?

  • Page 2: Table Of Contents

    Have this information ready when calling in about your equipment: Model: Serial #: Warranty Start Date: © Superior Paper Handling Solutions, Inc. All rights reserved. Illustrations in this guide are for reference only and may depict optional features that are available at additional costs. Superior Paper Handling Solutions, Inc.

  • Page 3: Power Up Screen

    POWER UP SCREEN Superior Performance, Superior Value POWER UP SCREEN 1. Run Screen Button: Takes operator directly to Run Screen NOTE: All settings from previous power down will be retained © 2005-2013 Superior-PHS...

  • Page 4: Run Screen

    All other feeder stops can be restaged and the batch count will complete. 3. Count Reset Button: When pressed sets Actual Count to “0” zero. You can press the Count Reset Button at any time and the complete batch count request will re-issue. © 2005-2015 Superior-PHS...
  • Page 5 RUN SCREEN Superior Performance, Superior Value 4. Up/Down Screen Arrow Buttons: When pressed moves to the next or previous screen. 5. Dropper Screen Button: Takes operator directly to Dropper screen. 6. Continuous ON/OFF: To run in ‘Continuous Mode’, turn ‘ON’ and press the CYCLE button.

  • Page 6: Job Set Function

    Job Set Function to ‘OFF’ then hit the ‘Reset Button’. The red and yellow button will turn off and the green ready button will illuminate. You can then run in standard mode or start a new job. For a video demonstration, watch the ‘Job Set Screen’ video at http://www.superior-phs.com/setup.html © 2005-2015 Superior-PHS...

  • Page 7: Main Set-Up Screen

    MAIN SET-UP SCREEN Superior Performance, Superior Value MAIN SET-UP SCREEN 1. Slow Down CNT: Slow Down Count is used to automatically slow down on the X to last piece of the Batch Size, where X is the valued entered. Typically set to “0” or “1”. When running a 1 count or 2 count, it is recommended to set the value to “0”.
  • Page 8 Main Set-up Screen. 6. Up/Down Screen Arrow Buttons: When pressed moves to the next screen. 7. Run Screen Button: Takes operator directly to Run Screen 8. Dropper Screen Button: Takes operator directly to Dropper screen. © 2005-2015 Superior-PHS...

  • Page 9: Error Detect Set-Up Screen

    ERROR DETECT SET-UP SCREEN Superior Performance, Superior Value ERROR DETECT SET-UP SCREEN 1. Miss Detect: Miss Detect occurs when a new trigger signal or cycle signal is received prior to finishing the current Batch Size, provided this error condition is turned ON.

  • Page 10: Counters Screen

    5 and the batch is counted, the piece counter will increment by 5. Counter is NOT resettable. 7. Up/Down Screen Arrow Buttons: When pressed moves to the next screen. 8. Run Screen Button: Takes operator directly to Run Screen 9. Dropper Screen Button: Takes operator directly to Dropper screen. © 2005-2015 Superior-PHS...

  • Page 11: Diagnostics Screen

    DIAGNOSTICS SCREEN Superior Performance, Superior Value DIAGNOSTICS SCREEN 1. Sensor Diagnostics: Activate either the Sheet, Trigger, or Double Detect sensor. When sensor is active, respective green light will come on. Green light indicates sensor, all wiring, and PLC inputs are good.

  • Page 12: Dropper Screen

    Dropper will need to be adjusted in and out when conveyor side guides are adjusted in and out. © 2005-2015 Superior-PHS...
  • Page 13 DROPPER SCREEN Superior Performance, Superior Value 4. Select Small Product or Large Product Deflector plate and install on Feeder Discharge nose using screws provided. Brass hold down guide fingers should not hang substantially below the dropper forks. 5. Turn Dropper ON in the Dropper Screen. See Dropper Screen settings below for details.
  • Page 14 Auto/Manual button to toggle between dropper being in Auto Mode and Manual Mode. When in the Auto Mode, when Feeder Cycle Button is pressed or a Trigger Signal is received, the dropper will retract, then extend, then feeder will feed next © 2005-2015 Superior-PHS...
  • Page 15 DROPPER SCREEN Superior Performance, Superior Value batch. When in the Manual Mode and Dropper is ON, system will not cycle as in Auto Mode. System will ONLY allow operator to press Dropper Cycle Button. See Section 5 below. 5. Dropper Cycle and Open/Close Button: When Dropper is ON and Dropper is in Manual Mode, this button will manually cycle the dropper forks one half of a cycle.
  • Page 16 Superior PAPER HANDLING SOLUTIONS © 2005-2015 Superior-PHS...
  • Page 17 DROPPER SCREEN Superior Performance, Superior Value OPERATORS NOTE PAGE © 2005-2013 Superior-PHS...
